DJI O4 Air Unit (Lite) Digital FPV System
AU$187.95
The DJI O4 Air Unit features the advanced DJI O4 video transmission system, delivering ultra-low latency and exceptional video quality in a lightweight, compact design.
ONLY 5 LEFT
Description
DJI O4 Air Unit (Lite) Digital FPV System
The DJI O4 Air Unit has arrived!

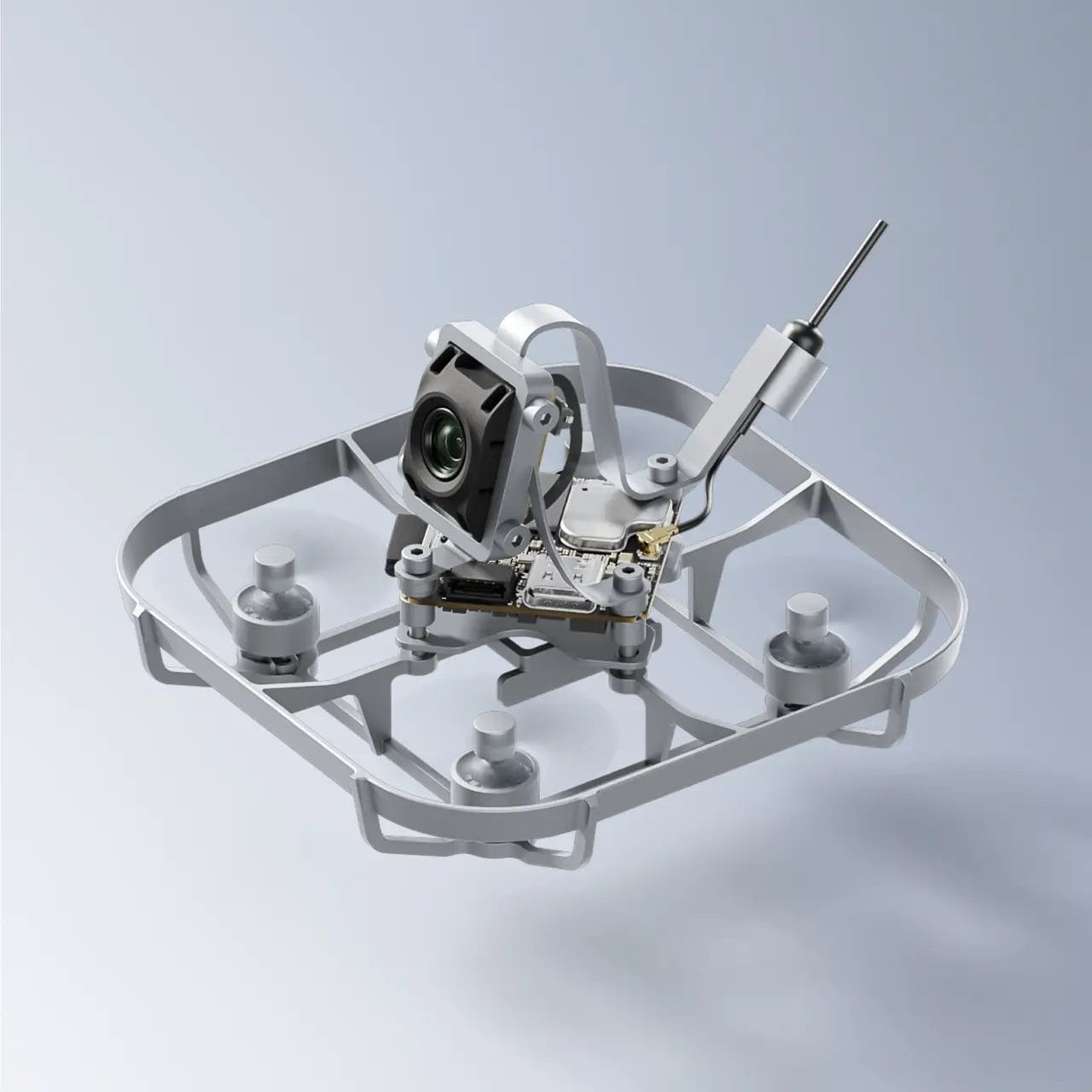

Designed for high-performance FPV, the DJI O4 Air Unit combines advanced DJI transmission technology with a compact, lightweight design. Delivering impressive image quality over long distances, it provides ultra-low latency for an immersive flying experience. Equipped with cutting-edge video processing and a 155° super-wide field of view, the O4 Air Unit offers exceptional clarity and responsiveness. Its versatile compatibility with a range of systems makes it an ideal choice for both hobbyists and professionals. Elevate your FPV experience with the DJI O4 Air Unit!
Specifications
Air Unit
- Weight
- Air Unit (camera module excluded): 5.1 g
- Air Unit (camera module included): 8.2 g
- Antenna: 0.75 g
- Dimensions
- Transmission Module: 30×30×6 mm
- Camera Module: 13.44×12.36×16.50 mm
- Coaxial Cable: 50 mm
- 3-in-1 Cable: 50 mm
- Antenna: 80 mm
Video Transmission
- Operating Frequency
- 5.170-5.250 GHz
- 5.725-5.850 GHz
- Transmitter Power (EIRP)
- 5.1 GHz: <23 dBm
- 5.8 GHz: <30 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
- Lowest Latency
- With DJI Goggles 3: 20 ms
- With DJI Goggles N3: 24 ms
- With DJI Goggles 2/Goggles Integra: <35 ms
- Max Video Transmission Range
- With DJI Goggles 3/DJI Goggles N3: 10 km (FCC), 6 km (CE/SRRC)
- Live View Quality: 1080p@30/50/60/100fps
- Communication Bandwidth: Max 60 MHz
- Antenna: 1T1R
Camera
- Image Sensor: 1/2-inch CMOS
- Lens
- FOV: 117.6°
- Equivalent Focal Length: 14 mm
- Aperture: f/2.8
- Focus: 0.6 m to ∞
- ISO Range: 100-6400 (Auto), 100-12800 (Manual)
- Video Resolution
- 4K (4:3): 3840×2880@30/50/60fps
- 4K (16:9): 3840×2160@30/50/60fps
- 1080p (4:3): 1440×1080@30/50/60/100/120fps
- 1080p (16:9): 1920×1080@30/50/60/100/120fps
- Video Format: MP4
- Max Video Bitrate: 100 Mbps
- Color Mode: Normal Mode
- EIS: RockSteady 3.0+
Hardware
- Input Voltage: 3.7-13.2 V
- Operating Temperature: -10° to 40° C
- Storage
- Built-in Storage: 23 GB
- SD Card Support: Not supported
Compatibility
- Supported Flight Controller: Betaflight 4.3.0 and above
- Supported DJI Goggles and Controllers
- DJI Goggles 3 + DJI FPV Remote Controller 3
- DJI Goggles N3 + DJI FPV Remote Controller 3
- DJI Goggles 2/Goggles Integra + DJI FPV Remote Controller 2

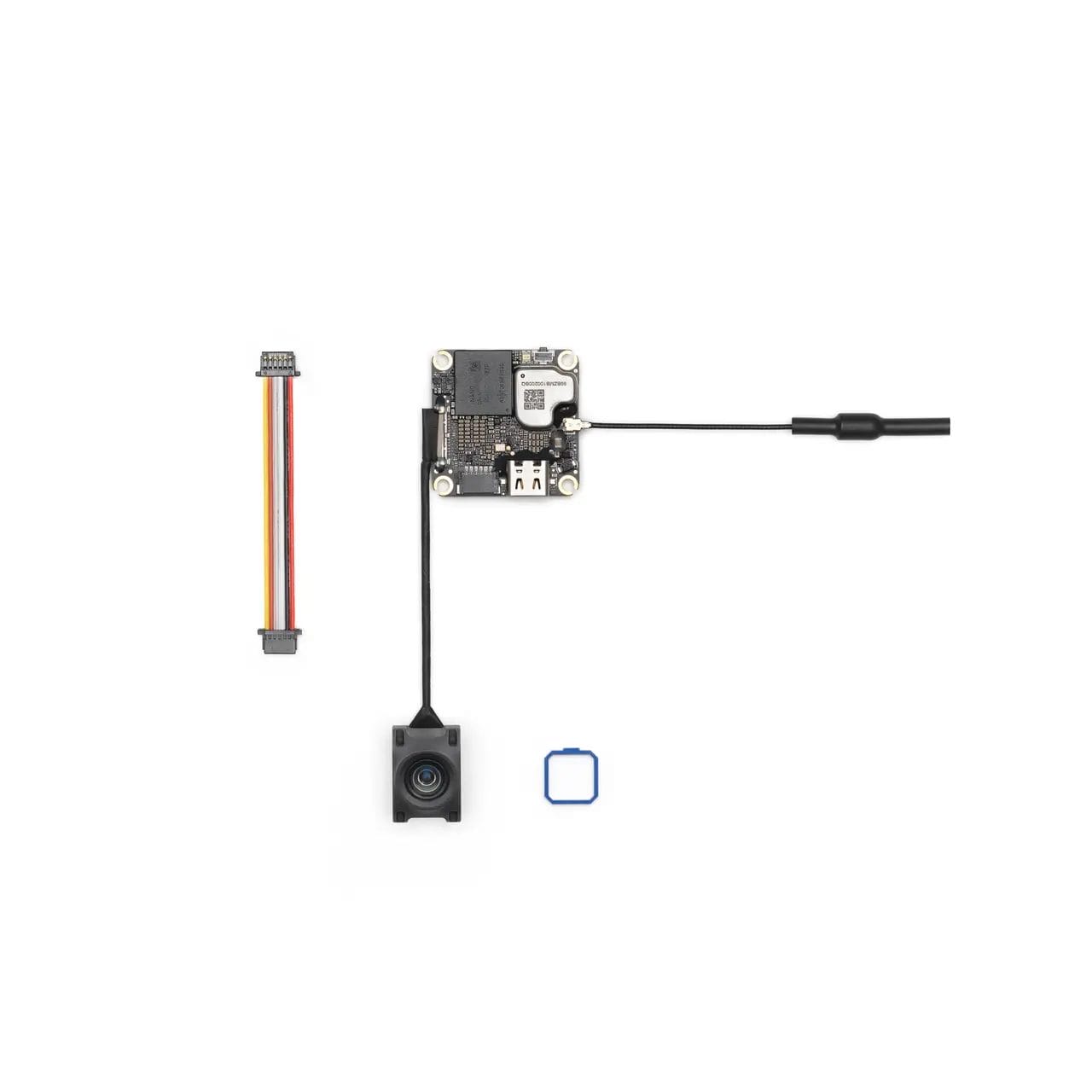

Includes
- 1x DJI O4 Air Unit Camera Module
- 1x DJI O4 Air Unit Transmission Module
- 1x DJI O4 Air Unit Antenna
- 1x DJI O4 Air Unit 3-in-1 Cable
