Flywoo G55M 32BIT 128K 3-6S 55A ESC 30×30 AM32
AU$77.95
The GOKU G55M is a high-performance ESC with a 55A continuous current rating and 32-bit processing speed. It features AM32 firmware, supporting bidirectional DSHOT and telemetry, with a maximum refresh rate of 128K.
Sold out
Description
Flywoo G55M 32BIT 128K 3-6S 55A ESC 30×30 AM32
The GOKU G55M is a high-performance ESC with a 55A continuous current rating and 32-bit processing speed. It features AM32 firmware, supporting bidirectional DSHOT and telemetry, with a maximum refresh rate of 128K. Key features include imported MOSFETs, high-quality ceramic capacitors, and a 6-layer PCB design, reducing heat and improving efficiency. Compatible with DShot1200, PWM, and Oneshot signals, the GOKU G55M ensures an exceptional flying experience.
Features
- Quality Components: Imported MOSFETs and high-quality ceramic capacitors for improved efficiency and performance.
- Powerful Functions: Supports bi-directional DSHOT and data telemetry for easy flight control.
- Compatibility: Supports various setting and upgrading methods, compatible with multiple throttle signals.
Specifications
- Name: GOKU G55M BL32 / AM32 4in1 ESC
- Support BL32 / AM32
- Support Dshot300, Dshot600,Dshot1200
- PWM frequency: 24k-128k
- Input Voltage: 3-6S Lipo
- Continuous Current: 55A
- Firmware:AM32：AT32DEVF421

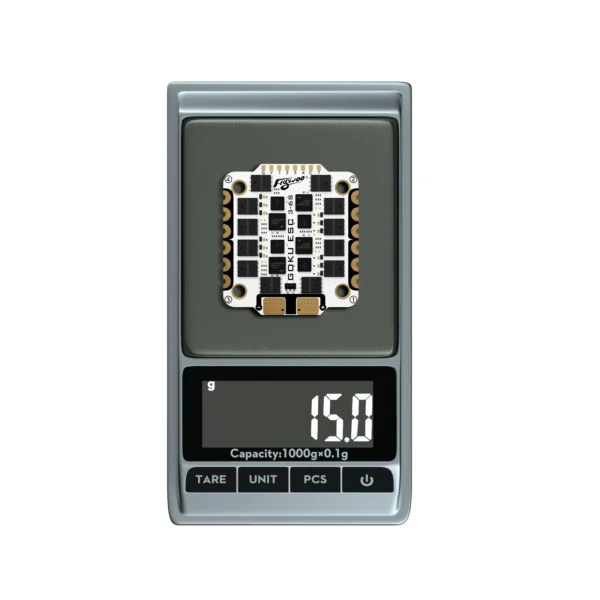

- Weight: 15g
- Continuous / Peak Current: 55A x 4 / 60A x 4 (10s)
- Battery Cells: 3-6S LIPO
- Power Connector: XT30 / XT60
- Output Wires: None, reserved solder pads

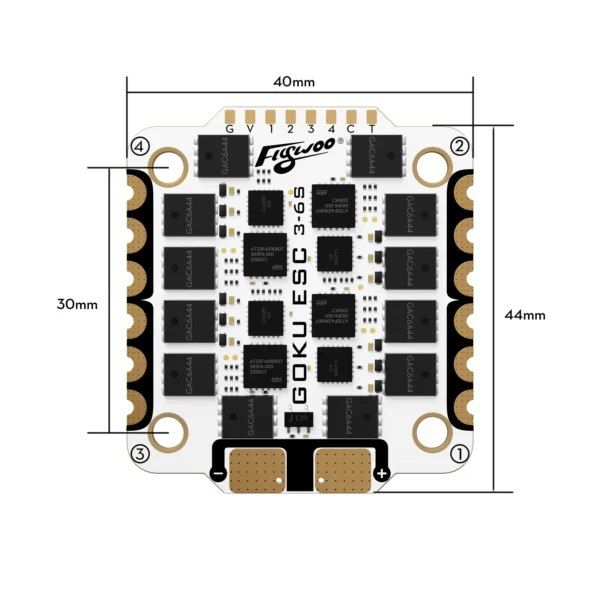

- Dimensions: 44mm x 40mm
- Firmware:
- L32:GOKU_F4A32_PRO
- AM32
- AT32DEVF421
- Programming and Tuning: Supported
- Programming Method: BL32 / AM32
- DEO: Supported
- Throttle Range Calibration: Supported
- Throttle Modes:
- Oneshot123
- Oneshot42
- MultiShot
- DSHOT150 / DSHOT300 / DSHOT600 / DSHOT1200
- PWM Refresh Rate: 24K-128K
- Timing Adjustment: Supported
- Motor Direction Setting: Supported

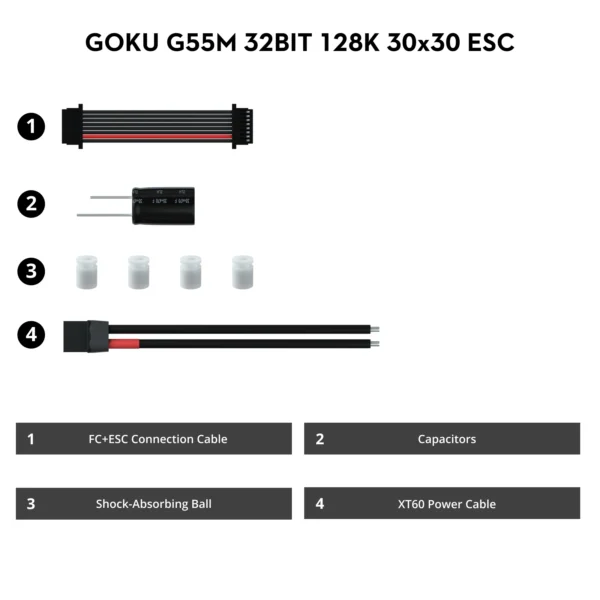

Includes
- 1x FC to ESC connection Cable
- 1x Capacitor
- 4x M3 Shock-Absorbing Ball
- 1x XT60 Cable
