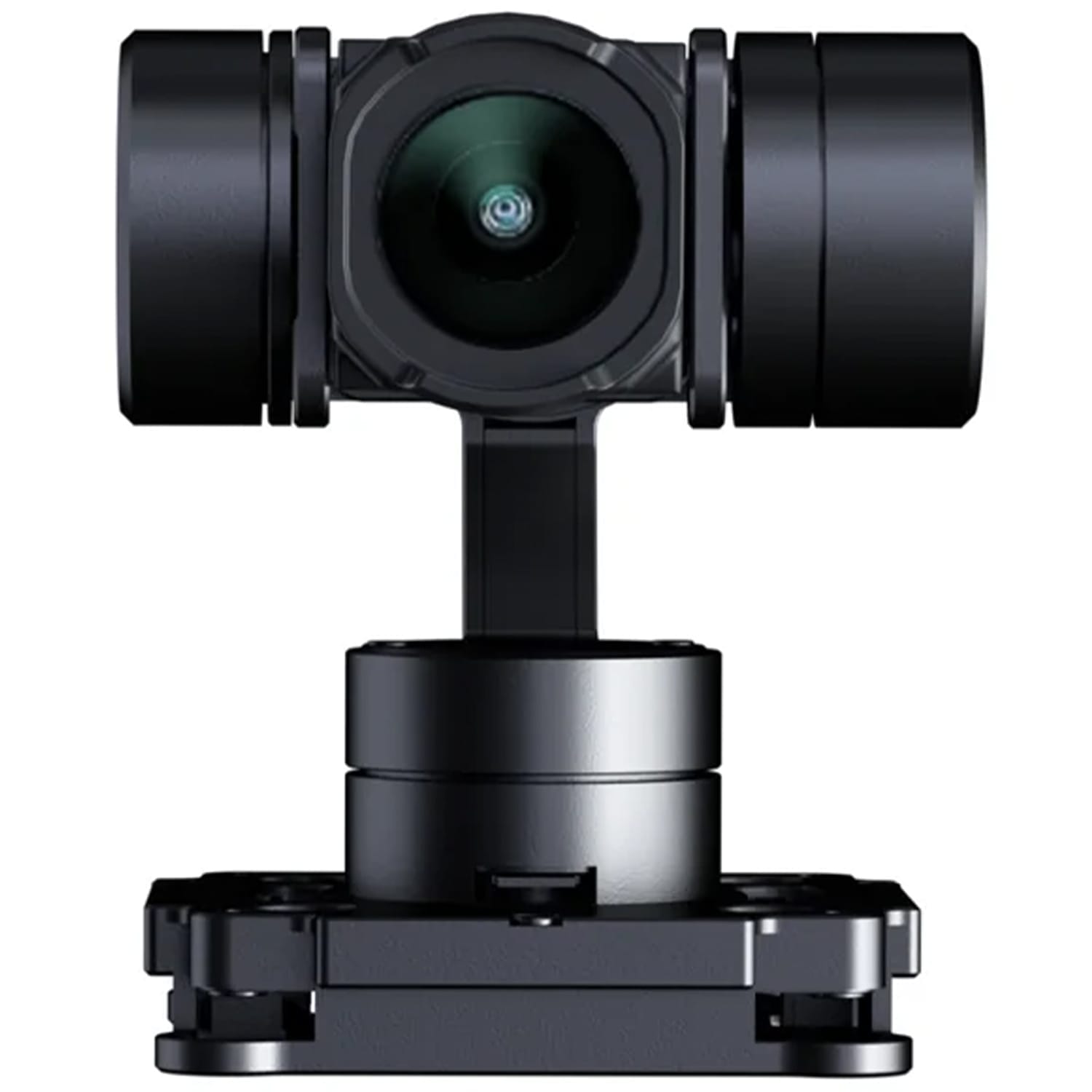

HEQUAV G-Port 3 Axis Stabilisation Gimbal DJI O4 Pro Camera
AU$249.95

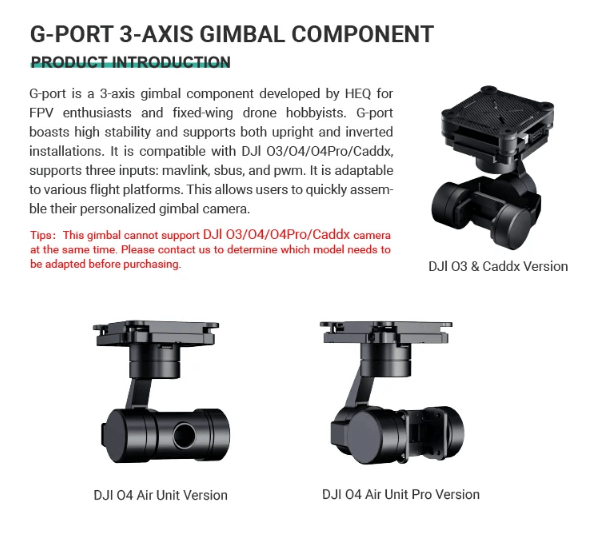

HEQUAV G-Port is a 3-axis gimbal developed by HEQ for FPV enthusiasts and fixed-wing drone hobbyists. It offers high stability, supports both upright and inverted mounting, and is compatible with DJI O4 Pro. G-Port accepts three input types—MAVLink, SBUS, and PWM—and is adaptable to a wide range of flight platforms, enabling quick and easy assembly of a custom gimbal camera system.
ONLY 2 LEFT
Description
HEQUAV G-Port 3 Axis Stabilisation Gimbal DJI O4 Pro Camera
HEQUAV G-Port is a 3-axis gimbal developed by HEQ for FPV enthusiasts and fixed-wing drone hobbyists. It offers high stability, supports both upright and inverted mounting, and is compatible with DJI O4 Pro. G-Port accepts three input types—MAVLink, SBUS, and PWM—and is adaptable to a wide range of flight platforms, enabling quick and easy assembly of a custom gimbal camera system.

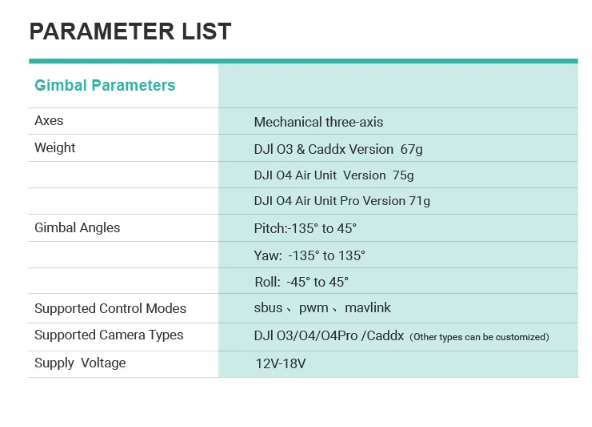

Specifications
- Axes: Mechanical three-axis

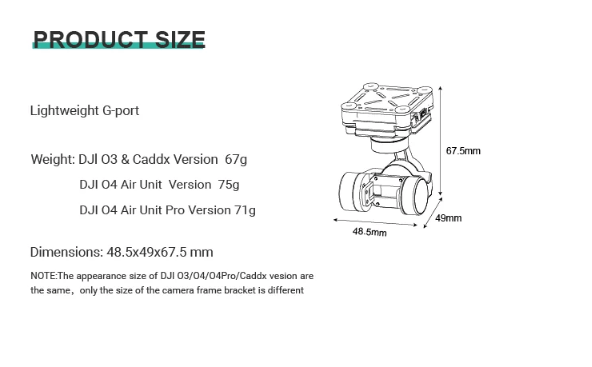

- Weight:
- DJI O4 Air Unit Pro Version: 71g
- Gimbal Angles:
- Pitch: -135° to 45°
- Yaw: -135° to 135°
- Roll: -45° to 45°
- Supported Control Modes: sbus, pwm, mavlink
- Supported Camera Types: DJI O4 Pro
- Supply Voltage: 12V–18V
Includes
- 1x G-Port gimbal component
- 3x G-Port cable
- 1x Bracket carbon plate
- 4x Shock absorbing ball
- 6x Matching screws
- 1x Manual
Video instructions
Additional information
