SEQURE H743 MPU6000 FC 4-8S Dual BEC
AU$109.95
The SEQURE H743 MPU6000 Flight Controller is a high-performance FC designed for X8 racing, aerial photography, and freestyle FPV drones.
ONLY 1 LEFT
Description
SEQURE H743 MPU6000 FC 4-8S Dual BEC
The SEQURE H743 MPU6000 Flight Controller is a high-performance FC designed for X8 racing, aerial photography, and freestyle FPV drones. Powered by the STM32H743 processor running at 480MHz, it offers rapid control response. The MPU6000 gyroscope ensures precise gesture sensing and stable control. It supports 4-8S LiPo batteries and features dual BEC outputs: 5V/2.5A and 10V/2A, ideal for powering DJI O3 and analog VTX systems. With 6 UARTs, it can control up to 8 motors, making it suitable for X8 configurations. The compact design includes mounting options at 20x20mm and 30.5×30.5mm, and the package comes with necessary accessories like cables, shock-absorbing balls, and a buzzer.
Specifications
- Equipped with a high-performance STM32H743 processor, the operation frequency is up to 480MHz, offering rapid control response.
- Adopts MPU6000 gyroscope, this FC realizes precise gesture sensing and stable control, improving the reliability of the system.
- SEQURE H743 has an onboard barometer, OSD, and 16MB large capacity black box, which effectively records the flight data.
- Reserve 6 UARTS to meet the needs of most devices.
- It can control up to 8 motors, easily constructing X8.
- Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V voltage,allowing the DJI O3 and analog VTX to plug in for use directly.
- Supports wide voltage input of 4-8S Lipo, mounting holes of 20mm and 30.5mm. Mini design, suitable for various types of racks like racing, aerial photography, freestyle, etc.

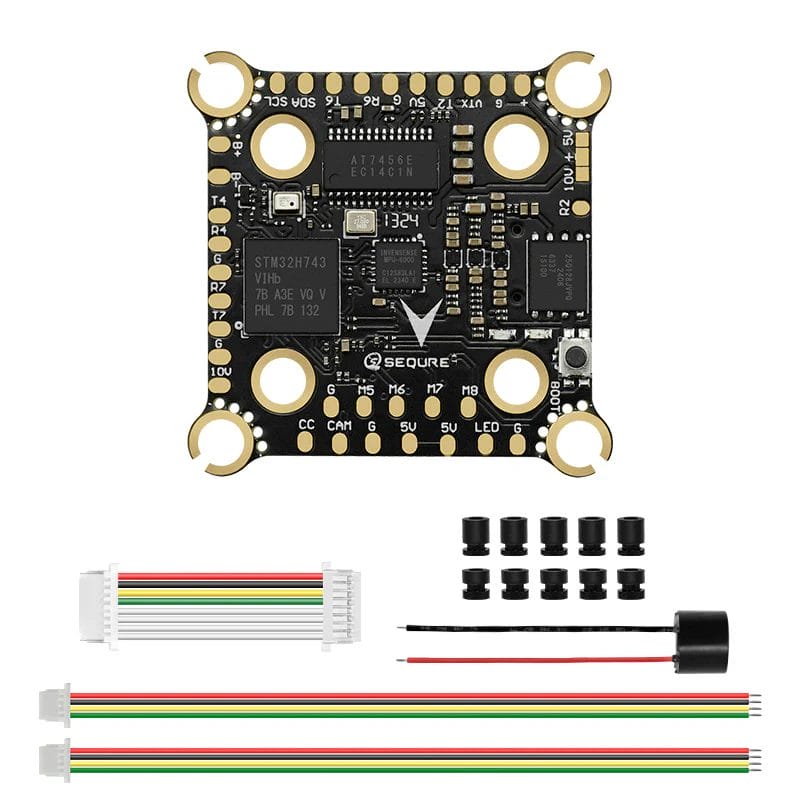

Includes:
- SEQURE H743 FC x 1
- 30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable x 1
- 30AWG 100mm Single-head SH1.0-4P Flat Cable x 1
- 60mm Length 12095 5V Buzzer x 1
- M3*8mm Shock-absorbing Ball(Black) x 5
- M3*6.6mm Shock-absorbing Ball(Black) x 5

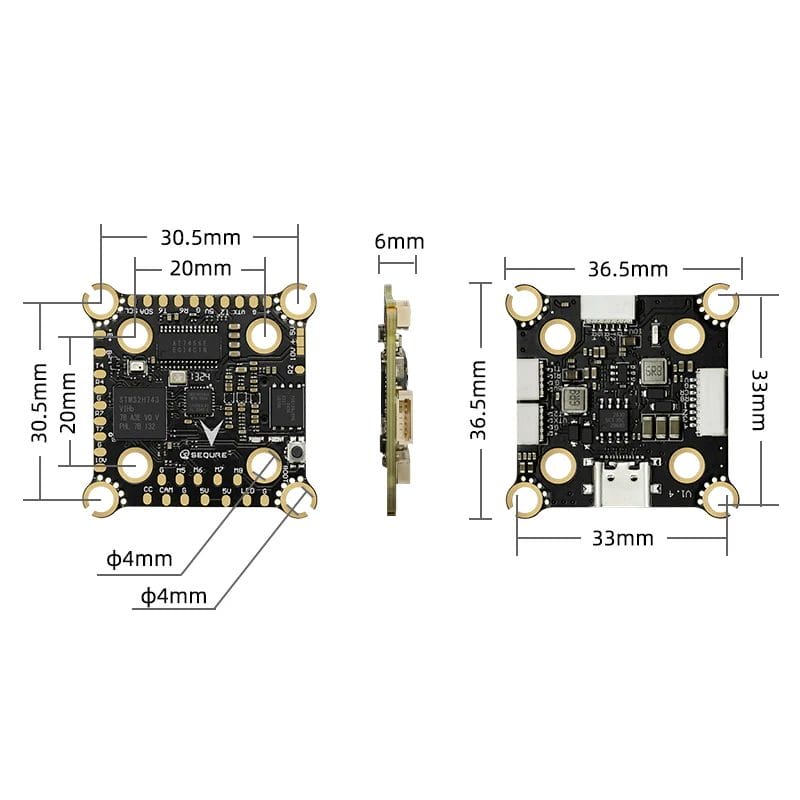

- Overall Dimension
- Product Size: 36.5*36.5*6mm
- Net Weight Of Product: 7.5g
- Package Size: 90*60*25mm
- Packing Weight: 38g
