SpeedyBee Master 5″ V2 Frame Kit
AU$122.80
Frame Master 5 V2 features a 226 mm wheelbase and weighs about 140 g. It has 2.5 mm top and bottom plates, a 2 mm middle plate, and 5 mm thick arms.
Sold out
Description

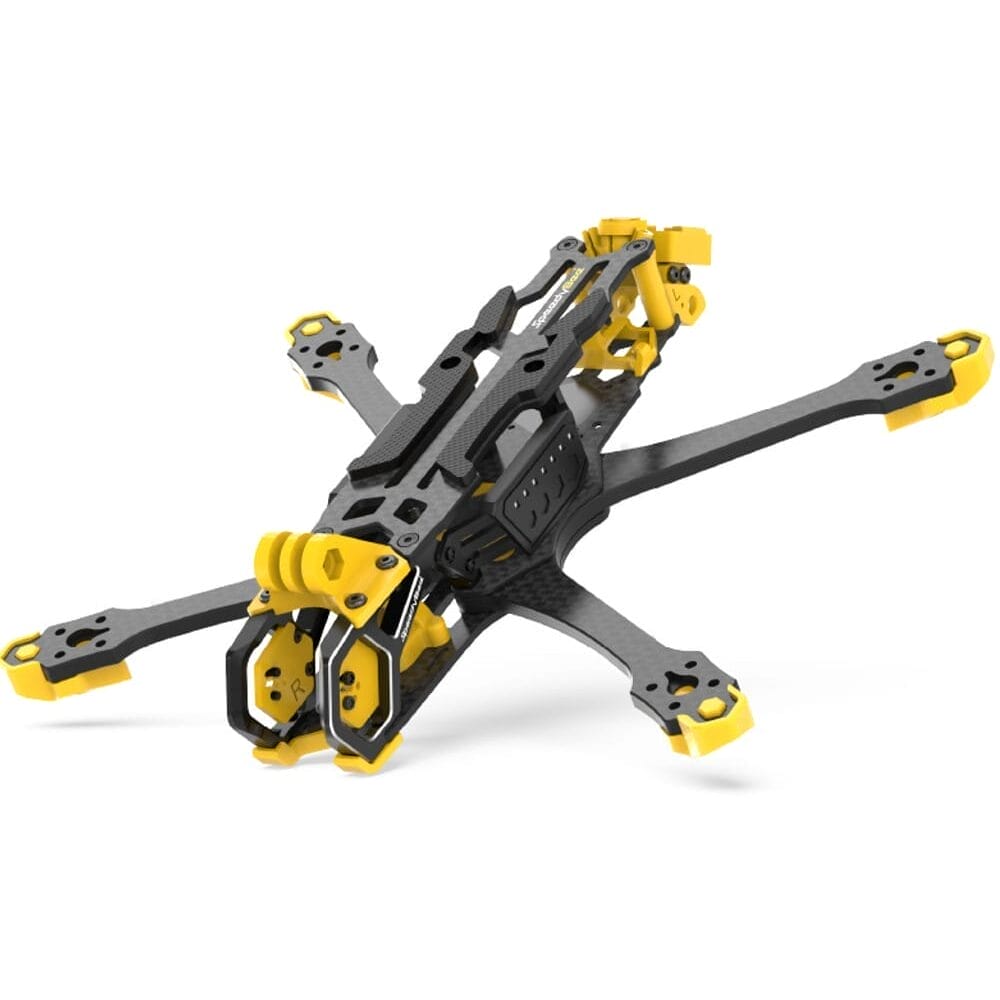

SpeedyBee Master 5″ V2 Frame Kit
Frame Master 5 V2 features a 226 mm wheelbase and weighs about 140 g. It has 2.5 mm top and bottom plates, a 2 mm middle plate, and 5 mm thick arms. The anti-vibration stack is available in Yellow HB80 and Translucent HB50. The motor has an 8 mm circlip spacing, supports 5-5.1 inch propellers, and features 16 × 16 mm mounting holes. Flight controller options include 30.5 × 30.5 mm (M3) and 20 × 20 mm (M3) mounts.
Specifications
- Frame: Master 5 V2
- Wheelbase: 226 mm
- Weight: About 140 g (including non-3D printed parts)
- Top plate thickness: 2.5 mm (T300 3K)
- Middle plate thickness: 2 mm (T300 3K)
- Bottom plate thickness: 2.5 mm (T300 3K)
- Arm thickness: 5 mm (T300 3K)
- Camera side plate thickness: 2 mm (TUPC)
- Anti-vibration stack structure hardness: Yellow HB80, Translucent HB50
- 3D printed parts material: Yellow TPU
- Motor circlip spacing: φ8 mm
- Compatible propellers: 5-5.1 inch
- Motor mounting holes: 16 × 16 mm
- FC mounting holes: 30.5 × 30.5 mm (M3) & 20 × 20 mm (M3)
- Drone head material: 7075 CNC aluminum alloy
- Aluminum standoff size: 7075 M3 × 23 mm (6 mm/4.7 mm), M3 × 23 mm (4.6 mm)
- Internal installation height: 23-30 mm
- Standard antenna installation support: SMA (single), O3 4 mm, RunCam Link
- Standard GPS base size: 18 × 18 × 8 mm (other sizes require additional purchase)
- Rear support mounting holes: 20 × 20 mm, 25.5 × 25.5 mm, 30.5 × 30.5 mm
- Detachable stack protective plate: RGB LED included
- Motor wire protection: Included
- Included 3D printed parts: GoPro base, capacitor/buzzer base, arm protection, 181 GPS base, T-antenna base, CNC drone head TPU protection, camera anti-vibration module
Includes
- 1x SpeedyBee Master 5″ V2 Frame Kit
