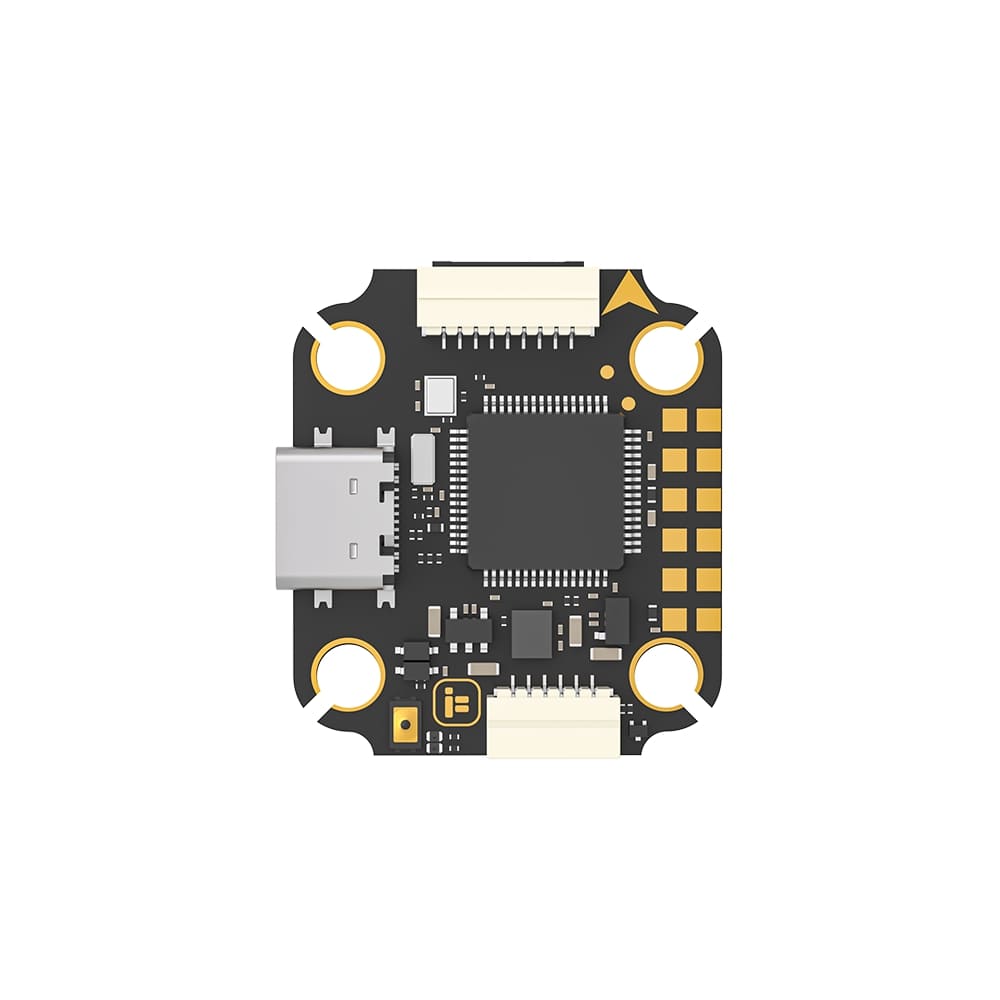

iFlight Borg F7 Mini Flight Controller ICM42688
AU$60.60
Introducing the All-New Borg Series – Power Meets Precision!
The Borg F7 Mini Flight Controller is specifically designed for racing fpv, providing unmatched performance. Elevate your racing experience with the cutting-edge technology of the Borg Series!
ONLY 5 LEFT
Description
iFlight Borg F7 Mini Flight Controller ICM42688
Introducing the All-New Borg Series – Power Meets Precision!
The Borg F7 Mini Flight Controller is specifically designed for racing fpv, providing unmatched performance. Elevate your racing experience with the cutting-edge technology of the Borg Series!
Features
- Supports 4S to 8S battery inputs, offering versatility for various racing setups.
- Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
- FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.
Specifications
- Input voltage: 4-8S; Support LIHV battery
- MCU: STM32F722RET6
- Gyro: ICM42688
- Barometer: SPA06-003
- OSD Chip: AT7456E（LGA）
- Flash: 32MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4
- I2C serial: Support
- VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
- LED controller: Yes
- Beeper pad: Yes
- Betaflight Firmware target: IFLIGHT_BLITZ_F722
- INAV Firmware target: IFLIGHT_BLITZ_F722

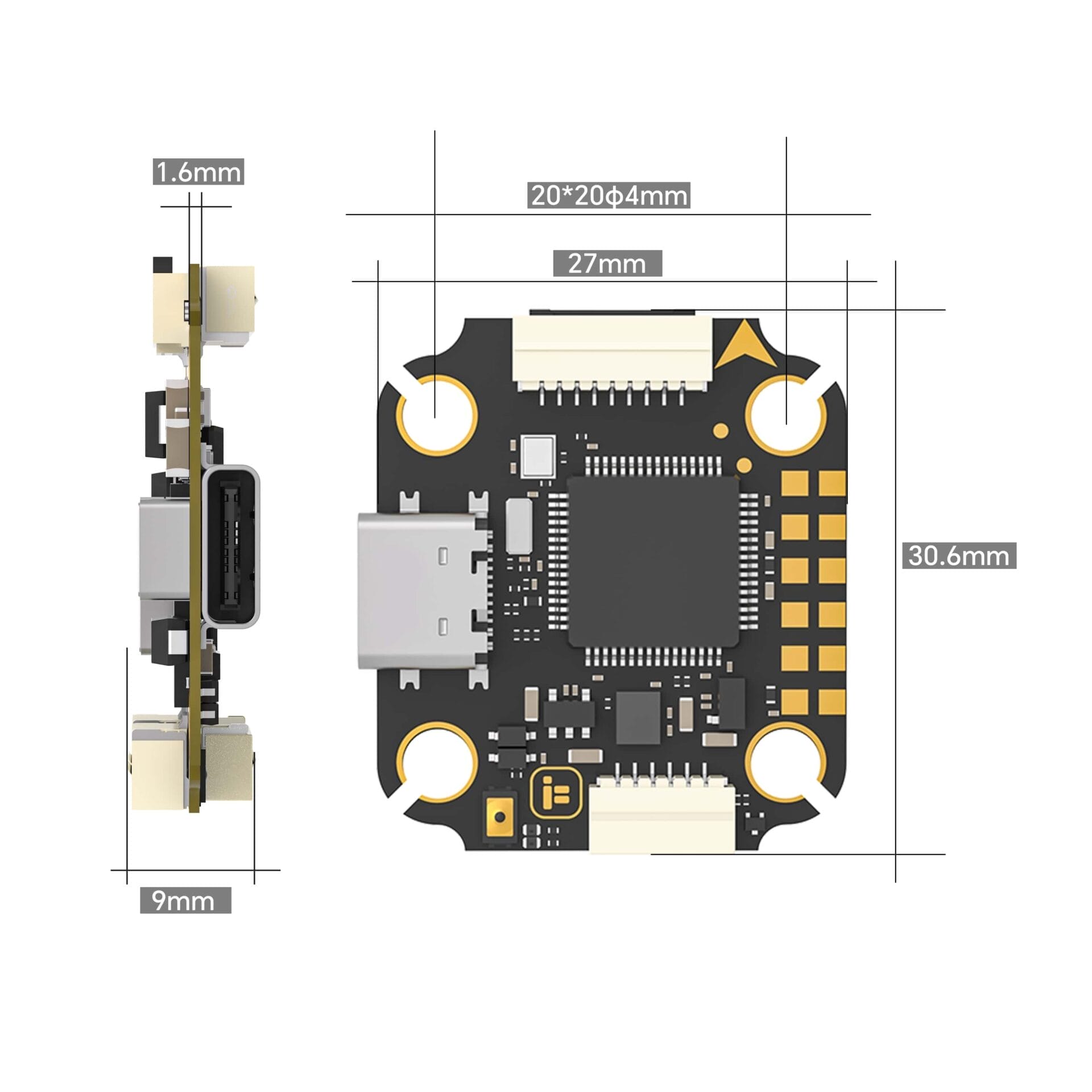

- Mount pattern: 20*20φ4
- Dimensions: 27*30.6mm±1
- Weight: 6.8g±1
- BEC: 5V 2.5A, 12V 2A (12V with VTX switch)
Wiring
- UART 1 for VTX HD / Analog
- UART 2 for Receiver
- UART 3 for GPS or other sensors that require a serial port
- UART 4 for GPS
- UART 5 for GPS or other sensors that require a serial port
- UART 6 for ESC Telemet
VTX_ON_OFF Mode Command
resource PINIO 1 PC0
set pinio_config = 1,1,1,1
set pinio_box = 40,41,255,255
set box_user_1_name = VTX_ON_OFF
aux 0 40 8 900 2100 0 0
save
Includes
- 1 x Borg F7 Mini Flight Controller
- 1 x Cable set
- 5 x silicon grommets
