AetherFPV Archetype 4″ Freestyle Frame Kit
AU$147.00
When AetherFPV designed the Archetype, the goal was a frame that actually made sense to build — open, clean, and tough enough to handle real impacts. Its interior layout is wide and uncluttered, making the build process feel straightforward instead of delicate or cramped. The 5 mm arms give it a planted, confident feel in the air, and they’re more than capable of shrugging off a crash or two.
ONLY 4 LEFT
Description

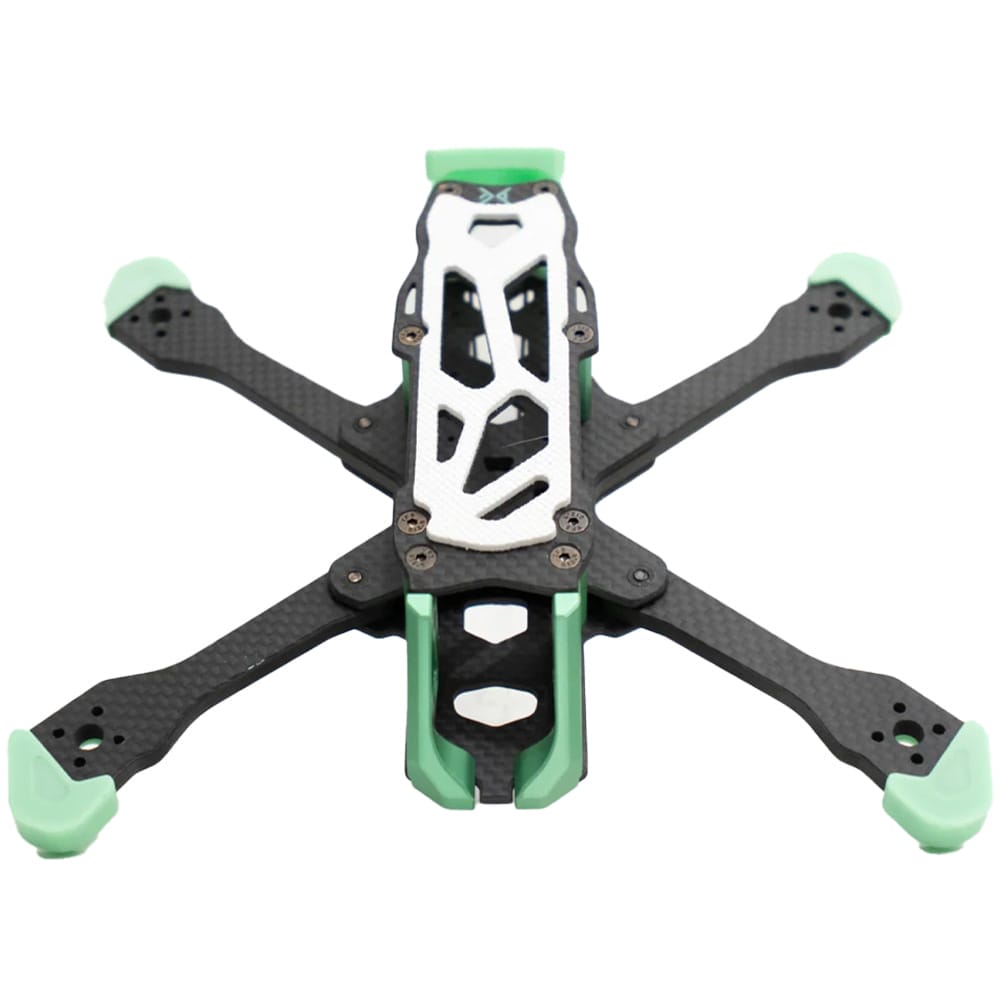

AetherFPV Archetype 4″ Freestyle Frame Kit
When AetherFPV designed the Archetype, the goal was a frame that actually made sense to build — open, clean, and tough enough to handle real impacts. Its interior layout is wide and uncluttered, making the build process feel straightforward instead of delicate or cramped. The 5 mm arms give it a planted, confident feel in the air, and they’re more than capable of shrugging off a crash or two.
It’s built around a 4-inch setup for that nimble, responsive flight style AetherFPV loves — but if you want a little extra punch, it’s perfectly happy swinging 4.5-inch props as well. Crafted from T700 carbon, featuring airflow risers, flexible stack mounting options, and a full set of custom 3D prints that bring everything together seamlessly, the Archetype is the frame AetherFPV wanted to fly. Simple, strong, and genuinely enjoyable to build.
Specification
- Frame Weight: 150 g (Carbon, Hardware, and TPU)
- Wheelbase: 198 mm (Supports up to 4.5” Props)
- Arms: 5 mm Carbon
- Main Stack: 20 mm & 30 mm compatible
- Rear Stack: 20 mm & 25 mm compatible (VTX)
- Motor Mounts: 12 mm M2
- Top & Bottom Plates: 2.5 mm Carbon
- Camera Mount: Supports 19 mm & 20 mm FPV cameras (with included 3D-printed adapters)
- DJI Air Unit Riser: Included for optimal airflow
- Material: T700 Carbon Fibre
- 3D Printed Parts Kit: Landing gear, antenna mount, soft-mounted camera supports
- Battery Strap: Included
- Geometry: Squashed X
4-inch? 4.5-inch? Why not both.
T700 CARBON FIBER
Integrated battery port
Widely Compatible Camera Mounting
Additional information
| Brands |
|---|
