Axis Flying Manta 5 SE DC O4 Pro 6S ELRS 2.4G GPS
AU$810.20
Axis Flying focuses on user experience and carefully studies user sore points. In the field of freestyle, we continuously absorb user feedback and summarise product design experience. Axisflying combines CNC aluminum parts with high quality carbon plates to bring the MANTA series of freestyle frame with a unique and innovative design in the industry.
In stock
Description
Axis Flying Manta 5 SE DC O4 Pro 6S ELRS 2.4G GPS
Experience the thrill of flight and push the limits with the Manta5 SE — engineered for both freestyle enthusiasts and cinematic creators. Its aerodynamic Squashed X design ensures stable, reliable performance, even at speeds of up to 180 km/h. Whether you’re chasing dynamic freestyle lines or capturing stunning cinematic footage, the Manta5 SE delivers precision, power, and versatility.
Features
- CNC-machined aluminium frame with high-strength carbon plate for maximum strength, stability, and safety
- Stack mounting: compatible with 20×20 mm and 30.5×30.5 mm layouts
- VTX mounting: supports M2 (20×20 mm) and M3 (30.5×30.5 mm), fits all analog and HD systems (DJI Air Unit, Vista)
- Camera compatibility: fits 19–20 mm FPV cameras; aluminium side plates for protection
- Upgraded print section: improved lens stability, no jelly effect
- Motor mount: 16×16 mm pattern
- Recommended motors: AF227, AF236, BlackBird V3
- Suitable propellers: 4.9″ to 5.1″ freestyle props

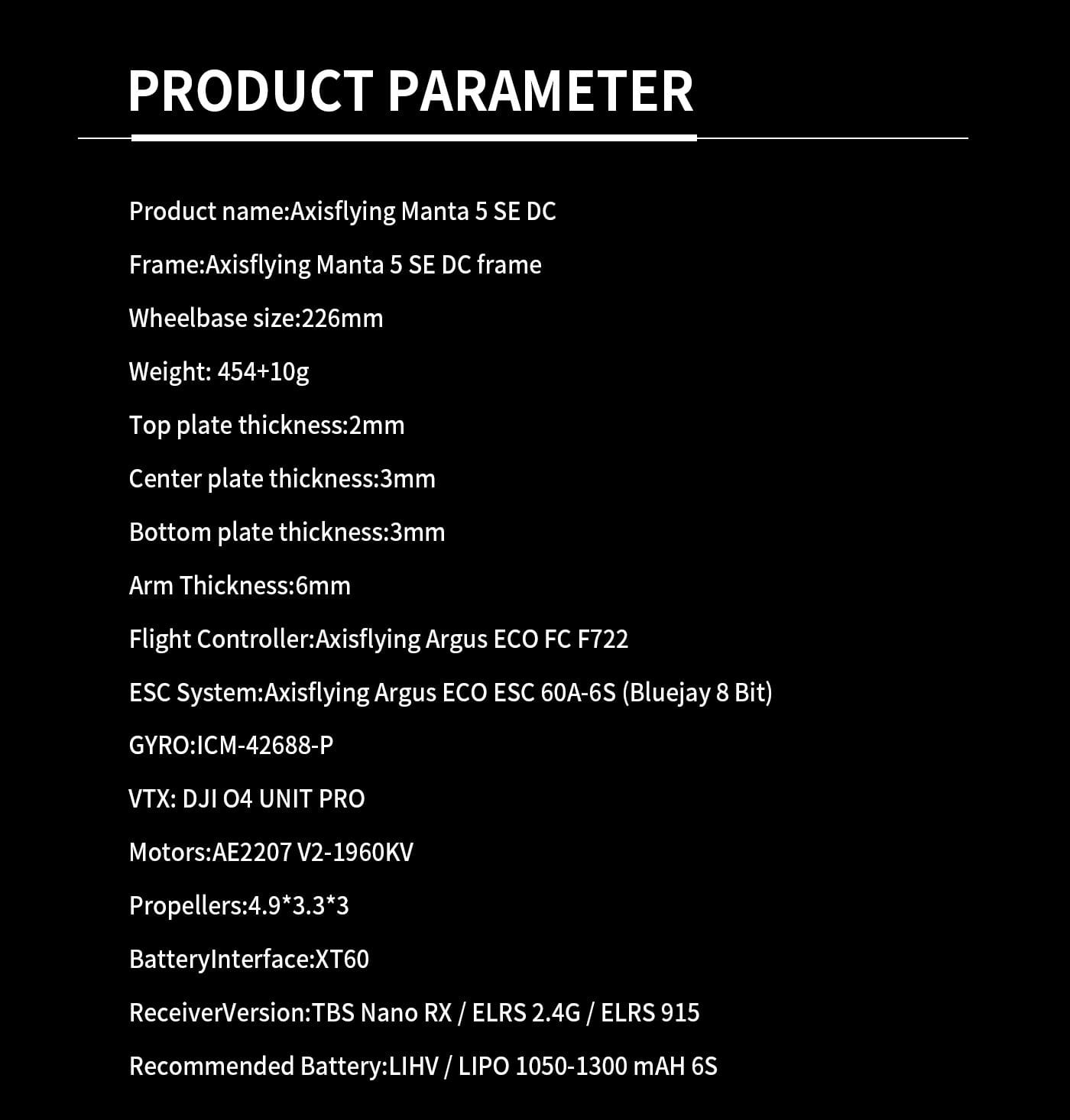

Specifications
- Product Name: Axisflying Manta 5 SE DC
- Frame: Axisflying Manta 5 SE DC frame
- Wheelbase Size: 226 mm
- Weight: 454 ± 10 g
- Top Plate Thickness: 2 mm
- Centre Plate Thickness: 3 mm
- Bottom Plate Thickness: 3 mm
- Arm Thickness: 6 mm

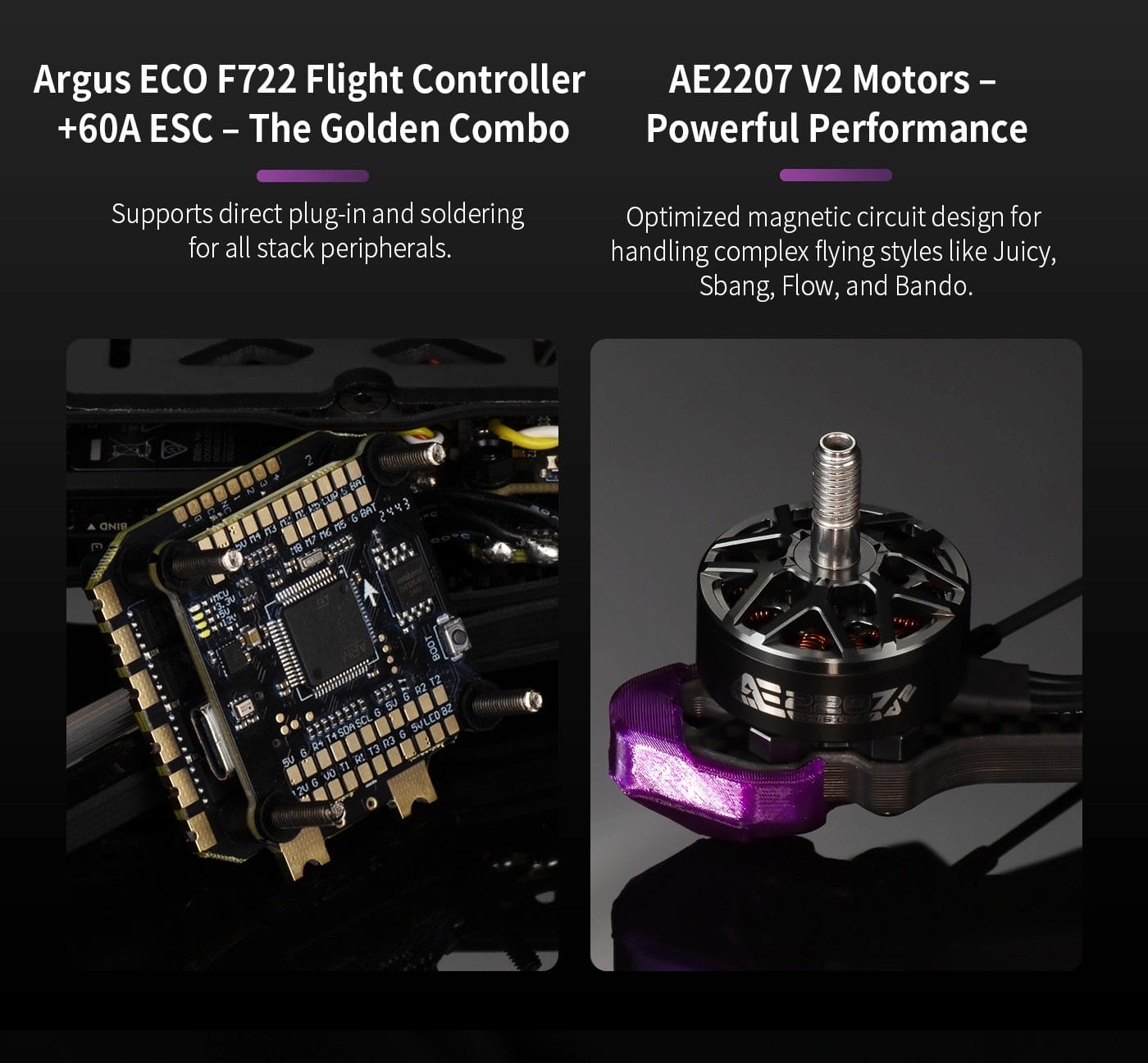

- Flight Controller: Axisflying Argus ECO FC F722
- ESC System: Axisflying Argus ECO ESC 60A-6S (Bluejay 8 Bit)
- Gyro: ICM-42688-P

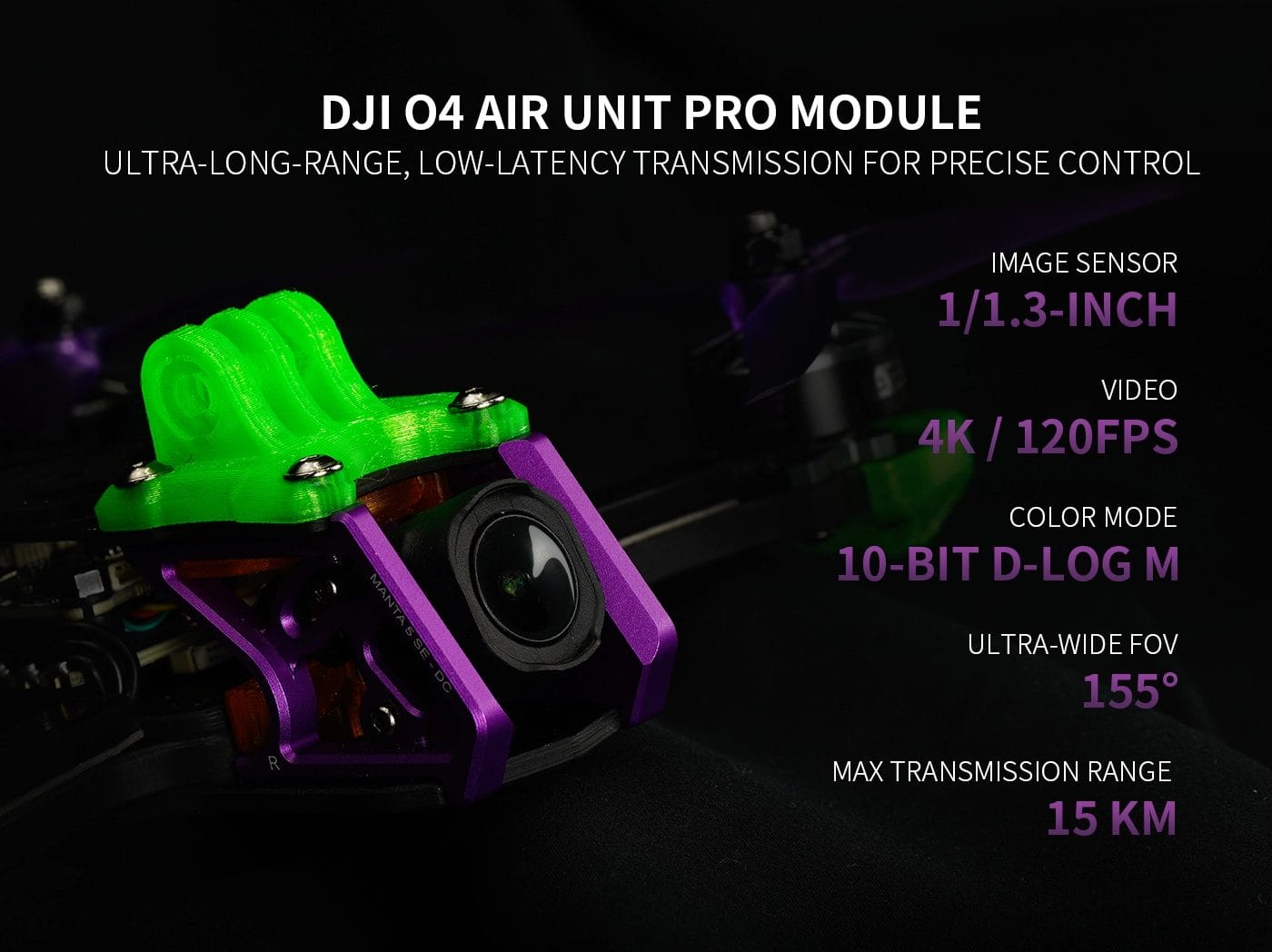

- VTX: DJI O4 UNIT PRO
- Motors: AE2207 V2-1960KV
- Propellers: 4.9 × 3.3 × 3
- Battery Interface: XT60
- Receiver Version: ELRS 2.4G
- Recommended Battery: LIHV / LIPO 1050–1300 mAh 6S

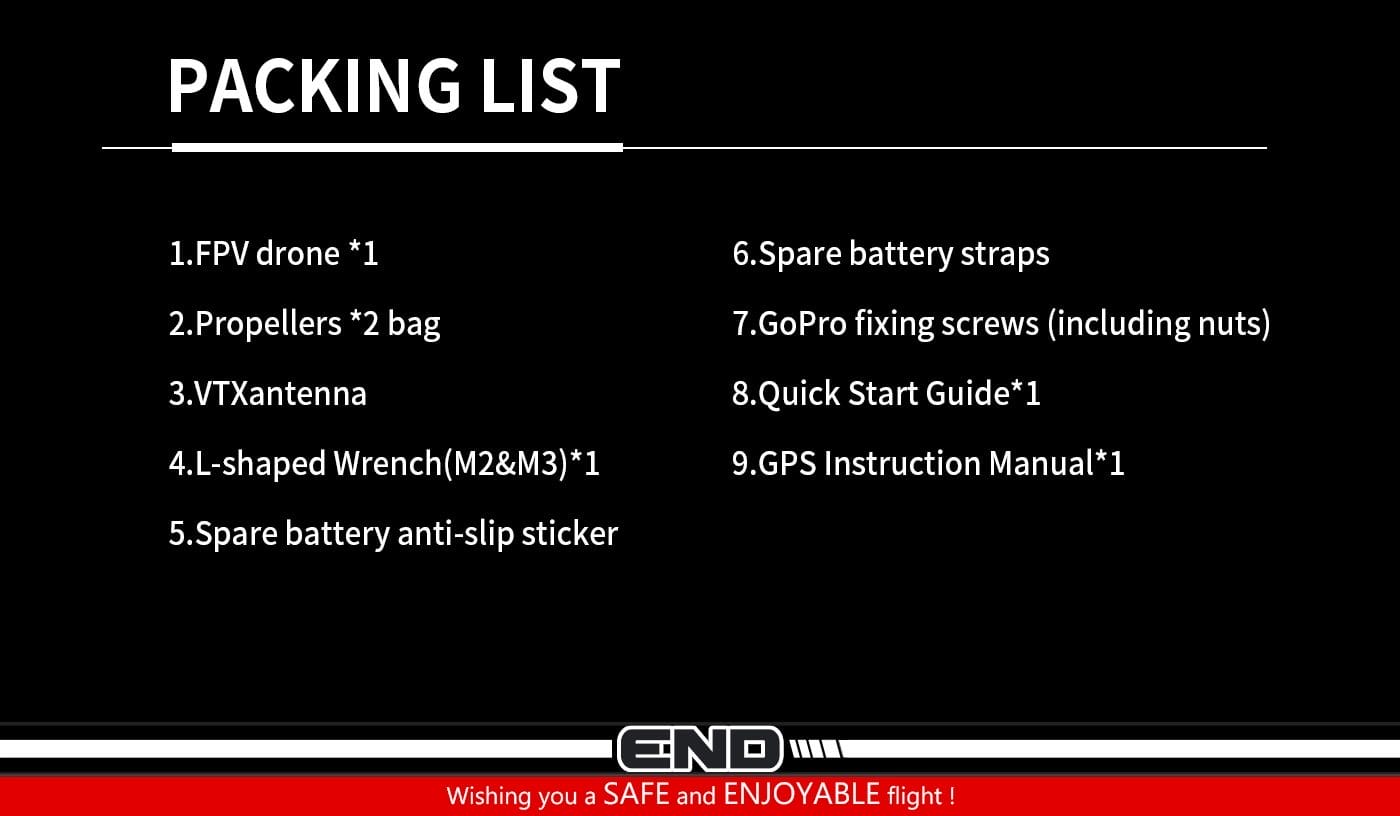

Includes
- 1x FPV drone
- 2x Propeller bags
- 1x VTX antenna
- 1x L-shaped Wrench (M2 & M3)
- 1x Spare battery anti-slip sticker
- 1x Spare battery straps (assumed single unit unless stated otherwise)
- 1x GoPro fixing screws set (including nuts)
- 1x Quick Start Guide
- 1x GPS Instruction Manual
