BetaFPV ExpressLRS Recovery Dongle

BetaFPV ExpressLRS Recovery Dongle
BetaFPV ExpressLRS Recovery Dongle - Image 2
BetaFPV ExpressLRS Recovery Dongle - Image 3

Original price was: AU$16.12.Current price is: AU$13.70.

ExpressLRS Recovery Dongle is an FTDI USB to TTL module based on the CP2102 bridge controller, which is applied to the firmware upgrade for the ESP32&ESP8XX chip.

ONLY 4 LEFT

Earn 48^ points.
Add to Wishlist
Price Match Request
SKU: MF-0975883636 Categories: , , , Tag:

Description

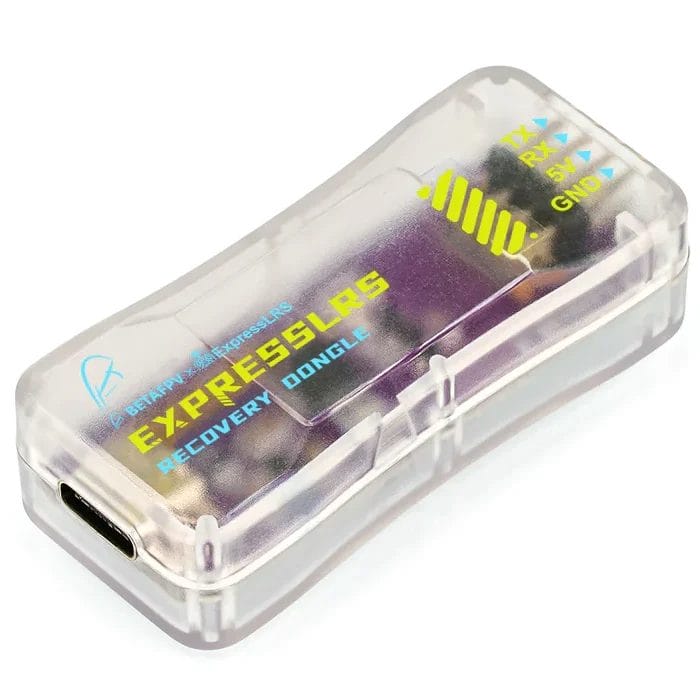

BetaFPV ExpressLRS Recovery Dongle

ExpressLRS Recovery Dongle is an FTDI USB to TTL module based on the CP2102 bridge controller, which is applied to the firmware upgrade for the ESP32&ESP8XX chip. The ExpressLRS Recovery Dongle is compatible with many ELRS receivers in the market such as ELRS Lite Receiver, ELRS Nano Receiver, ELRS Micro Receiver, and FPV goggles backpack. It will be a good choice to unbrick the ELRS receiver when failed in updating or flash firmware by UART.

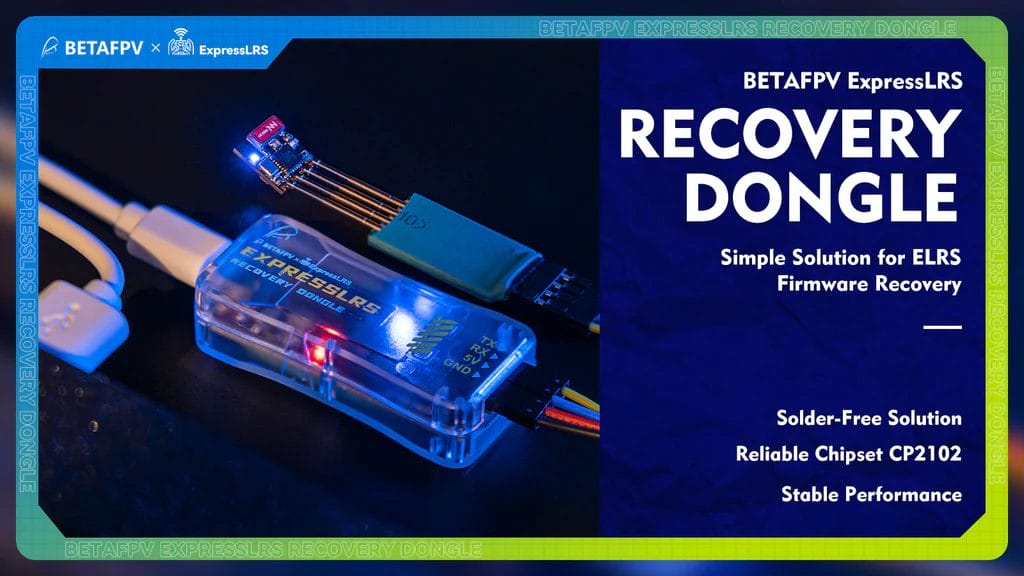

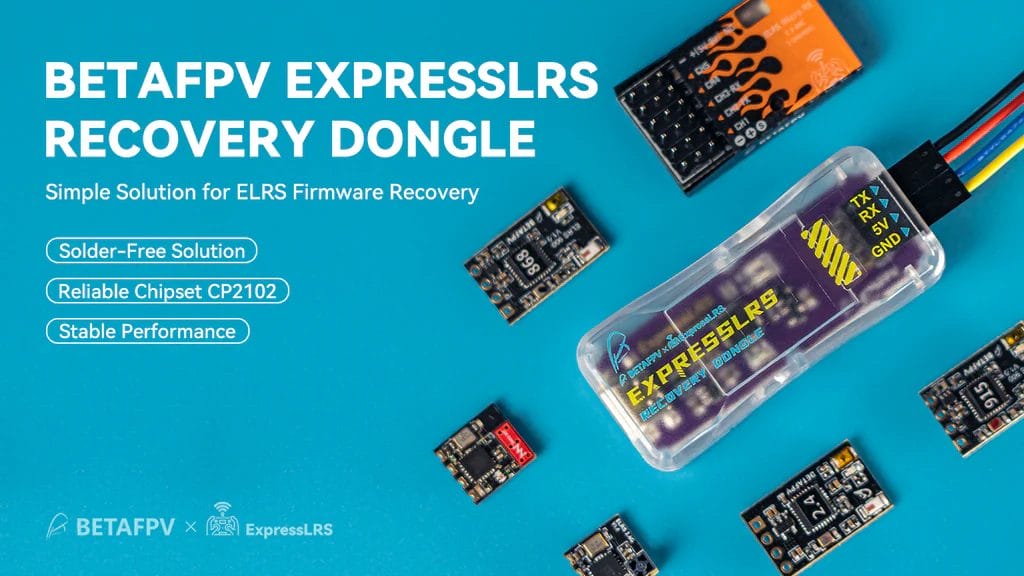

betafpv expresslrs recovery dongle description mantisfpv australia 05 betafpv expresslrs recovery dongle description mantisfpv australia 01



betafpv brand colour australia mantisfpv



Features

  • Unbrick and recover the ELRS receiver when having a failed update such as the missing bootloader.
  • Soldering Free! It features spring probe pins for more convenient use. Connecting it with the ELRS receiver directly does not need to solder.
  • ExpressLRS Recovery Dongle FTDI USB to TTL module is covered by the case and is more durable and portable compared with the naked board version on the market.
  • Support many computer systems in the market like Windows, MAC, and Linux. This module uses a Type-C USB port for connecting the computer.

Specification

  • USB Interface: Type-C USB male connector
  • Operating Voltage: 5V.
  • Logic Voltage: 5V.
  • 3.3V power supply output current: 400mA
  • Pins output method: 2*4P-2.54mm pin header
  • Serial baud rate: Up to 921600bps.
  • Support USB1.1, USB2.0
  • USB to Serial chip (CP2102) supports XP, win7 / win8 32bits, 64bits, win10 / 11 32bits, 64bits, Linux, MAC

Includes

  • 1x ExpressLRS Recovery Dongle
  • 1x 4 Pin Cable
  • 1x Probe Converter Board

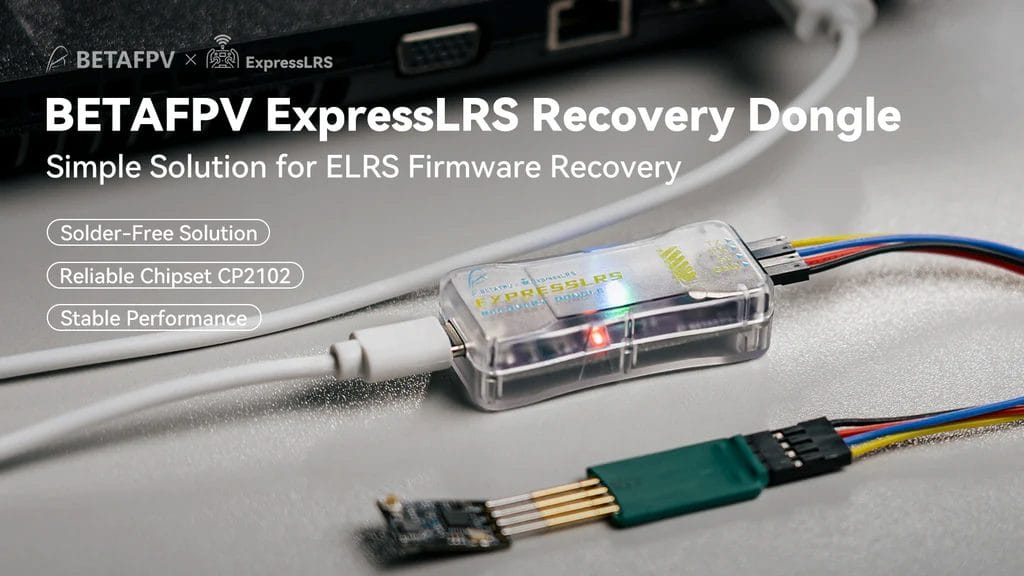

betafpv expresslrs recovery dongle description mantisfpv australia 02

betafpv expresslrs recovery dongle description mantisfpv australia 03
