BetaFPV Matrix 4in1 1S 12A G4 AIO ELRS 2.4G
AU$78.98

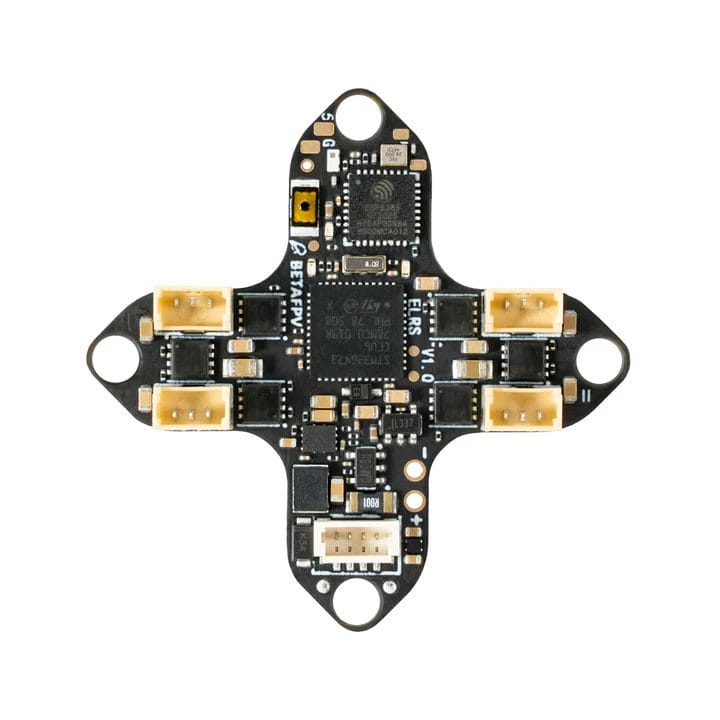

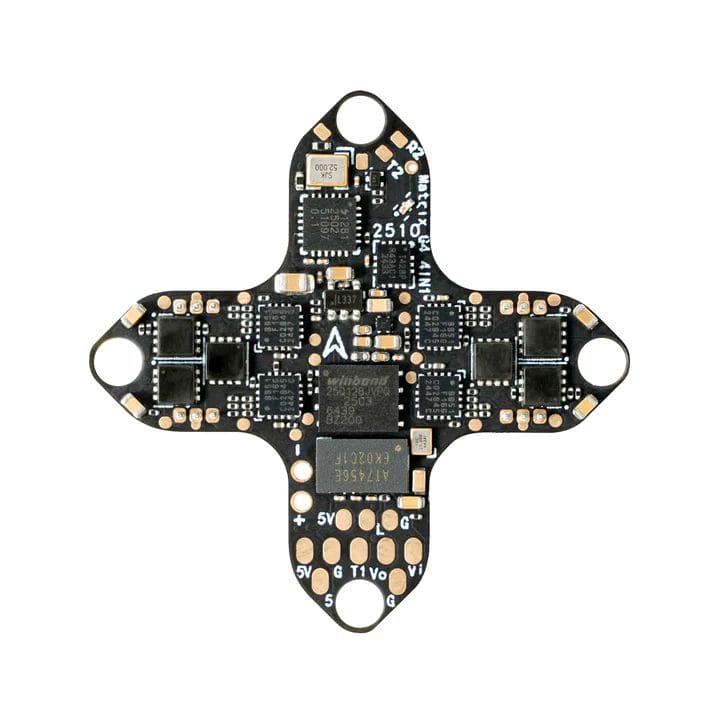

The Matrix 1S Brushless Flight Controller redefines 1S whoop performance with two purpose-driven architectures: the 3IN1 for DJI O4 digital dominance (integrating FC, ESC, and ELRS 2.4G RX while omitting analog OSD), and the 4IN1 for analog mastery (adding built-in OSD + solder pads for external VTXs). Both feature the iconic cross-design architecture, newly developed BEC, 18A peak ESCs, and the STM32G473 MCU for 55% faster processing—delivering effortless setup, pro-tier control, and uncompromised flight dynamics that rewrite 1S standards.
ONLY 4 LEFT
Description
BetaFPV Matrix 4in1 1S 12A G4 AIO ELRS 2.4G
The Matrix 1S Brushless Flight Controller redefines 1S whoop performance with two purpose-driven architectures: the 3IN1 for DJI O4 digital dominance (integrating FC, ESC, and ELRS 2.4G RX while omitting analog OSD), and the 4IN1 for analog mastery (adding built-in OSD + solder pads for external VTXs). Both feature the iconic cross-design architecture, newly developed BEC, 18A peak ESCs, and the STM32G473 MCU for 55% faster processing—delivering effortless setup, pro-tier control, and uncompromised flight dynamics that rewrite 1S standards.
Features
- Dual DNA: 3IN1 (FC, ESC, and ELRS 2.4G RX) for DJI O4 digital dominance (omits analog OSD), 4IN1 for analog mastery with OSD.
- STM32G473 MCU: 55% faster processing than F411 for responsive tuning.

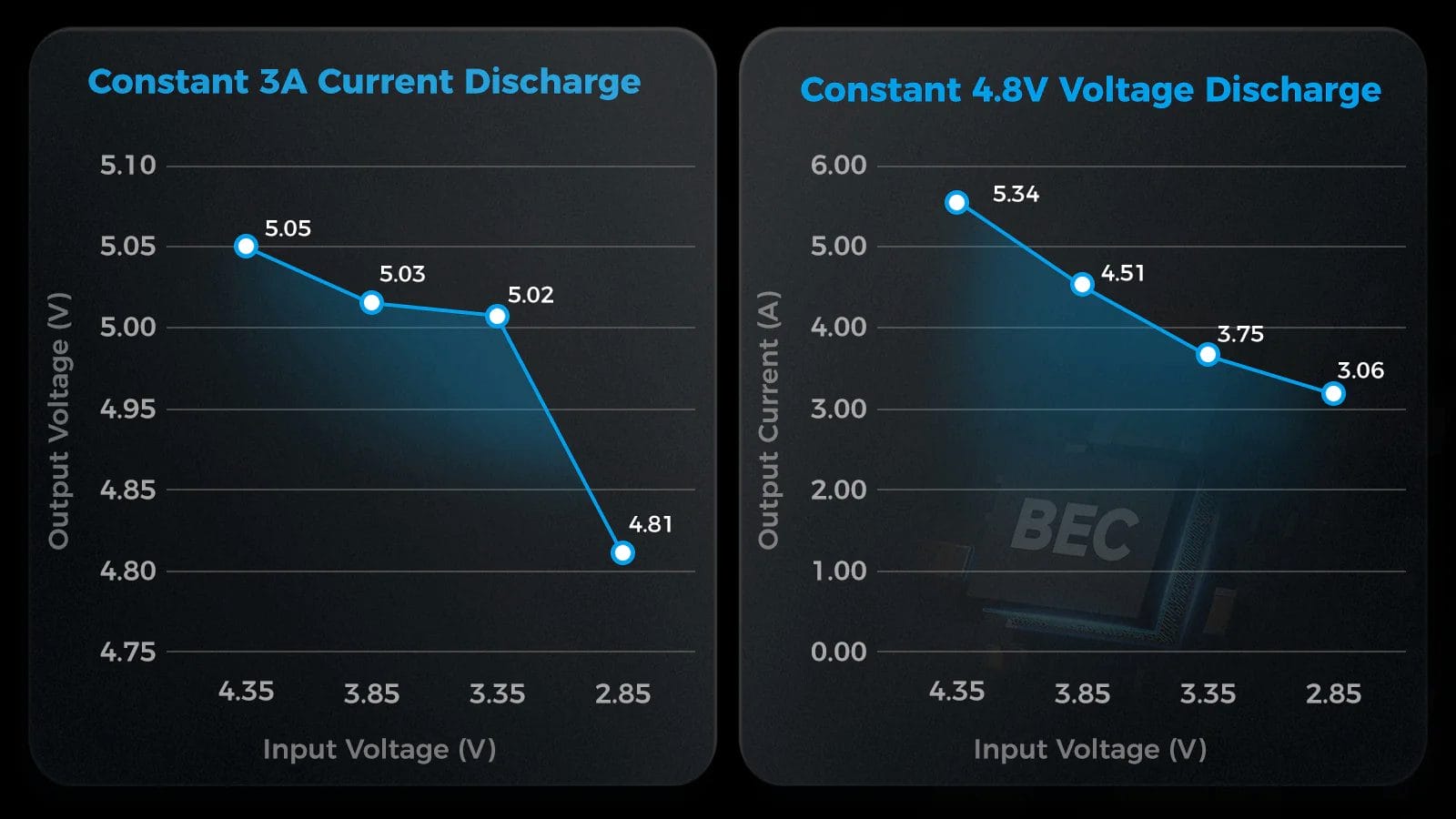

- Stable Video Transmission: Features a newly developed BEC to ensure consistent power delivery for seamless HD performance.
- Enhanced Overcurrent Capacity: Supports 12A continuous current and 18A peak ESC, providing robust performance for demanding flights.
- Reliable Precision: Includes an independent 3.3V LDO design to deliver stable, interference-free power directly to the IMU for accurate control.

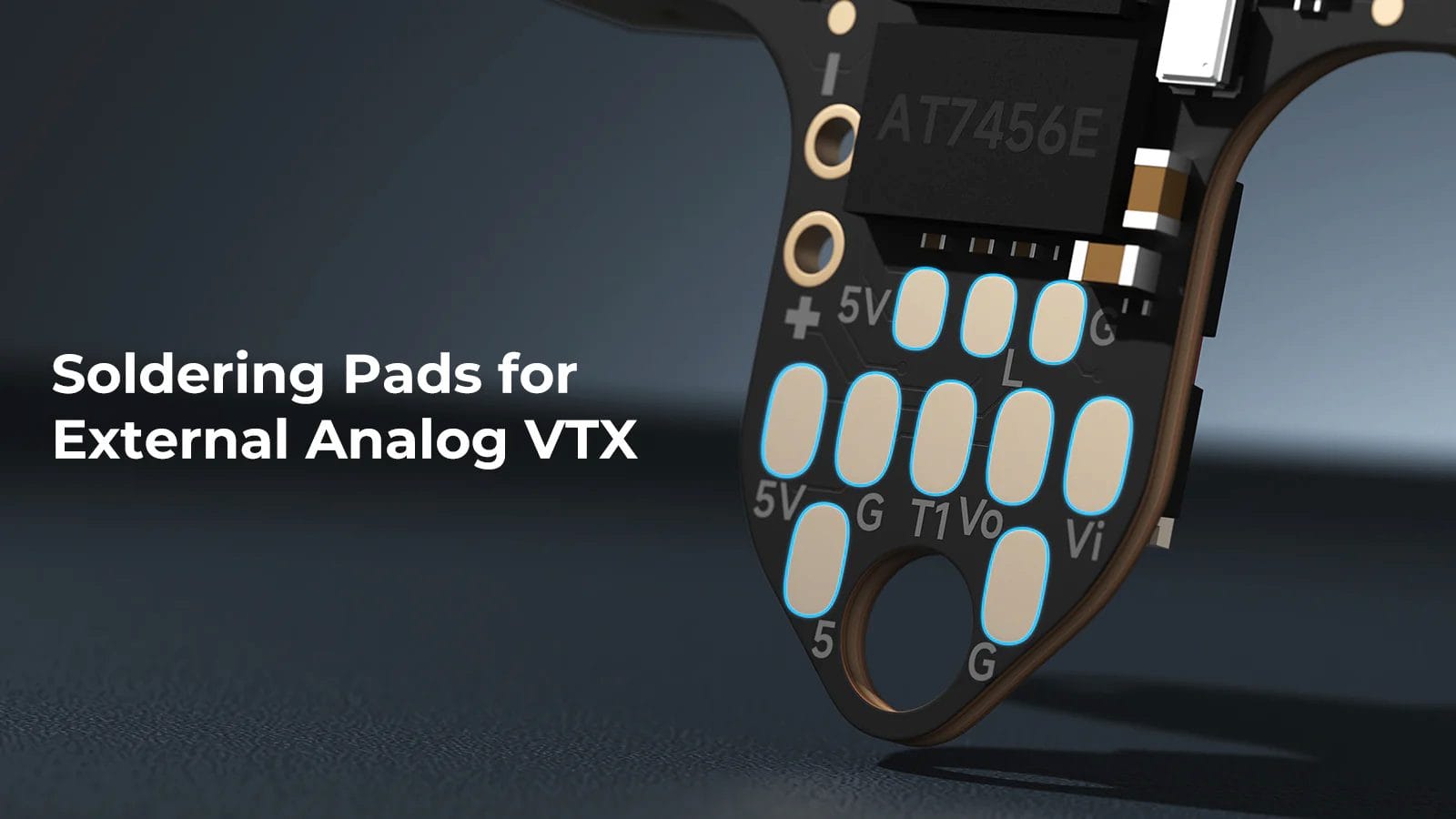

- Whoop-ready Installation: The 3IN1 is equipped with motor plugs and a SH1.0-6Pin HD digital port for a hassle-free installation and maintenance experience, while the 4IN1 has external VTX soldering pads for protocol flexibility.
Specifications
FC

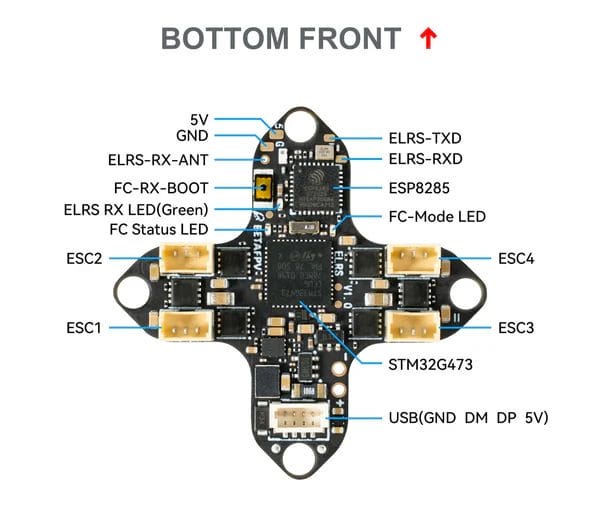

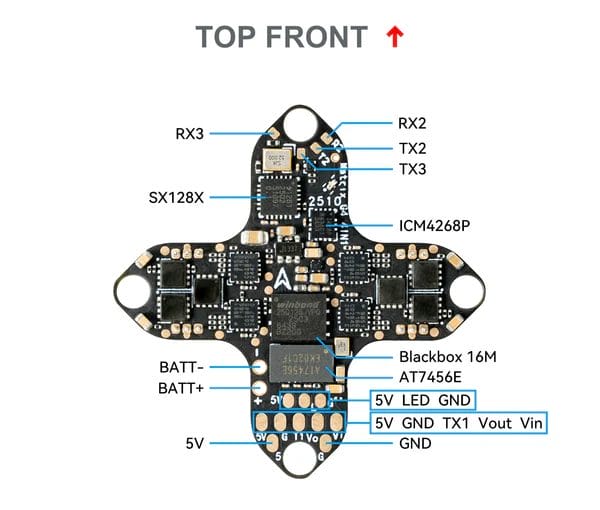

- MCU: STM32G473CEU6 (168MHz)
- Gyro: ICM42688P
- Blackbox Memory: 16MB
- Sensor: Voltage & current
- BEC: 5V/3A
- UART (3IN1 Version): UART 1 (RX Only/SBUS), UART 2 (Free), UART 3 (For RX), UART 4 (Free/HD MSP)
- UART (4IN1 Version): UART 1 (For VTX), UART 2 (Free), UART 3 (For RX), UART 4 (NONE)
- ESC: 12A continuous
- RX: Serial ELRS 2.4GHz (V3.4.3)
- FC Firmware:Â Betaflight_4.5.1_BETAFPVG473 (3IN1 version), Betaflight_4.5.2_BETAFPVG473_V2 (4IN1 version)
- USB Port: SH1.0-4Pin
- OSD: AT7456E (4IN1 version only)
- HD Digital VTX Port: SH1.0-6Pin (3IN1 version only)
- Motor Plug: JST1.25-3Pin
- Battery Connector: BT2.0
- Mounting Size: 25.5mm x 25.5mm

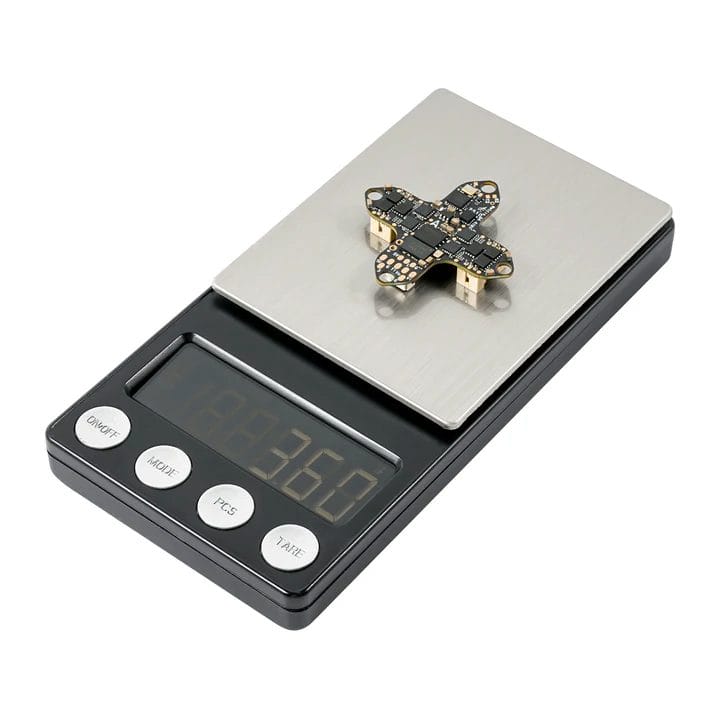

- Weight (3IN1 Version): 3.8±0.1g (battery connector excluded), 4.2±0.1g (battery connector included)
- Weight (4IN1 Version): 3.6±0.1g (battery connector excluded), 4.6±0.1g (battery connector included)
ESC
- Power Input: 1S only
- Current: 12A continuous, 18A peak
- ESC Firmware: A_X_5_96_v0.19.2.hex for BB51 Bluejay firmware
- Digital Signal Protocol: DSHOT300, DSHOT600
Includes
- 1x Matrix 1S Brushless Flight Controller (4IN1)
- 1x Type-C to SH1.0 Adapter
- 1x SH1.0-4Pin Adapter Cable
- 1x SH1.0-6Pin Adapter Cable
- 4x M1.2*4 Self-tapping Screws
- 4x M1.4*5 Self-tapping Screws
- 4x Shock Absorbing Balls
