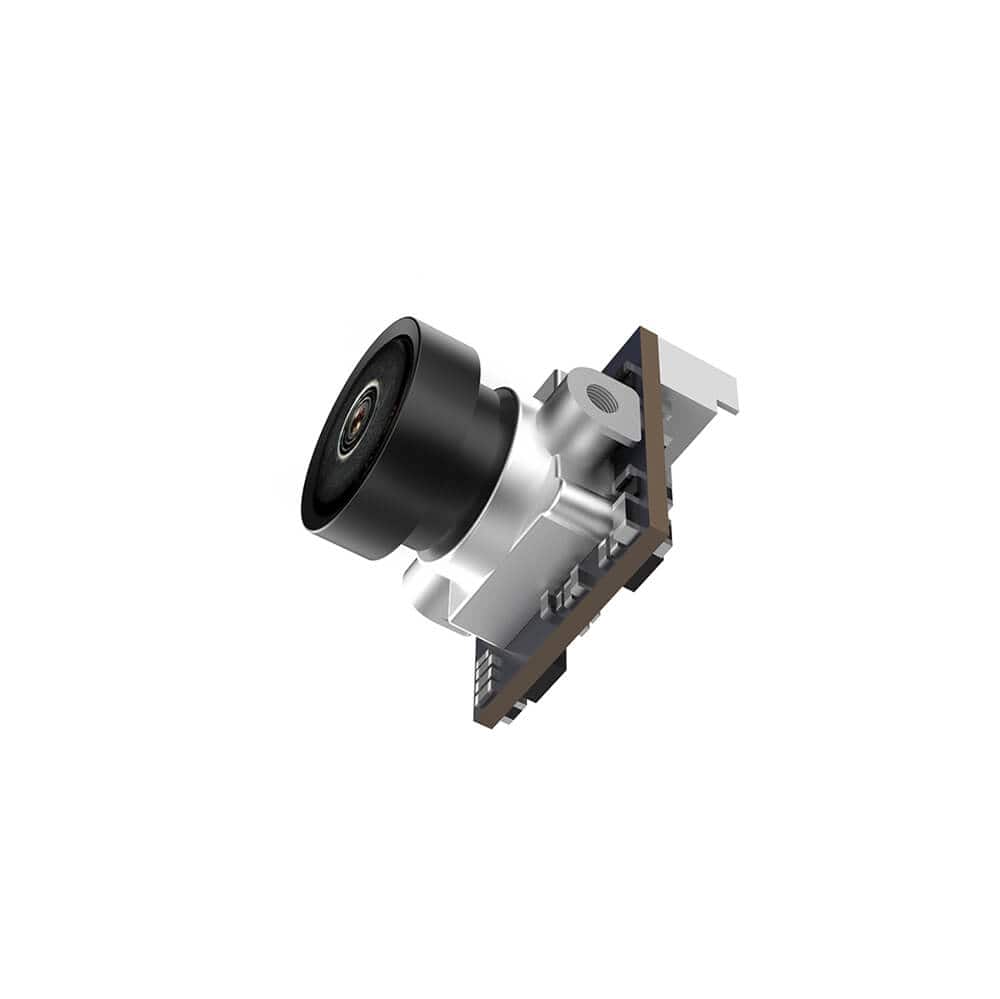

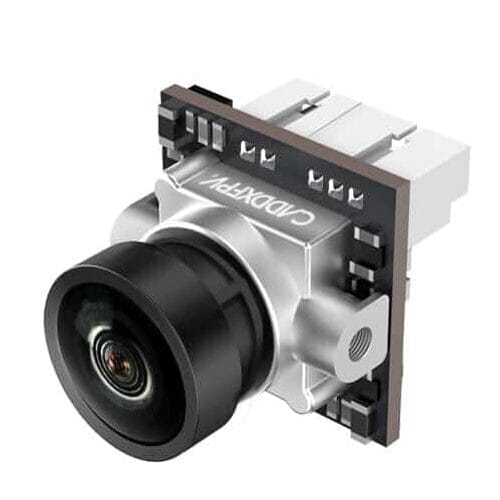

Caddx Ant Analog Camera Nano Camera 4:3 14x14mm
Description
Caddx Ant Analog Camera Nano Camera 4:3 14x14mm

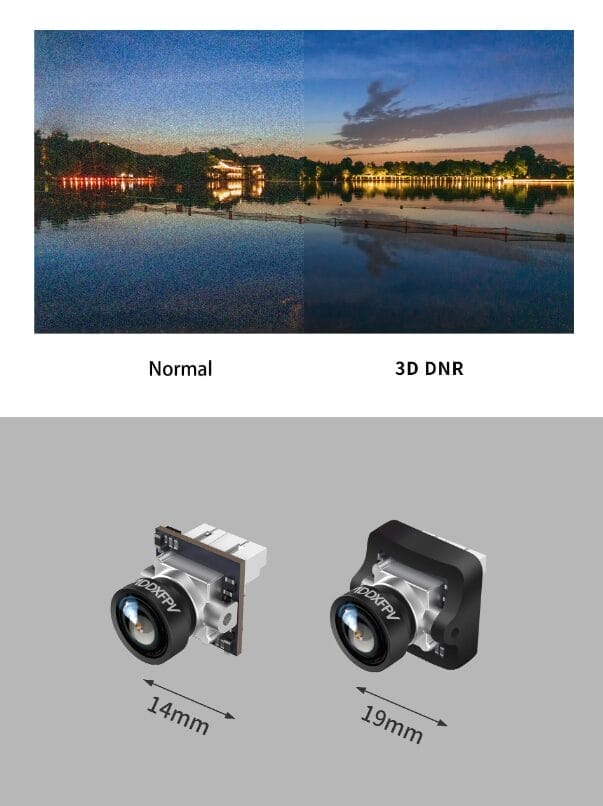

The Caddx Ant – 1200TVL 1.8mm FPV Nano Camera (14×14) is a new generation of nano cameras. This 14x14mm ultralight budget-friendly camera only weighs 2g and supports OSD Menu, 3.7-18.V, Global WDR, NTSC or PAL, CVBS video output, and many other cool features! A special feature about this camera is that it includes 3D DNR, which gives you a full clarity image, so no need to worry your image looking grainy or noisy when flying. You can mount the Nano into a 19mm bracket (included) to fit bigger builds!
Specifications
- Model: Caddx Ant – 1200TVL 1.8mm FPV Nano Camera (14×14)
- Image Sensor: 1/3″ CMOS Sensor
- Horizontal Resolution: 1200TVL
- TV System: NTSC & PAL (Changeable)
- Menu: Support
- Image: 4:3
- WDR: Global WDR
- Min. Illumination: [email protected]
- Lens: 1.8mm
- Color: Black
- Synchronization: Internal
- Auto Gain Comtrol: Yes
- BLC: Yes
- Electronic Shutter: PAL: 1/50~100, 000; NTSC: 1?60~1000, 000
- S/N Radio: >52dB (AGC OFF)
- Video Output: CVBS
- DNR: 3D DNR
- Dimensions: 14*14mm(with bracket to 19*19mm)
- Wide Power Input: DC 3.7-18V
- Work Temperature: -20C~+60C
- Work Humidity: 20%~80%
- Weight: 2g (N.W.)
Includes
- 1x Caddx Ant Analog Camera Nano Camera 4:3 14x14mm Silver
Additional information
| Brands | |
|---|---|
| Colour | Black, Silver |
