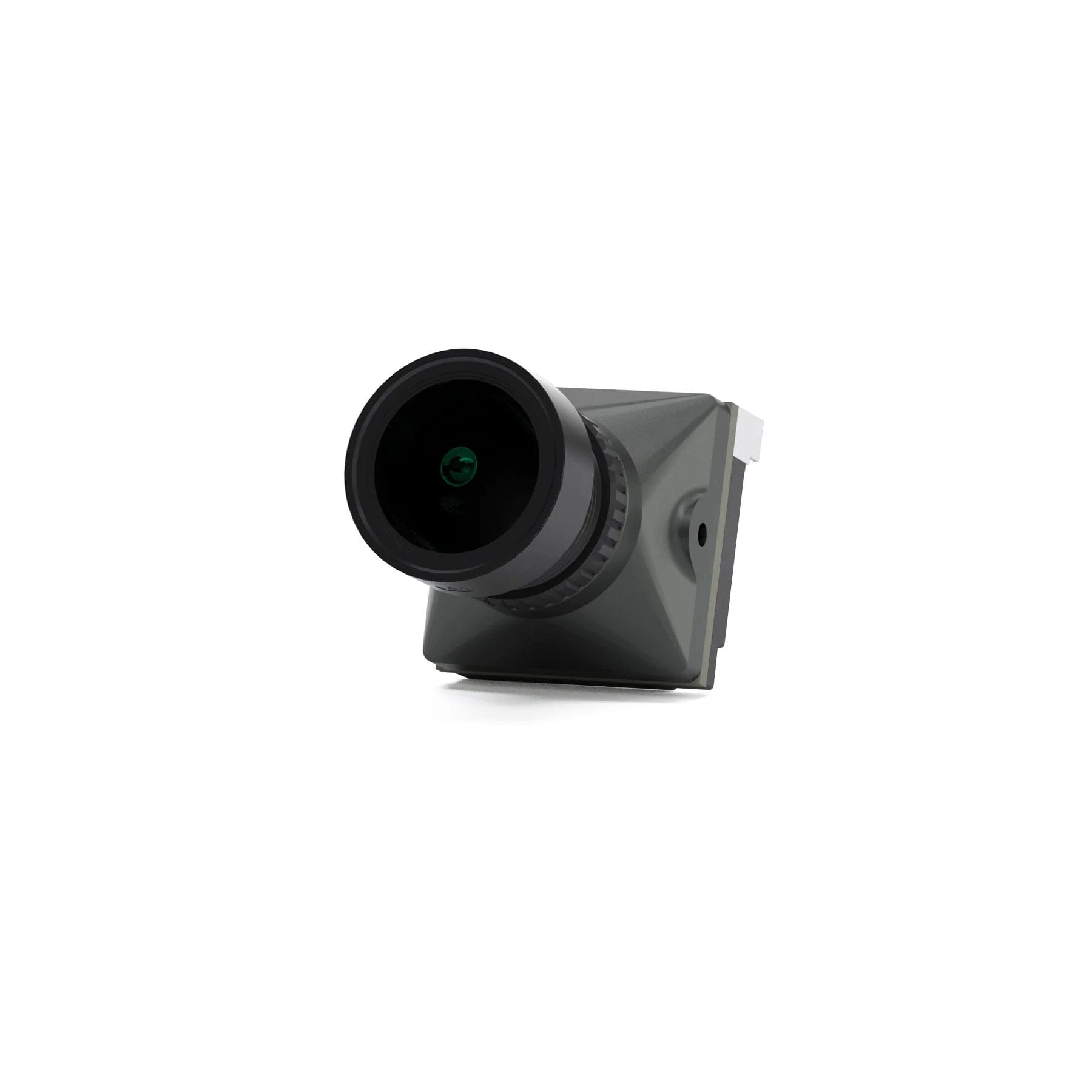

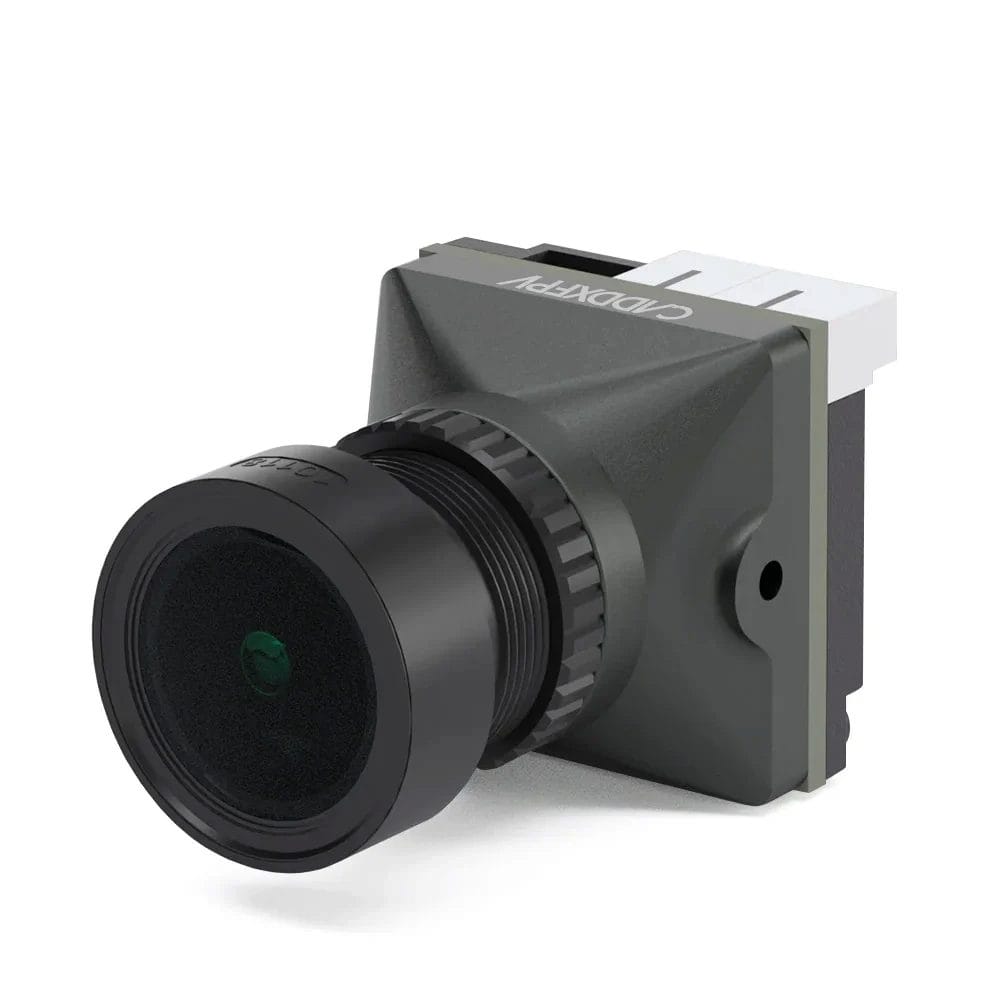

Caddx Ratel Pro Analog Micro Camera 19x19mm
AU$69.30
The Ratel PRO is a high-performance camera featuring a 1/1.8″ image sensor with 1500 TVL resolution, delivering crisp, detailed visuals in both NTSC and PAL formats.
In stock
Description
Caddx Ratel Pro Analog Micro Camera 19x19mm
The Ratel PRO is a high-performance camera featuring a 1/1.8″ image sensor with 1500 TVL resolution, delivering crisp, detailed visuals in both NTSC and PAL formats. With Super WDR (HDR) for enhanced contrast and low-light sensitivity down to 0.00001 lux, it excels in challenging lighting conditions. The camera supports multiple aspect ratios (16:9 and 4:3), offers a wide 125° field of view, and operates within a broad 4.5V-27V power range. Built for versatility, the Ratel PRO is lightweight at just 9.5g, supports various languages, and operates reliably across diverse environmental conditions.
Features
- Featuring a lightweight design metal case for durability and heat dissipation.
- Day and Night
- Blacklight
- 1500 TVL (Resolution)
- Super WDR (Wide Dynamic Range)
- 4.5V – 27V (Operating Voltage)
- 125° FOV (Field of View)
Specifications
- Image Sensor: 1/1.8″ Inch sensor
- Horizontal Resolution: 1500 TVL
- TV System: NTSC & PAL (changeable)
- Image Aspect Ratio: 16:9 & 4:3 (changeable)
- WDR: Super WDR (HDR)
- Minimum Illumination: 0.00001 lux
- Lens: 5 Mega
- Color: Black
- Synchronization: Internal
- Electronic Shutter:
- PAL: 1/50~100,000
- NTSC: 1/60~100,000
- S/N Ratio: >60 dB (AGC OFF)
- Video Output: CVBS
- OSD Manual: Support
- DNR: 3-DNR
- Field of View (FOV): 125°
- Language Options: English, 中文, 繁中文, Русский, Español, Italiano, Français, Polski, Português, 日本語
- Day/Night Modes: Auto, Color, B&W, EXT
- Dimensions: 19 mm x 19 mm
- Wide Power Input: DC 4.5-27V
- Working Temperature: -20°C to +60°C
- Working Humidity: 20% – 80%
- Weight: 9.5 g
Includes
- Caddx Ratel Pro Analog Micro Camera 19x19mm
