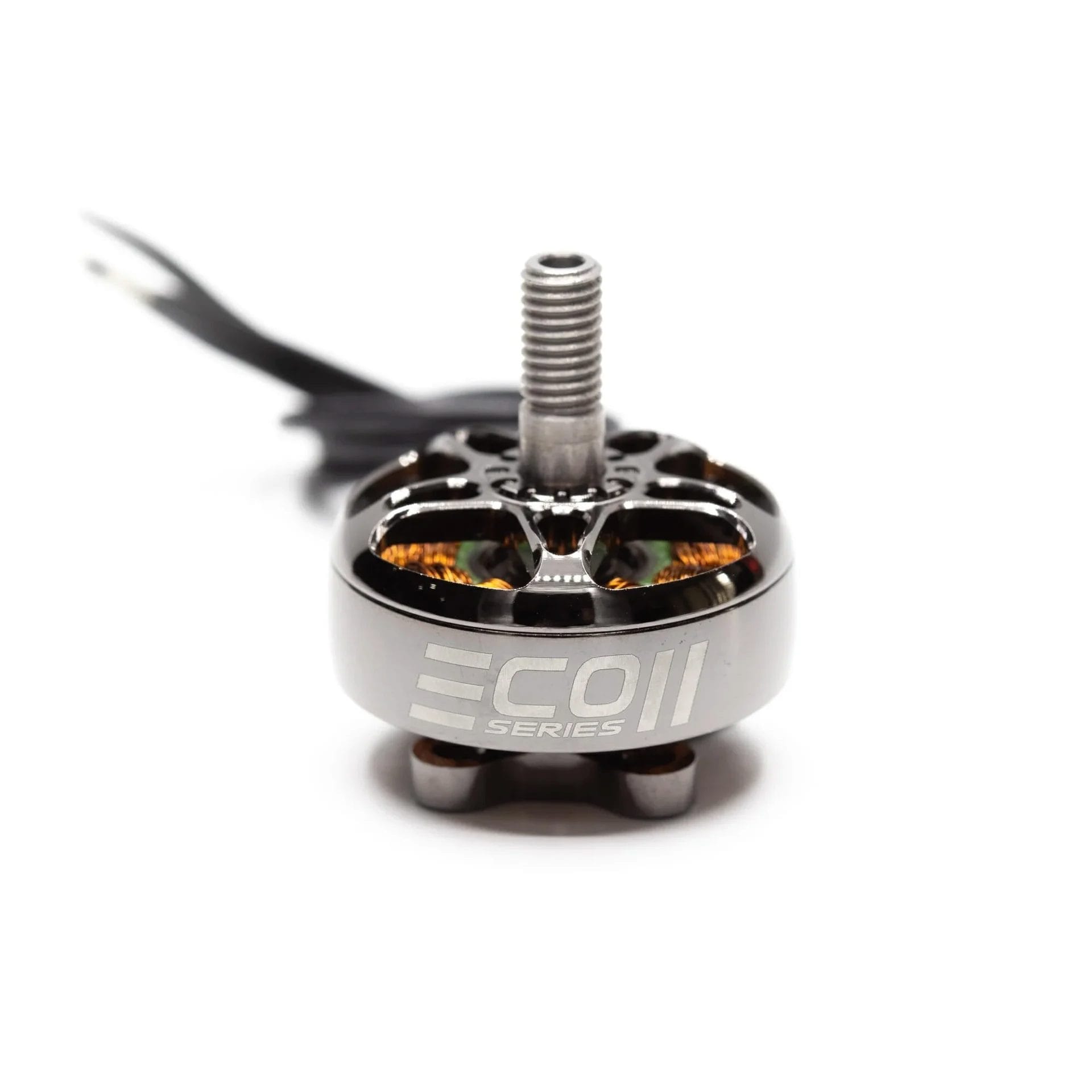

Emax ECO II Series 2306 3-6S 1700/1900/2400KV
Original price was: AU$28.03.AU$25.76Current price is: AU$25.76.
The engineers at EMAX are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors further improving on the performance and durability while retaining the same affordability.
Description
Emax ECO II Series 2306 3-6S 1700/1900/2400KV
The engineers at EMAX are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors further improving on the performance and durability while retaining the same affordability.
Redesigned from the ground up, the ECO II boasts an all-new architecture. With a more rounded design paired together with thicker reinforcements, maximum durability is achieved. Finished with a reflective surface, the ECO II offers a sleek modern design destined to satisfy the need for both aesthetics and durability.
In order to improve the performance from its predecessor, the ECO II utilizes N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved. More torque and thrust is generated, allowing pilots the flexibility to comfortably meet the demands of any racetrack or flight situation.
The ECO II Series marks the next evolution in affordable brushless motor technology, bringing in a new era of performance for everyone.
Features
- A brand new design with a rounded bell and stronger attachment points for increased durability.
- Fully mirror-polished finish that shines and glistens with even the smallest hint of light.
- Upgraded N52SH curved arc magnets for tighter airgap and better performance.
- Massive 12mm EZO bearing for unparalleled smooth operation.
Specifications
KV1700
- Motor Dimensions: φ28 × 31.6mm
- Framework: 12N14P
- Bearing Shaft: 4mm
- Lead: 20# AWG 120mm
- Weight: 30.4g (Without Silicone Wire)
- Idle Current (10V): 1.1A
- Internal Resistance: 74mΩ
- Number of Cells: 3–6S
- Propeller Compatibility: 5″–5.5″
- Peak Current (6S): 36A
- Maximum Power (6S): 910W
KV1900
- Motor Dimensions: φ28 × 31.6mm
- Framework: 12N14P
- Bearing Shaft: 4mm
- Lead: 20# AWG 120mm
- Weight: 30.2g (Without Silicone Wire)
- Idle Current (10V): 1.3A
- Internal Resistance: 62mΩ
- Number of Cells: 3–6S
- Propeller Compatibility: 5″–5.5″
- Peak Current (6S): 46A
- Maximum Power (6S): 1160W
KV2400
- Motor Dimensions: φ28 × 31.6mm
- Framework: 12N14P
- Bearing Shaft: 4mm
- Lead: 20# AWG 120mm
- Weight: 30.2g (Without Silicone Wire)
- Idle Current (10V): 1.8A
- Internal Resistance: 47mΩ
- Number of Cells: 3–4S
- Propeller Compatibility: 5″–5.5″
- Peak Current (4S): 44A
- Maximum Power (4S): 740W
Includes

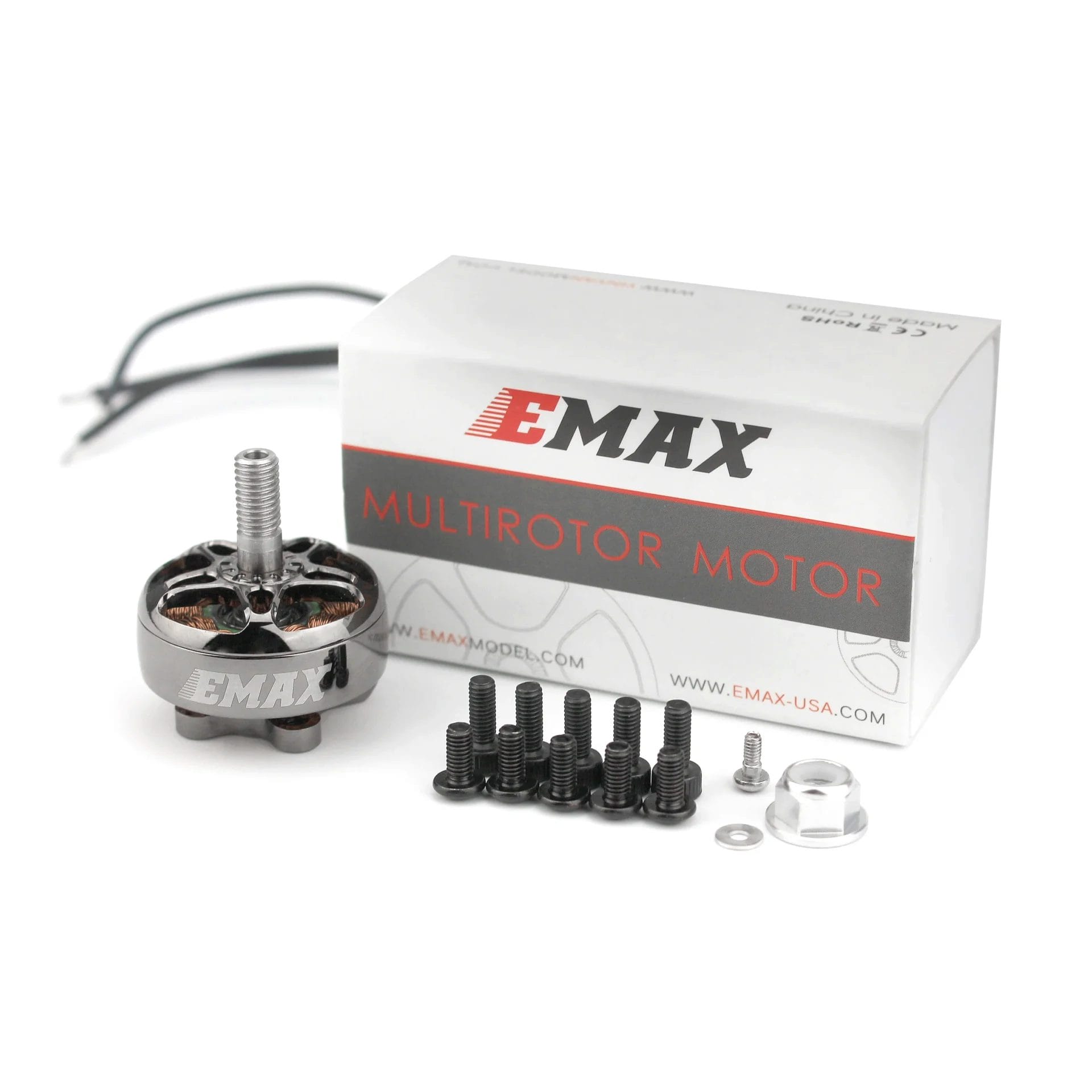

- 1x Emax ECO II Series 2306 3-6S 1700/1900/2400KV
