The GOKU F7 PRO V2 is a powerful and feature-rich 30×30 mm flight controller designed for high-performance FPV drones. Equipped with the STM32F722 processor and the ultra-precise ICM42688 gyro, it delivers smooth flight control, low latency, and robust compatibility with both analogue and digital FPV systems.

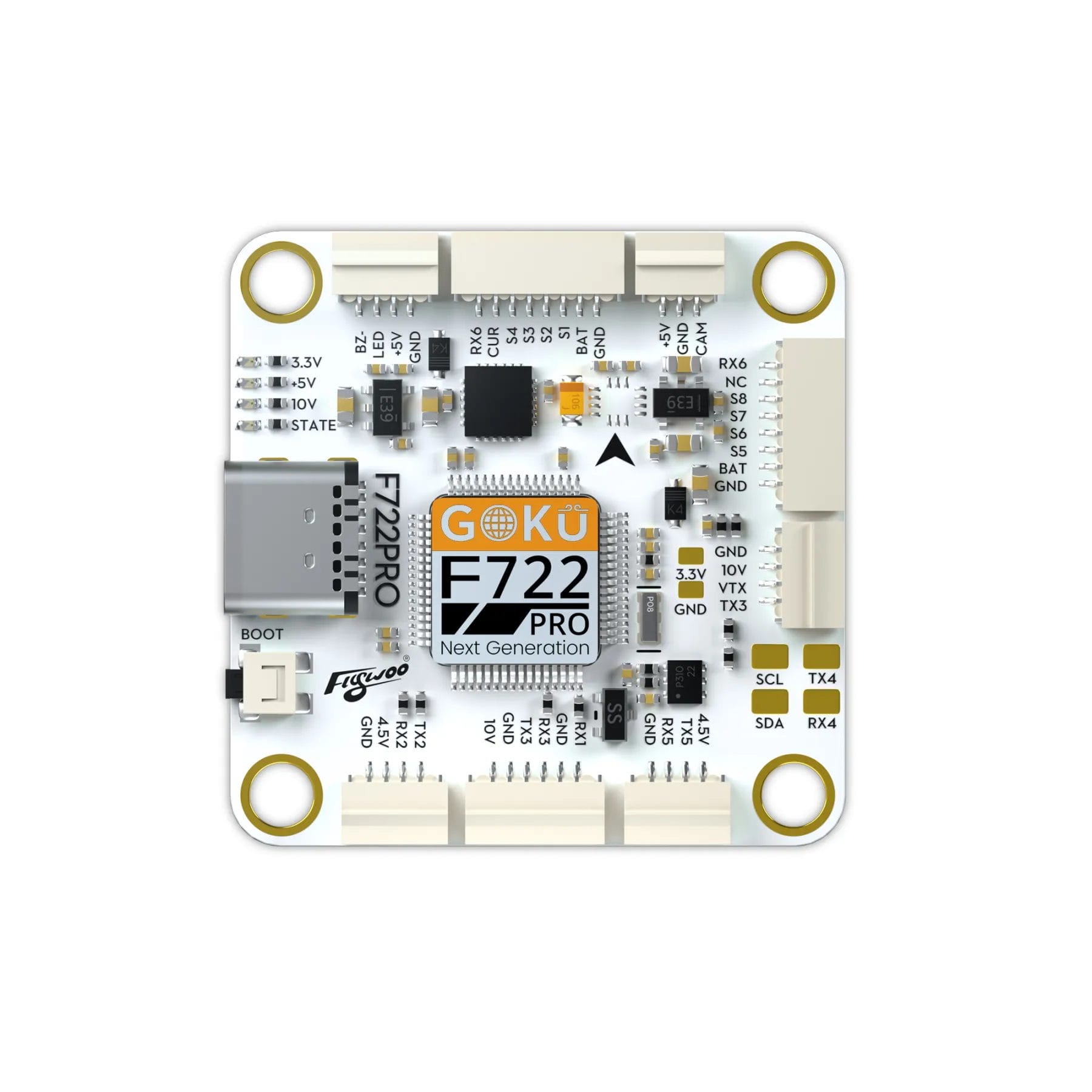

Flywoo Goku F7 PRO V2 30×30 Flight Controller ICM42688

The GOKU F7 PRO V2 is a powerful and feature-rich 30×30 mm flight controller designed for high-performance FPV drones. Equipped with the STM32F722 processor and the ultra-precise ICM42688 gyro, it delivers smooth flight control, low latency, and robust compatibility with both analogue and digital FPV systems. Perfect for racers, freestylers, and long-range pilots. This flight controller offers a 16 MB Blackbox for flight data logging, integrated OSD, barometer, and multiple UART ports. Its dual BEC outputs and modular design make it simple to integrate with ESCs, GPS, DJI O3, and other peripherals.

Features

• High-performance STM32F722 MCU running at 216 MHz for ultra-fast processing
• ICM42688 gyro for enhanced stability and noise resistance
• Plug-and-play support for DJI O3 and analogue FPV systems
• 16 MB Blackbox for detailed flight data logging
• Multiple UARTs for flexible peripheral connection
• Integrated barometer and OSD for telemetry and tuning

Specifications

• Firmware: Flywoo F722PRO (Betaflight & INAV supported)
• MCU: STM32F722
• Gyroscope: ICM42688
• OSD: AT7456E
• Barometer: DPS310
• Blackbox: 16 MB
• BEC Outputs: 10 V/2 A and 5 V/2 A
• UARTs: UART1–UART6
• Input Voltage: 7.4 V – 26 V (2–6S LiPo)
• Dimensions: 37 × 37 × 6 mm
• Mounting Pattern: M3, 30 × 30 mm
• Weight: ~8 g

Includes

• 1 × Flywoo Goku F7 PRO V2 30×30 Flight Controller (ICM42688)
• 1 × FC & ESC connection cable
• 1 × Buzzer connection cable
• 1 × GPS connection cable
• 1 × DJI O3 connection cable
• 1 × Receiver connection cable
• 1 × Camera connection cable
• 4 × M3 shock-absorbing balls
