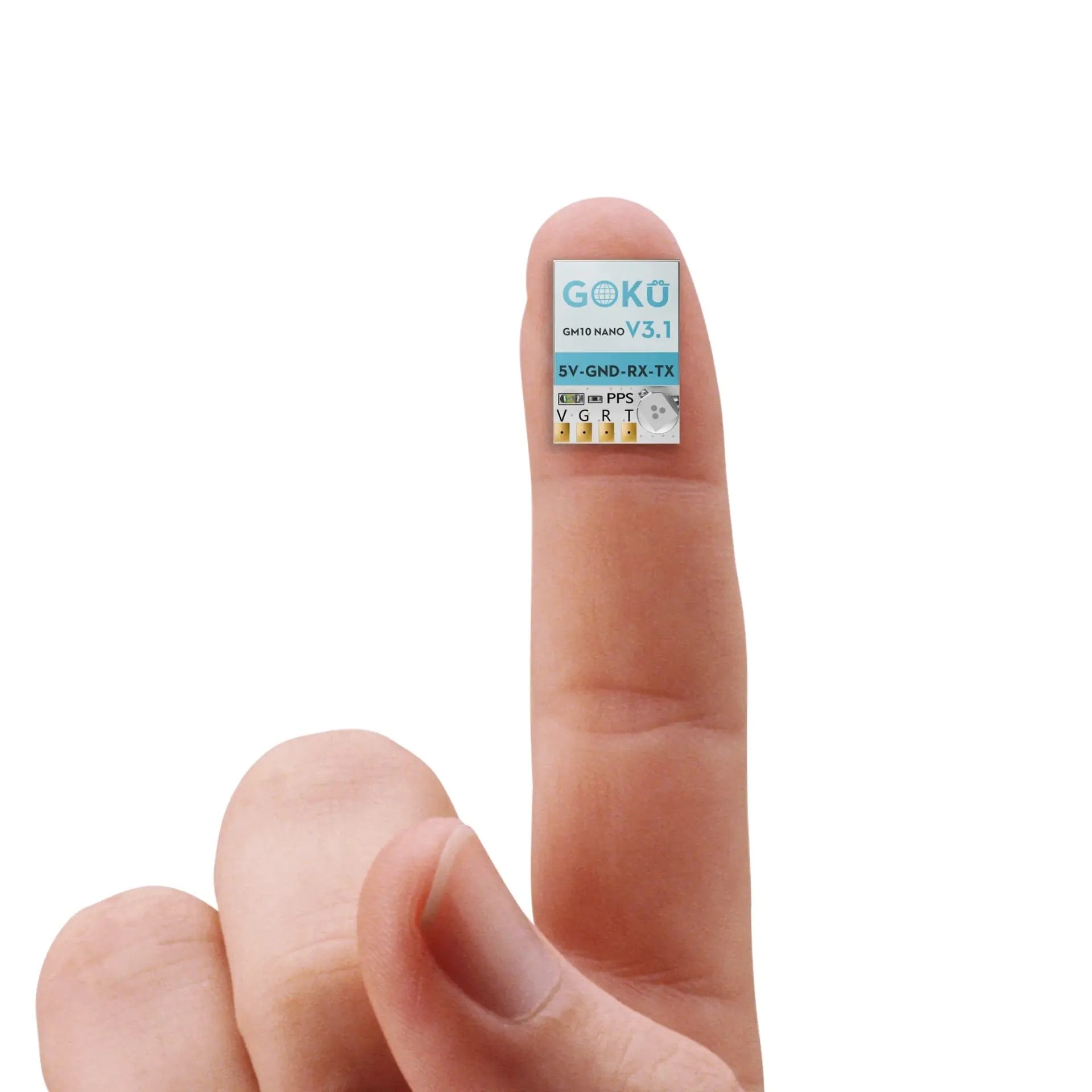

Flywoo Goku GM10 Nano V3.1 GPS
AU$36.67

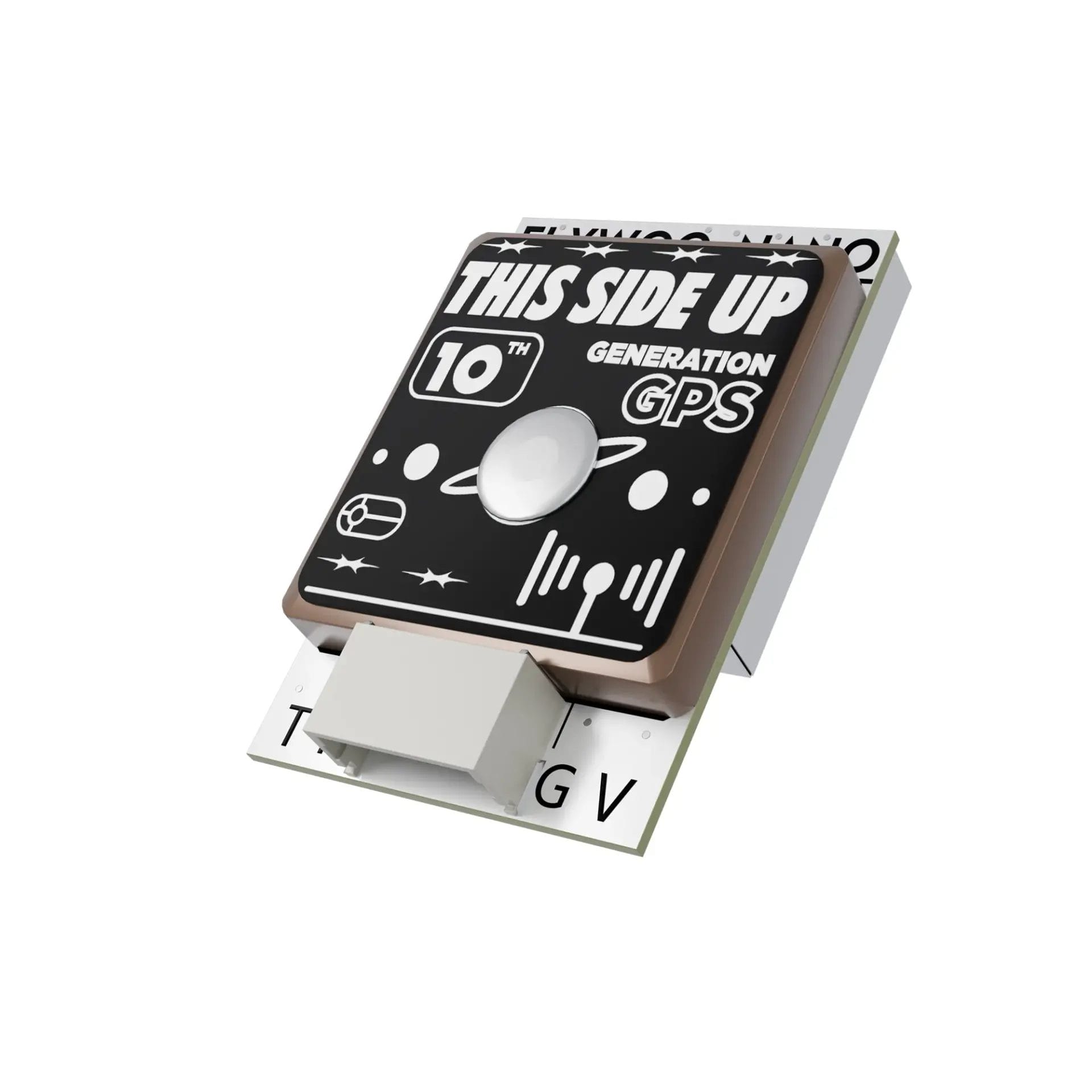

The V3.1 version of GOKU GM10 Nano GPS retains the extremely small size and adds a new plug. No soldering is required. It’s plug-and-play for convenient installation. It adopts the latest M10050 chip, supports multiple satellite systems, has high sensitivity, fast data update rate, weighs only 2.5g.
In stock
Description
Flywoo Goku GM10 Nano V3.1 GPS
The V3.1 version of GOKU GM10 Nano GPS retains the extremely small size and adds a new plug. No soldering is required. It’s plug-and-play for convenient installation. It adopts the latest M10050 chip, supports multiple satellite systems, has high sensitivity, fast data update rate, weighs only 2.5g.
Features
- GPS Module,Three Module
- 4pins Pad，ultra light weight
Specifications
Description
- Brand: FLYWOO
- Model: GM10 NANO V3 GPS
- Dimension :12mm*16mm*4.5mm
- Weight : 2.5g
- Connector : 4pins Pad
Features
- GPS Module,Three Module
- 4pins Pad，ultra light weight
Electrical Characteristics
- Chipset : M10050(Tenth Generation Chip)
- Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
- Default Protocol : GPS,Galileo,BeiDou
- Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
- Channels : 72 Searching Channel
Sensitivity
- Tracking : -162dBm
- Reacquisition : -160dBm
Data and Update Rate
- Support Rate : 4800bps to 921600bps,Default 115200bps
- Data Level : TTL or RS-232,Default TTL level
- Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
- Output frequency : 1Hz-10Hz，Default 10Hz
Operational Limits
- Altitude : 50,000m Max
- Velocity : 500m/s Max
- Acceleration : Less than 4g
Power consumption
- VCC : DC Voltage ：3.3-5V
- Operating temp : -40 °C ~ +85°C
- Storage Temp : -40°C ~ +105°C
Indicator :
- PPS LED:yellow .PPS LED not bright when GPS not fixed,flashing when fixed
- The Module’s Pins: RX TX 3.3-5V GND
Includes
- 1x GM10 NANO V3.1 GPS
- 1x 100mm Cable
- 1x Copper Foil
