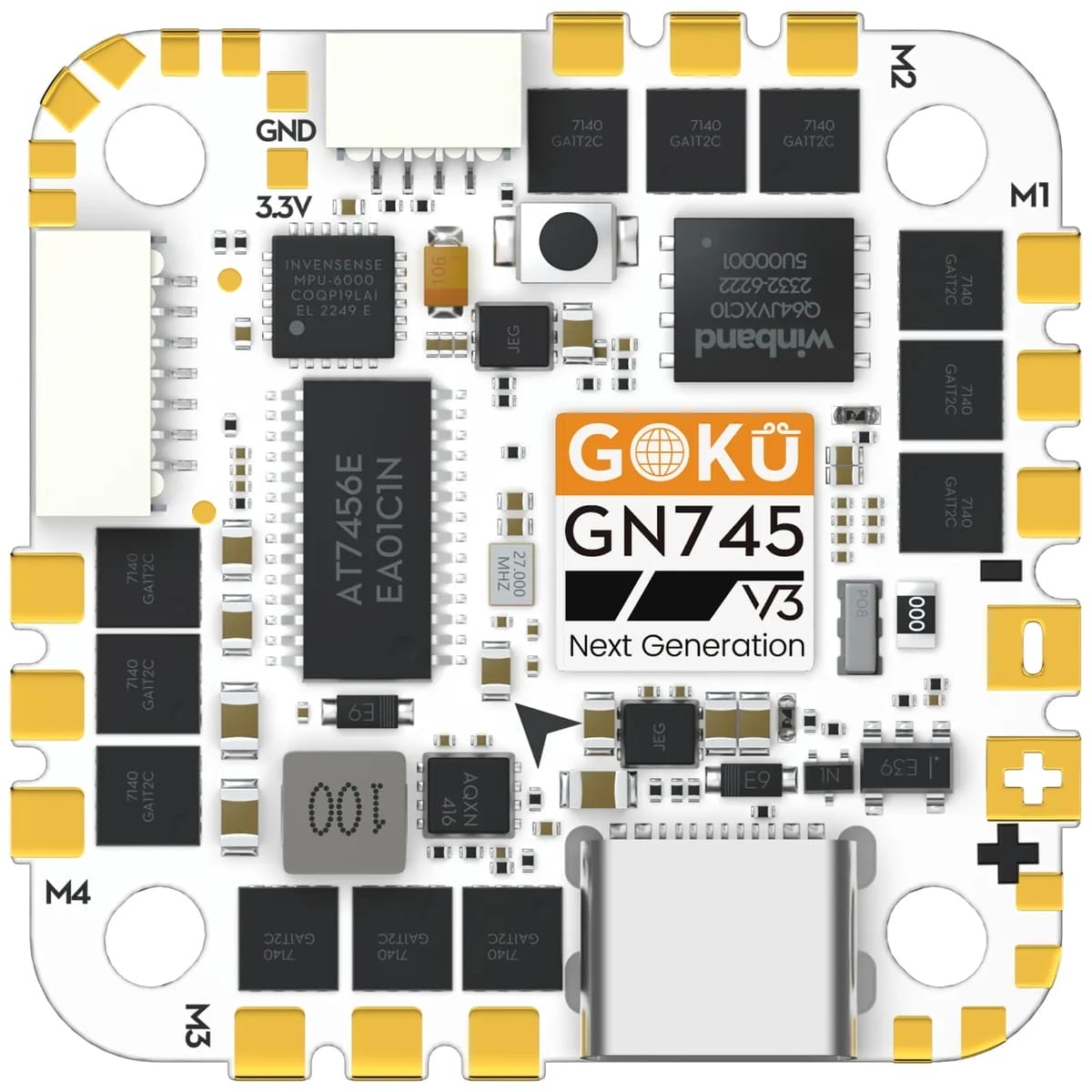

Flywoo GOKU GN745 45A 32bit ICM42688P V3 AIO
AU$171.36
Since its launch, the GOKU GN745 AIO has stood as Flywoo’s top-tier AIO product, earning widespread acclaim from Betaflight, INAV, and Ardupilot enthusiasts. Now, we’re excited to introduce the latest upgrade in this series—the V3 version! The V3 boasts a new ESC two-in-one drive solution, enhancing the continuous current capacity to 45A and improving the overcurrent protection capability of the motor pads, resulting in a more powerful overall performance. Furthermore, the V3 version significantly advances in terms of convenience, featuring 4 new direct-plug Uart ports and adopting a Type-C interface for easier connectivity.
ONLY 5 LEFT
Description
Flywoo GOKU GN745 45A 32bit ICM42688P V3 AIO
Since its launch, the GOKU GN745 AIO has stood as Flywoo’s top-tier AIO product, earning widespread acclaim from Betaflight, INAV, and Ardupilot enthusiasts. Now, we’re excited to introduce the latest upgrade in this series—the V3 version! The V3 boasts a new ESC two-in-one drive solution, enhancing the continuous current capacity to 45A and improving the overcurrent protection capability of the motor pads, resulting in a more powerful overall performance. Furthermore, the V3 version significantly advances in terms of convenience, featuring 4 new direct-plug Uart ports and adopting a Type-C interface for easier connectivity.
Features
- Performance: Utilizes STM32F745 chip, AM32 firmware, and ICM42688P gyro, with dual BEC, barometer, black box, supports 7 serial ports and I2C

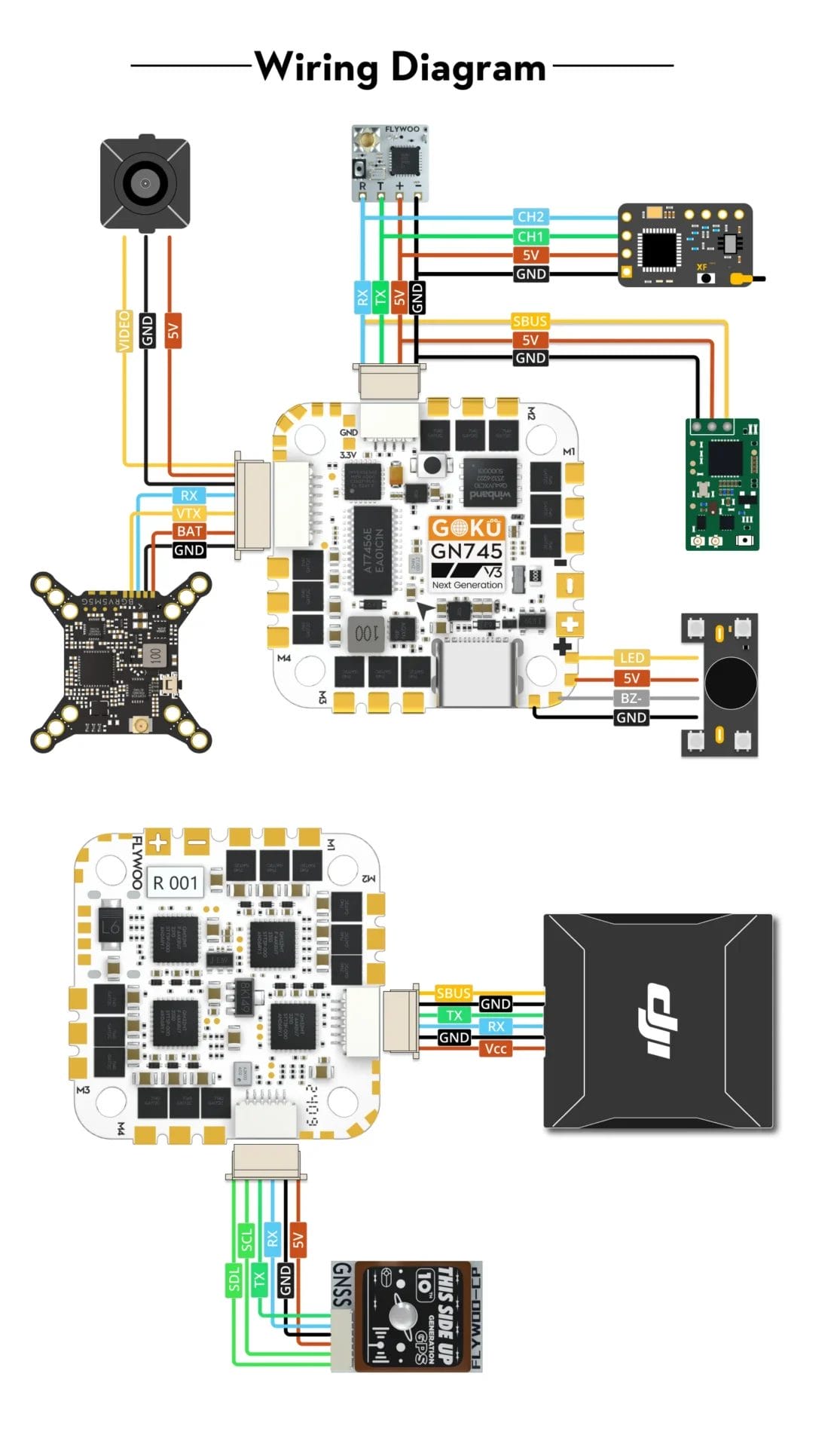

- Plug & Play: Compatible with O3 air unit, GPS, Camera, Analog VTX, and Receiver without the need for soldering
- Type-C Interface: Features a Type-C interface for improved compatibility and easier connection
- Compatibility: Supports BF, INAV, and Ardupilot platforms
- New Layout: New ESC two-in-one drive solution, with a continuous current up to 45A
- Better Protection: Larger motor pad area with improved overcurrent protection
Specifications
- BF Firmware: FLYWOOF745AIOV2
- INAV Firmware: FLYWOOF745
- Ardupilot Firmware: FLYWOOF745
- MCU: STM32F745 32-bit processor, 216MHz, 1MB Flash
- IMU: ICM42688P
- Barometer: SPL06

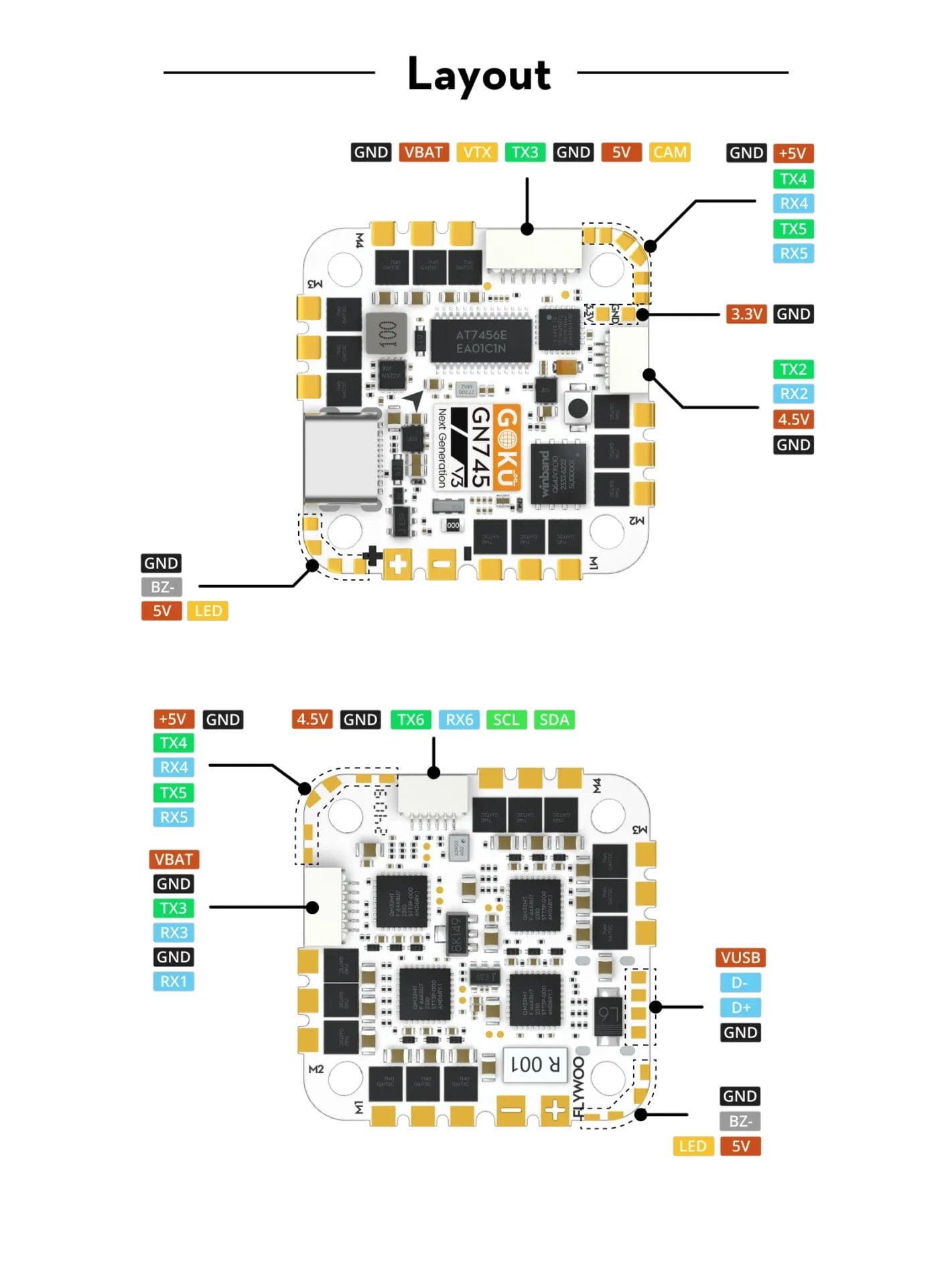

- UARTs: 7 hardware UARTs (1, 2, 3, 4, 5, 6, 7)
- Blackbox: 16MB
- BEC 5V: 2.0A max
- BEC 3.3V: 0.5A max
- Dimensions: 33.5×33.5mm
- Mounting Holes: 25.5/26.5mm standard
- Weight: 9.4g
- ESC Firmware: AM32_F4A_4IN1_F421
- ESC Input Voltage: 2-6S LiPo
- ESC Continuous Current: 45A
- ESC Protocols: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200

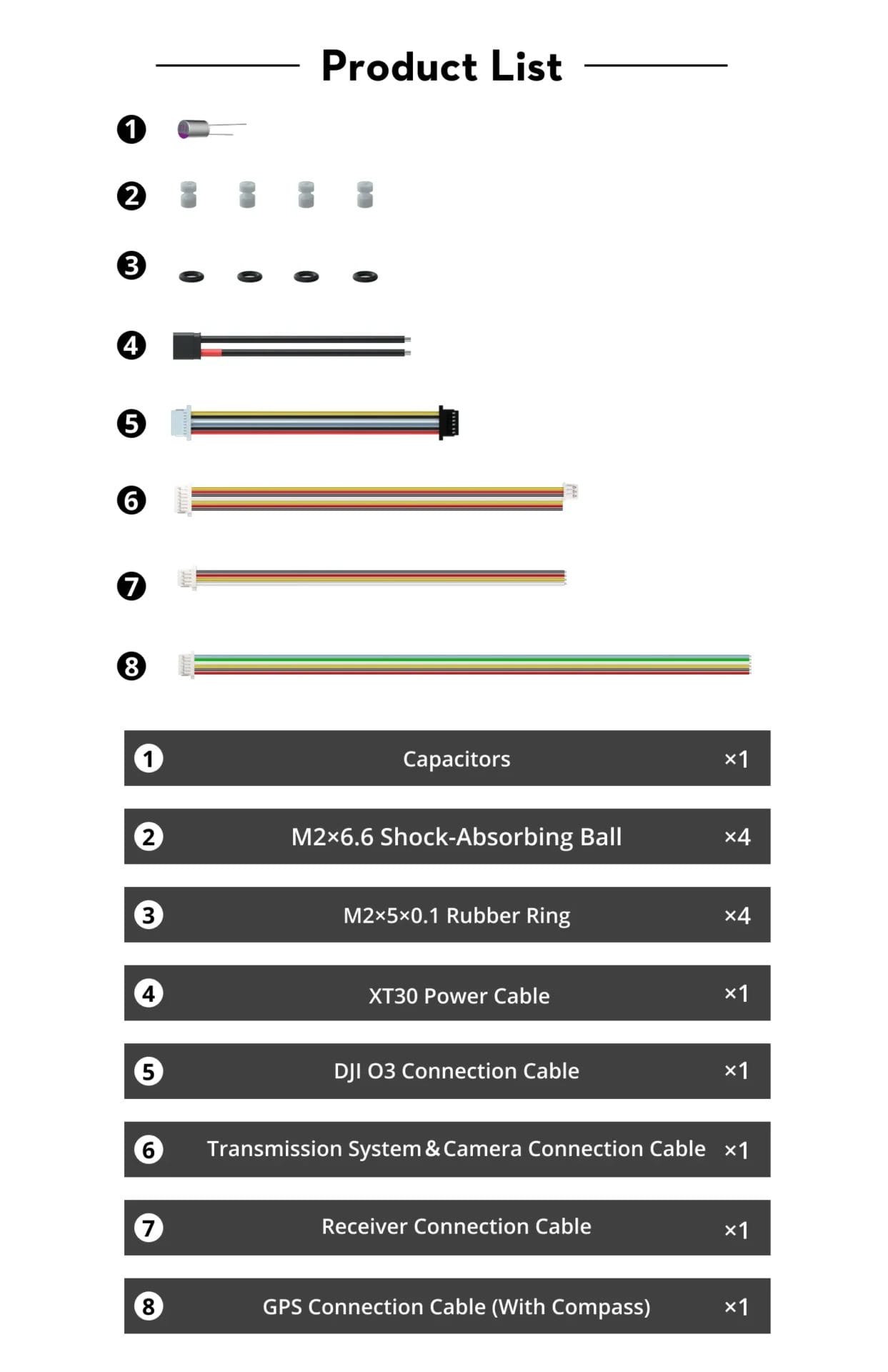

Includes
- 1x UNICON UPL Capacitor 25V 470UF
- 4x M2×6.6 Shock-Absorbing Ball
- 4x M2 Rubber Ring
- 1x XT30 Power Cable
- 1x DJI O3 Connection Cable
- 1x VTX & Camera Connection Cable
- 1x Receiver Connection Cable
- 1x GPS Compass Connection Cable
Additional information
| Brands |
|---|
