Flywoo Goku H743 PRO 45A AM32 20×20 Stack
AU$204.30
GOKU H743 Pro Mini 32bit 45A Stack is Flywoo’s flagship flight controller and ESC combo. It features an STM32H743VIH6 chip with a 480MHz Cortex-M7 core and dual ICM42688P gyros. It offers a 512MB blackbox, dual BECs delivering 10V 2A and 5V 2A, and supports 8 motor outputs for X8 multi-rotor builds. It is compatible with Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera control, analog and DJI VTX support, GPS and receiver ports, and dual ESC connectors. Paired with the GOKU G45M 45A ESC, it provides fast and precise handling suitable for racing and freestyle.
Sold out
Description
Flywoo Goku H743 PRO 45A AM32 20×20 Stack
GOKU H743 Pro Mini 32bit 45A Stack is Flywoo’s flagship flight controller and ESC combo. It features an STM32H743VIH6 chip with a 480MHz Cortex-M7 core and dual ICM42688P gyros. It offers a 512MB blackbox, dual BECs delivering 10V 2A and 5V 2A, and supports 8 motor outputs for X8 multi-rotor builds. It is compatible with Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera control, analog and DJI VTX support, GPS and receiver ports, and dual ESC connectors. Paired with the GOKU G45M 45A ESC, it provides fast and precise handling suitable for racing and freestyle.
Features

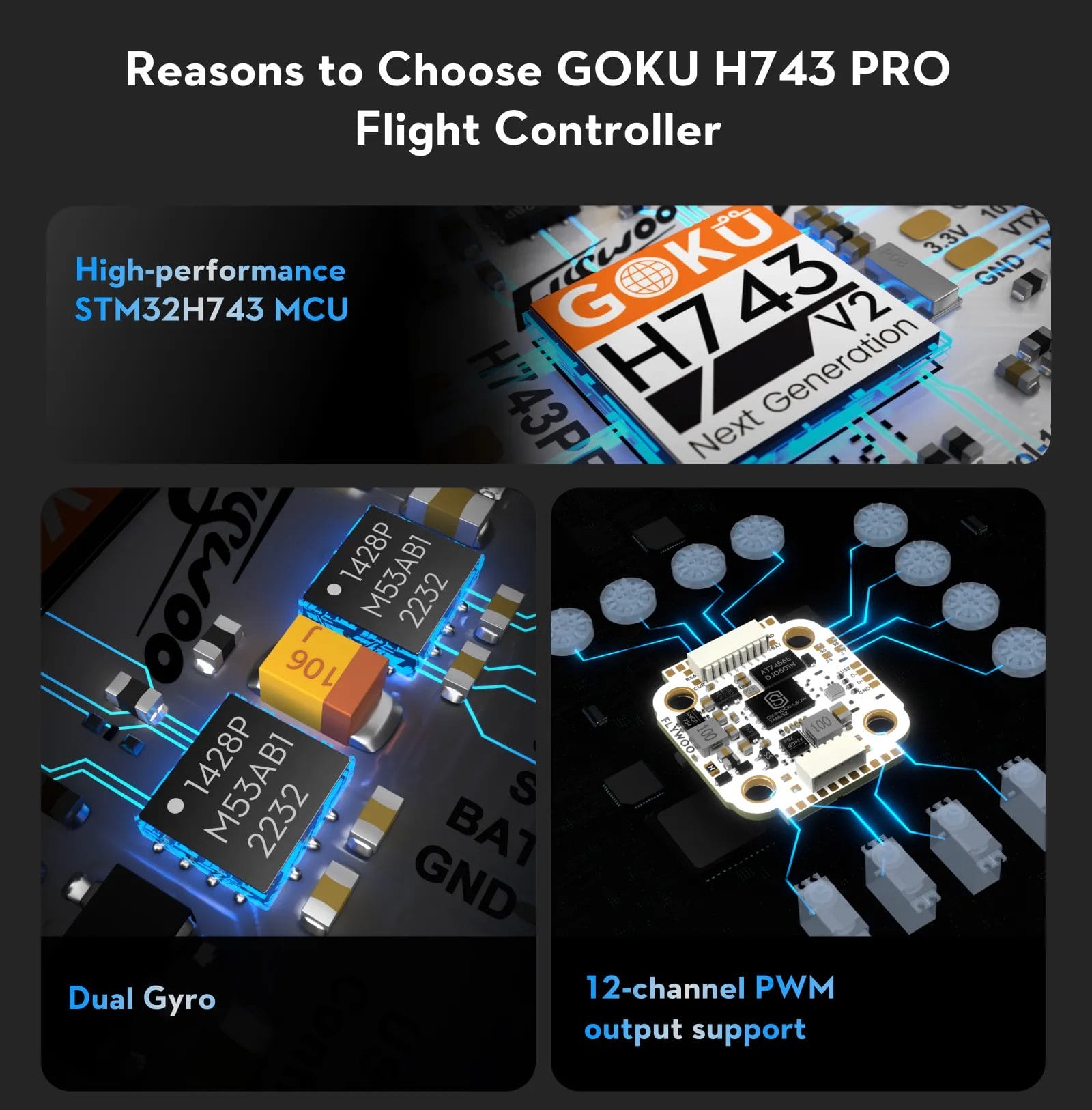

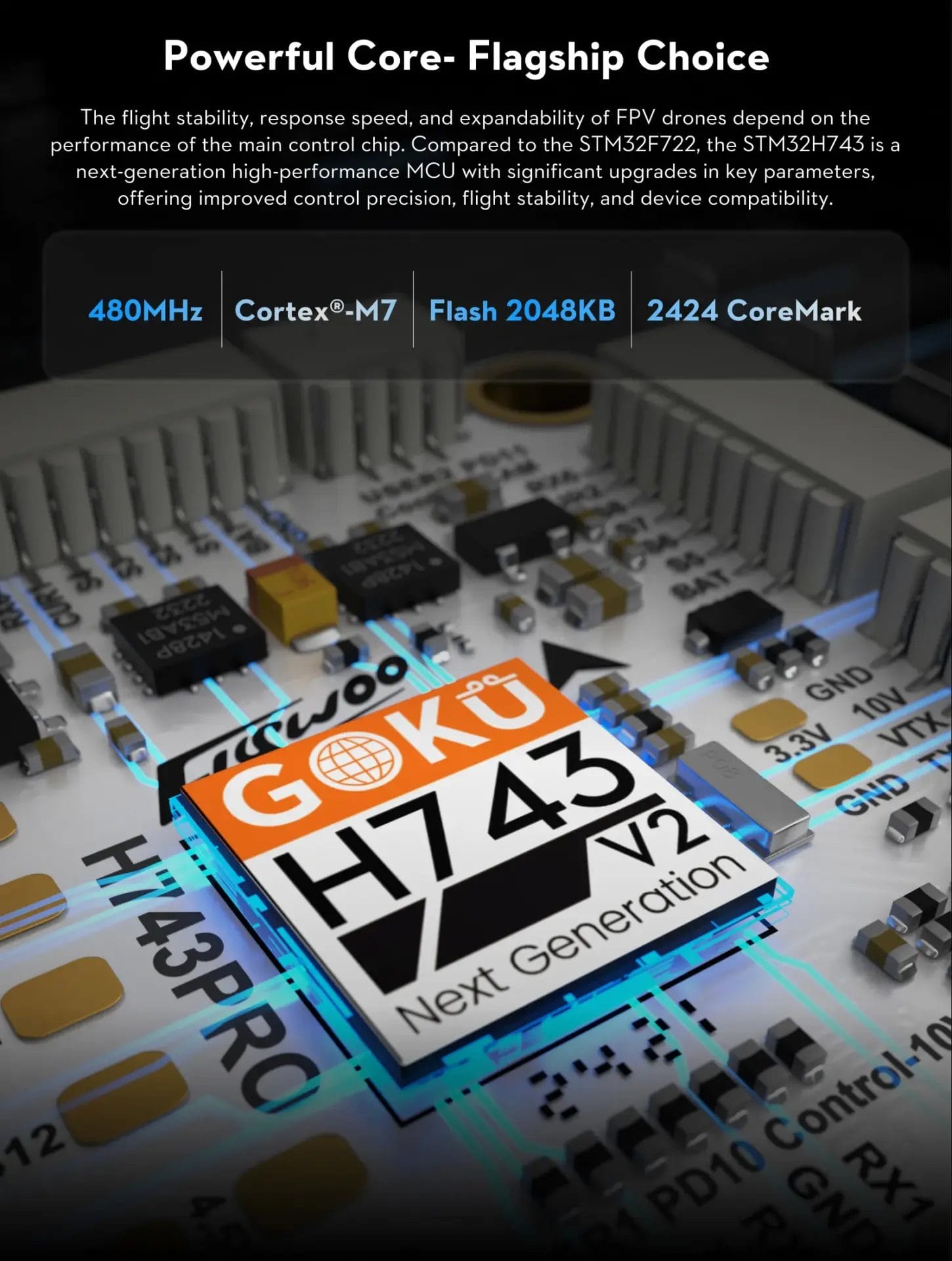

- Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.
- Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.

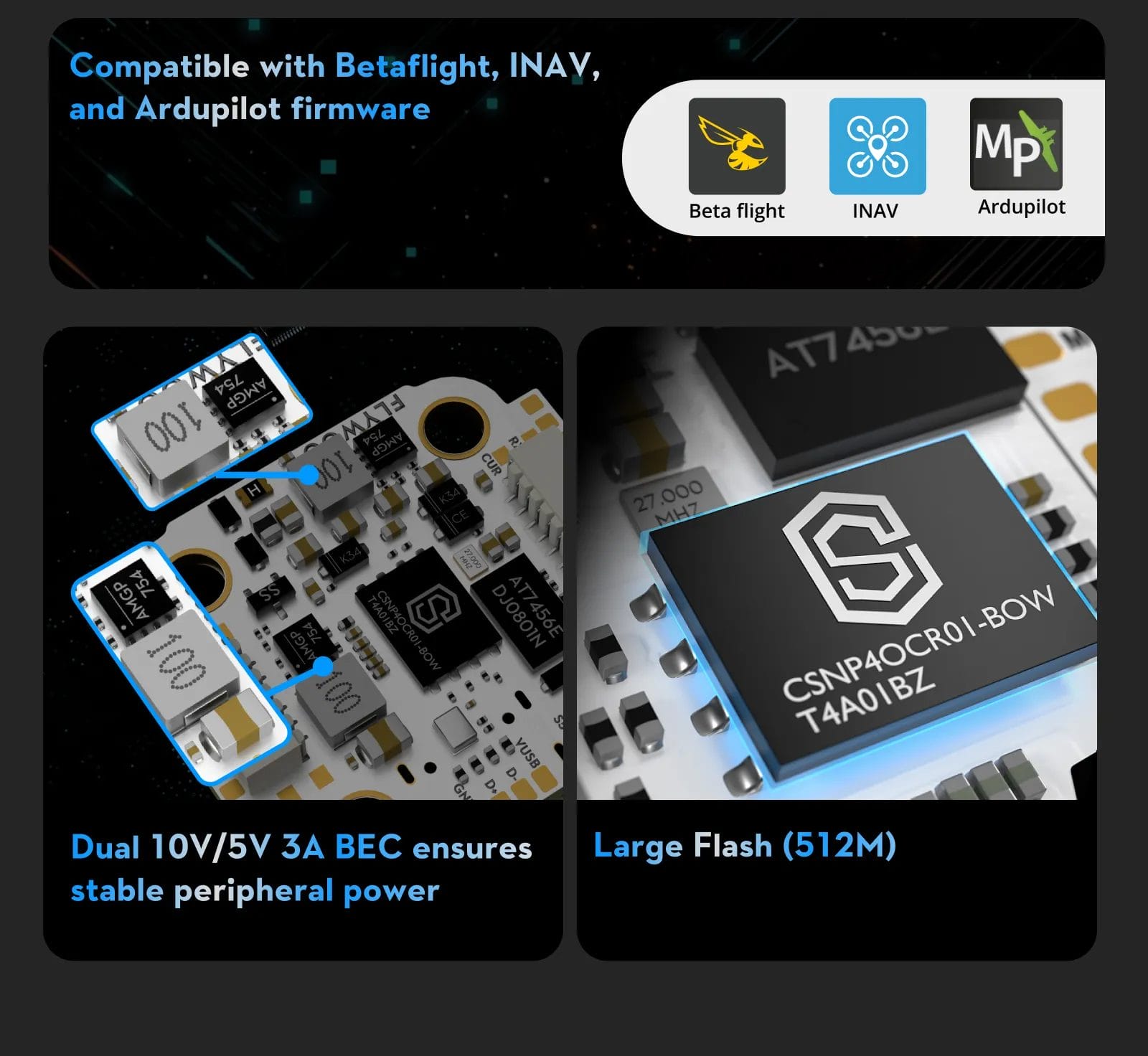

- Efficient Power: Dual 10V/5V 3A BEC provides stable power for peripherals.

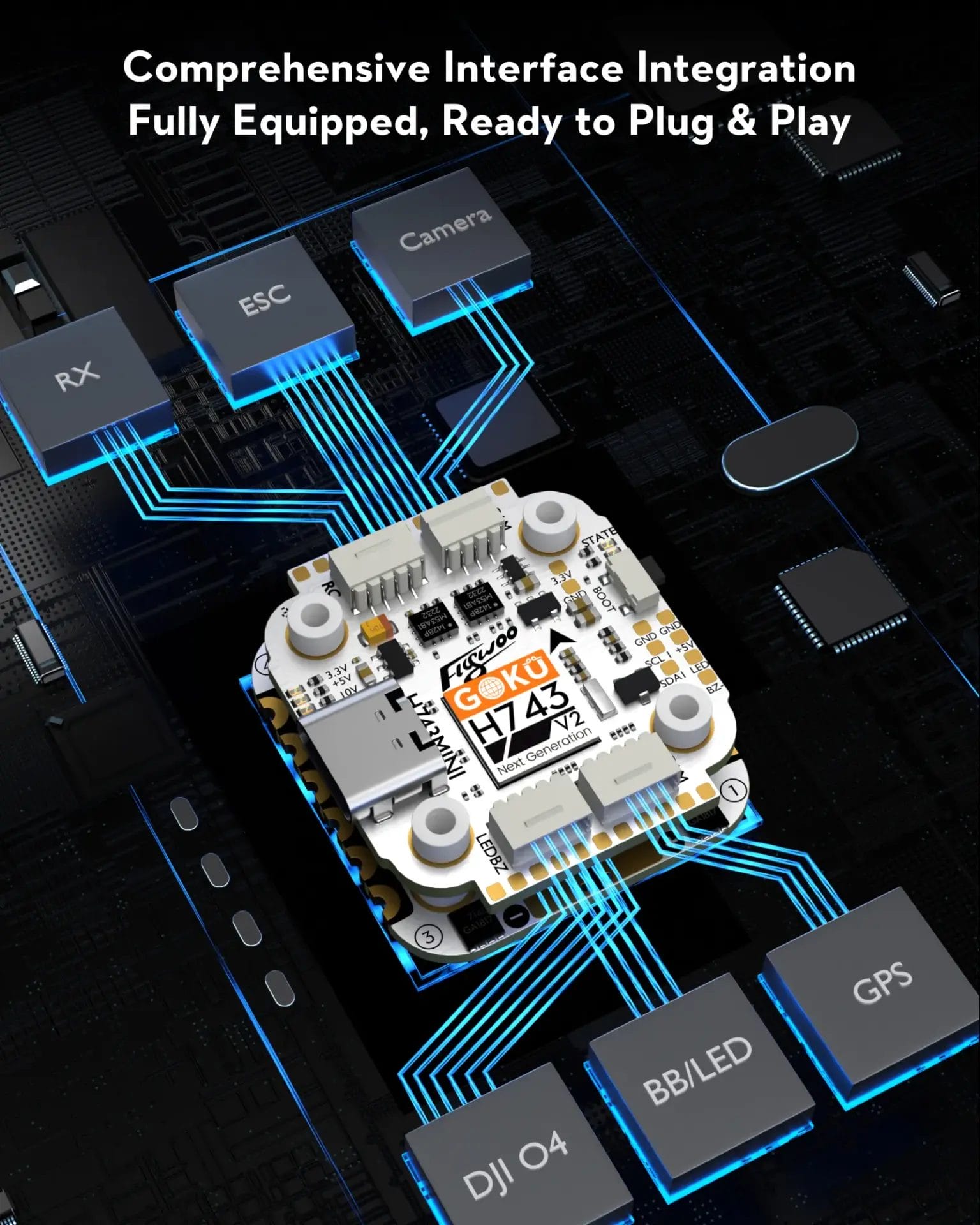

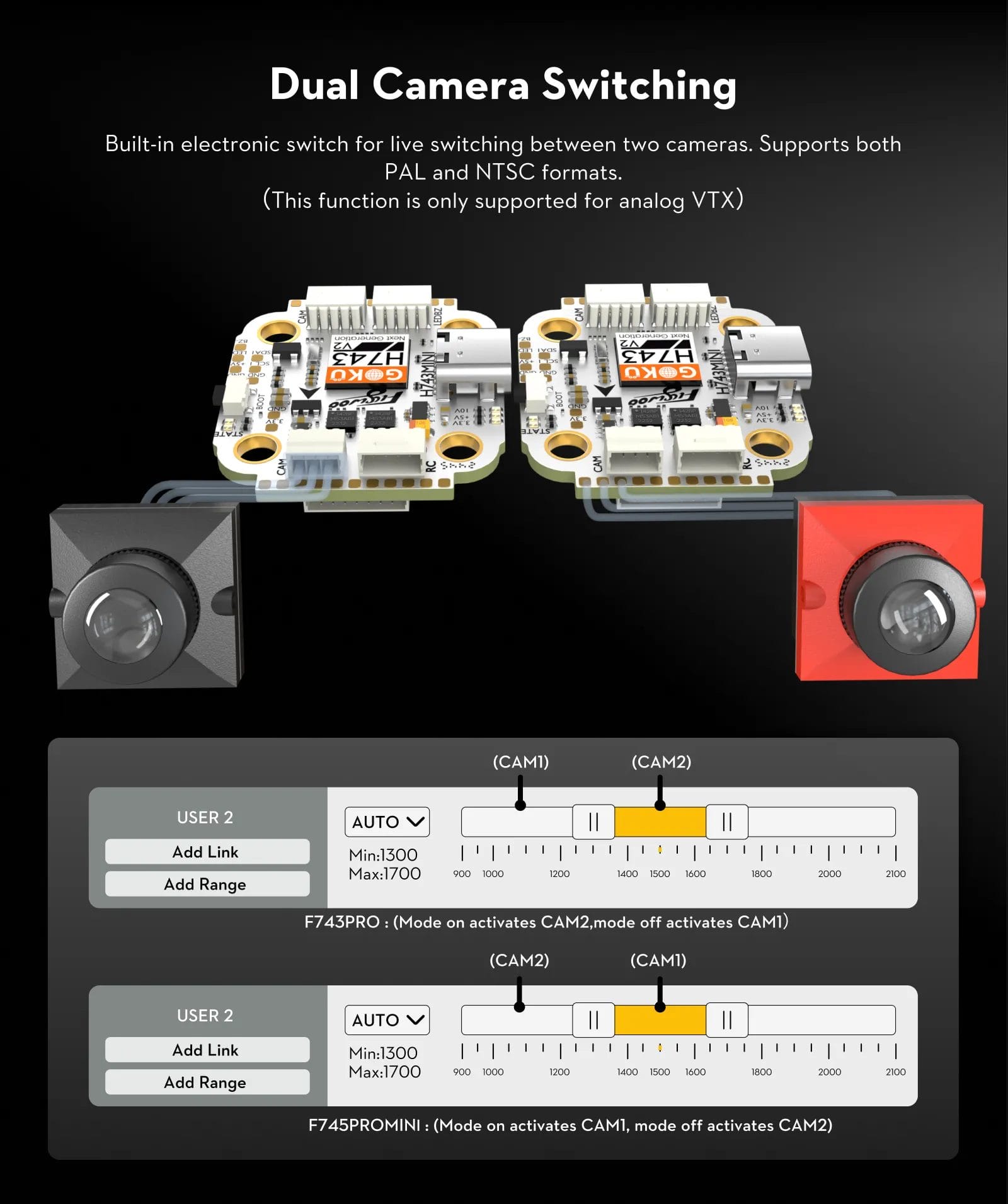

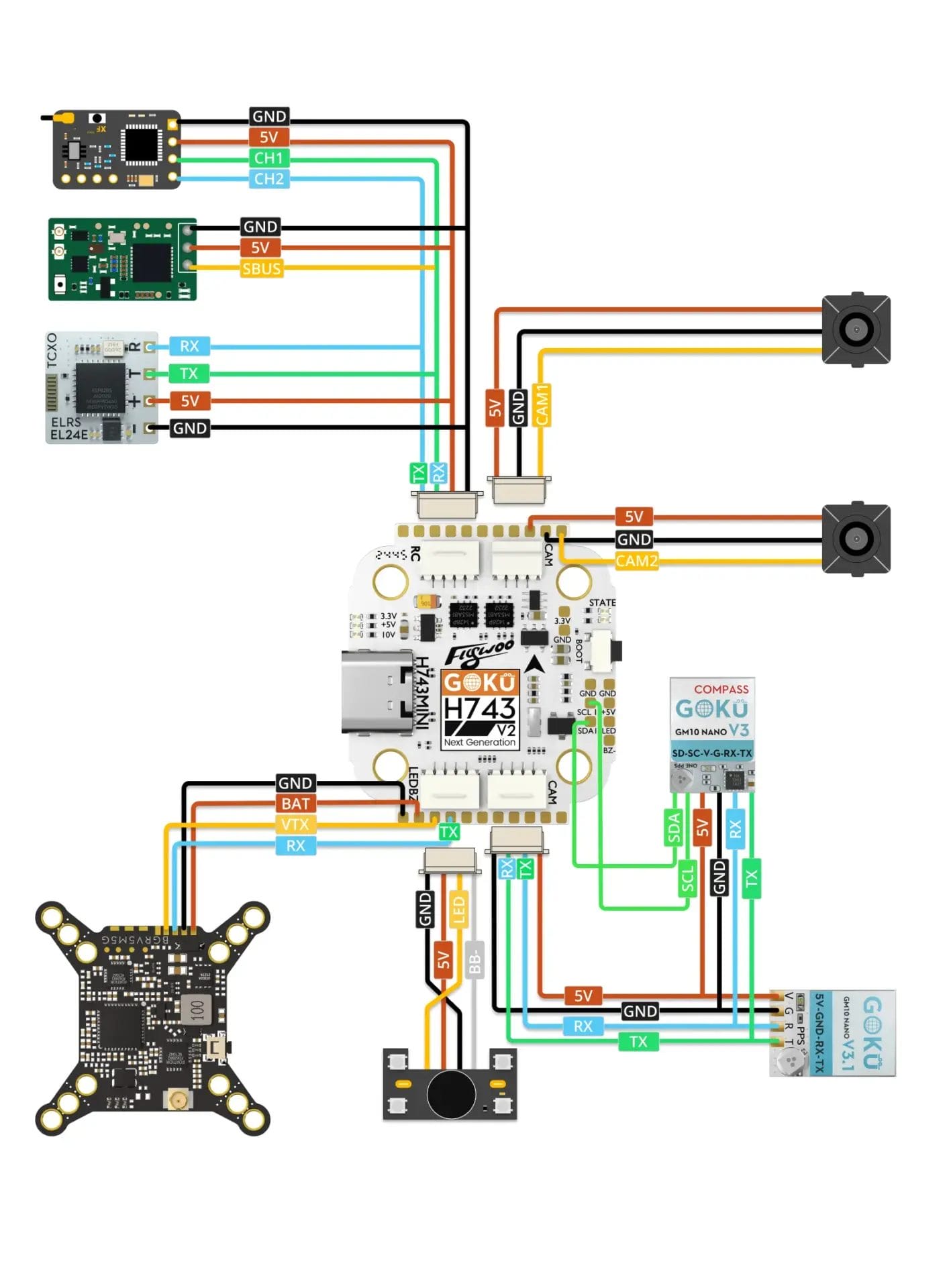

- Versatile I/O: 7 UART ports 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.
- Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
- Massive Storage: 512MB blackbox logs full flight data for analysis.
Specifications
FC
- BetaFlight Firmware: Flywoo H743PRO
- INAV Firmware: Flywoo H743PRO
- APM Firmware:Flywoo H743PRO
- Flash: 2MB
- MCU: STM32H743VIH6
- Gyroscope: ICM42688P*2
- OSD: AT7456E(LGA16)
- Barometer: DPS310/SPL06
- Black Box: 512MB
- UARTS: 1/2/3/4/6/7/8
- I2C:1
- PWM:12
- Input Voltage: 7.4V-26V/2-6S LiPo/Lihv
- BEC: 10V2A/5V2A
- Camera support：CAM1,CAM2
- Flight Controller Size: 32mm x 29mm x 8.4mm（Height including plug）
- Mounting Holes: M2 20x20mm
- Weight: 5.8g
ESC
- Support AM32
- Support Dshot300, Dshot600，Dshot1200
- PWM frequency: 24k-128k
- Input Voltage: 3-6S Lipo
- Continuous Current: 45A
- Firmware:
AM32：AT32DEVF421
- Weight: 6.4g

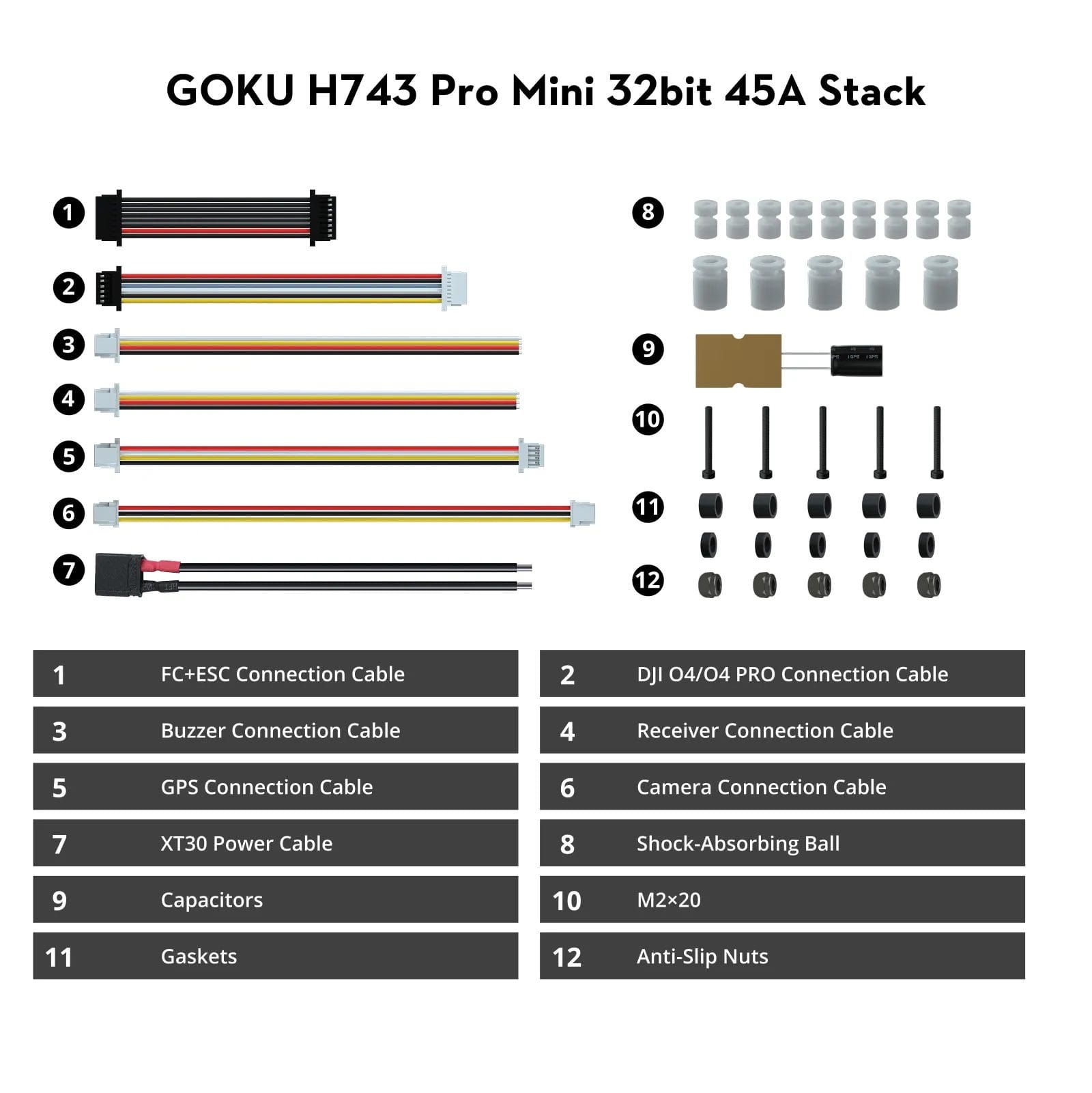

Includes
- 1 x FC&ESC Connection Cable
- 1 x DJI O4/O4P Connection Cable
- 1 x Buzzer Connection Cable
- 1 x Receiver Connection Cable
- 1 x GPS Connection Cable
- 2 x Camera Connection Cable
- 1 x XT30 Power Cable
- 5 x M3 Shock-Absorbing Ball
- 9 x M2 Shock-Absorbing Ball
- 1 x Capacitors
- 5 x Anti-Slip Nuts
