The Cinelog30 V3 is equipped with the O4 Air Unit PRO VTX, offering outstanding image quality with accurate colour reproduction and fine detail, thanks to its advanced processing chip.

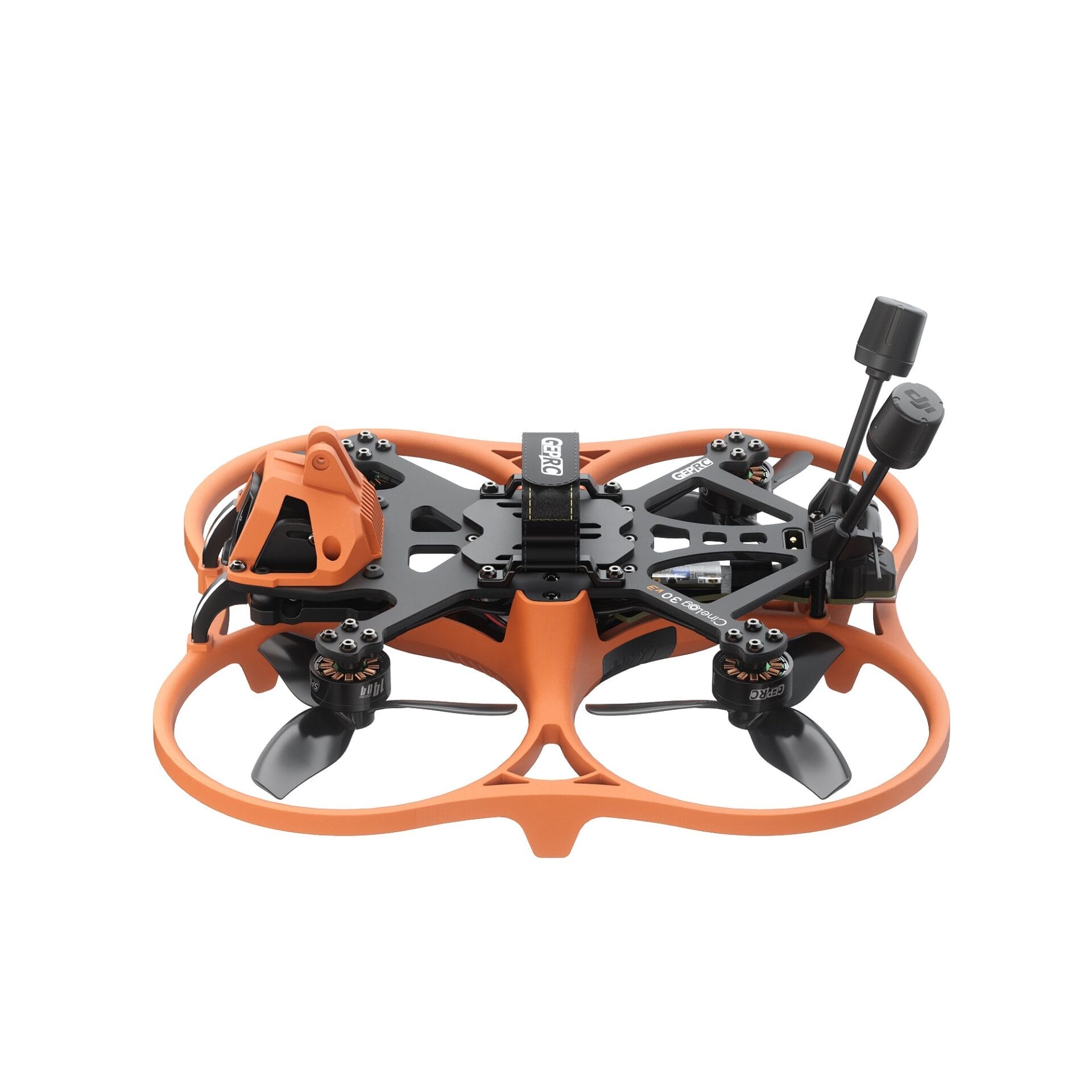

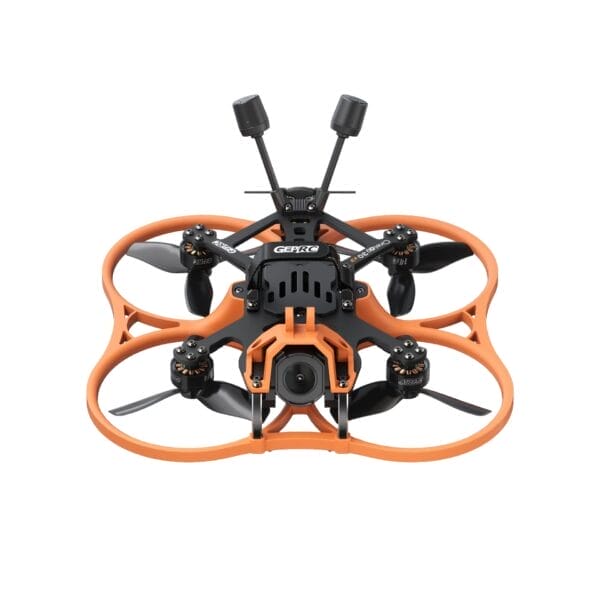

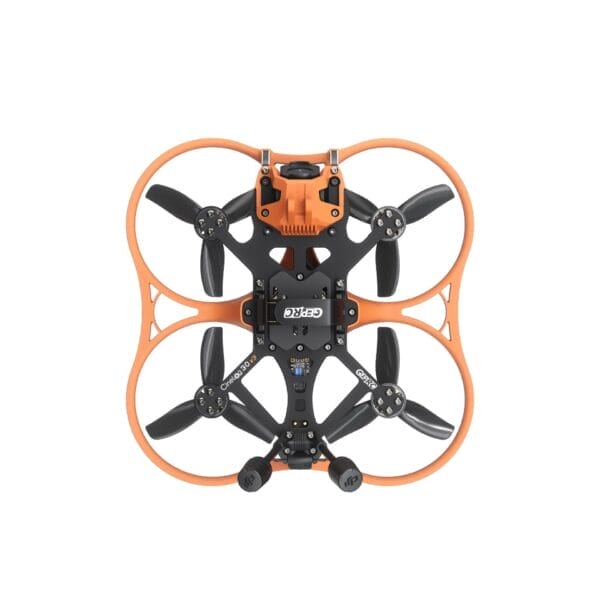

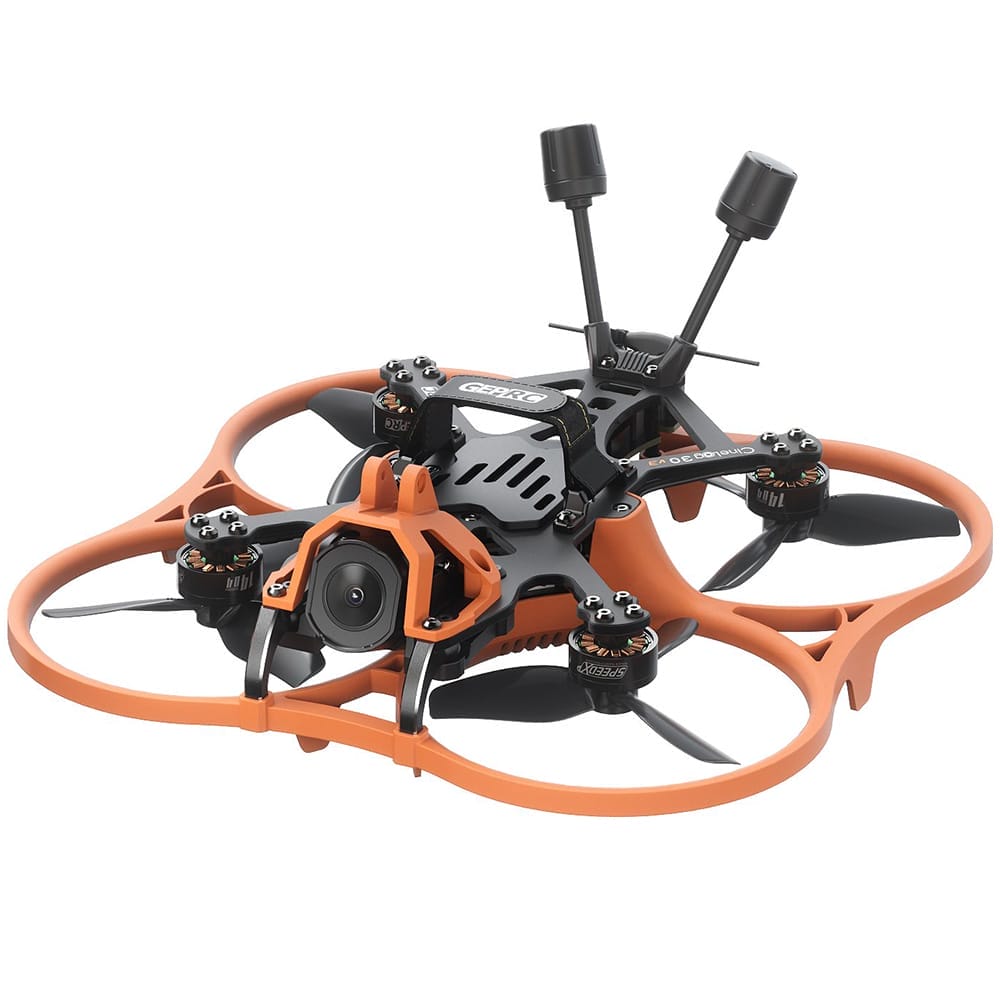

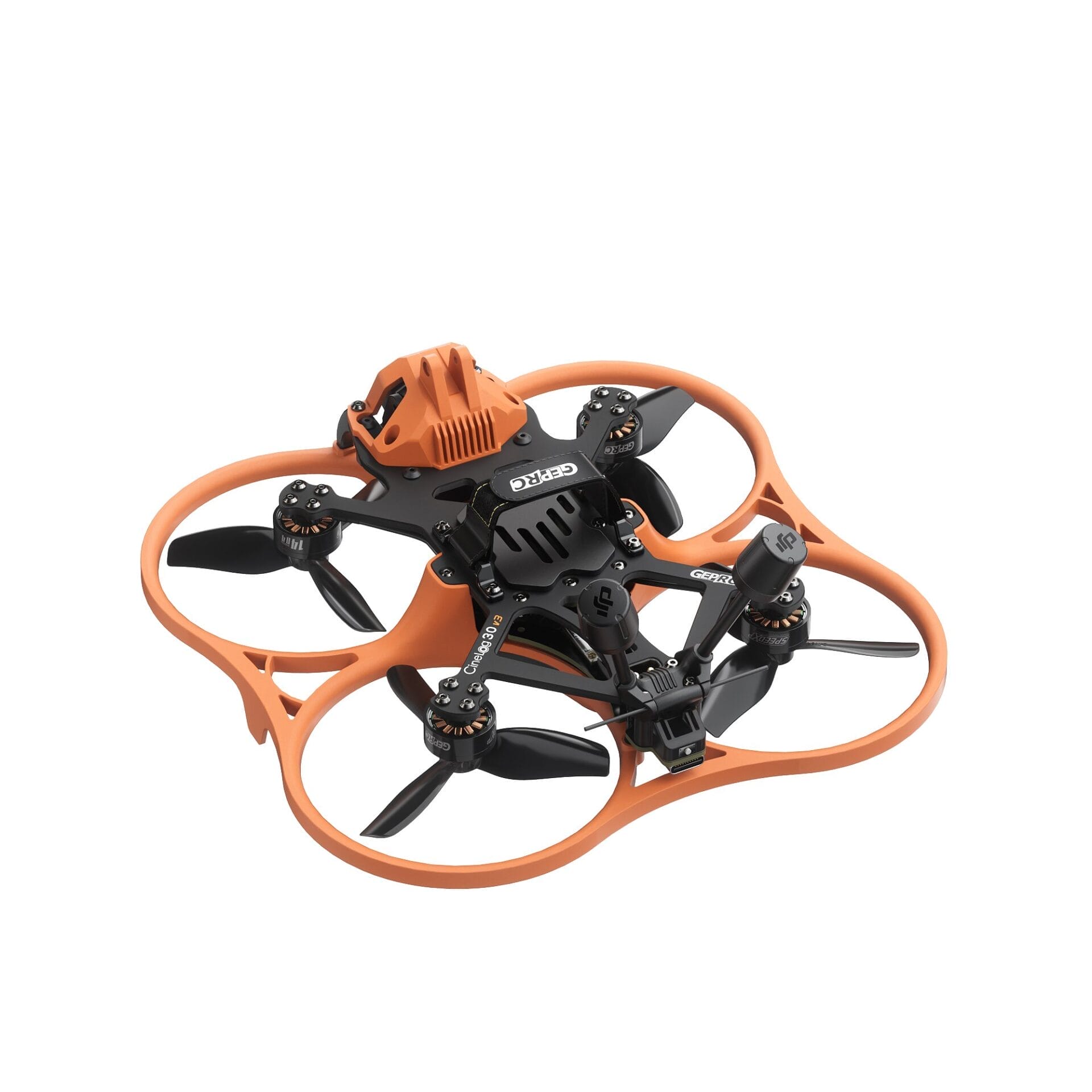

GEPRC Cinelog30 V3 Quadcopter ELRS 2.4G DJI O4 PRO

The Cinelog30 V3 is equipped with the O4 Air Unit PRO VTX, offering outstanding image quality with accurate colour reproduction and fine detail, thanks to its advanced processing chip.

Its frame is reinforced with aluminium for enhanced durability, while the electronics compartment features a wrap-around design that offers improved protection for internal components. Dust-proof plugs shield the data ports, and the canopy protects the camera from impacts. The rear PDB ensures clean wiring and an efficient layout.

Power comes from the TAKER F722 45A 32-bit AIO, paired with 1404 3850KV motors, HQProp DT76mm x3 propellers, and a LiHV 4S 720mAh battery—delivering up to 8 minutes and 10 seconds of flight time. Combined with the O4’s advanced imaging capabilities, the Cinelog30 V3 is built to capture smooth, high-quality cinematic footage.

Feature

1. Equipped with the latest O4 Air Unit PRO, offering sharp detail, high resolution, and excellent low-light performance.
2. Refined frame with a wrap-around design for enhanced protection of electronic components.
3. Aluminum-reinforced front and protective frame for added strength.
4. Sleek front cover to shield the O4 Air Unit PRO lens from impact.
5.  Dust-proof plugs for data ports to prevent debris during takeoff and landing.
6. Custom PDB with receiver, buzzer, LED BEC, TVS, and anti-spark features.
7.  Cinelog series underslung gimbal mount for stable, smooth footage with the O4 Air Unit PRO.
8.  Precision-tuned PID settings by the GEPRC team for ultra-smooth, responsive flight control.

Specifications

• Model: Cinelog30 V3 WTFPV Quadcopter
• Frame Model: GEP-CL30 V3
• Carbon Fiber Plate Thickness: 2.5mm
• Wheelbase: 128mm
• Flight System: TAKER F722 45A 32Bit AIO
• MCU: STM32F722RET6
• Gyro: ICM 42688-P
• FC Firmware: GEPRC_F722_AIO
• Flash: 16MB
• ESC: 32Bit 45A
• Motor: SPEEDX2 1404 3850KV
• Prop: HQprop DT76mmx3 V2
• Battery Connector: XT30
• VTX: None
• Camera: None
• Antenna: None
• Receiver: PNP(digital built-in VTX receiver) / ELRS2.4G / TBS NanoRX
• TBS NanoRX Version Weight: 148±2g
• Recommended Battery: LiHV 4S 660mAh-720mAh
• Flight Time: 8’10″（Tested at slow cruising speeds; actual times may vary with flying method.

Includes

• 1 x Cinelog30 V3
• 1 x Protective Frame (transparent black)
• 2 x HQprop DT76mmx3 V2 (pair)
• 1 x 15*150mm Battery Strap
• 1 x L-shaped Screwdriver 1.5mm
• 1 x Grey Canopy
• 1 x Black Canopy
• 1 x Spare Screw Pack
• 1 x Battery Anti-slip Pad
• 1 x Damping Ball Puncher
• 1 x Frequency Pairing Ejector pin

Spare screws pack includes

• 1 x M2 rivet nut
• 4 x M2*4.5 button-head hex socket screw
• 4 x M2*6 button-head hex socket screw
• 4 x M2*4 button-head hex socket screw
• 1 x M2*12 button-head screw
• 2 x Damping Ball
