Happymodel Analog Mobula6 1S 65mm Ultra Light Micro FPV Whoop ELRS BNF
$199.95
The Happymodel Analog Mobula6 is a 1S 65mm ultra-light micro FPV whoop with ELRS BNF, featuring an AIO flight controller, super lightweight design, high-efficiency motors, a high-quality camera, smooth performance, and compatibility with 1S Lipo/LIHV batteries.
Sold out
Description
Happymodel Analog Mobula6 1S 65mm Ultra Light Micro FPV Whoop ELRS BNF
The Happymodel Analog Mobula6 is a 1S 65mm ultra-light micro FPV whoop with ELRS BNF, featuring an AIO flight controller, super lightweight design, high-efficiency motors, a high-quality camera, smooth performance, and compatibility with 1S Lipo/LIHV batteries.
Features
- All-In-One (AIO) Flight Controller: Integrated with Serial ELRS Receiver and 5.8G OpenVTX.

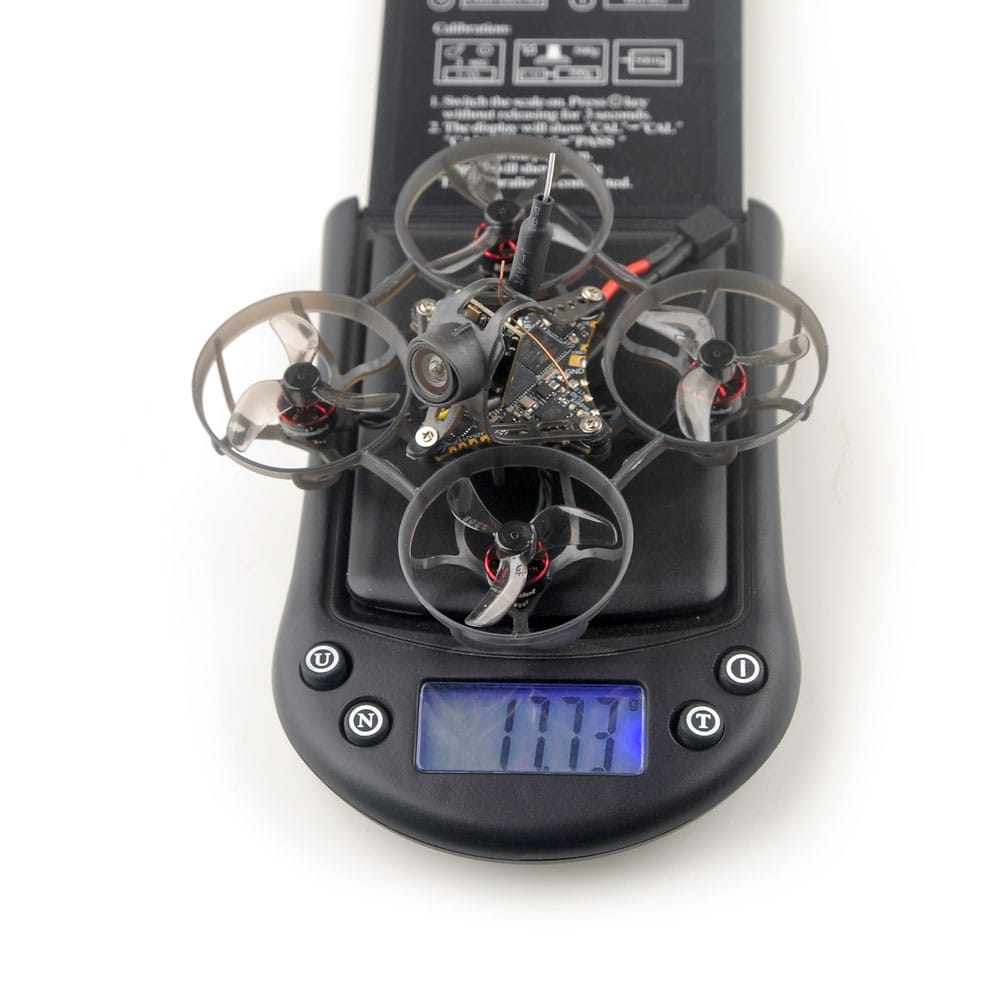

- Super Lightweight Design: 1S 65mm Brushless whoop with a total weight of only 17.7g.
- High-Efficiency Motors: Equipped with the lightest brushless motors – SE0702, weighing only 1.46g each.
- High-Quality Camera: Comes with an FX17-B 1/3 CMOS 800TVL Camera for excellent footage.
- Performance: Smooth and powerful flight experience.
- Battery Compatibility: Supports 1S Lipo/LIHV batteries.
General Specifications
- Brand Name: Happymodel
- Item Name: Mobula6 2024 1S 65mm ultra-light micro FPV Whoop
- Wheelbase: 65mm
- Dimensions: 81mm x 81mm x 37mm
- Weight: 17.7g
- Options:
- V1.0: Comes with SuperX ELRS V1.0 AIO (no motor plug).
- V2.0: Features SuperX ELRS V2.0 AIO (with motor plug).
Spare Parts Specifications:
Motor:
- Model: SE0702 KV28000
- Configuration: 9N12P
- Stator Diameter: 7mm
- Stator Length: 2mm
- Shaft Diameter: Φ1mm
- Dimensions: Φ9.5mm x 14mm
- Weight: 1.46g
- Battery Compatibility: 1S only
Propellers:
- Materials: PC
- Size: 31mm
- Pitch: 0.8 in
- Weight: 0.21g
- Mount Hole Diameter: 1mm
Flight Controller:
- Model: SuperX ELRS AIO 5-IN-1
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH), ESP32-PICO-D4
- Sensor: BMI270 (SPI connection)
- Mount Hole Size: 25.5mm x 25.5mm
- Power Supply: 1S battery input (DC 2.9V-4.35V)
- Built-in ESCs: 5A each, Blheli_S 4in1 ESC
- OSD: Betaflight OSD (SPI Control)
- VTX: 5.8G OpenVTX 0mw~400mw (MSP control)
- Receiver: UART ExpressLRS v3.0.0
- Voltage and Current Sensors: Built-in, with specific meter scales
Onboard 4in1 ESC:
- Power Supply: 1S LiPo/LiHV
- Current: 5A continuous, 6A peak (3 seconds)
- Firmware: Bluejay v0.19.2
- Protocol: DSHOT300
Onboard Serial ExpressLRS Receiver:
- Packet Rate Options: 50Hz/150Hz/250Hz/500Hz
- Firmware Version: V3.0
- RF Frequency: 2.4GHz
- Antenna: Enameled copper wire
- Telemetry Output Power: <12dBm
- Receiver Protocol: Serial_based CRSF
Onboard 5.8g VTX:
- Firmware Version: OPENVTX
- Channels: 40ch
- Transmitting Power: 0/RCE/25mw/100mw/400mw
- Power Supply: DC 5V
- Current (5V): <650ma
Includes
- x1 Mobula6 2024 1S 65mm Whoop Drone Frame + Canopy
- x1 SuperX ELRS AIO 5-IN-1 Flight Controller
- x4 SE0702 KV28000 Brushless Motor
- x1 Gemfan 1208-3 31mm Tri-Blade Propellers (4cw+4ccw)
- x1 FX17-B 1/3 CMOS 800TVL Camera NTSC 4:3
- x1 Onboard 5.8G 25mw~400mw VTX
- x1 Spare Canopy
- x1 Propeller Disassemble Tool
- x1 Screw Driver
Binding
- ELRS binding video, download here!
