Mobula8 released uart elrs version recently. It comes with a new X12 ELRS Pro v1.1 flight controller, onboard vtx and onboard uart elrs receiver are controlled by ESP32 chip , now you have a free set of  UART and you can flash single ExpressLRS firmware for the Mobula8 ELRS .

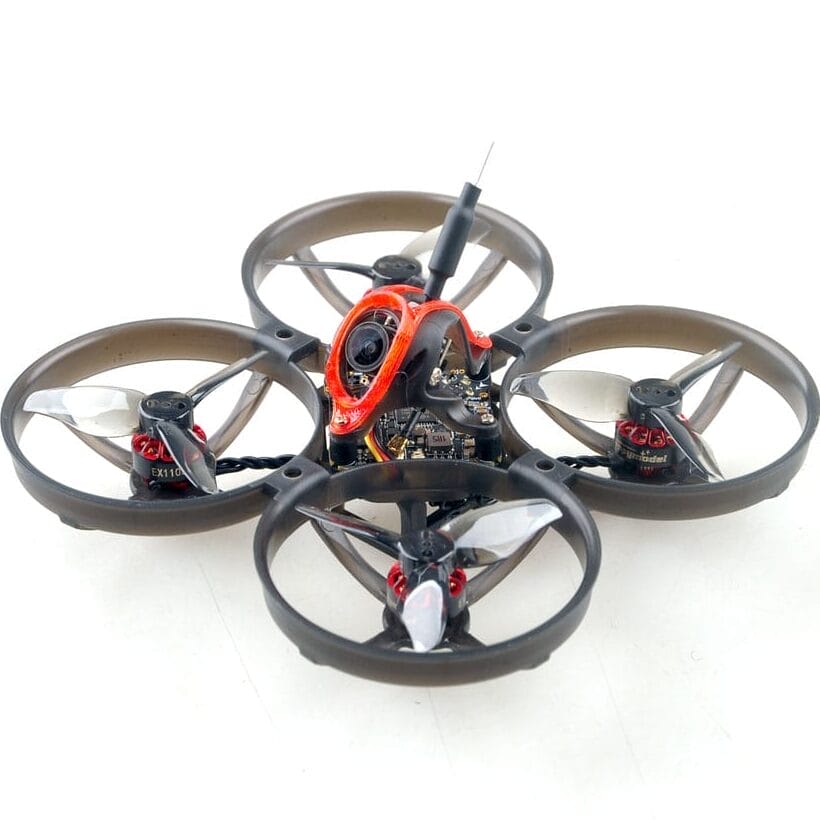

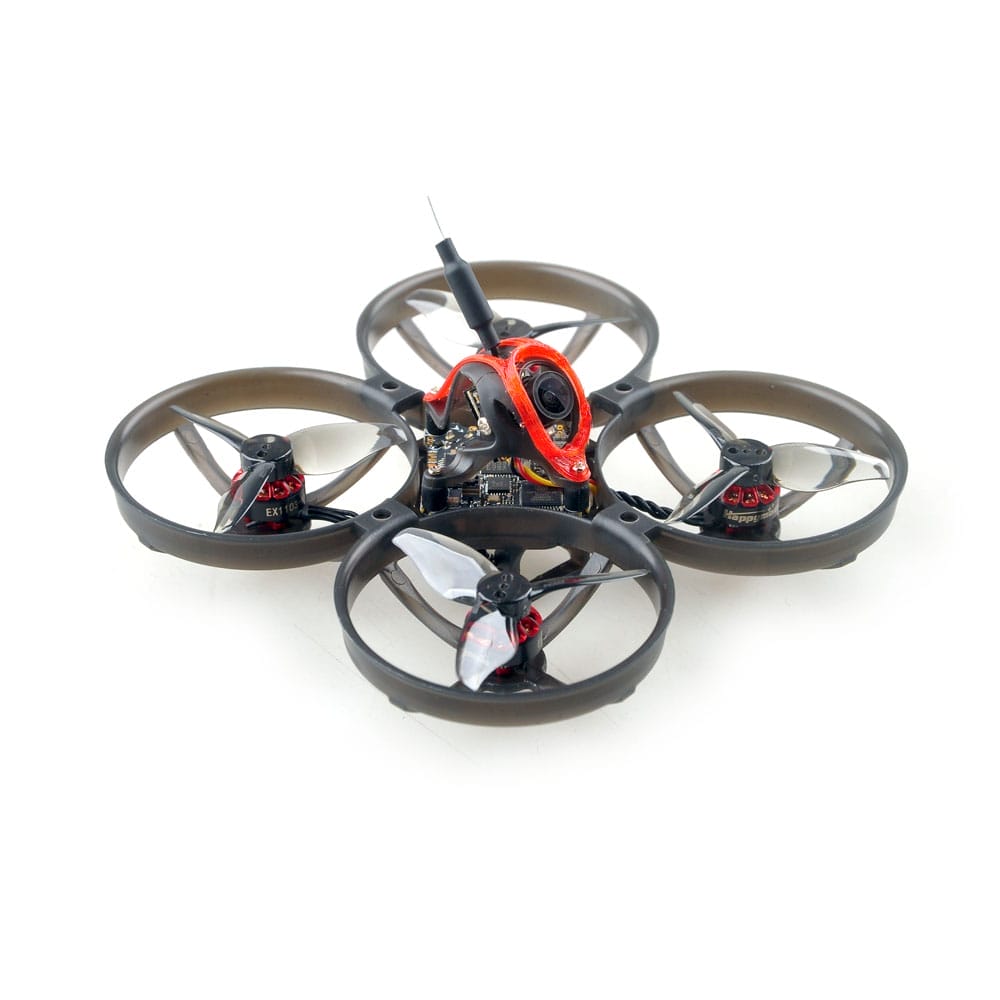

Happymodel Analog Mobula8 2S 85mm Ultra Light Micro FPV Whoop ELRS BNF

Mobula8 released uart elrs version recently. It comes with a new X12 ELRS Pro v1.1 flight controller, onboard vtx and onboard uart elrs receiver are controlled by ESP32 chip , now you have a free set of  UART and you can flash single ExpressLRS firmware for the Mobula8 ELRS .

Features

• X12 ELRS Pro v1.1 5-IN-1 AIO flight controller built-in 2.4G ELRS V3.0 and OPENVTX
• VTX Power up to 400mw
• ELRS V3.0 (Default), could flash elrs firmware for the receiver by wifi
• EX1103 KV110000 motors
• CaddxFPV Ant FPV camera
• Smooth and powerful
• Compatible for 1S-2S Lipo/LIHV battery
• Recommend 2S 450mah/550mah/650mah battery (Not include)

General Specifications

• Brand Name: Happymodel
• Item Name: Mobula8 UART ELRS 2S 85mm Micro FPV whoop drone
• Wheelbase: 85mm
• Size: 120mm*120mm*50mm

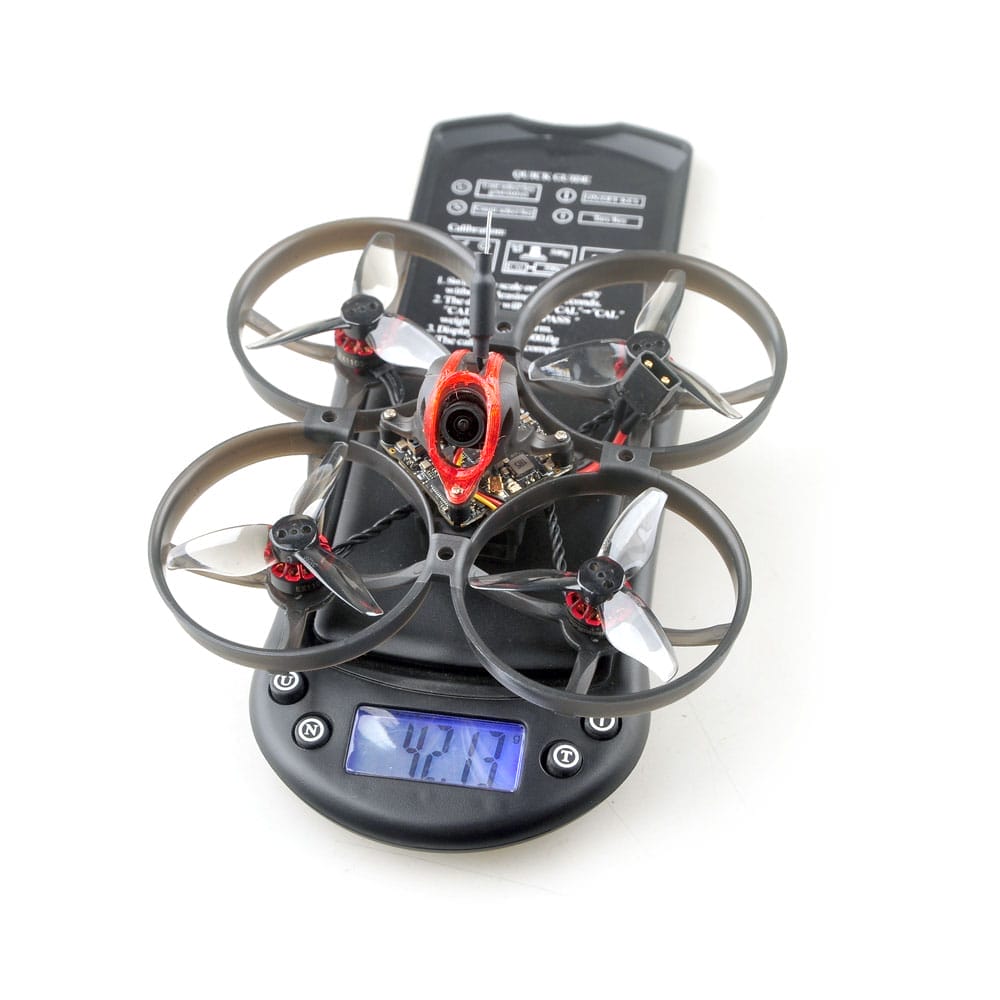

• Weight: 43g
• Receiver: ELRS 2.4G

Motor:

• Mode: EX1103 KV11000
• Configu-ration:9N12P
• Stator Diamter:11mm
• Stator Length:3mm
• Shaft Diameter:Φ1.5mm
• Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
• Weight(g):3.8g
• No.of Cells(Lipo):1-2S

Propellers:

• Weight:0.88g
• Material: PC
• Pitch:2.3inch
• Props Dia:52.17mm
• Center Thickness:5mm
• Center Hole Dia:1.5mm

Flight Controller:

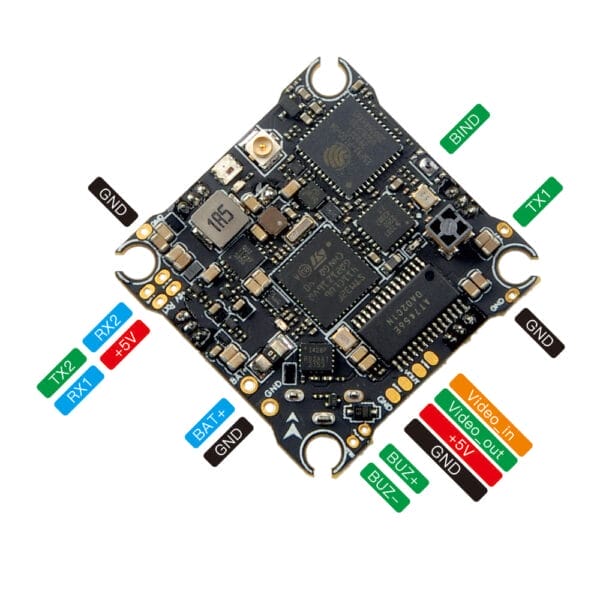

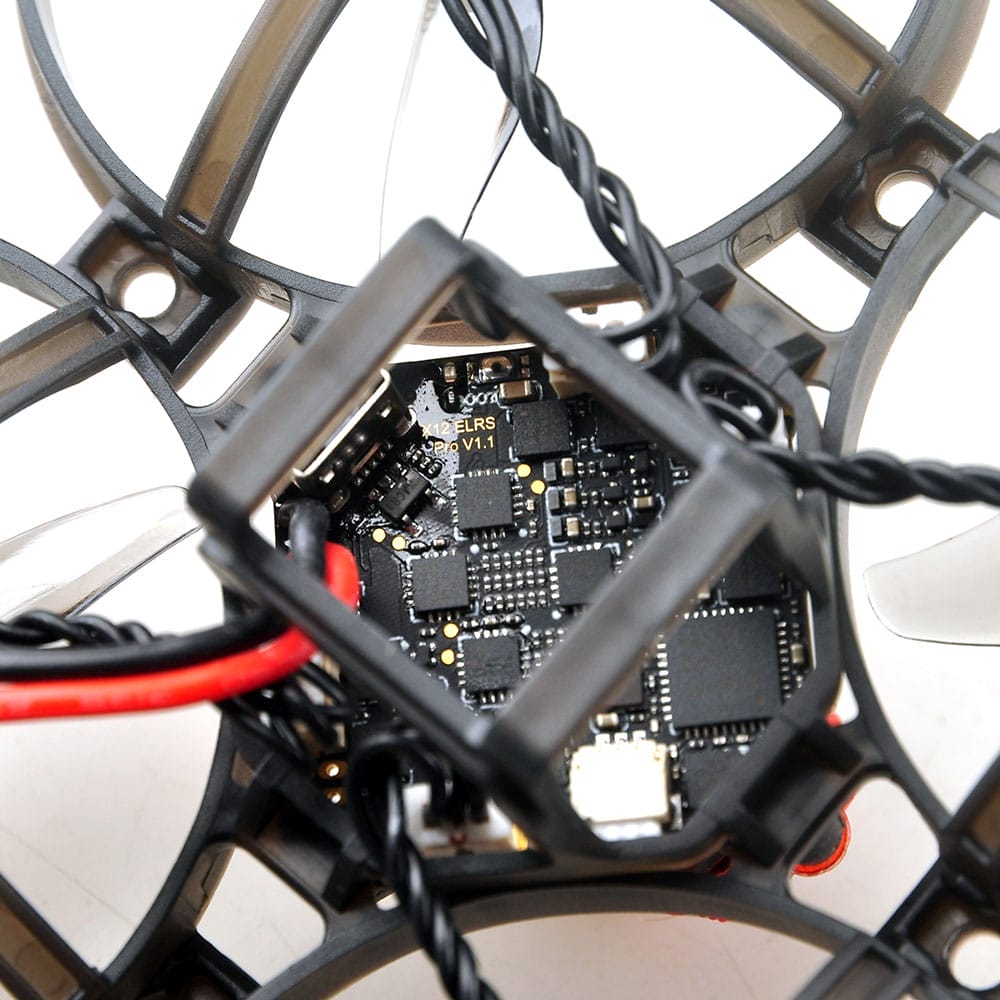

• X12 ELRS Pro v1.1 AIO 5-IN-1 Flight controller
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4
• Sensor: ICM42688P(SPI connection)
• Mount hole size: 25.5mm*25.5mm
• Power supply: 1-2S battery input (DC 2.9V-8.7V)
• Built-in 12A(each) Blheli_S 4in1 ESC
• Built-in Betaflight OSD(SPI Control)
• Built-in 5.8G OpenVTX 0mw~400mw (MSP control)
• Built-in UART ExpressLRS v3.0.0
• Built-in voltage meter sensor , voltage meter scale 110
• Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC:

• Power supply: 1-2S LiPo/LiPo HV
• Current: 12A continuous peak 15A (3 seconds)
• Support BLHeliSuite programmable
• Firmware target: Z_H_30
• Default protocol: DSHOT300
• Bluejay firmware ready

Onboard Serial ExpressLRS Receiver:

• Packet Rate option: 50Hz/150Hz/250Hz/500Hz
• ExpressLRS Firmware version: V3.0
• RF Frequency: 2.4GHz
• Antenna : SMD antenna
• Telemetry output Power: <12dBm
• Receiver protocol: Serial_based CRSF
• Compatible with ExpressLRS V3.x.x TX Module
• Could flash single ELRS receiver firmware by Wifi
• ExpressLRS firmware target: ExpressLRS firmware target:
• HappyModel AIO 2.4GHz RX+VTX (ExpressLRS web flasher)
• Available from Expresslrs version 3.4.0 RC2

Onboard 5.8g VTX:

• Firmware version: OPENVTX
• Smartaudio v2.1
• PIT Mode support
• RCE Mode support
• Channels:48ch
• Transmitting Power: 0/RCE/25mw/100mw/400mw
• Power supply: DC 5V
• Current (5v): <650ma (400mw)

Caddx Ant 1200TVL Camera:

• Image Sensor: 1/3″ CMOS Sensor
• Horizontal Resolution: 1200 TVL
• TV System: NTSC or PAL
• IMAGE: 16:9 or 4:3
• Synchronization: Internal
• Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
• S/N Ratio : >52dB (AGC OFF)
• Video Output: CVBS
• Lens: 1.8mm
• Min. Illumination: 0.001Lux@F1.2
• Auto Gain Control: YES
• WDR: Global WDR
• DNR: 3D DNR
• Dimensions: 14*14mm(with bracket to 19*19mm)
• Wide Power Input: DC 3.7-18V
• Weight: 2g (N.W.)

Includes

• 1x Mobula8 Frame
• 1x X12 ELRS pro V1.1 AIO flight controller
• 4x EX1103 KV11000 brushless motor
• 1x Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)
• 1x Caddx ANT 1200TVL Camera
• 1x Onboard 5.8G Openvtx 0mw~400mw VTX
• 1x Canopy for 14mmx14mm camera
• 1x Screw driver

Binding

• ELRS binding video, download here!
