HappyModel Mobula7 80mm 2S Whoop O4 ELRS
AU$439.95
The Happymodel Mobula7 O4 micro FPV whoop comes out now . It comes with the new DJI O4 air unit which would provide excellent and unbelievable FPV footage. And the new Happymodel RS1102 KV10000 motor and HQPROP 45mm propellers ,bring a powerful and smooth flying experience. This would be a good option for indoor and backyard FPV flying.
ONLY 2 LEFT
Description
HappyModel Mobula7 2S Whoop O4 ELRS
The Happymodel Mobula7 O4 micro FPV whoop comes out now . It comes with the new DJI O4 air unit which would provide excellent and unbelievable FPV footage. And the new Happymodel RS1102 KV10000 motor and HQPROP 45mm propellers ,bring a powerful and smooth flying experience. This would be a good option for indoor and backyard FPV flying.
Features
- Equipment with New DJI O4 air unit
- 2S battery support Powerful and Smooth freestyle flying
- UART ExpressLRS receiver support stable control link
- Lighter and small for indoor FPV
Specifications
Motor – RS1102 KV10000
- Configuration: 9N12P
- Stator Diameter: 11 mm
- Stator Length: 2 mm
- Shaft Diameter: 1.5 mm
- Motor Dimensions: 13.5 mm × 14 mm
- Weight: 2.8 g
- Battery Support: 1–2S LiPo
Propellers
- Weight: 0.25 g
- Material: Polycarbonate
- Pitch: 0.9
- Diameter: 45 mm
- Hub Thickness: 5 mm
- Shaft Hole: 1.5 mm
Flight Controller
- MCU: STM32F405RGT6 (168 MHz, 1 MB Flash)
- Gyro Sensor: BMI270 (SPI)
- Mounting Hole Size: 25.5 mm × 25.5 mm
- Power Input: 1–2S battery (DC 2.9–8.7 V)
- Integrated ESC: 12 A (each), BLHeli_S 4-in-1
- Integrated Receiver: Serial ExpressLRS 2.4 GHz
- Barometer: BMP280
- Blackbox: 8 MB
- Voltage Sensor Scale: 110
- Current Sensor Scale: 470
4-in-1 ESC (Onboard)
- Power Input: 1–2S LiPo / LiPo HV
- Current: 12 A continuous / 15 A peak (3s)
- Firmware Support: BLHeli_S Bluejay
- Factory Firmware: Bluejay ESC V0.19
- Firmware Target: Z-H-30
- Default Protocol: DSHOT300
- Note: When using 1S with high KV 0702/0802 motors, set startup power to 1100–1200
Onboard ExpressLRS 2.4 GHz Receiver
- Packet Rate Options: 25 / 50 / 150 / 250 / 500 Hz
- Frequency: 2.4 GHz
- Antenna: 31 mm enameled copper wire
- Telemetry Output Power: <12 dBm
- Firmware Version: ExpressLRS V3.0.1
- Firmware Target: HappyModel EP2400 RX
- Firmware Update: Via ExpressLRS Configurator
DJI O4 Air Unit
- Weight: Approx. 8.2 g (with camera module)
- Transmission Module Dimensions: 30 × 30 × 6 mm
- Camera Module Dimensions: 13.44 × 12.36 × 16.50 mm
- Cable Lengths:
- Camera: 50 mm
- Coaxial: 50 mm
- 3-in-1: 50 mm
- Operating Frequencies:
- 5.170–5.250 GHz
- 5.725–5.850 GHz (region-dependent)
- Transmitter Power (EIRP):
- 5.1 GHz: <23 dBm (CE)
- 5.8 GHz:
- <30 dBm (FCC)
- <14 dBm (CE)
- <30 dBm (SRRC)
- Live View Quality: 1080p @ 30/50/60/100 fps

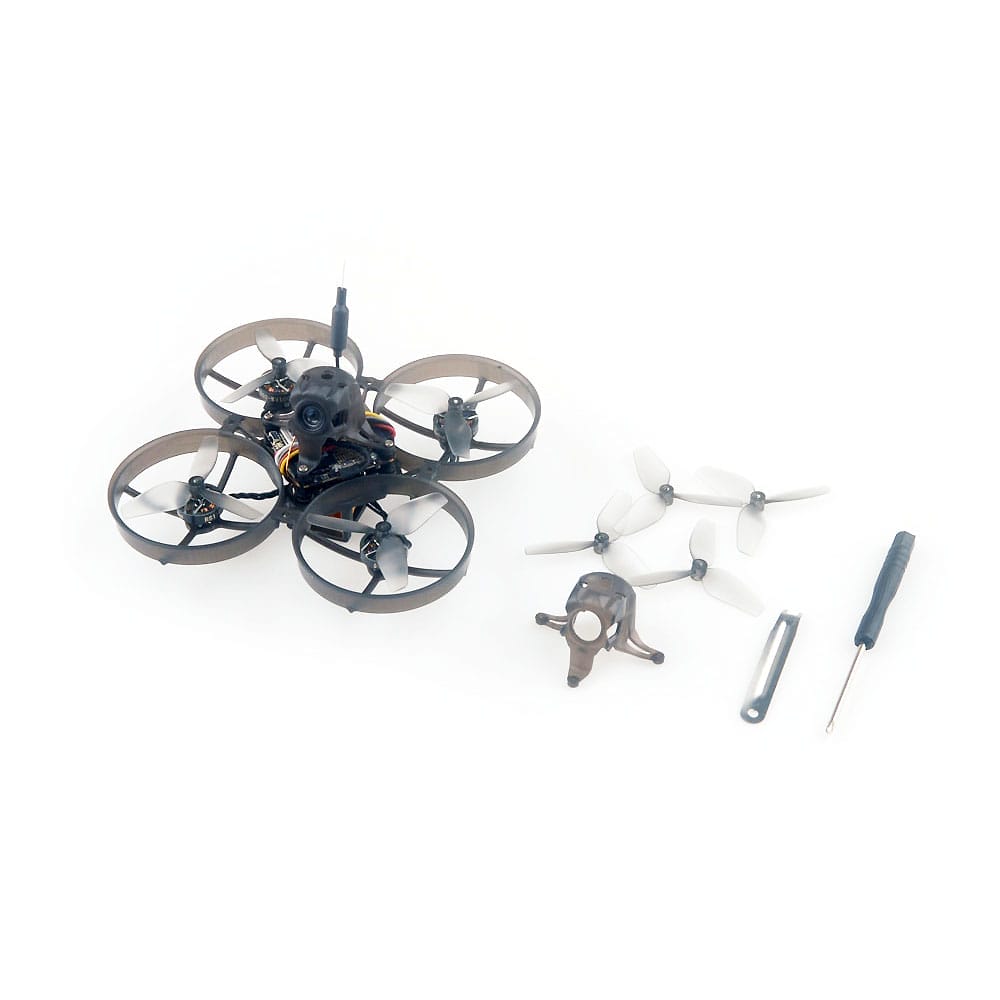

Includes
- Happymodel M80 Frame: ×1
- CrazyF4HD ELRS Flight Controller (Firmware Target: BETAFLIGHTF4): ×1
- RS1102 KV10000 Brushless Motor: ×4
- HQProp 45mm x2 Bi-Blade Propellers (4 CW + 4 CCW): ×1 set
- DJI O4 Air Unit: ×1
- Canopy: ×1
- Screwdriver: ×1
