HappyModel Mobula8 Freestyle 80mm 2S Whoop HDZero ELRS
AU$413.84

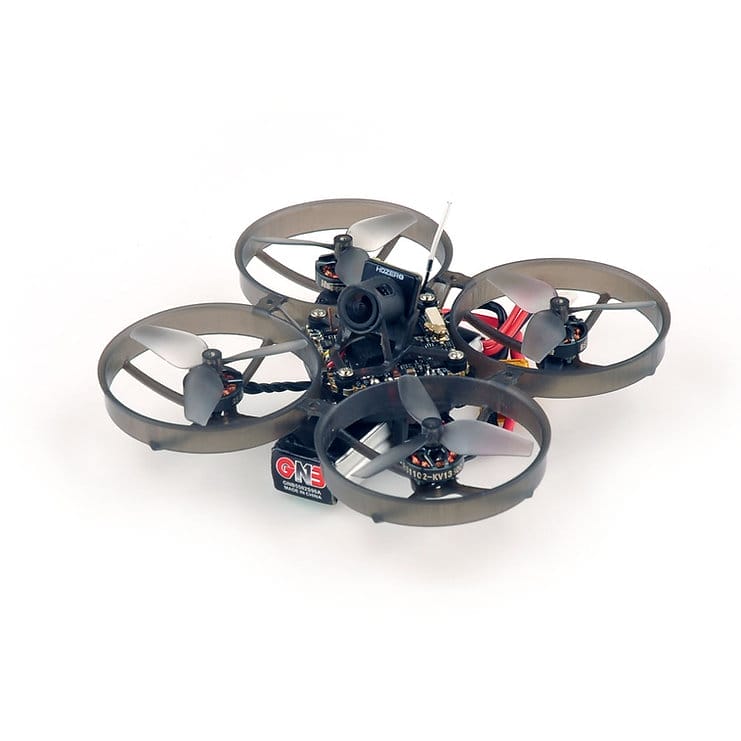

The M8 Freestyle HD is a high-performance 80mm bind-and-fly digital whoop built for pilots who want more speed, more power, and more control – all without giving up the benefits of an ultra-light platform. Powered by the HDZero AIO15 and equipped with RS1102 13500KV motors, it delivers responsive and confident handling ideal for outdoor freestyle flying.
ONLY 5 LEFT
Description
HappyModel Mobula8 Freestyle 80mm 2S Whoop HDZero ELRS
The M8 Freestyle HD is a high-performance 80mm bind-and-fly digital whoop built for pilots who want more speed, more power, and more control – all without giving up the benefits of an ultra-light platform. Powered by the HDZero AIO15 and equipped with RS1102 13500KV motors, it delivers responsive and confident handling ideal for outdoor freestyle flying.
Compared to 1S digital whoops like the M6 Freestyle HD and M7 Freestyle HD, the M8 steps up in every way:
- 2S power enables significantly higher thrust and acceleration
- 15A ESCs and larger 45mm props unlock more aggressive maneuvers
- Best suited for higher-speed outdoor flights, while still light enough for tight flying
Despite its performance edge, the total weight stays under 33.5g, making it one of the lightest 2S digital freestyle whoops available.
Features
- Powered by the HDZero AIO15: digital VTX + FC + ELRS RX + 15A ESC in one
- Includes the Lux Camera for sharp, low-latency digital video
- RS1102 13500KV motors and 45mm props for high-speed agility

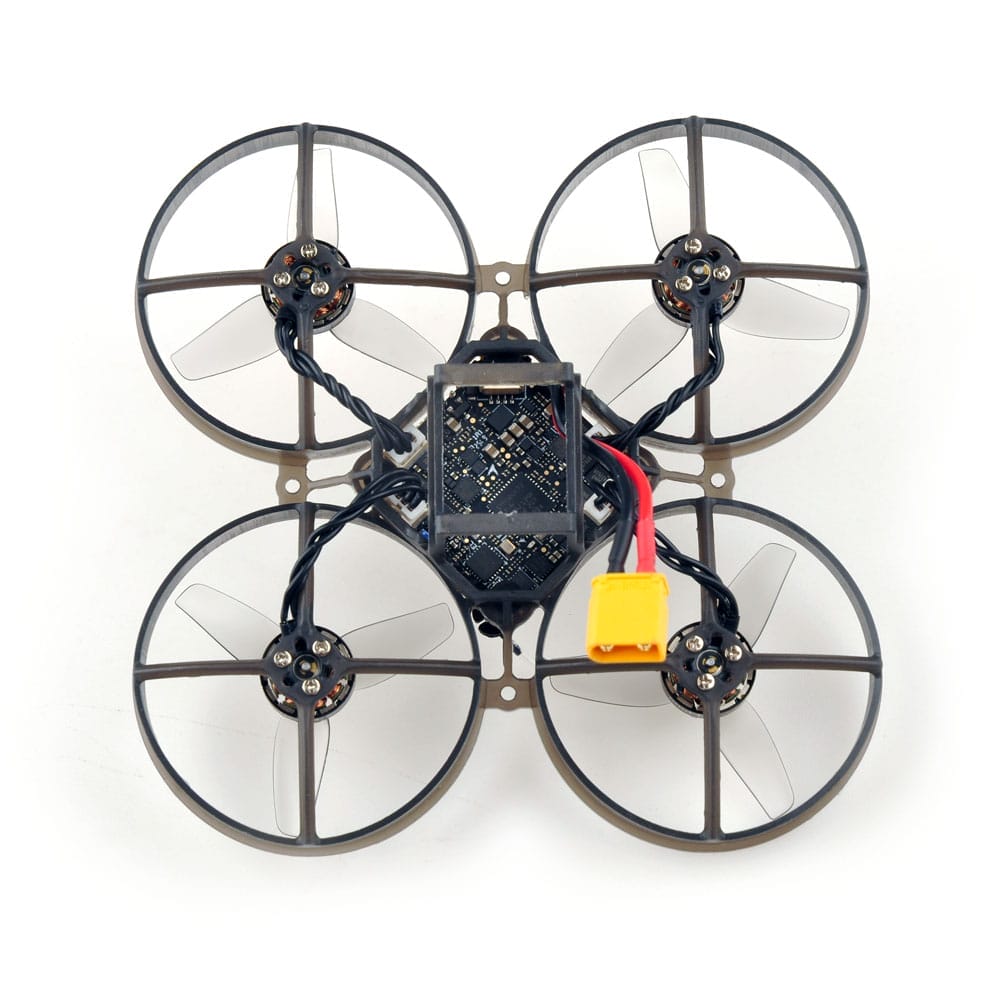

- Runs on 2S XT-30 550mAh batteries (recommended)
- Built for outdoor freestyle while remaining compact and sub-250g
Specifications
- Wheelbase: 80mm
- Propellers: 45mm
- Motors: RS1102 13500KV

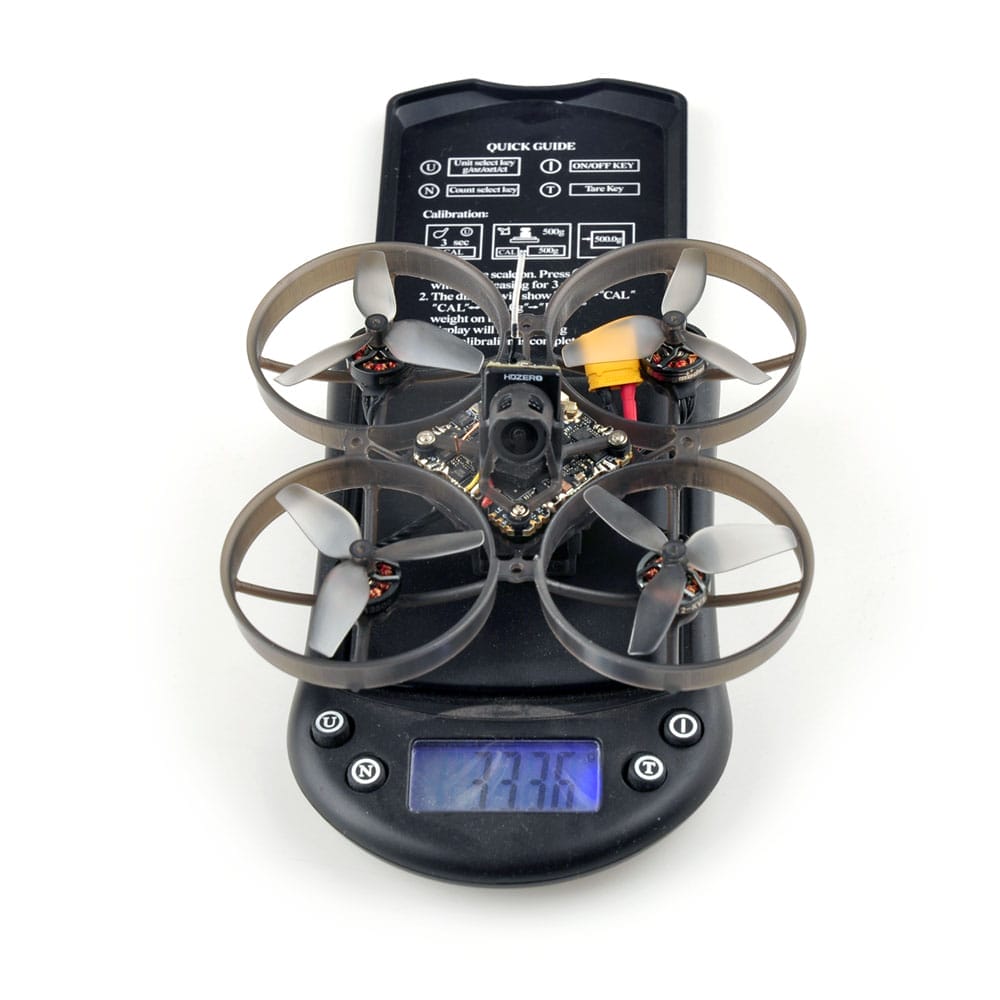

- Weight: <33.5g (excluding battery)
- Battery: 2S XT-30 550mAh LiPo recommended
Motor
- Model: RS1102 KV13500
- Configuration: 9N12P
- Stator Diameter: 11 mm
- Stator Length: 2 mm
- Shaft Diameter: Φ1.5 mm
- Motor Dimensions (Dia. × Len.): Φ13.5 mm × 14 mm
- Weight: 2.8 g
- Battery Compatibility: 1–2S LiPo
Propellers
- Weight: 0.33 g
- Material: Polycarbonate
- Pitch: 0.9
- Diameter: 45 mm
- Hub Thickness: 5 mm
- Shaft Diameter: 1.5 mm
Flight Controller
- MCU: STM32G473 (170 MHz, 512K Flash)
- Gyro: ICM42688
- Onboard Meters: Voltage and amperage
- ESC: Integrated 15A (each) Blue Jay 4-in-1 ESC
- VTX: Built-in 5.8G HDZero
- RF Output Power: 25 mW / 200 mW
- Supported Channels: R1–R8, F2/F4, L1–L8
- Connector: U.FL (includes ultra-light linear antenna)
- Receiver: Built-in Serial ExpressLRS 2.4GHz
- BEC: Integrated 5V 3A
- Firmware Target: HDZERO_AIO15
- Power Supply: 2S battery (6.4 V ~ 8.7 V)
- Frame Compatibility: Fully compatible with popular whoop frames
- Board Size: 31.3 × 31.3 mm
- Mounting Hole Pattern: 25.5 × 25.5 mm
- Weight: 7.2 g (with motor plugs)
4-in-1 ESC (Onboard)
- Power Supply: 2S LiPo / LiPo HV
- Continuous Current: 15A
- Peak Current (3s): 18A
- Firmware Support: BLHeli_S Bluejay
- Factory Firmware: Bluejay ESC V0.19.2
- Firmware Target: Z-H-30, 48 KHz
- Default Protocol: DSHOT300
ExpressLRS 2.4GHz Receiver (Onboard UART)
- Packet Rate Options: 50 / 100 / 150 / 250 / 333 / 500 / D250 / D500 / F500 / F1000 Hz
- RF Frequency: 2.4 GHz
- Antenna: Pre-soldered enameled copper wire, 31 mm length
- Telemetry Output Power: <12 dBm
HDZero Lux Camera
- Sensor Size: 1/2 inch
- Resolution: 720p60
- Aspect Ratios: 4:3 and 16:9
- Field of View (FOV):
- 4:3: D: 155°, H: 126°, V: 94°
- 16:9: D: 145°, H: 126°, V: 70°
- WDR: Supported
Includes
- 1x Happymodel Mobula8 Freestyle HD (BNF)
- 1x Spare canopy
- 1x Set of spare propellers
- 1x Screwdriver
- 1x Propeller disassembly tool
