HDZero Freestyle V2 Video Transmitter (HDZ3131)


The HDZero Freestyle V2 VTX is the second generation of our 5.8GHz digital video transmitter, designed to fit most 3-5 inch HD drones.



Earn 524^ points.
SKU: MF-2345707991 Categories: , , Tag:


HDZero Freestyle V2 Video Transmitter (HDZ3131)

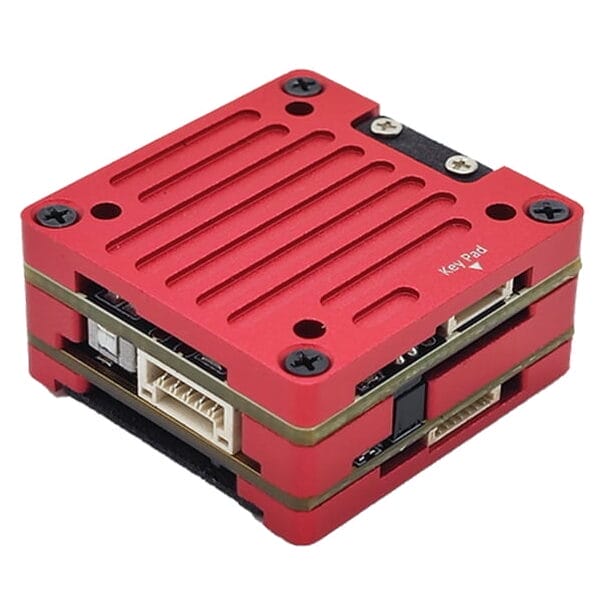

The HDZero Freestyle V2 VTX is the second generation of our 5.8GHz digital video transmitter, designed to fit most 3-5 inch HD drones. Its CNC case ensures protection for all sockets, offers durability, RF shielding, and improves signal integrity. The product features a wire harness for a solderless connection to power and MSP UART port, while the antenna and MIPI cable remain secure with the provided retention bar and screws.

HDZero Australia MantisFPV Banner Logo

Supported Video Modes

  • 720p60
  • 1080p30
  • 540p60
  • 540p90


  • Model: HDZero Freestyle V2 VTX
  • Weight: 22.3g
  • Dimensions: 29x30x14mm
  • Operating Frequency: 5.725-5.850GHz
  • Transmitter Power: 25mW, 200mW
  • Mounting Pattern: 20x20mm M2 holes
  • Antenna Interface: Secured U.FL
  • Video Input: Secured MIPI
  • SmartAudio: Yes
  • MSP Canvas Mode: Yes
  • Input Power: 7-25V
  • Operating Temperature: 32˚F-104 ˚F (0˚-40˚C)
  • Power Consumption: 6-15W
  • The VTX is capable of maximum 1W RF output at R1 channel if unlocked with license or approval from the local authorities.


  • 1x Freestyle V2 VTX
  • 1x Power Cable
  • 1x SA Cable
  • 1x Plastic bar for MIPI Cable with 3 x screws (M1.4 x 2mm)
  • 1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm)
  • 1x Double Sided Tape (29 x 30 x 1mm)

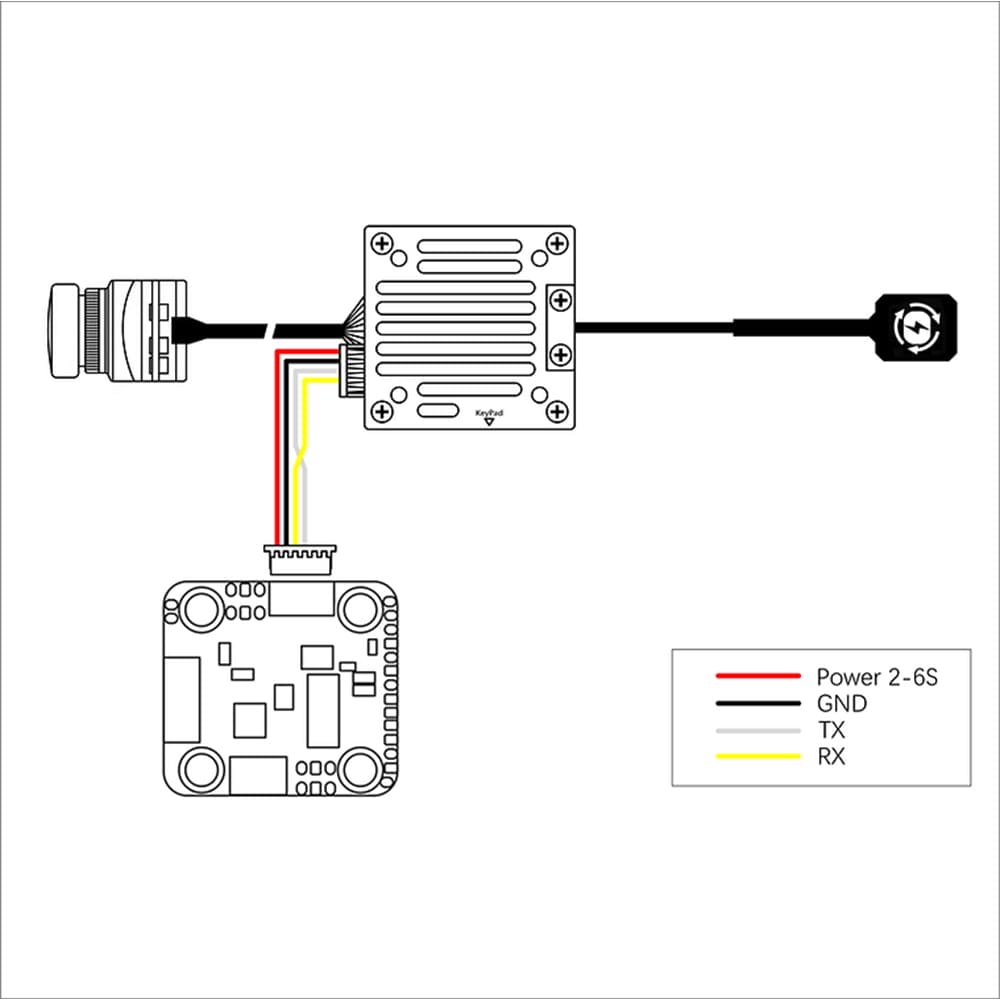

hdzero freestyle v2 video transmitter australia fpv mantisfpv drone product guide
