iFlight BLITZ F7 V1.2 Flight Controller (Refurbished)
AU$49.95
Open-box iFlight BLITZ F7 V1.2 F7 flight controller, featuring an F7 processor, low-noise design and DJI plug-and-play connector, sold refurbished and fully tested for reliable performance.
This is an open-box, brand new flight controller that has never been flown, with solder only applied to the SDA and SCL pads, and it has been fully tested by our team and confirmed to be in perfect working order.
In stock
Description
iFlight BLITZ F7 V1.2 Flight Controller (Refurbished)
Open-box iFlight BLITZ F7 V1.2 F7 flight controller, featuring an F7 processor, low-noise design and DJI plug-and-play connector, sold refurbished and fully tested for reliable performance.
This is an open-box, brand new flight controller that has never been flown, with solder only applied to the SDA and SCL pads, and it has been fully tested by our team and confirmed to be in perfect working order.
Features
- Improved circuit design, better components and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging
- With LC filter
Specifications
- MCU: STM32 F722
- Gyro: ICM42688
- Barometer: DPS310
- OSD Chip: AT7456E
- Flash: 32MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C serial: SDA / SLA pads
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFRC-IFLIGHT_BLITZ_F722

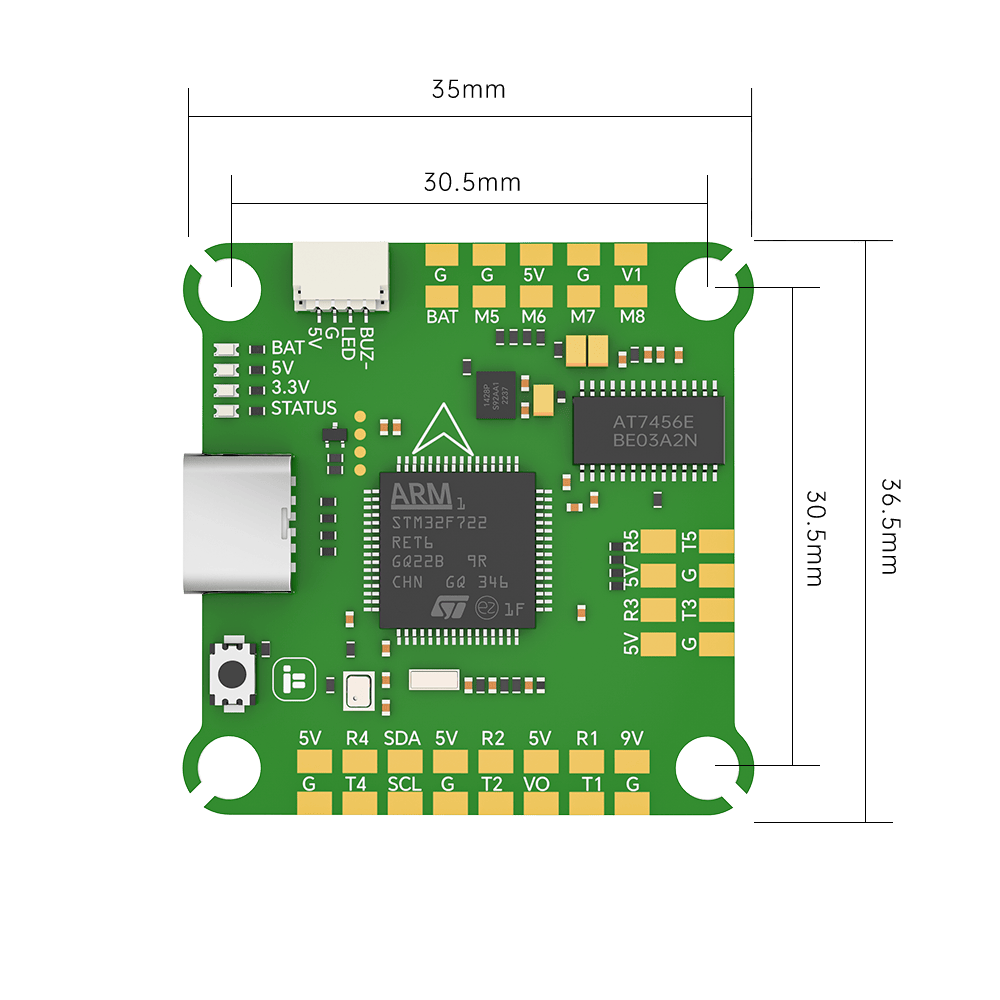

- Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
- Dimensions: 36.5*35 mm
- Weight: 7.8g
- BEC: 5V 2.5A / 9V 2A
Wiring
- UART 1 for VTX HD / Analog
- UART 2 for a Receiver
- UART 3/4/5 for GPS or other sensors that require a serial port
- UART 6 for ESC Telemetry
Includes
- 1 x BLITZ F7 V1.2 Flight Controller
- 1 x FC to ESC cable (Only)
- 4 x Silicon Gummies
Note
This is an open-box, brand new flight controller that has never been flown, with solder only applied to the SDA and SCL pads, and it has been fully tested by our team and confirmed to be in perfect working order.
Warranty
The flight controller has been tested by our team before shipping.
MantisFPV provides 14 day warranty from delivery if:
-
Item does not power on
-
Obvious manufacturing fault out of the box
-
Fails during first basic test
MantisFPV does NOT cover if:
-
Damage after installation or soldering
-
Crash damage
-
User error
-
Firmware flashing issues
