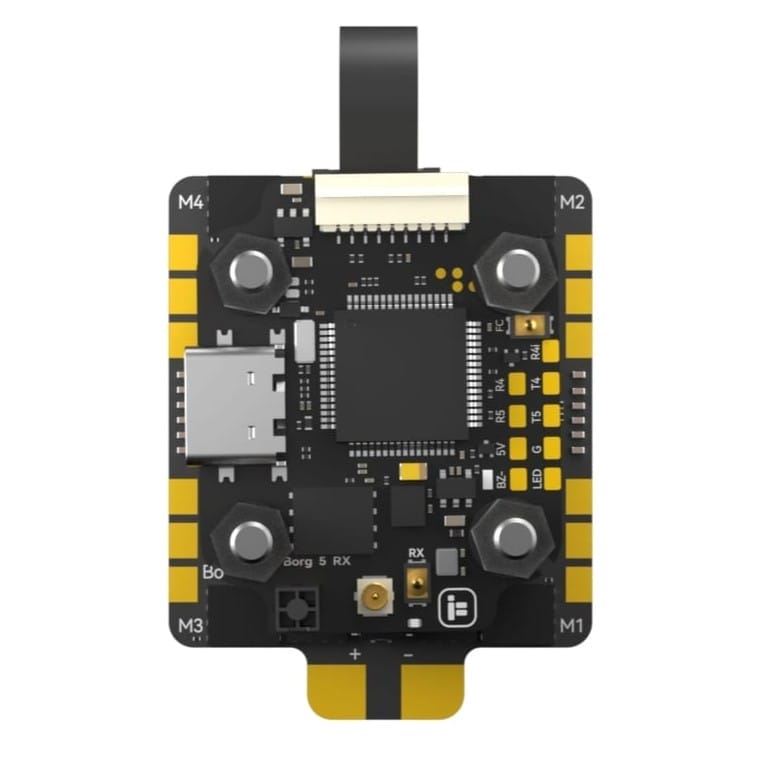

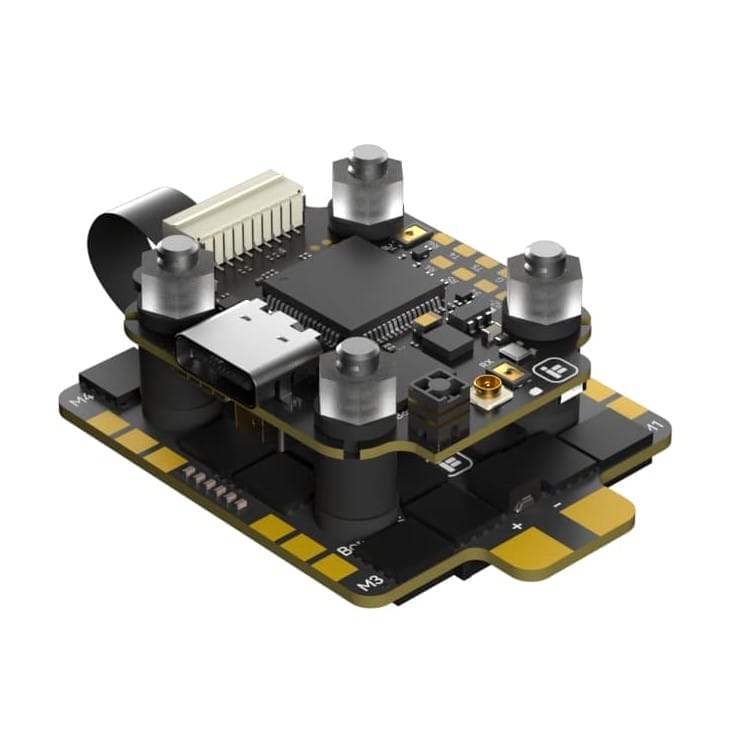

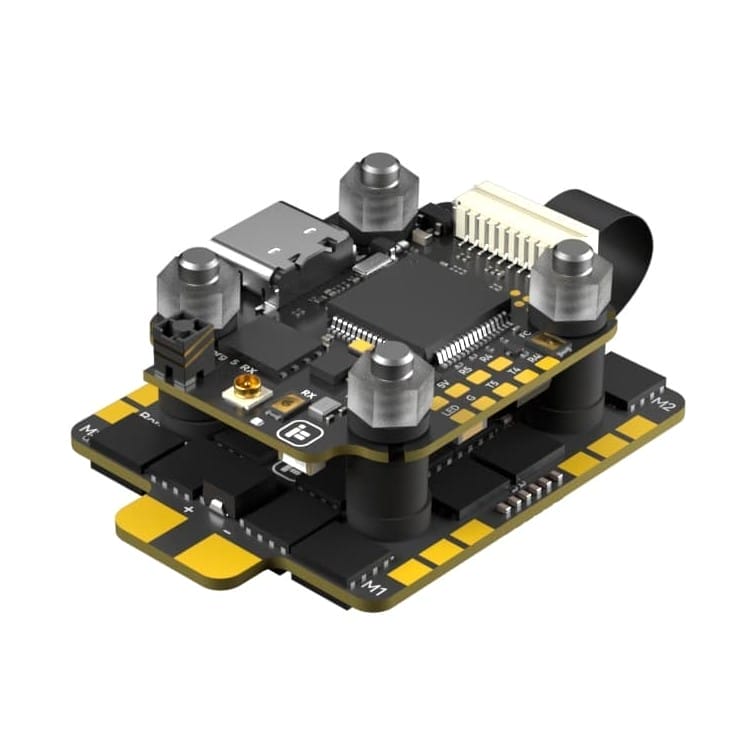

iFlight Borg 5S RX Stack ELRS 20x20mm

iFlight Borg 5S RX Stack ELRS 20x20mm
iFlight Borg 5S RX Stack ELRS 20x20mm - Image 2
iFlight Borg 5S RX Stack ELRS 20x20mm - Image 3
iFlight Borg 5S RX Stack ELRS 20x20mm - Image 4
iFlight Borg 5S RX Stack ELRS 20x20mm - Image 5
iFlight Borg 5S RX Stack ELRS 20x20mm - Image 6

AU$176.22

The iFlight Borg 5S RX Stack combines a 60A 4-in-1 ESC and F4 flight controller with a built-in ELRS 2.4GHz receiver, delivering high-performance, compact control for 3–8S FPV racing drones.

In stock

Earn 528^ points.
Add to Wishlist
Price Match Request
SKU: MF-2931795119 Categories: ,

Description

iFlight Borg 5S RX Stack ELRS 20x20mm

The iFlight Borg 5S RX Stack combines a 60A 4-in-1 ESC and F4 flight controller with a built-in ELRS 2.4GHz receiver, delivering high-performance, compact control for 3–8S FPV racing drones.

iFlight logo

Features

  • Built-in ELRS 2.4GHz Receiver, while also being compatible with external antennas for enhanced flexibility.
  • Supports 4S to 8S battery inputs, offering versatility for various racing setups.
  • Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
  • FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.



FC Specifications

  • Input voltage: 4-8S; Support LIHV battery
  • MCU: AT32F435RGT7
  • Gyro: ICM42688
  • Barometer: N/A
  • OSD Chip: AT7456E
  • Flash: 16MB (Blackbox flash)
  • UARTS: 4
  • Motor outputs: 4
  • I2C serial: Non support
  • VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
  • LED controller: Yes
  • Beeper pad: Yes
  • Firmware target: IFLIGHT_BLITZ_ATF435(Betaflight)
  • Mount pattern: 20*20φ4

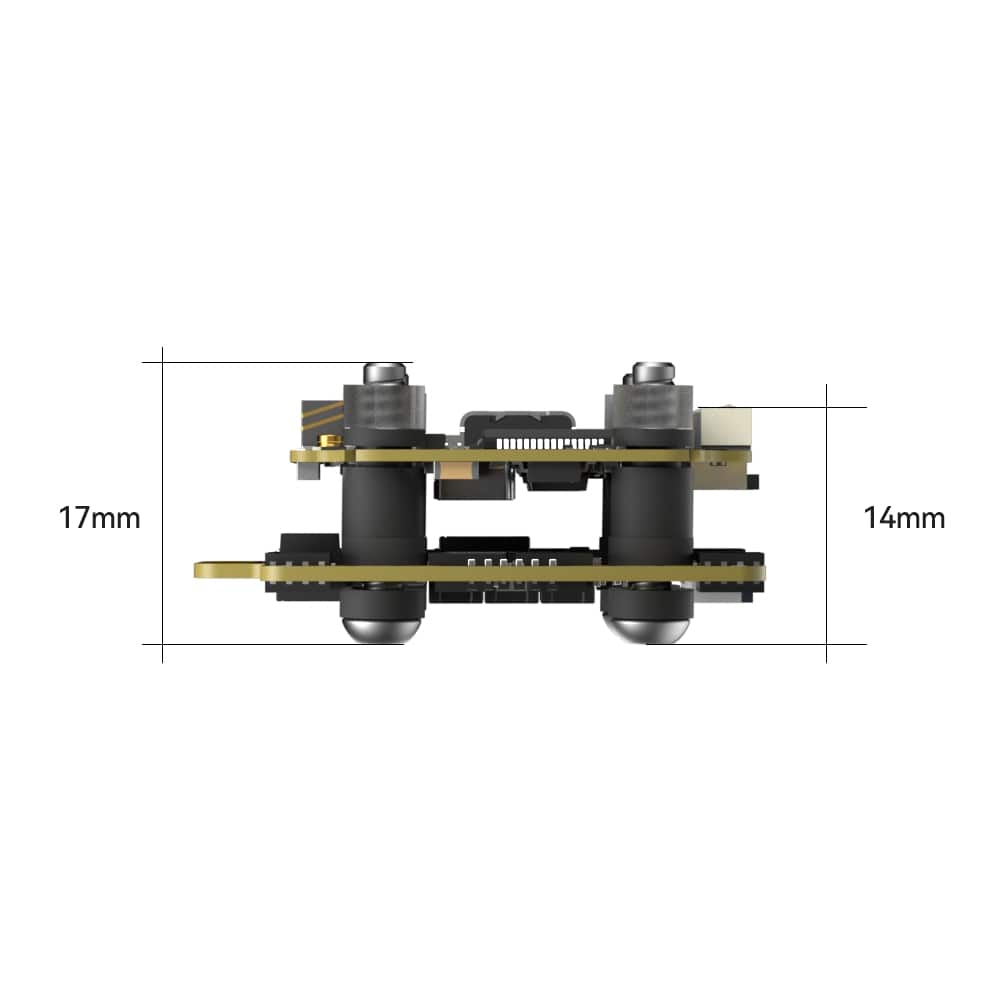

  • Dimensions: 34*27mm±1
  • Weight: 6.8g±1
  • BEC: 5V 2.5A, 12V 2A (12V with VTX switch)



ESC Specifications

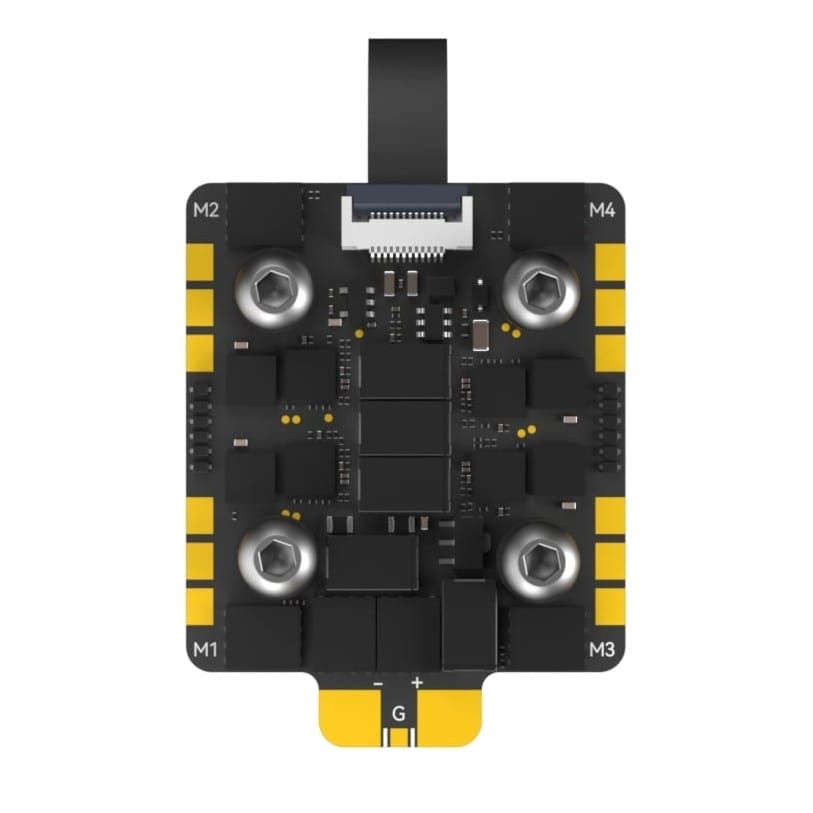

  • Product Name: Borg 60RS ESC
  • Input Voltage: 4-8S; Support LIHV battery
  • Max. Continuous Current: 60A
  • Max. Burst Current: 65A (10s)
  • MCU: STM32G071N
  • Driver: FD6288
  • Firmware: BL32 (32bit ESC)
  • Target: IFLIGHT_BLITZ_G3 32.9
  • Current Sensor: N/A
  • BEC: N/A
  • Telemetry: Supported
  • Bidirectional DSHOT: Supported

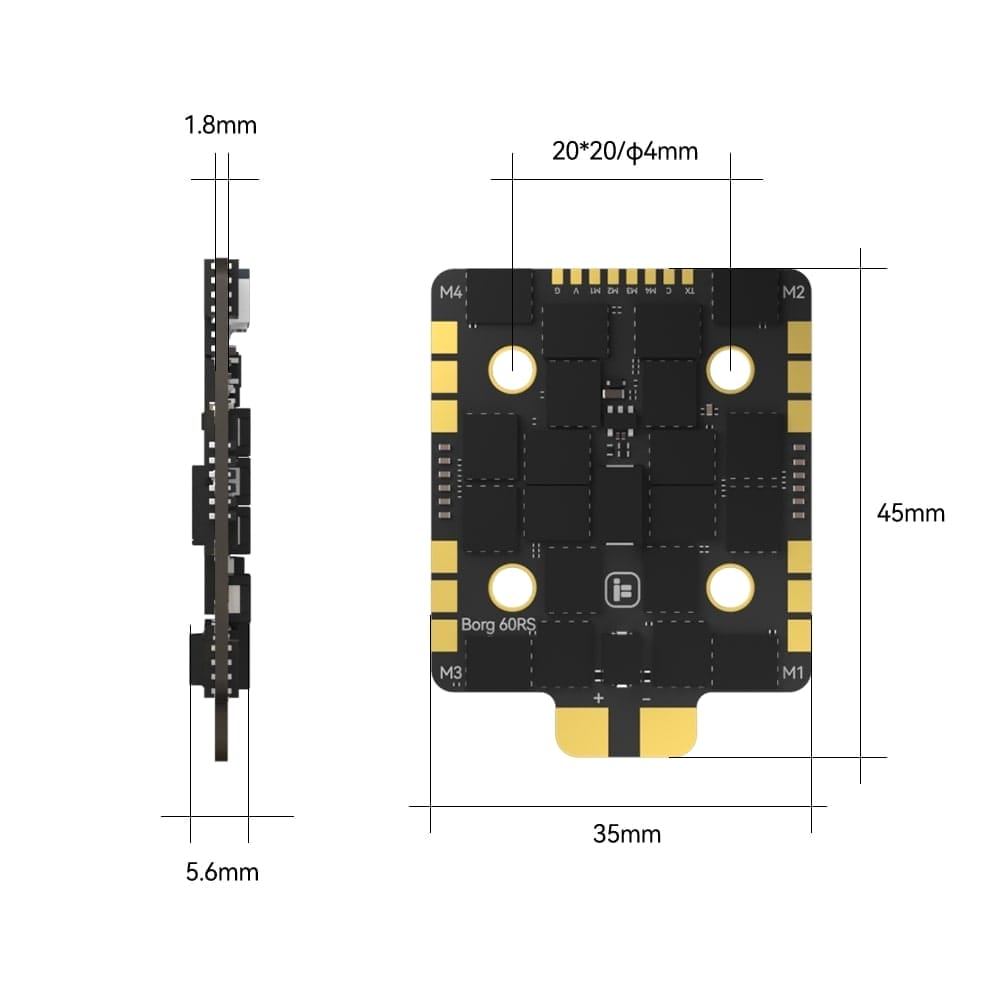

  • Dimensions: 45*35mm±1
  • Mounting Holes: 20 x20 mm/Φ4mm
  • Weight: 9.5g±1
  • Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.

Wiring

  • UART 1 for VTX HD / Analog
  • UART 2 for ESC Telemet
  • UART 4 for Built-in ELRS receiver/SBUS input
  • UART 5 for GPS or other sensors that require a serial port



Includes

  • 1 x Borg 60RS ESC
  • 1 x Borg 5S RX Flight Controller
  • 1 x Cable set
  • 4 x silicon grommets
