iFlight Nazgul DC5 ECO 6S ELRS Analog 5.8G 1.6W Assembling Kit

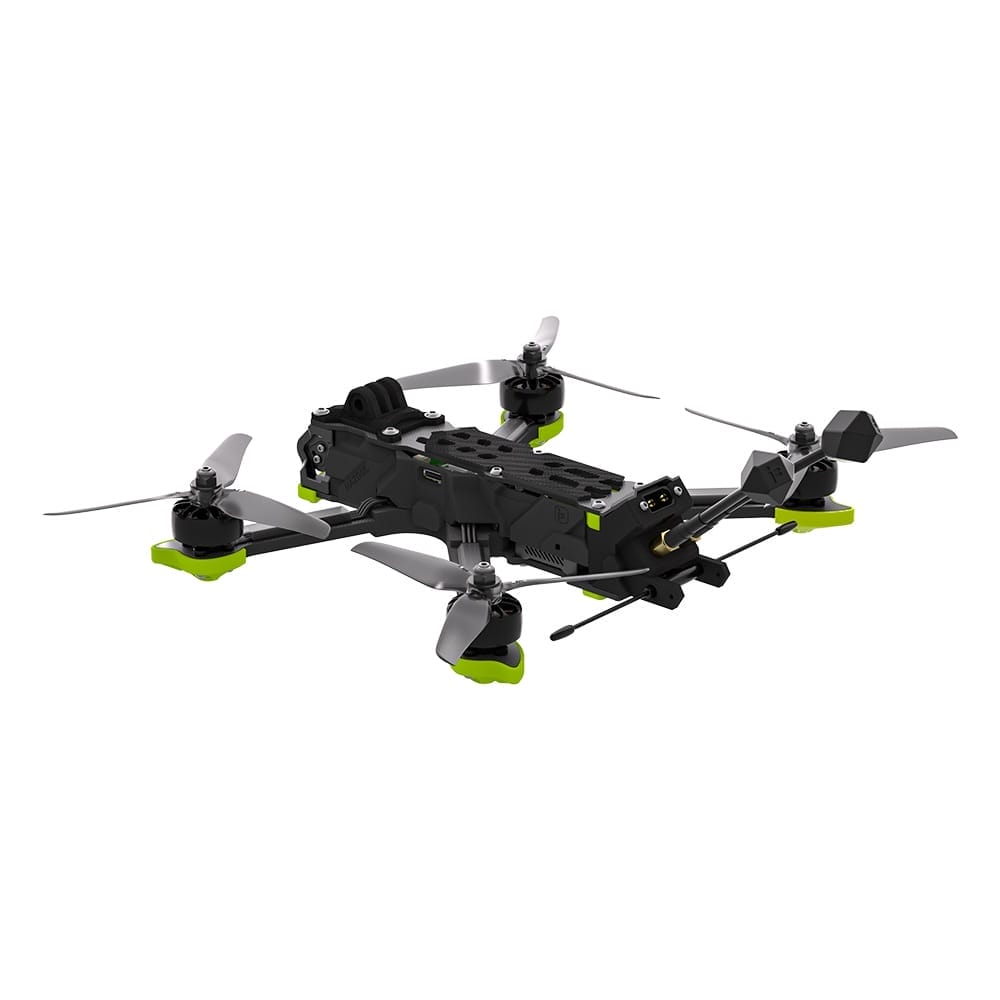

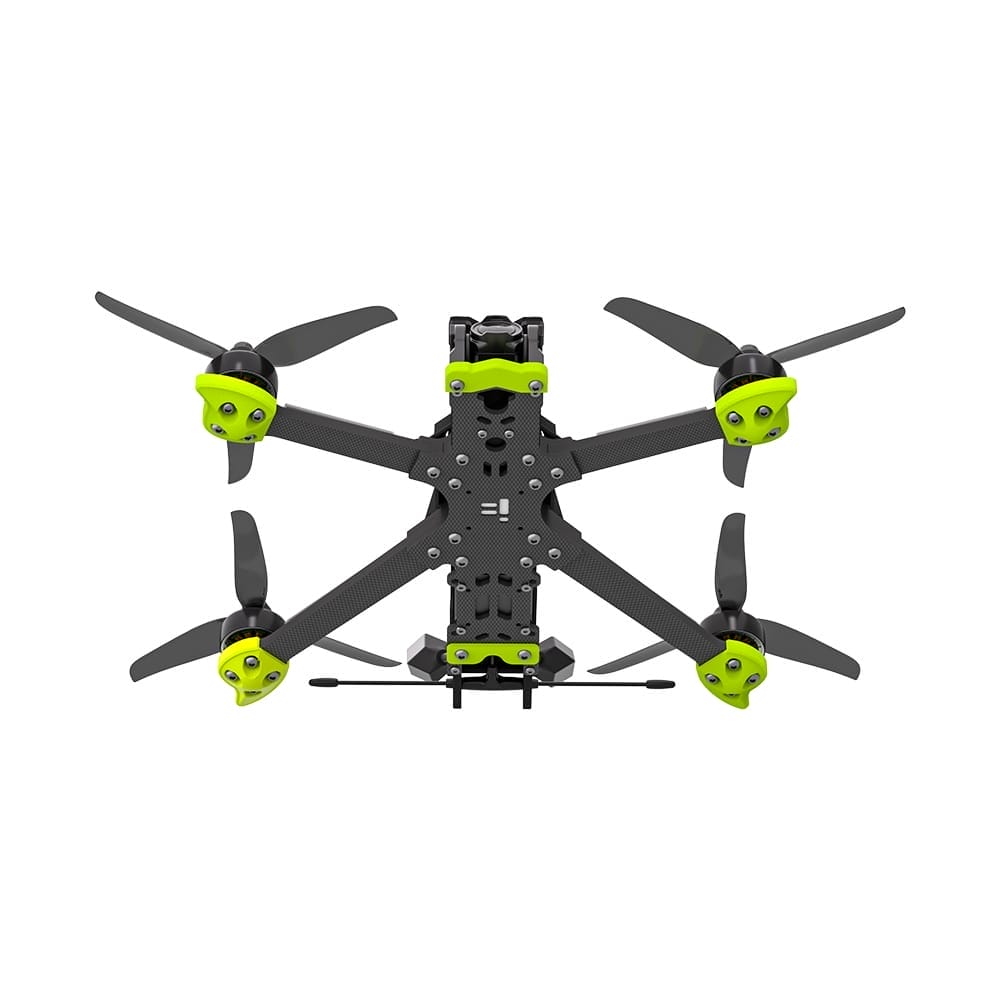

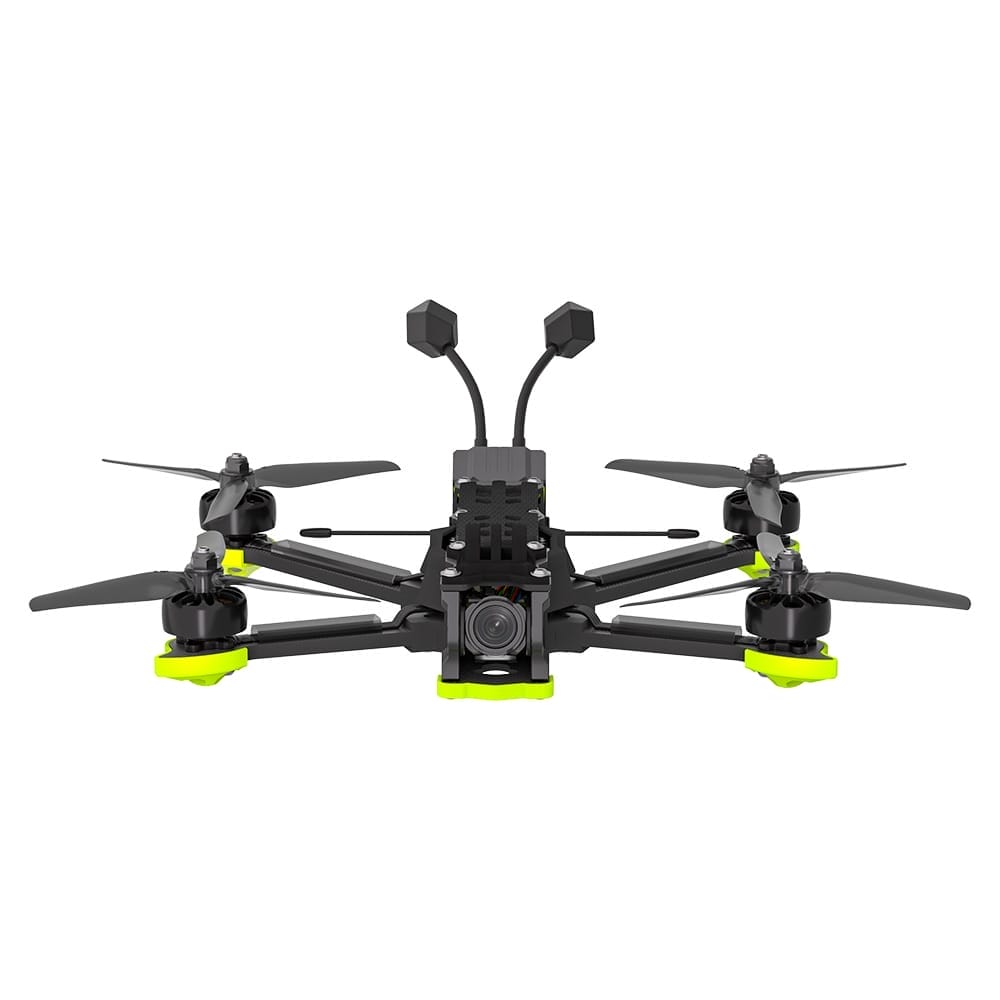

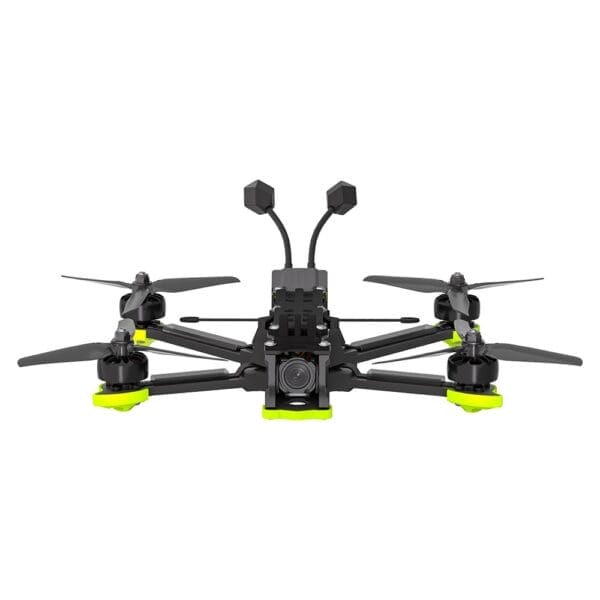

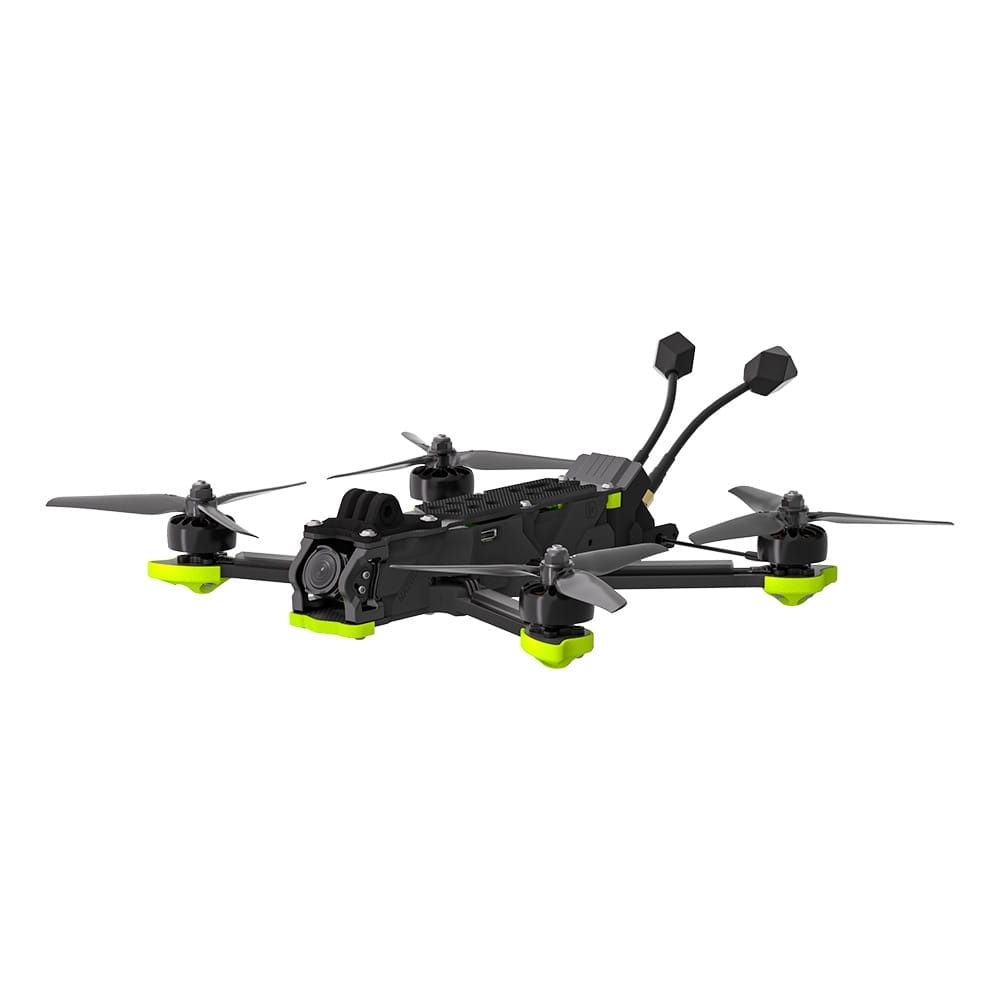

Introducing Nazgul DC5 ECO – the 5-inch standard Freestyle drone that redefines performance and value. This ready-to-assemble kit combines high performance, reliability, and customisation options to offer a practical, hands-on learning experience for aspiring drone pilots and enthusiasts. Designed for easy assembly with pre-selected components, this kit provides the satisfaction of building a professional-grade drone from scratch while learning about each component’s role and function.

Features

• Learn to Build!
  All parts are pre-selected and fully compatible, so you can dive right into assembly without the hassle of customisation—that can come later! Start your FPV journey with this ready-to-assemble kit, designed for a seamless and hands-on learning experience.
• Lightweight and Durable Build
  Constructed from carbon fiber and aluminum, the Nazgul DC5 ECO offers a lightweight, sturdy frame designed to support your camera equipment securely. This structure allows unobstructed, high-quality video output, perfect for learning about drone photography and videography.
• Anti-Spark Protection for Enhanced Safety
  Learn about electrical protection with our built-in anti-spark filter. This feature prevents high current surges, extending the lifespan of XT60 connectors and safeguarding sensitive electronics—ideal for newcomers to drone electronics.
• Enhanced Maintenance & User Experience
  Featuring a built-in buzzer and dedicated receiver mount, the kit simplifies maintenance. The receiver is easy to access, making adjustments a breeze, giving hands-on experience with common maintenance tasks.
• DIY Customisation Space
  Embrace DIY flexibility! The Nazgul DC5 ECO offers standard 20×20 and 30.5×30.5 mounting holes, allowing compatibility with various flight stacks and VTX systems, enabling a personalised build experience. Perfect for learning about modularity and configuration options in drones.

Specifications

• Product Name: Nazgul DC5 ECO 6S Analog
• Geometry: Dead-Cat
• FC: BLITZ ATF435 Flight Controller
• ESC: BLITZ E55S 4-IN-1 ESC
• Video Transmission: BLITZ 1.6W VTX
• Camera: iFlight Runcam Micro Night Camera
• Frame: 245mm wheelbase
• Motor: XING-E Pro 2207 1800KV motors
• Prop: Nazgul F5 propellers
• Weight: 427g
• Takeoff Weight: Approx. 652g (With 6S 1400mAh battery)
• Dimensions (L×W×H): 173×173×34±2 mm
• Diagonal Distance: 245mm
• Max Speed: 190 km/h (Manual Mode)
• Maximum Takeoff Altitude: 3200 m
• Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh Battery)
• Max Wind Speed Resistance: Level 7
• Operating Temperature Range：-10° to 40° C (14° to 104° F)
• Antennas: Single Antenna
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional)

VTX

• Product Name: BLITZ 5.8G 1.6W VTX
• Output Power: PIT/25mW/400mW/800mW/1600mW
• Input Volts: 7-34V(2-8S)
• Working Current: 25.2V，≤pit @20mA，≤25mw@65mA，≤400mw@130mA，≤800mw@150mA，≤1600mw@250mA
• Transmission fre: 40CH(A-B-E-F-R)
• Antenna Interface: MMCX
• Mounting Hole: 30.5×30.5/Φ3mm
• Weight: 18.9g (Antenna not included)
• Dimensions: 38.5×38.5mm

Includes

• 1 x Nazgul DC5 Frame
• 1x Flight Controller: BLITZ ATF435
• 1x BLITZ E55S 55A 4-IN-1 ESC
• 4x XING-E Pro 2207 1800KV motors
• 2x Battery Pads for Secure Mounting
• 2x Pairs of Nazgul F5 Propellers
• 1x ELRS 2.4G RX
• 1x BLITZ 5.8G 1.6W VTX
• 1x Caddx Ratel 2 Micro Camera

Warning: Building Your Own FPV Drone!

Building and flying FPV drones requires a basic understanding of electronics, assembly, and safety protocols. Please note:

• There is NO warranty for mistakes made during assembly. Manufacturers provide a standard warranty, but this is voided if issues arise due to user error.
• Due to the nature of FPV, user errors will occur, especially for beginners, so proceed carefully and consult resources or experienced builders if needed.
• All items in this kit have been thoroughly tested and approved as functional prior to packaging.

Follow instructions carefully, use recommended tools, and work in a well-ventilated, organised space.
