iFlight Nazgul XL5 ECO Analog 5.8G 1.6W 6S ELRS 2.4G BNF

$390.00

Introducing Nazgul XL5 ECO – the 5-inch standard Freestyle drone that redefines performance and value. Featuring an ATF435 flight controller, BLITZ 1.6W VTX, and BLITZ E55S 2-6S 55A ESC, the Nazgul XL5 ECO delivers unparalleled performance and reliability.

ONLY 3 LEFT

Earn 1,170^ points.
SKU: MF-3590749892 Categories: ,

Description

iFlight Nazgul XL5 ECO Analog 5.8G 1.6W 6S ELRS 2.4G BNF

Introducing Nazgul XL5 ECO – the 5-inch standard Freestyle drone that redefines performance and value. Featuring an ATF435 flight controller, BLITZ 1.6W VTX, and BLITZ E55S 2-6S 55A ESC, the Nazgul XL5 ECO delivers unparalleled performance and reliability. The carbon fiber with aluminum camera mount offers lightweight durability, while the included GoPro mount provides versatility for capturing your epic freestyle flights. Take your flying experience to new heights with Nazgul XL5 ECO.

iFlight logo

Changelog

  • June 28, 2024: Battery Plug updated to fixed form. The drone upgraded to V1.1.

Features

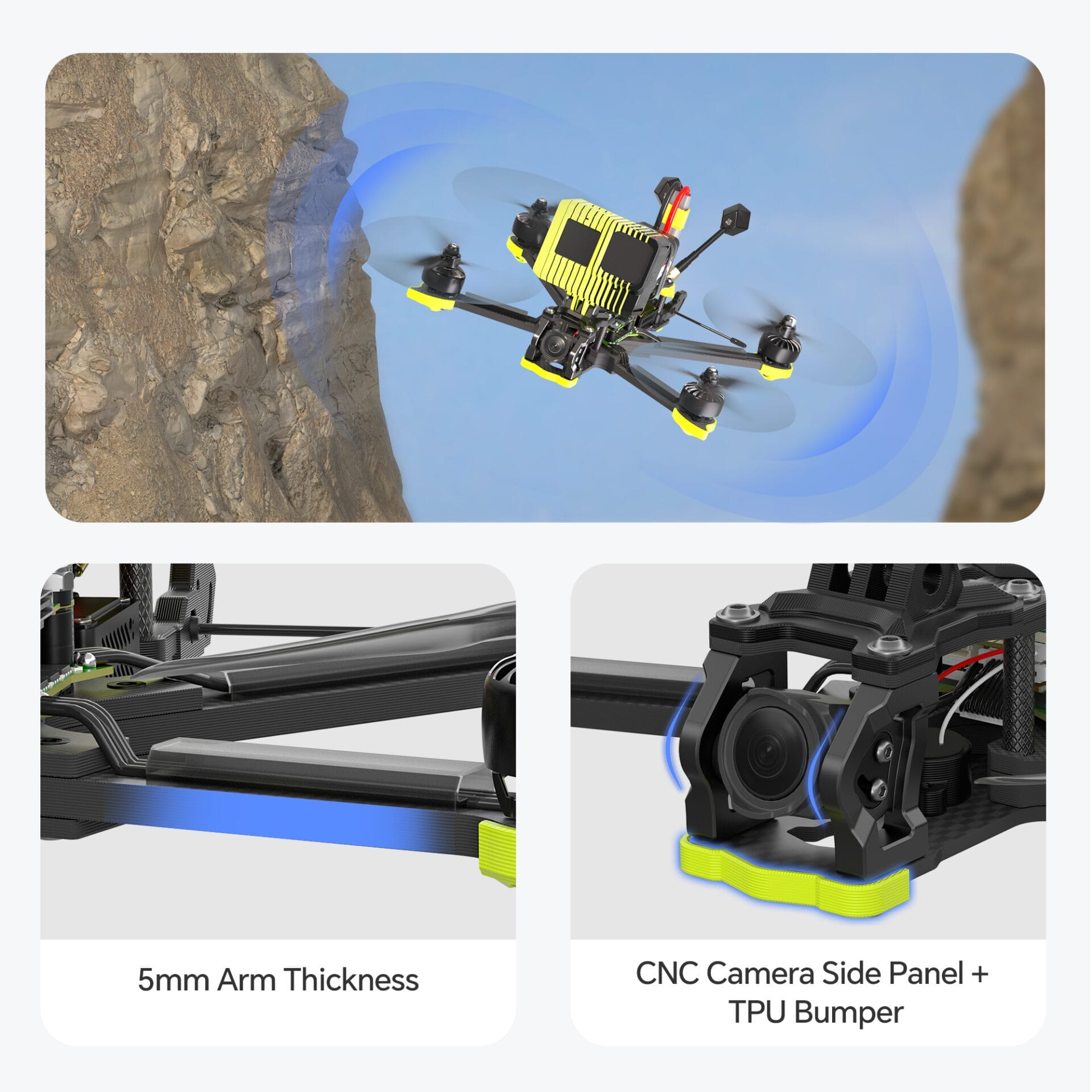

  • Lightweight and Durable -A combination of carbon fiber and aluminum ensures a lightweight yet robust structure for your camera equipment. Designed for clear video output without propellers obstructing the view, enhancing the aesthetic quality of your aerial footage.
  • Anti-Spark Filter- Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
  • Enhance user experience and streamline maintenance- Equipped with a built-in buzzer and receiver mount, convenient maintenance and adjustments to the receiver.
  • DIY customized space- Create your own personalized space with the flexibility of standard 20×20 and 30.5×30.5 mounting holes, ensuring compatibility with popular flight stacks and VTX systems available in the market. Tailor your setup to your liking and enjoy a seamless integration process with these versatile mounting options.

Specifications

  • Product Name: Nazgul XL5 ECO 6S Analog
  • Geometry: True-X
  • FC: BLITZ ATF435 Flight Controller
  • ESC: BLITZ E55S 4-IN-1 ESC
  • Video Transmission: BLITZ 1.6W VTX
  • Frame: 245mm wheelbase
  • Motor: XING-E Pro 2207 1800KV motors
  • Prop: Nazgul F5 propellers
  • Weight: 427g
  • Takeoff Weight: Approx. 652g (With 6S 1400mAh battery)
  • Dimensions (L×W×H): 173×173×34±2 mm
  • Diagonal Distance: 245mm
  • Max Speed: 190 km/h (Manual Mode)
  • Maximum Takeoff Altitude: 3200 m
  • Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh Battery)
  • Max Wind Speed Resistance: Level 7
  • Operating Temperature Range:-10° to 40° C (14° to 104° F)
  • Antennas: Single Antenna
  • GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional)

VTX

  • Product Name: BLITZ 5.8G 1.6W VTX
  • Output Power: PIT/25mW/400mW/800mW/1600mW
  • Input Volts: 7-34V(2-8S)
  • Working Current: 25.2V,≤pit @20mA,≤25mw@65mA,≤400mw@130mA,≤800mw@150mA,≤1600mw@250mA
  • Transmission fre: 40CH(A-B-E-F-R)
  • Antenna Interface: MMCX
  • Mounting Hole: 30.5×30.5/Φ3mm
  • Weight: 18.9g (Antenna not included)
  • Dimensions: 38.5×38.5mm

Includes

  • 1 x Nazgul XL5 ECO 6S Analog BNF
  • 1 x Antennas
  • 2 x Battery pads
  • 2 x Nazgul F5 Prop (Pairs)

iflight nazgul xl5 eco analog 5 8g 1 6w 6s bnf elrs 2 4ghz mantisfpv australia product showcase image description 01 iflight nazgul xl5 eco analog 5 8g 1 6w 6s bnf elrs 2 4ghz mantisfpv australia product showcase image description 02 iflight nazgul xl5 eco analog 5 8g 1 6w 6s bnf elrs 2 4ghz mantisfpv australia product showcase image description 03 iflight nazgul xl5 eco analog 5 8g 1 6w 6s bnf elrs 2 4ghz mantisfpv australia product showcase image description 04 iflight nazgul xl5 eco analog 5 8g 1 6w 6s bnf elrs 2 4ghz mantisfpv australia product showcase image description 06
