Matek FCHUB-12S V2 with Curr 440A 5V & 12V
Description
Matek FCHUB-12S V2 with Curr 440A 5V & 12V
Designed specifically for XClass Quads. supports 8~60V DC input, 5V 5A and 12V 4A regulators, high precision current sense up to 440A range.
Specifications
PDB
- Input voltage range: 8~60V (3~12S LiPo)
- 4x70A cont, 4x110A burst
- 4x ESC power /signal/ telemetry pads
- Current Senor: 440A, 3.3V ADC, Scale 75
- 2x LED indicators for 5V, 12V
- 1K:20K voltage divider built-in

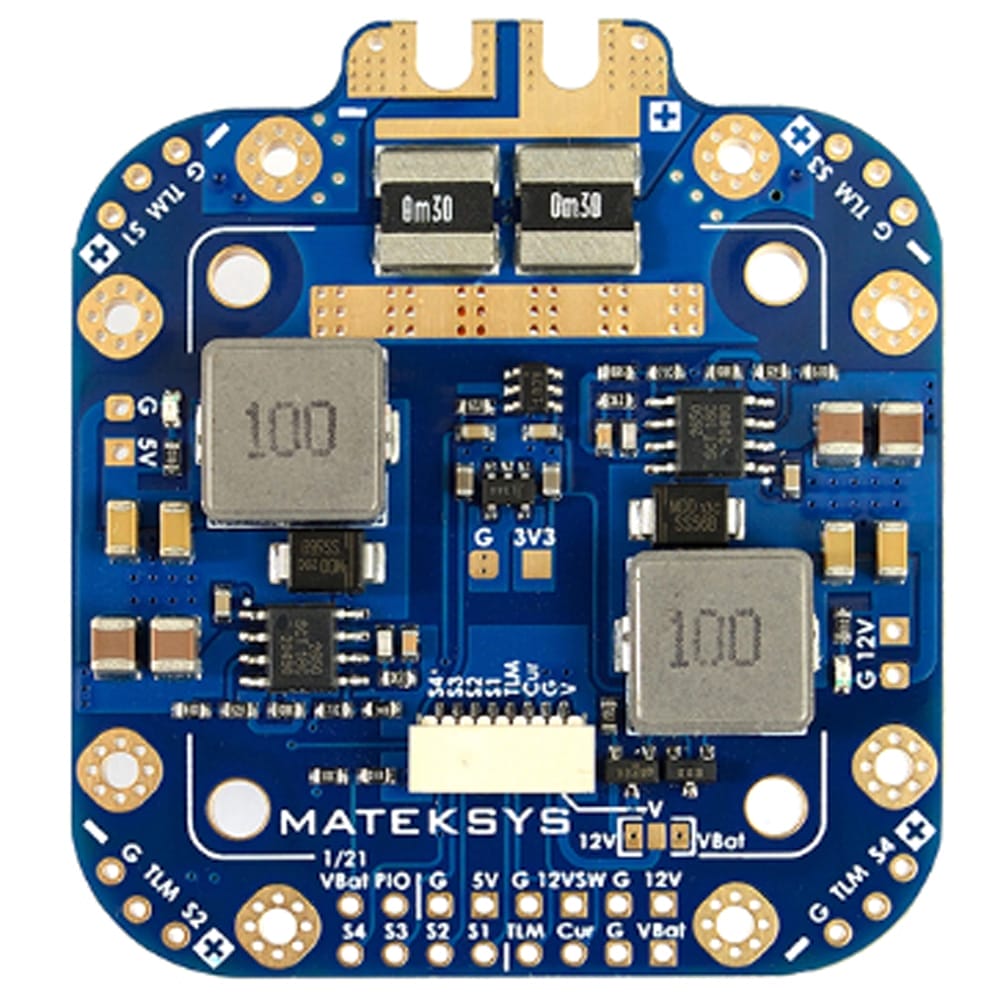

JST-SH 8pin connector
- “V” pad: 12V or VBat voltage selectable
- G: GND
- Curr: current sensor signal
- TLM: for BlHeli32 ESC telemetry
- S1~S4: ESC signal
BEC 5V output (5V pad)
- Voltage: 5.1 +/- 0.1VDC
- Continuous current 5 Amps, Max.6A
- Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
BEC 12V output (12V pad)
- Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)
- Continuous current 4 Amps, Max.5A
- Input voltage<12V, Output voltage = Input voltage
- Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
Switchable 12V output (12VSW pad)
- 12V ON/OFF switchable via PINIO(high/low level)
- support constant 2A
- can be use for powering VTX,LED etc.
BEC 3.3V output
- Linear Regulator
- Continuous current: 500mA
Physical

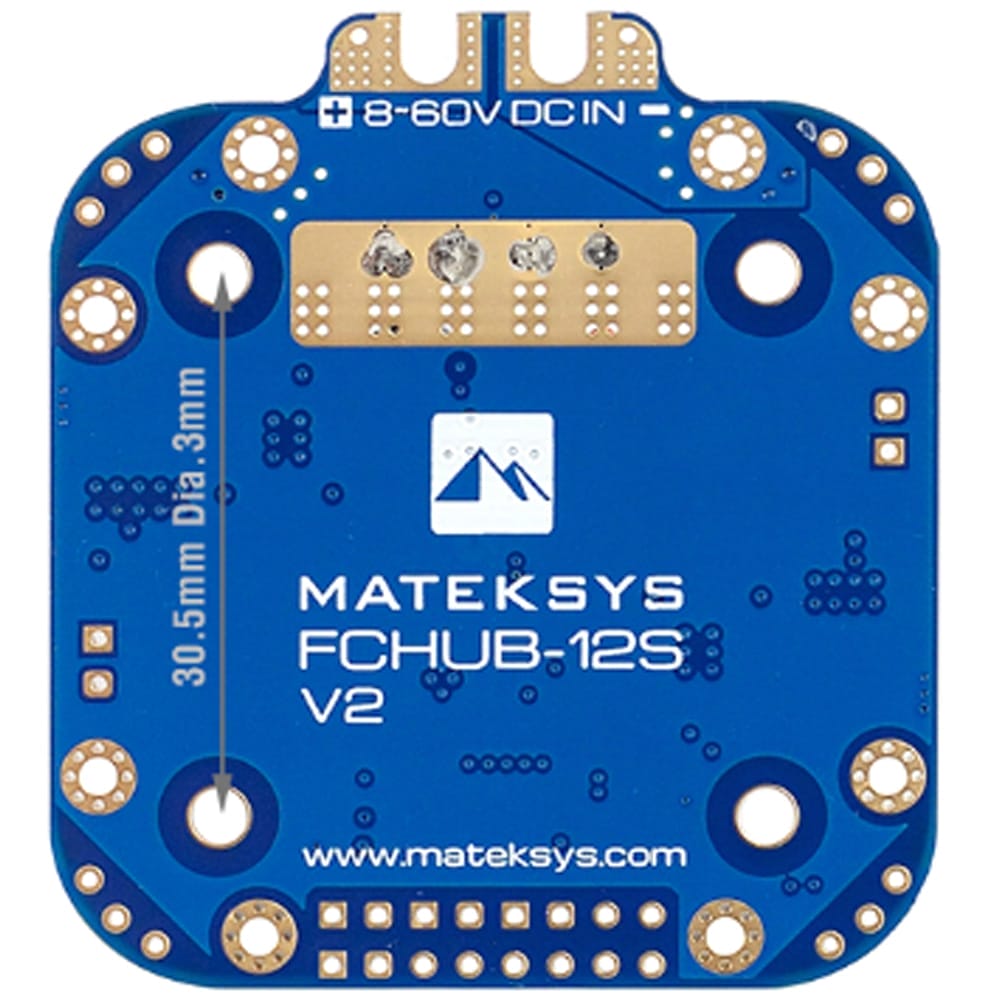

- Mounting: 30.5 x 30.5mm, Φ3mm
- Dimensions: 55 x 50 x 6 mm
- Weight: 21g
Includes
- 1x FCHUB-12S V2
- 1x SH1.0_8pin cable 5cm, 2x SH1.0_8pin connectors
