Matek H743 Slim V4 Flight Controller ICM42688
AU$182.54
A powerful and compact flight controller featuring the STM32H743 480MHz MCU, dual IMUs, DPS310 barometer, AT7456E OSD, Blackbox with microSD, 7 UARTs, 13 PWM outputs, CAN bus, and USB-C connectivity. Supports dual camera switching, DJI FPV OSD, and offers extensive sensor and interface options for advanced UAV builds.
Sold out
Description

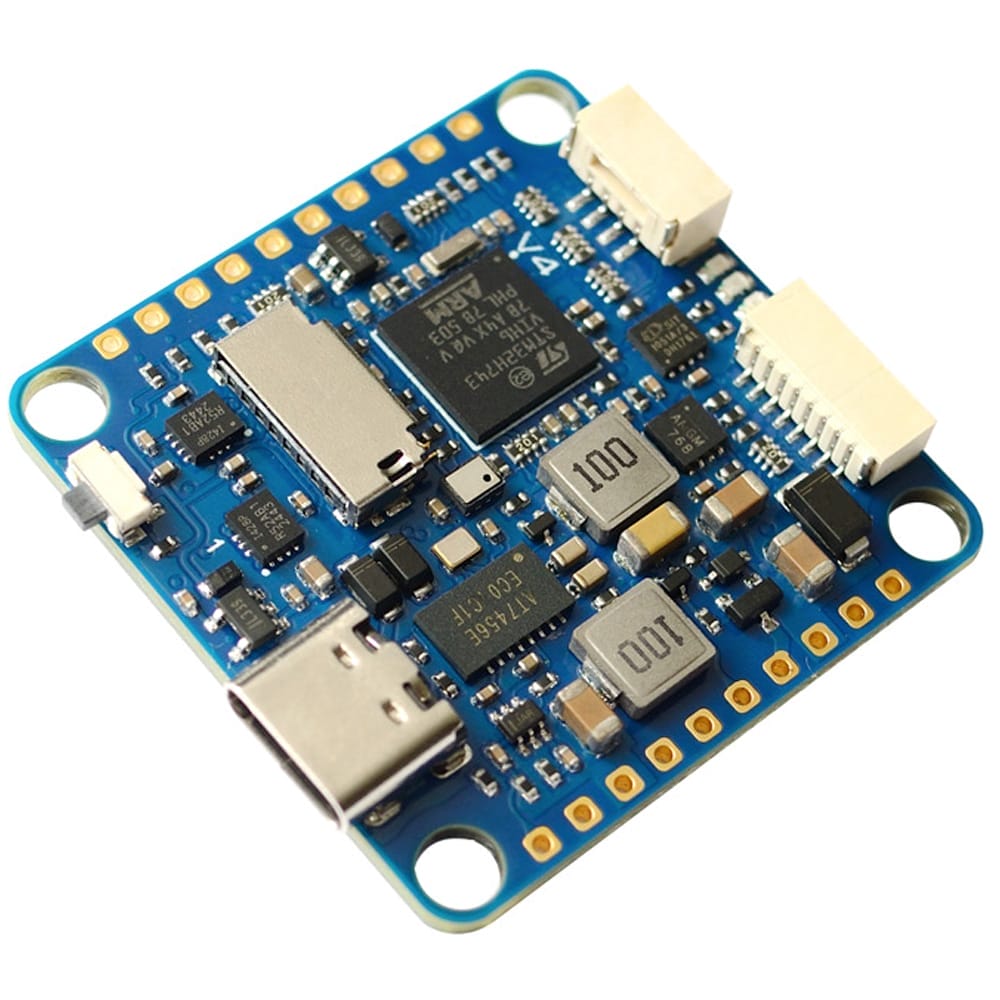

Matek H743 Slim V4 Flight Controller ICM42688
A powerful and compact flight controller featuring the STM32H743 480MHz MCU, dual IMUs, DPS310 barometer, AT7456E OSD, Blackbox with microSD, 7 UARTs, 13 PWM outputs, CAN bus, and USB-C connectivity. Supports dual camera switching, DJI FPV OSD, and offers extensive sensor and interface options for advanced UAV builds.

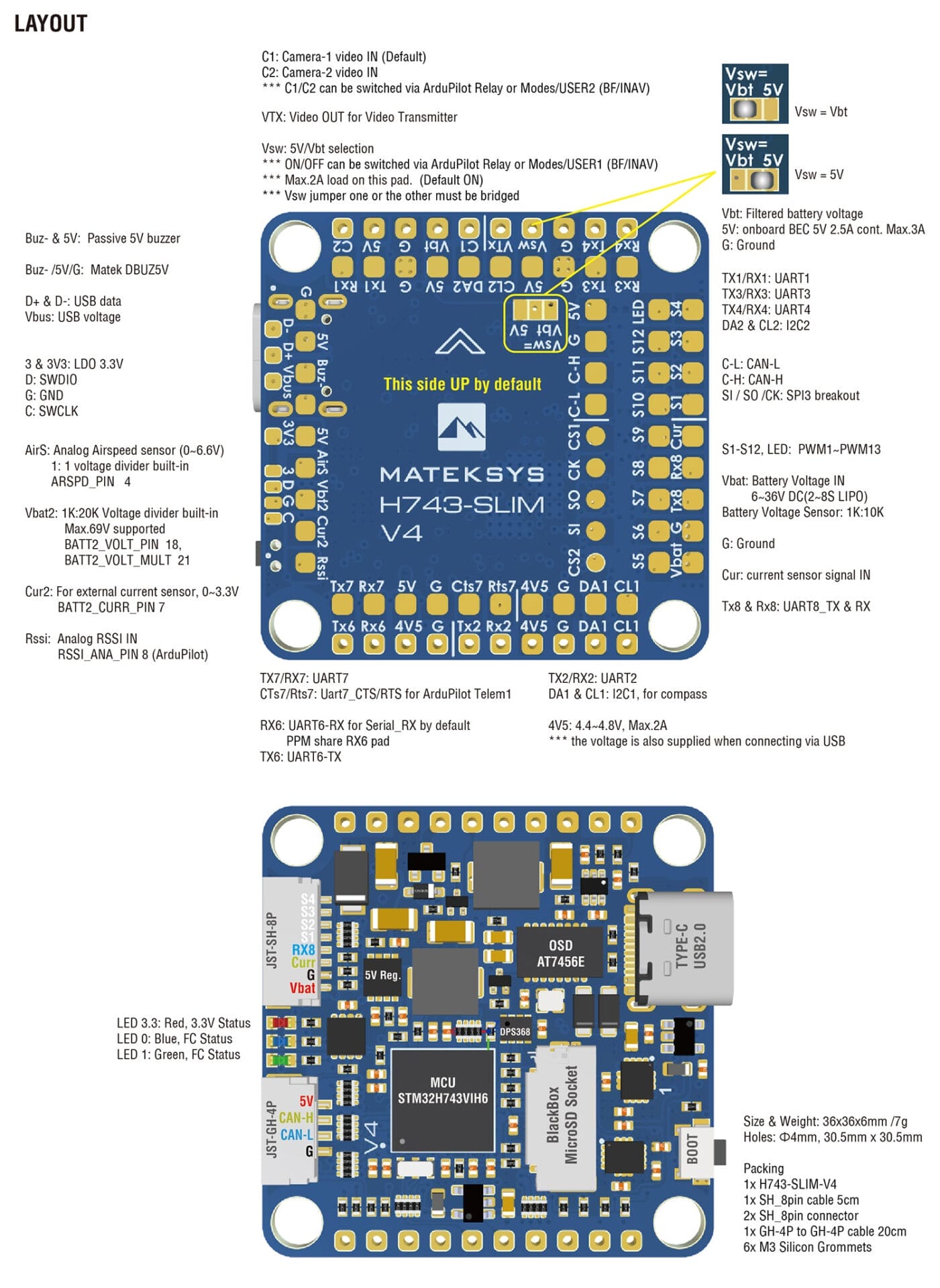

Specifications
- MCU: STM32H743VIH6, 480MHz , 1MB RAM, 2MB Flash
- IMU: Dual ICM42688P
- Baro: DPS368
- OSD: AT7456E (SPI2)
- Blackbox: MicroSD card socket
- 7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
- 13x PWM outputs(including “LED” pad)
- 2x I2C
- 1x CAN
- 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2)
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- 1x SPI3 breakout
- USB Type-C(USB2.0)
- 1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
- 1x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G)
- Dual Camera Inputs switch
- 5V 0r Vbat(2A) filtered power ON/OFF switch
- DJI FPV OSD is supported by any spare UART
Power
- Vbat Input: 6~36V (2~8S LiPo) with TVS protection
- BEC: 5V 2.5A cont. (Max.3A)
- LDO 3.3V: Max.200mA
- VBat filtered output 2A for VTx and camera
- No Current Sensor built-in
- ADC Vbat2 pad supports Max. 69V (voltage divider: 1K:20K)
- Static power: 200mA@5V with Betaflight, 150mA@5V with ArduPilot
FC Firmware
- ArduPilot: MATEKH743
- BetaFlight: MATEKH743
- INAV: MATEKH743
Physical
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
- Dimensions: 36 x 36 x 5 mm
- Weight: 7g
Including
- 1x H743-SLIM-V4
- 6x Silicon grommets M4 to M3
- 1x JST-SH1.0_8pin cable, 5cm
- 2x JST-SH1.0_8pin connectors
- 1x JST-GH-4P to JST-GH-4P cable for CAN port, 20cm
