Matek Power Module 5v/4A 12v/4A PM12S-3
AU$78.40
The Matek PM12S-3 is a high-performance power module designed for demanding UAV and robotics applications. Featuring a wide 9–55V input range with TVS protection, it includes three independent buck regulators delivering clean and stable power for flight controllers, servos, video systems, and accessories.
Its configurable BEC Vx (5.25V / 6V / 8V) supports up to 15A continuous (25A peak), while the fixed 5V/4A and 12V/4A outputs ensure reliable power delivery with low ripple. Built-in protections include thermal shutdown, over-current recovery, and short-circuit tolerance. A 1K:20K voltage divider and current-sensor passthrough make it ideal for advanced telemetry setups.
ONLY 5 LEFT
Description
Matek Power Module 5v/4A 12v/4A PM12S-3
The Matek PM12S-3 is a high-performance power module designed for demanding UAV and robotics applications. Featuring a wide 9–55V input range with TVS protection, it includes three independent buck regulators delivering clean and stable power for flight controllers, servos, video systems, and accessories.
Its configurable BEC Vx (5.25V / 6V / 8V) supports up to 15A continuous (25A peak), while the fixed 5V/4A and 12V/4A outputs ensure reliable power delivery with low ripple. Built-in protections include thermal shutdown, over-current recovery, and short-circuit tolerance. A 1K:20K voltage divider and current-sensor passthrough make it ideal for advanced telemetry setups.
Specifications
- Wide 9V to 55V Operating Input Range with TVS protection
- 3x independent Step-Down Voltage Regulators
- BEC Vx, 5.2V / 6V / 8V output options. supports typical continuous output current of up to 15A, Peak current of up to 25A.
- BEC 5V (Fixed), 4A continuous
- BEC 12V (Fixed), 4A continuous

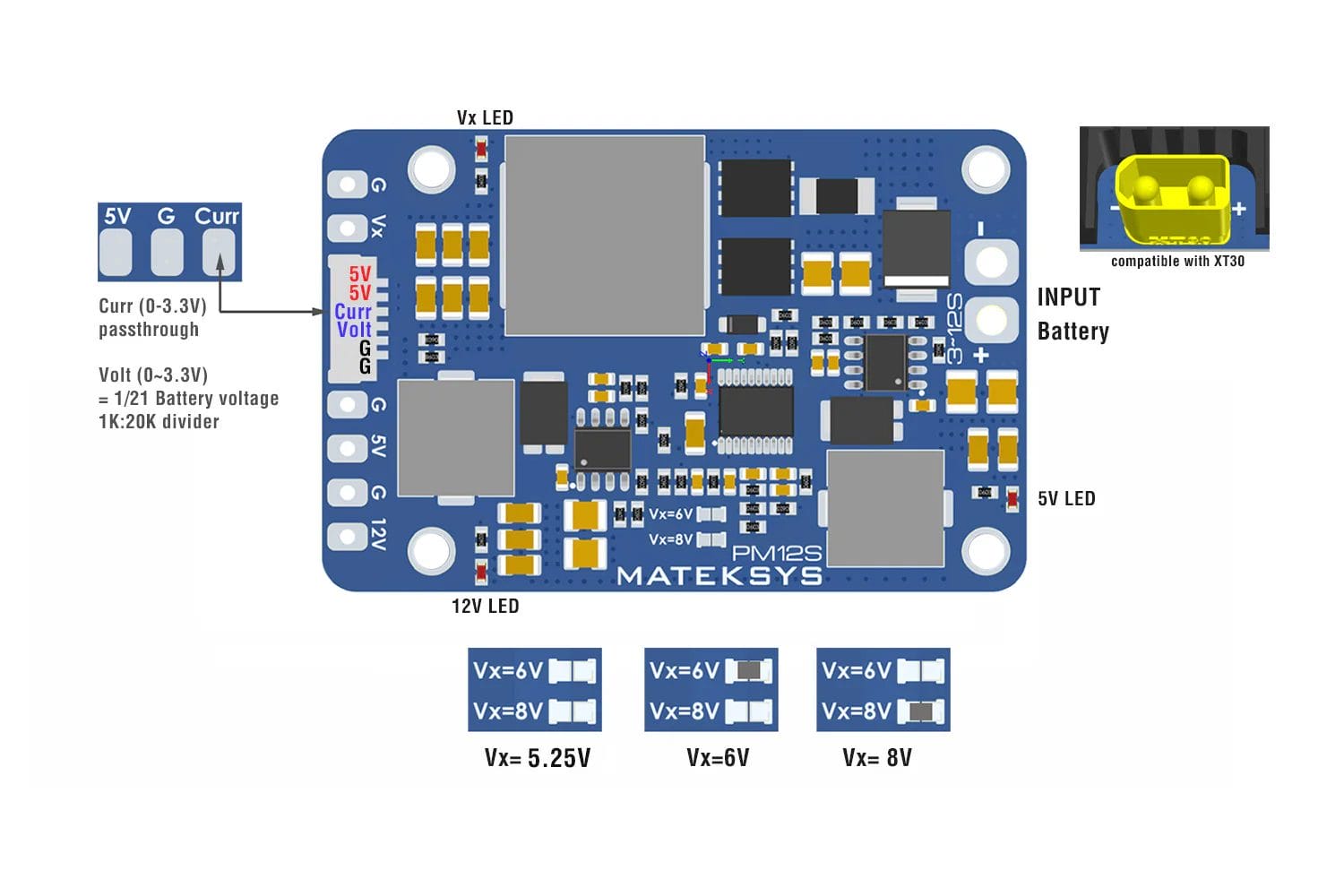

- 1K:20K voltage divider built-in (Volt = 1/21 Input voltage)
- Current sensor signal passthrough pad

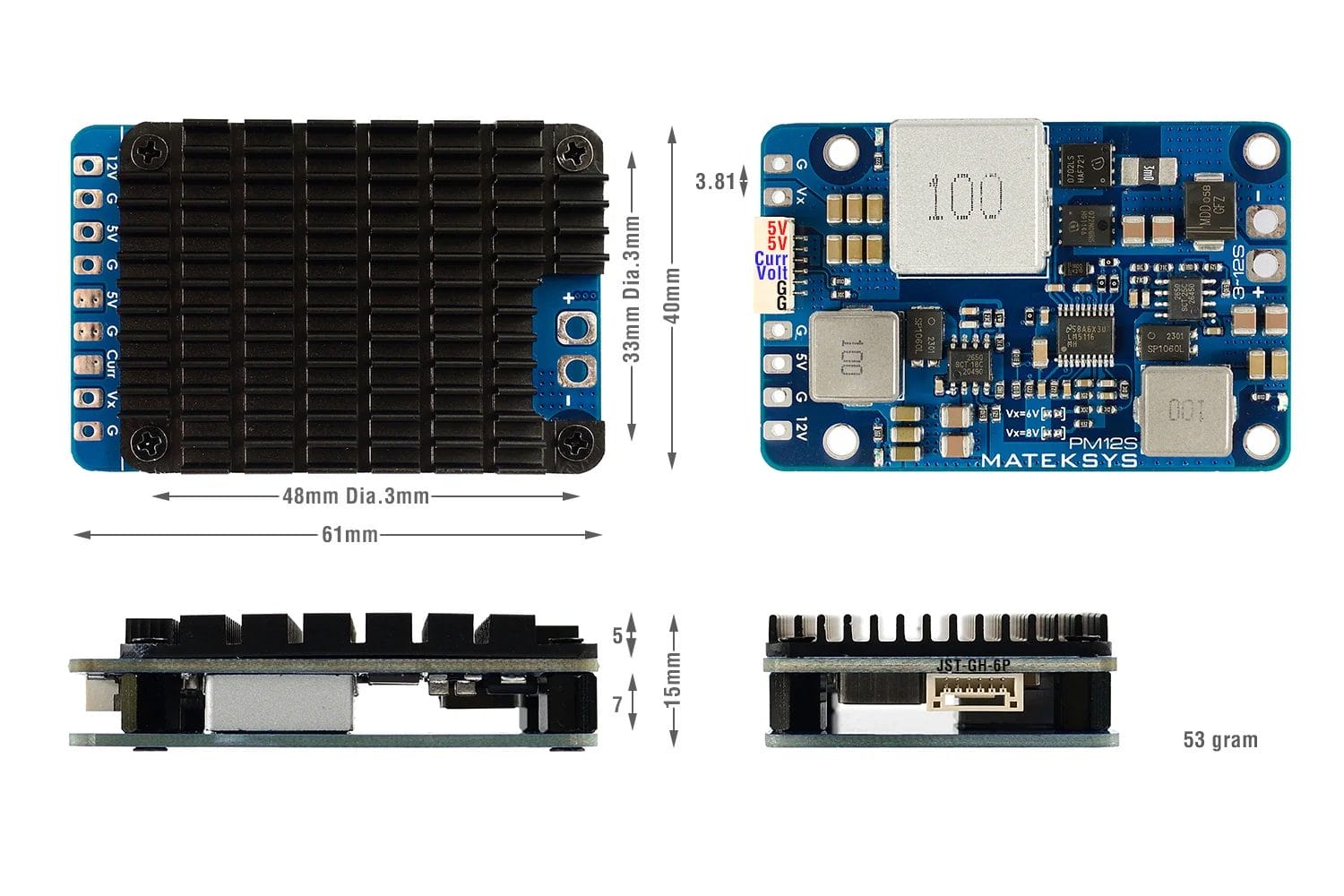

- Size & Weight: 61x40x15mm, 53g
BEC Vx
- Output voltage 5.25V / 6V / 8V options.
- Output voltage tolerance 1.5%
- Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
- Supports typical continuous output current of up to 15A, Peak current of up to 25A.
- Output ripple 32mV (VIN=50V, Output 5.25V @ 15A), 43mV (VIN=50V, Output @ 5A)
- Standby current: 10~20mA
- Reverse Input voltage protection: No
- Thermal Shutdown
- Output Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
- Tip: Input voltage >= 15V is required for continuous output current of 15A
BEC 5V
- Output voltage 5.2V, tolerance 1.5%
- Supports continuous output current of up to 4A, Peak current of 6A
- Output ripple 20mV (VIN=24V, Output @ 5A), 50mV (VIN=50V, Output @ 5A)
- Reverse Input voltage protection: No
- Thermal Shutdown
- Output Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
BEC 12V
- Output voltage 12V, tolerance 1.5%
- Supports continuous output current of up to 4A, Peak current of 6A
- Output ripple 18mV (VIN=24V, Output @ 5A), 32mV (VIN=50V, Output @ 5A)
- Reverse Input voltage protection: No
- Thermal Shutdown
- Output Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
- Tip: Input voltage >= 13V is required for stable 12V output
Includes
- 1x Matek Power Module 5v/4A 12v/4A PM12S-3
