The Hummingbird Whoop RaceSpec V2 is the evolution of our elite micro-racing platform. Designed for competitive FPV pilots, it delivers unmatched control, durability, and power-to-weight precision on the race track.

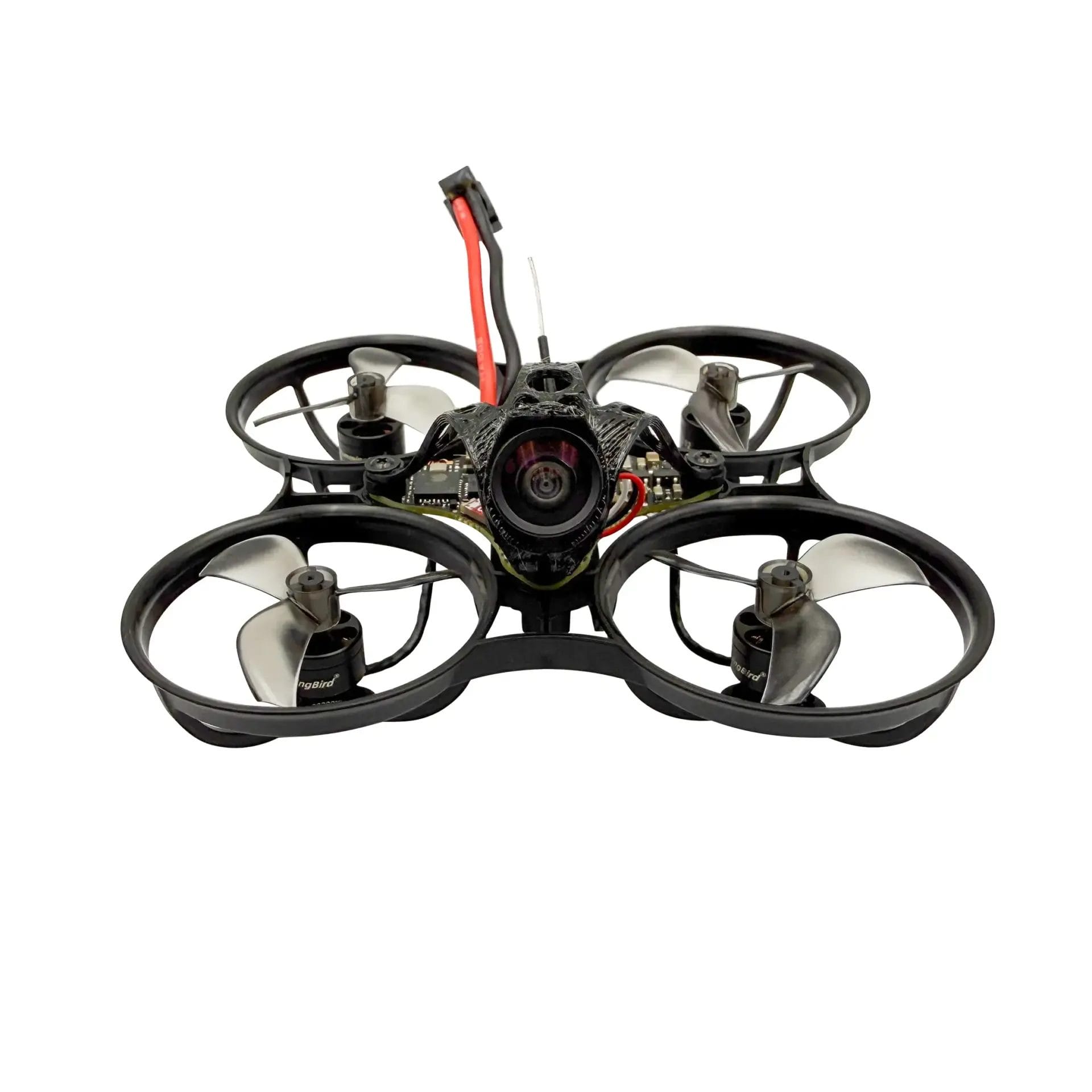

NewBeeDrone Hummingbird Analog Whoop RaceSpec V2 BNF ELRS

Next-Level Performance for Serious FPV Racers

The Hummingbird Whoop RaceSpec V2 is the evolution of our elite micro-racing platform. Designed for competitive FPV pilots, it delivers unmatched control, durability, and power-to-weight precision on the race track.

Built as the successor to the Hummingbird V3.1 RaceSpec, this version brings refined electronics, stronger power delivery, lighter camera system, and race-optimised firmware — all without adding unnecessary weight.

Why Choose the RaceSpec V2

• Designed specifically for micro-whoop racing
• Built for durability, direct soldering, and zero-compromise response
• True race-legal VTX behaviour (accurate 25mW output)
• Ultra-low weight, precision-tuned, competition ready out of the box

Features

• Evolution of Hummingbird V3.1 RaceSpec
• AT32 F4 MCU @ 216MHz for race-grade stability
• Double N-MOS ESC (upgraded from N+P) — 18A per channel
• SmartMax VTX with 25mW–400mW output + thermal protection
• UART ExpressLRS receiver with ceramic SMT antenna
• No USB onboard to save weight — USB-C adapter included
• Reverse-polarity protection on power input
• Larger motor pads — direct-solder race design (no motor plugs)
• BeeEye V2 camera with 10×10mm PCB — sharper colours, lower weight
• Ships with Betaflight 4.5.1 RacePro firmware

Specifications

• Flight Controller: AT32 F4 @ 216MHz
• ESC: 18A 4-in-1 Double N-MOS
• VTX: SmartMax — 25mW / 100mW / 200mW / 400mW
• Receiver: UART ExpressLRS (ESP8285)
• Antenna: Ceramic SMT — ultra-durable, lightweight
• Camera: BeeEye V2 — 10×10mm PCB
• Firmware: Betaflight 4.5.1 RacePro
• USB: Included USB-C tuning adapter
• Battery Connector: NX69

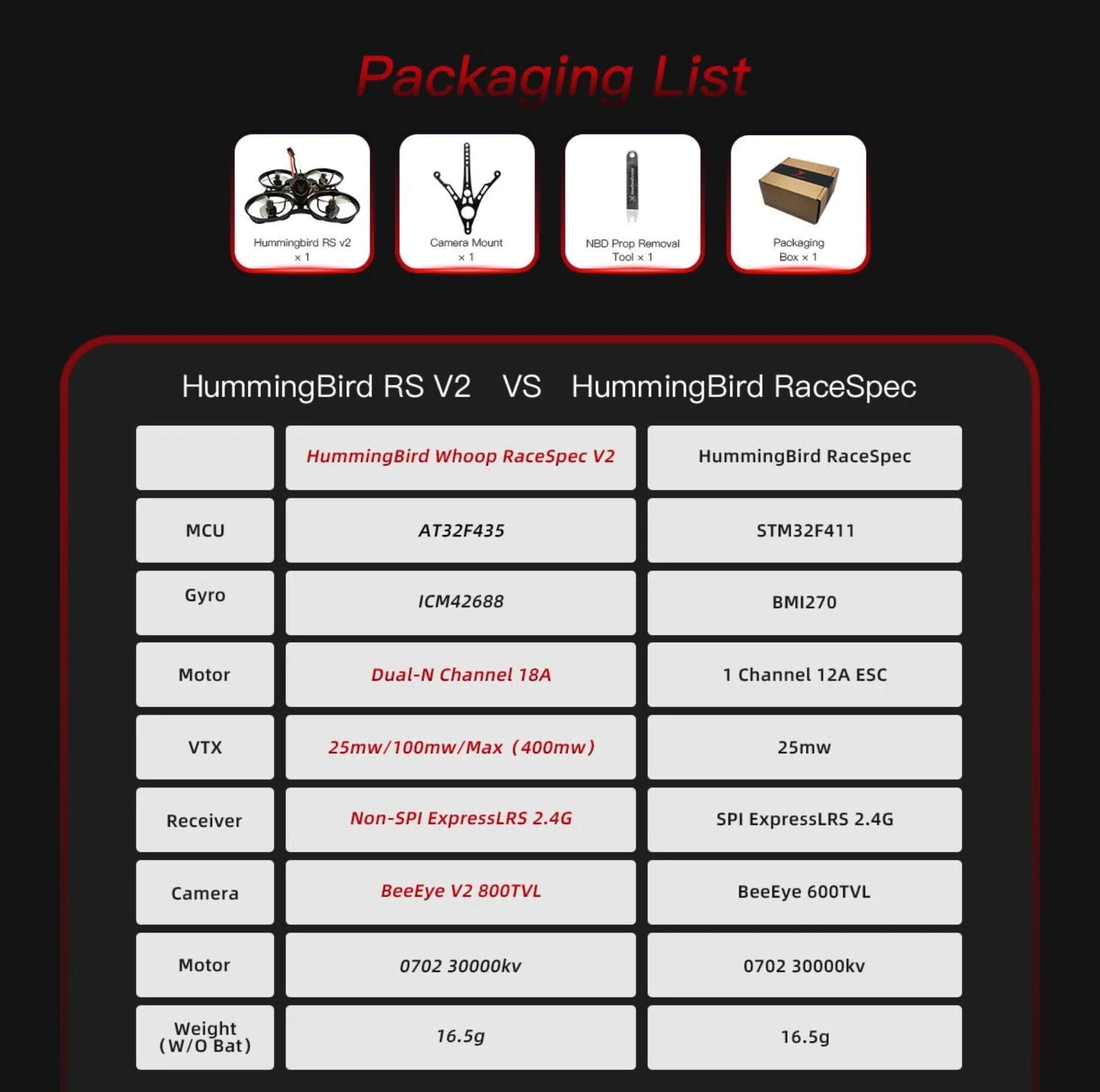

Includes

• Hummingbird RaceSpec V2 AIO
• USB-C tuning adapter
• Quick setup guide

NX69 Battery Connection

Unlock the full power potential of your 1S whoop with the NewBeeDrone NX69 Whoop Power Cable — designed for next-generation performance and engineered to support the demands of the NX69 ecosystem and beyond.

Featuring 20AWG ultra-low-resistance silicone wire, this is the largest-gauge power lead ever used on a whoop. At only 1 g per cable and 40 mm wire length, it delivers a perfect balance of minimal weight and maximum current flow — ensuring your batteries can perform at their true potential.

Why 20AWG?

The NX69 connector supports power levels typically matched with 16–18AWG class conductors — so pairing it with 22AWG wire creates a bottleneck. By contrast, 20AWG comes much closer to matching the connector’s real-world performance ceiling. It supports high burst current and minimizes voltage drop, while keeping weight manageable in a micro drone setup. Our internal tests confirmed that this wire gauge ensures the plug is the limiting factor — not the wire — which is exactly what you want in a performance-optimised system.

Features

• Pre-installed NX69 Plug – Comes factory-soldered with the next-gen NX69 plug for seamless integration with NX69-equipped batteries and chargers.
• 20AWG Silicone Wire – Largest scale wire used in the whoop category, drastically reducing resistance and unlocking the full discharge potential of modern and future battery cells.
• 90° Cable Angle – The plug-to-cable connection is designed with a right-angle layout, making it easier to route and connect in tight builds while saving valuable space.
• Optimised Length – At just 40mm (wire only), we’ve minimized excess wire to reduce resistance and weight without compromising usability.
• 1 Gram Per Piece – Thoughtfully engineered to maintain whoop-class weight while pushing the limits of power throughput.

Note:

• This drone uses the NewBeeDrone NX69 battery connector, which is not standard on other 1S drones. It is not compatible with A30 batteries. You must either use NX69-type batteries, or replace the connector with an A30-style connector to use A30 packs.
