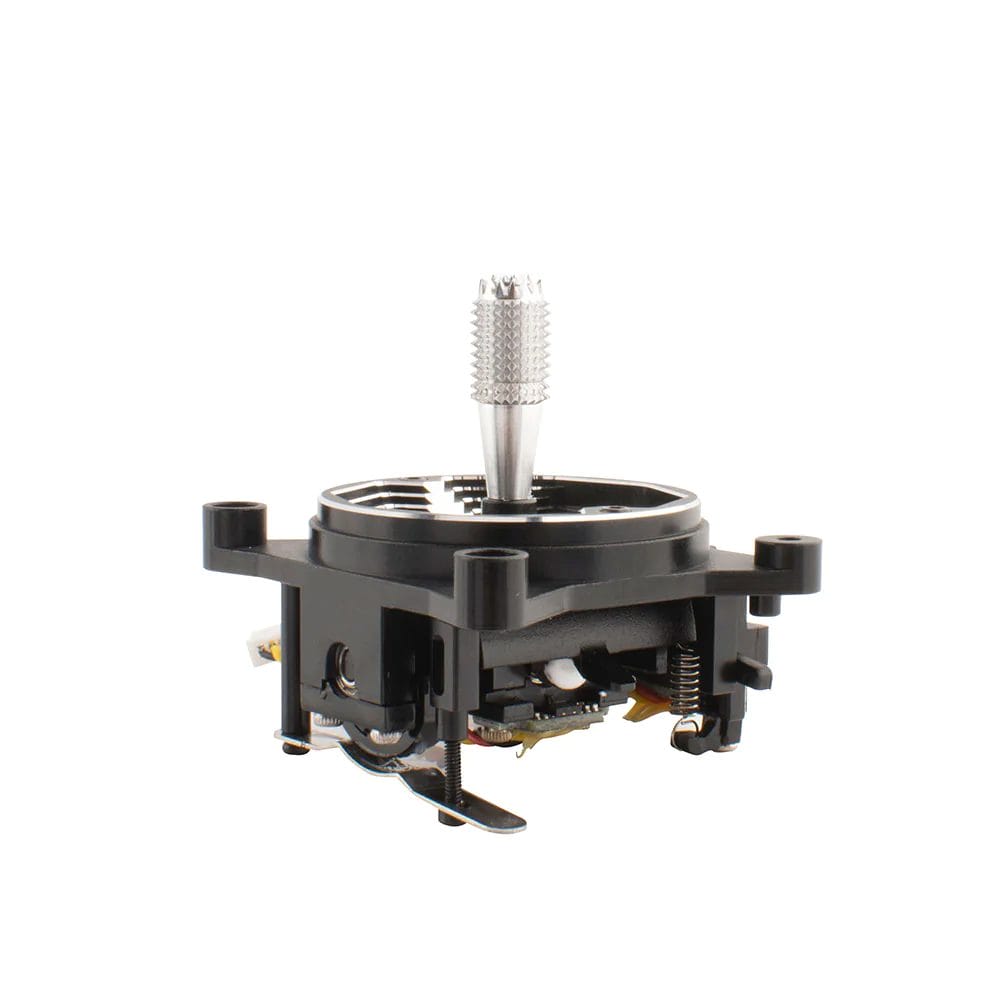

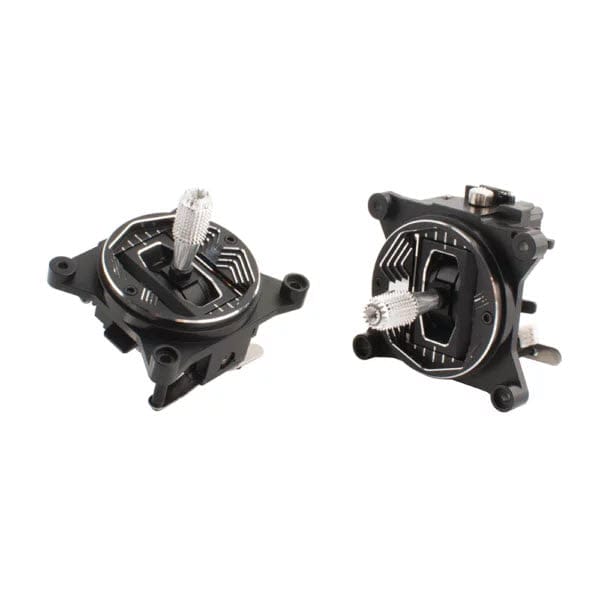

RadioMaster AG01-Mini CNC Hall Gimbal Set for Zorro & TX12S

Sale

$159.55

For the long-awaited AG01 Mini is finally here! Custom designed for the RadioMaster Zorro and TX12, these gimbals allow for unparalleled precision and stick feel.

In stock

Earn 478^ points.
SKU: MF-2844109678 Category:

Description

RadioMaster AG01-Mini CNC Hall Gimbal Set for Zorro & TX12S

For the long-awaited AG01 Mini is finally here! Custom designed for the RadioMaster Zorro and TX12, these gimbals allow for unparalleled precision and stick feel. From the aviation-grade aluminium construction, non-contact hall sensors, and pre-installed Sticky360 Mini Gimbal Sticks, be prepared to revolutionize your compact radio experience!

radiomaster brand colour australia mantisfpv

Key Features

  • Made with CNC processed aviation grade aluminum.
  • Sticky360 Mini Gimbal Sticks as standard.
  • Non-contact hall sensors for accurate control inputs and precise centring.
  • Quad precision bearings for unparalleled stick feel.
  • Adjustable vertical travel angle (Min. 38°, Max. 54°).
  • Custom designed for RadioMaster Zorro & TX12.

Specifications

  • Name: AG01 Mini CNC Hall Gimbal
  • Sensor type: Hall Sensor
  • Working voltage: DC 3.3V
  • Linearity: Real-time (No delay)
  • Adjustable vertical travel range: 38°—54°
  • Self-centring adjustment: Yes
  • Easy mode adjustment
  • Adjustable tension: Yes
  • Quad bearing: Yes
  • Temperature range: -20°C-85°C
  • Size: 49*42*48mm
  • Weight: 42g(±0.3g)

Installation for Zorro & TX12

The AG01 Mini gimbals are shipped as self-centring by default and are compatible with both the Zorro and TX12 Radios.

FOR ZORRO

The Zorro radio is configured as Mode 1 or Mode 2 by the screws mounted in the rear case of the radio. Both gimbals should be installed in self-centring configuration (as default out of the box) in the Zorro radio. Once the radio is re-assembled the screws in the rear case of the Zorro will set the throttle gimbal.

FOR TX12

One gimbal must be set as throttle and one as self-centring before installation in the radio.
1. Use the included screw (see parts bag) to hold down the centring lever and set the gimbal as a throttle gimbal.
2. Adjust the throttle tension bar until the desired tension is achieved.

Installation guide:

Visit RadioMaster directly to view the product installation here.

Includes

  • 2x AG01 Mini Hall CNC Gimbal
  • 2x Hex tool
  • 8x Installation screw
  • 2x Spare normal-tension spring
  • 2x Throttle tension screw

Additional information

Brand

1 review for RadioMaster AG01-Mini CNC Hall Gimbal Set for Zorro & TX12S

  1. billydeady4

    These gimbals feel very good to use, worth the price
