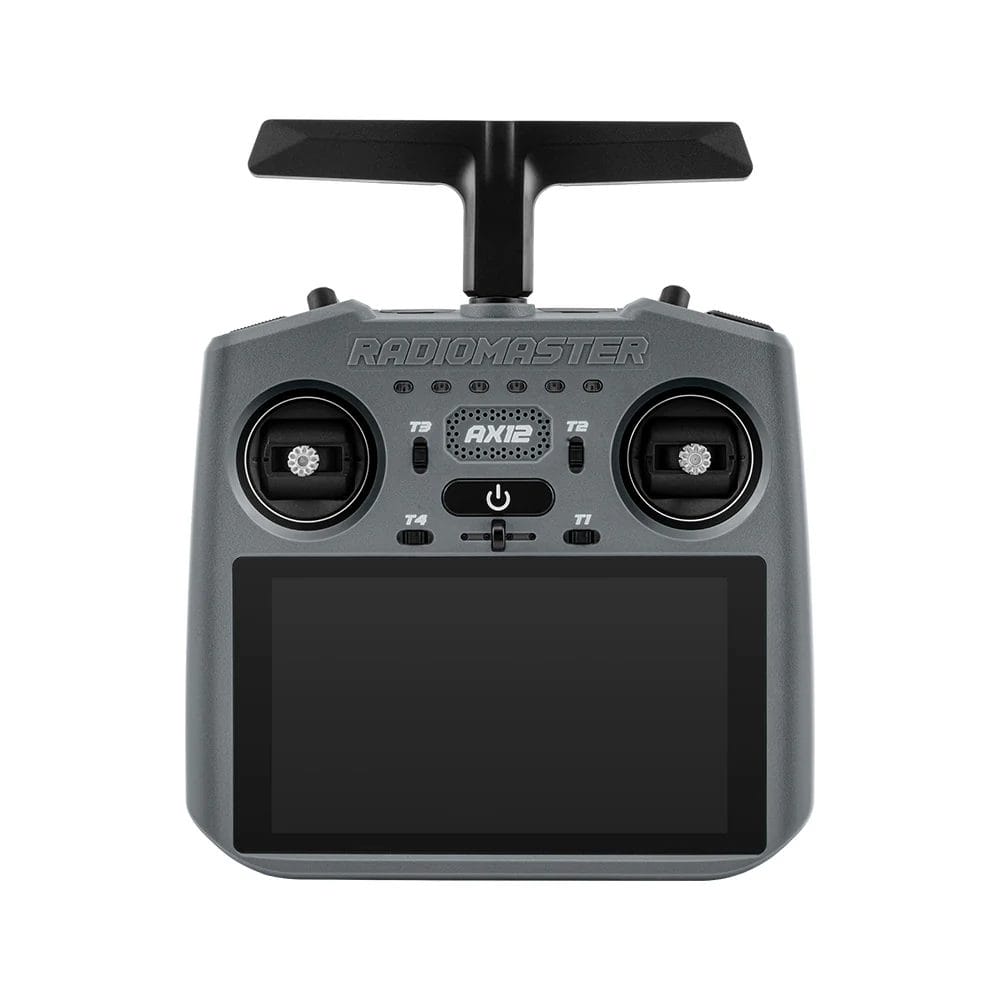

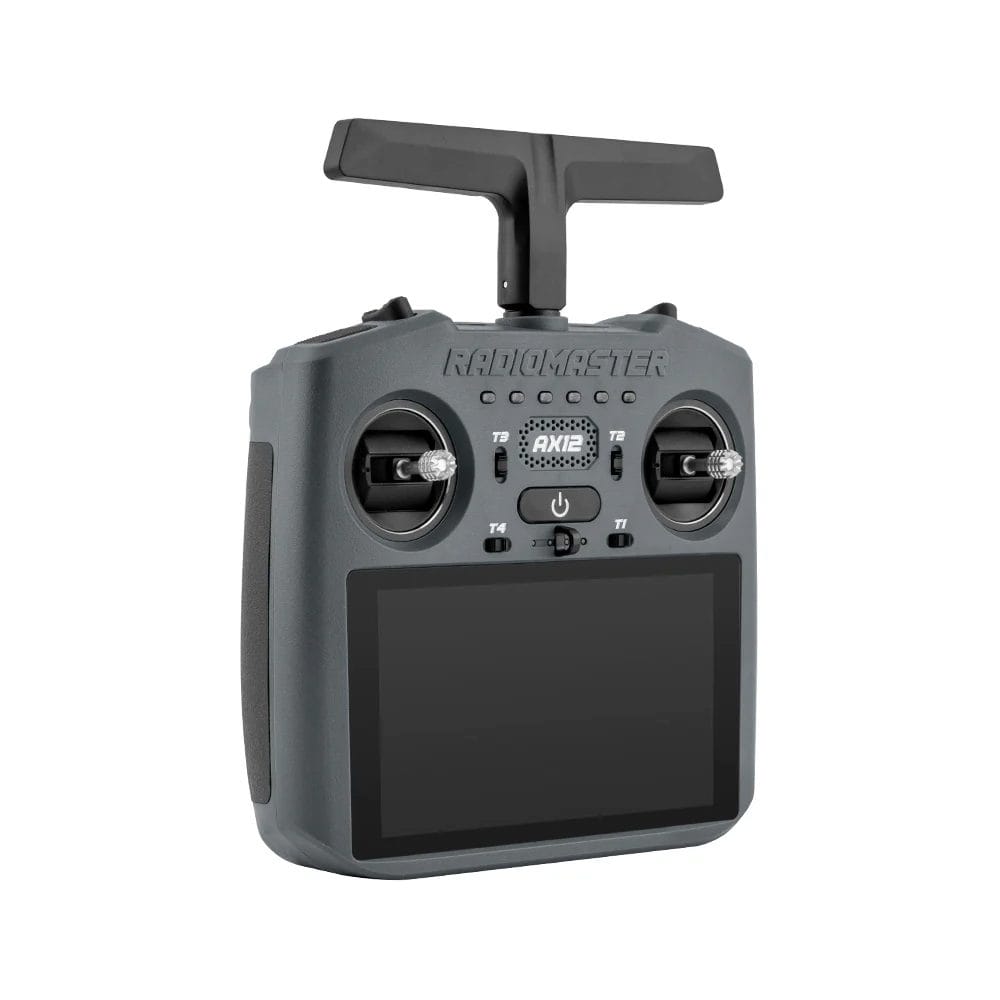

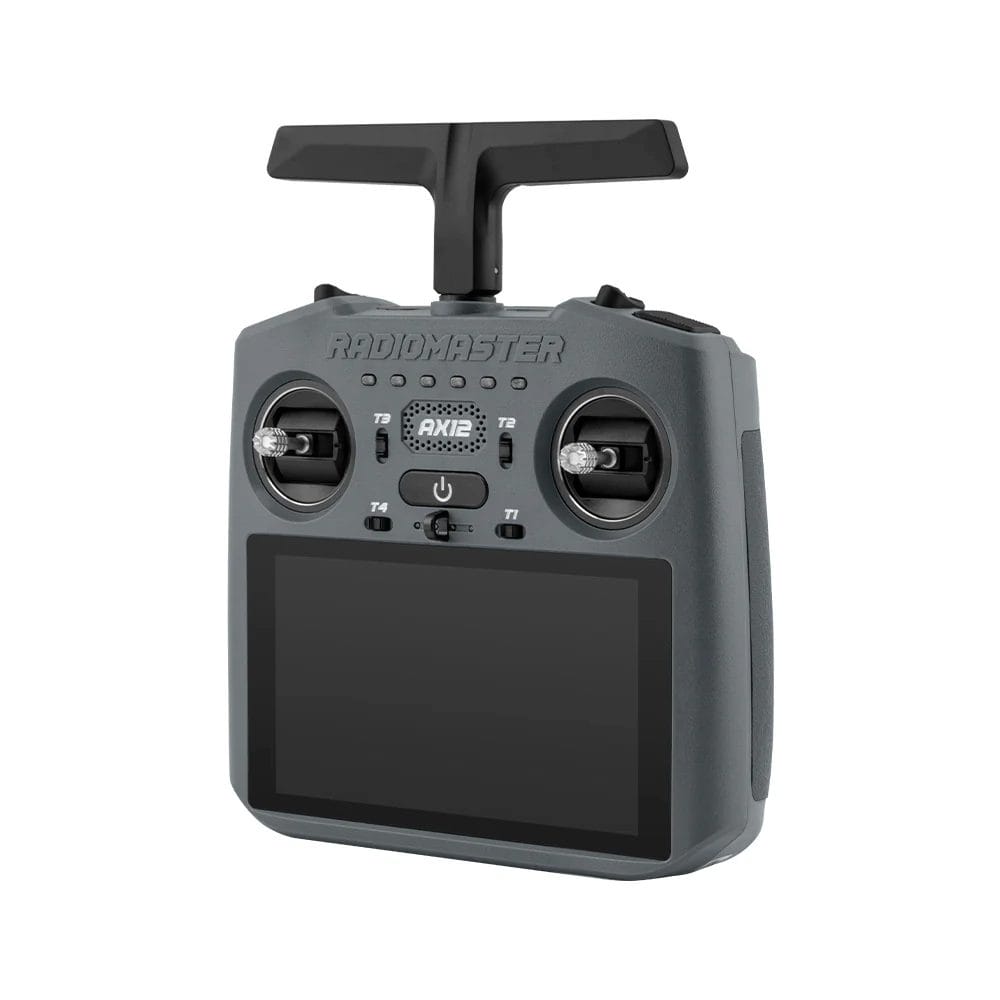

RadioMaster AX12 Android Radio Controller

RadioMaster introduces the AX12 — Step into unlimited potential. AX12: Your Platform for Innovation.

Where Precision Meets Possibility. Experience advanced Android performance, built-in ExpressLRS connectivity, HDMI video, powerful computing, and full app support — all working together to unlock new ways to build, and innovate.

The AX12 is a brand-new tool for pilots, filmmakers, rover builders, boat captains, and creators who want the familiarity of Android combined with RadioMaster’s legendary build quality and RF performance.

Features

• RadioMasterOS (Android 9.0): Google Play certified with full APK sideloading support. Install compatible ground station, configuration, and utility apps directly on the radio.
• 5.5-inch High-Brightness HD IPS Touchscreen: 1280 × 720 resolution with 1000 nits brightness for clear outdoor visibility, combined with a responsive touchscreen interface for fast and intuitive control.

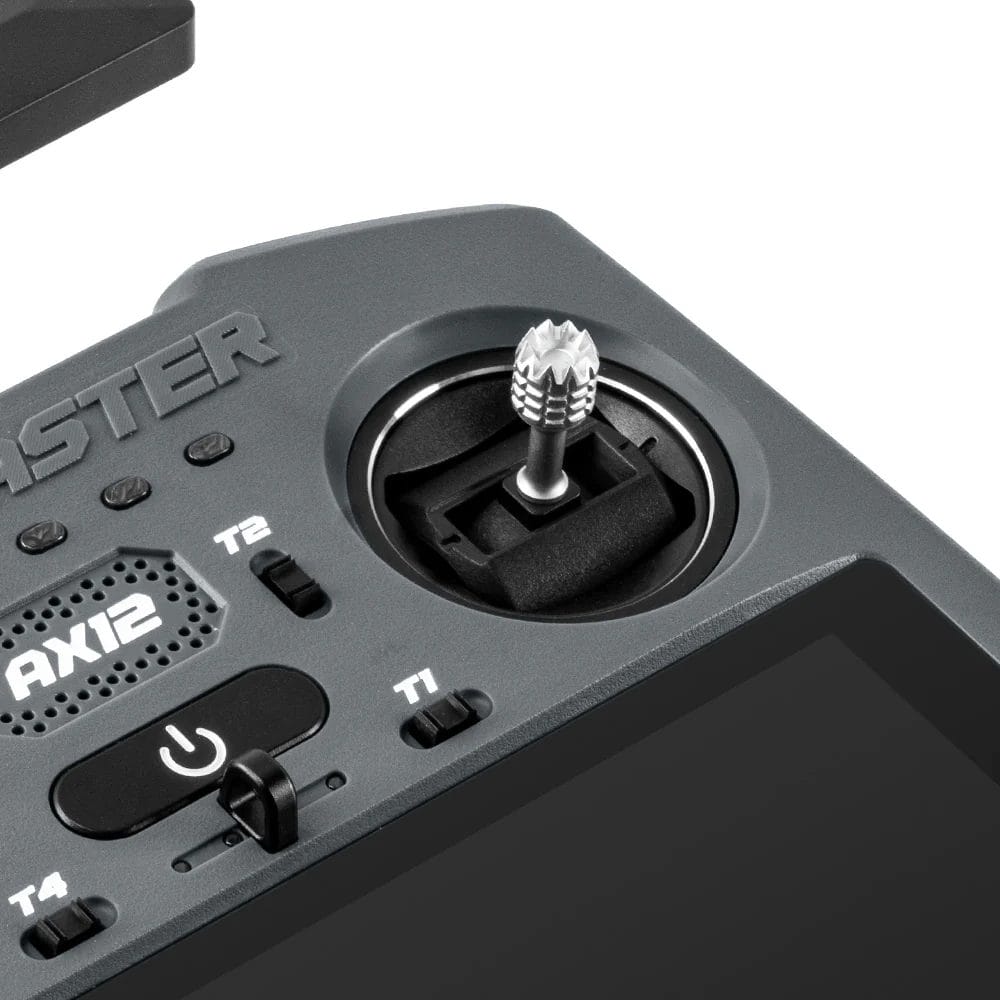

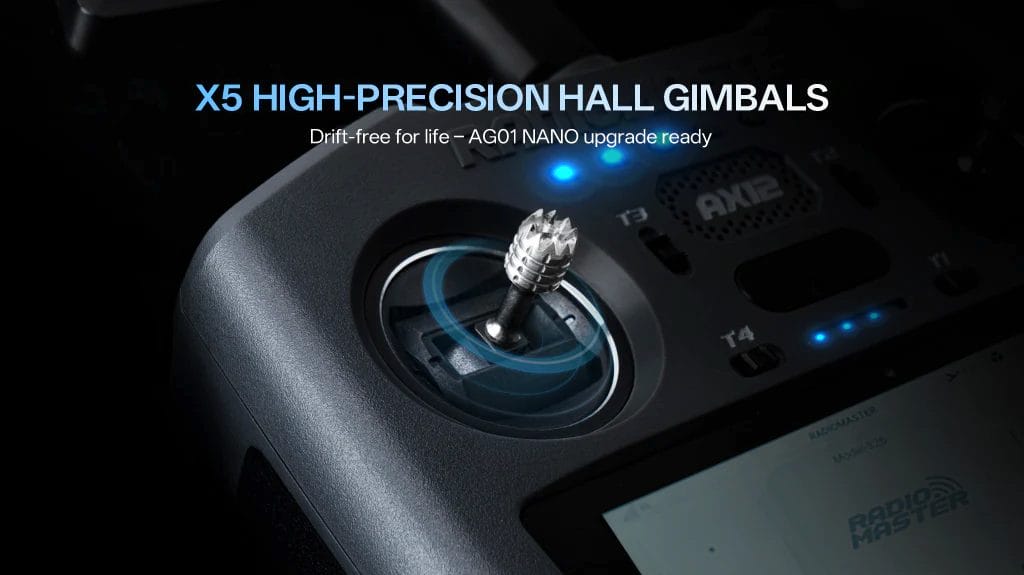

• X5 Hall-Effect Gimbals: Contactless Hall sensors for precise, stable control with onboard stick storage.
• Octa-Core Processor: 8-core CPU with 4 GB RAM and 64 GB storage, optimized for radio configuration, telemetry display, supported Android apps, and multitasking.
• HDMI Input for Digital Video Systems: View video from compatible digital video systems directly on the AX12 screen.
• HDMI Output: Mirror or extend the display to a TV or projector for teaching, review, or team use.
• Built-in ExpressLRS (Single LR1121 Module): Supports 2.4 GHz or Sub-G 900 MHz operation with low latency, strong link performance, and Wi-Fi OTA firmware updates.
• MAVLink Passthrough (Wi-Fi): Enables compatible apps, such as QGroundControl and Betaflight Configurator, to be used directly on the radio for supported workflows.
• 16-Channel ExpressLRS Control: Full 16-channel operation with flexible channel routing.
• Advanced Mixing & Custom Curves: Arbitrary channel mapping, adjustable weights and offsets, Expo curves, function curves, and precise 12-point custom curves.
• Dual Rates & Channel Locking: Freely adjustable dual rates and channel locking.
• Model Templates & Management: Preset and user-defined model templates, complete model import/export, and support for custom model images.
• Voice Prompts & Feedback: Customizable voice prompts with text-to-speech, custom MP3 files, and condition-based announcements.
• Tools Lua Script Support: Run community and custom Lua scripts via the Tools menu for advanced telemetry processing and workflow customization.

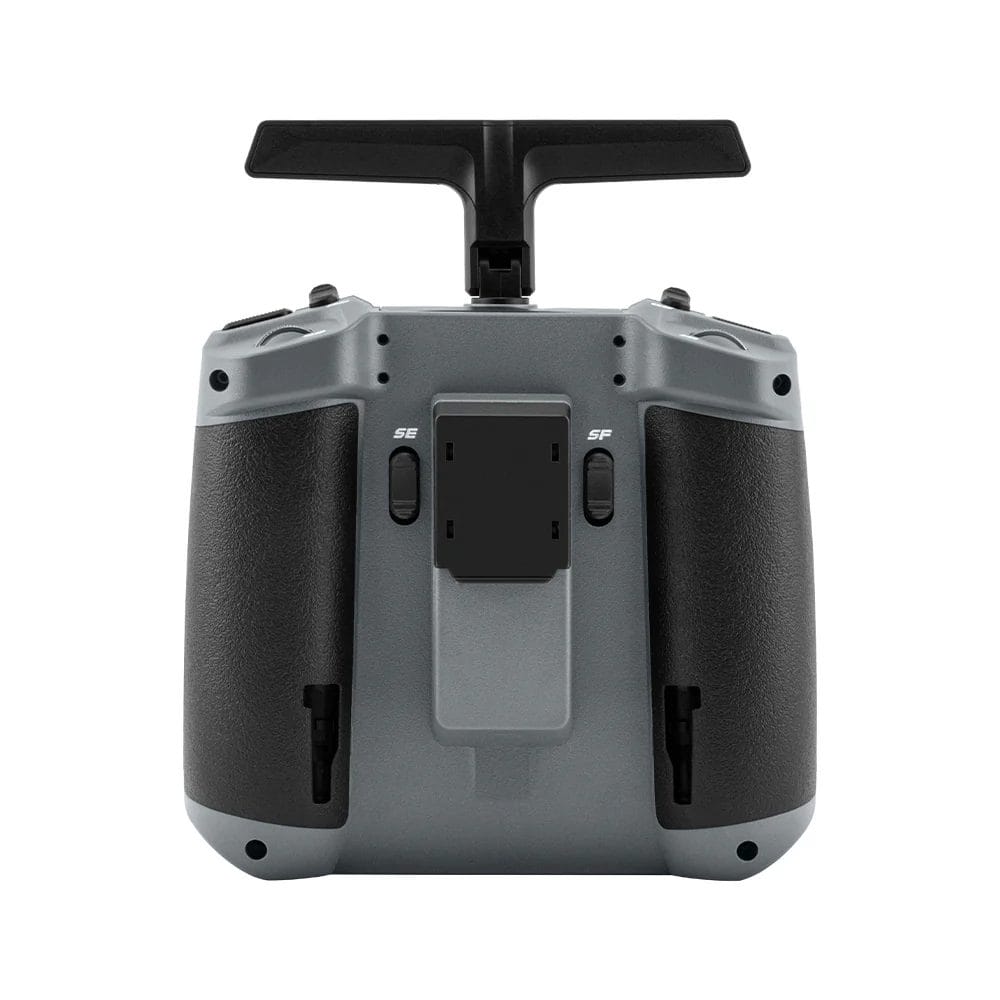

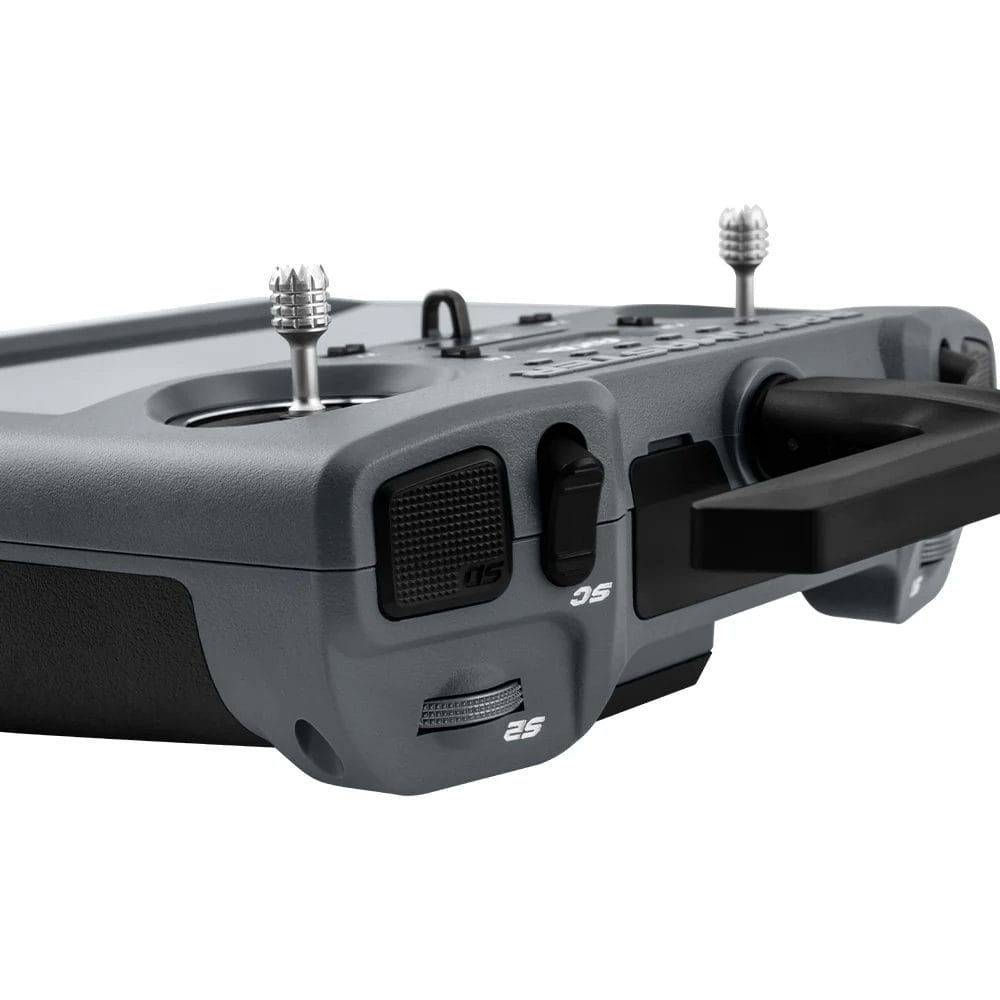

• Control Layout: 4 × 3-position switches, 2 × 2-position latching shoulder buttons, 2 × analog scroll wheels, and a programmable 6-position button. All switches and analog controls are mappable in software.
• Nano External Module Bay: Nano-size external module support for compatible ExpressLRS modules.
• Audio Output: Built-in speaker, 3.5 mm headphone jack.
• Dual 21700 Battery System: Approximately 10,000 mAh total capacity for extended operating time.
• Connectivity & I/O: Wi-Fi, Bluetooth, USB-C charging/data.
• Open App Ecosystem: Install compatible Android apps via Google Play or APK sideloading.

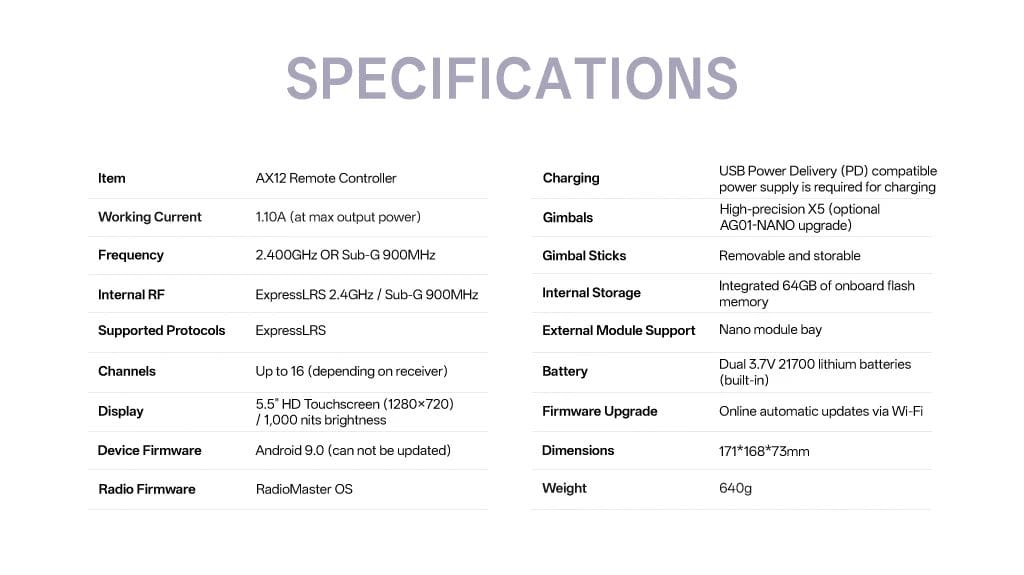

Specifications

• Item: AX12 Remote Controller
• Working Current: 1.10A (at max output power)
• Frequency: 2.400GHz OR Sub-G 900MHz
• Internal RF: ExpressLRS 2.4GHz / Sub-G 900MHz
• Supported Protocols: Express-LRS
• Channels: Up to 16 (depending on receiver)
• Display: 5.5″ HD Touchscreen (1280×720) / 1,000 nits brightness
• Device Firmware: Android 9.0 (can not be updated)
• Radio Firmware: RadioMaster OS
• Charging:  USB Power Delivery (PD) compatible power supply is required for charging
• Gimbals: High-precision X5 hall effect gimbal

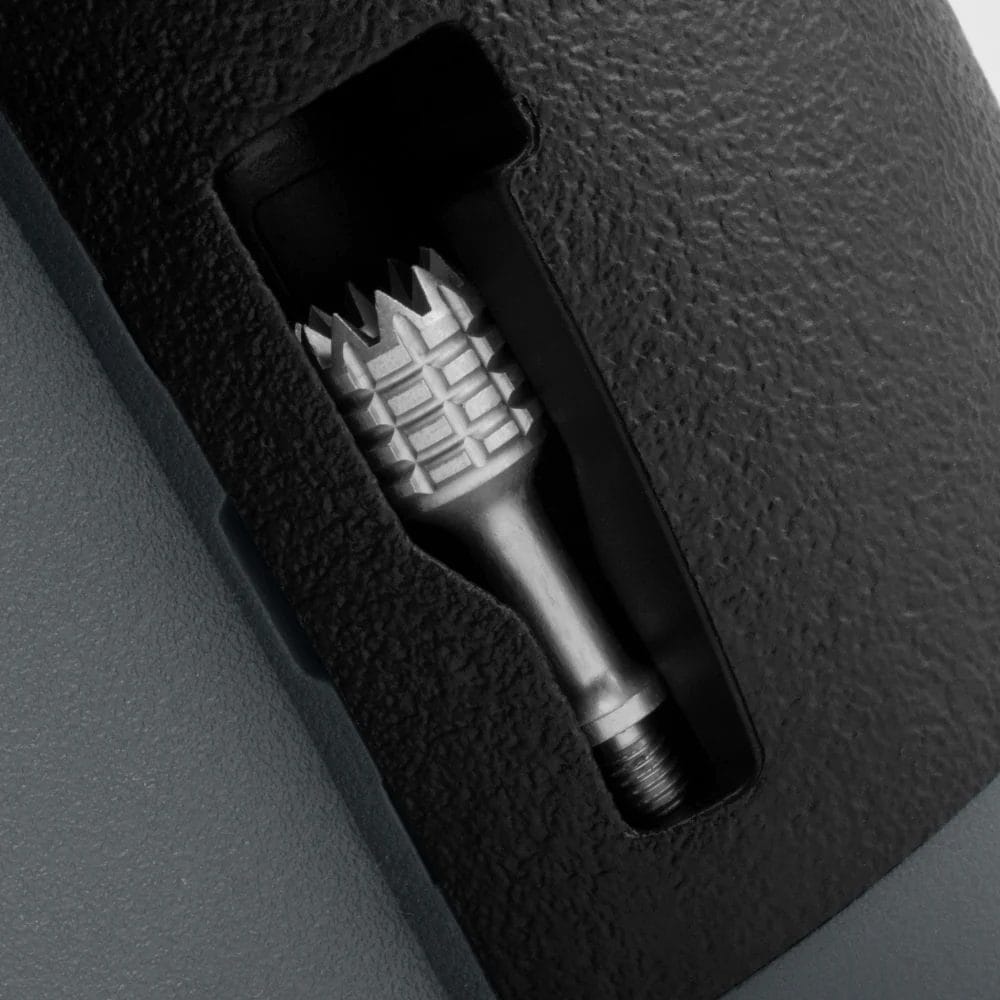

• Gimbal Sticks: Removable and Storable
• Internal Storage: Integrated 64GB of onboard flash memory
• External Module Support: Nano module bay
• Battery: Dual 3.7V 21700 lithium batteries (built-in)
• Firmware Upgrade: Online automatic updates via Wi-Fi
• Dimensions: 171*168*73mm
• Weight: 640g

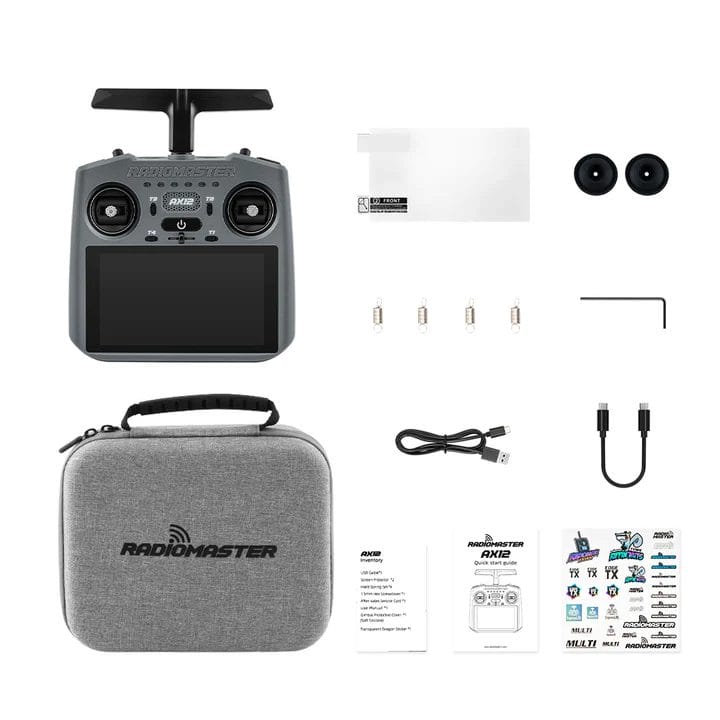

Includes

• 1x AX12 Radio Controller

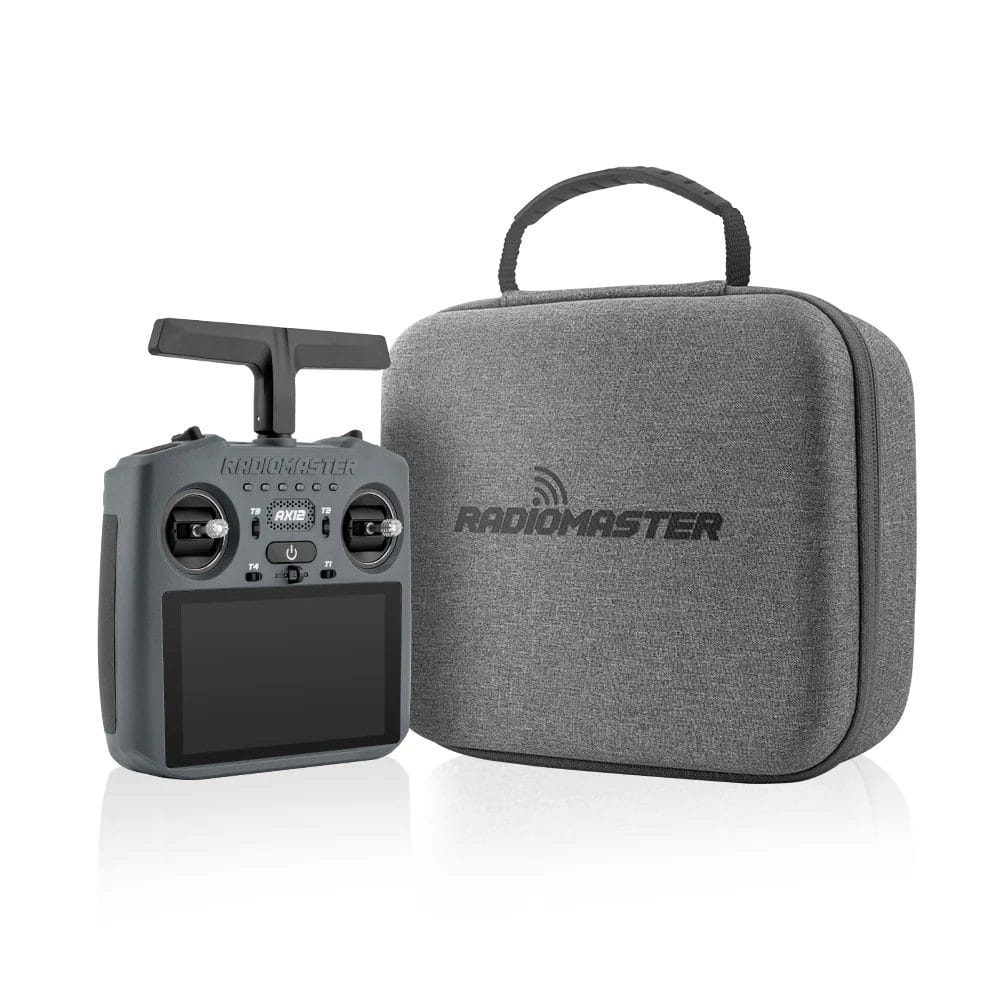

• 1x AX12 Signature Carry Case
• 1x Type-A to Type-C USB Cable
• 1x Type-C to Type-C USB Cable
• 1x Screen Protector
• 1x 1.5mm Hex Wrench
• 4x Low Tension Gimbals Springs
• 2x AX12 Gimbal Dust Cover
• 1x RadioMaster Sticker Set
• 1x AX12 Manual
• 1x Inventory Card
