RadioMaster Ranger Micro 2.4GHz ELRS Module and RX Combo
$124.95
Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!
Sold out
Description
RadioMaster Ranger Micro 2.4GHz ELRS Module and RX Combo
Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!
Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster Zorro and more) to enjoy all that ELRS has to offer.
The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
Note: The Ranger Micro 2.4GHz ELRS Module fits JR-style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules
Features
- High-efficiency cooling system
- Up to 1Watt Power output
- Wifi and Bluetooth support
- Packet rates up to F-1000Hz
- T-antenna included
- With the Micro connector, support TX16S MKII and TX12 MKII radio
Specification
ELRS Module
- Item: Ranger Micro Module
- Regulatory Domain: ISM2400
- MCU: ESP32(main), ESP8285(aux,as ESP backpack)
- RF chip: SX1281IMLTRT
- Frequency Range: 2400 MHz – 2480 MHz
- Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
- Minimum receiver refresh rate: 25Hz
- RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
- Wifi Support: Yes
- Bluetooth support: Yes
- XT30 Power supply voltage: DC 6V – 16.8V
- Weight: 50g (with antenna) / 40.5g (without antenna)
- Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
RP1
- Item: RP1 Nano ExpressLRS 2.4ghz Receiver
- Type: ISM
- Antenna: 65mm 2.4ghz T Antenna
- Maximum receive refresh rate: 500Hz / F1000Hz
- Minimum receiver refresh rate: 25Hz
- Working voltage: 5v
- Weight: 2.2g (Including antenna)
- Dimension: 13mm*11mm*3mm
- Firmware Version: ExpressLRS v2.4 pre-installed
- FW Target: RadioMaster RP1/2 2400 RX
- Bus interface: CRSF
RP2
- Item: RP2 Nano ExpressLRS 2.4ghz Receiver
- Type: ISM
- Antenna: On Board SMT Antenna
- Maximum receive refresh rate: 500Hz/F1000Hz
- Minimum receiver refresh rate: 25Hz Working voltage: 5v
- Weight: 0.55g (On Board antenna)
- Dimension: 13mm*11mm*7mm
- Firmware Version: ExpressLRS v2.4 pre-installed
- FW Target: RadioMaster RP1/2 2400 RX
- Bus interface: CRSF

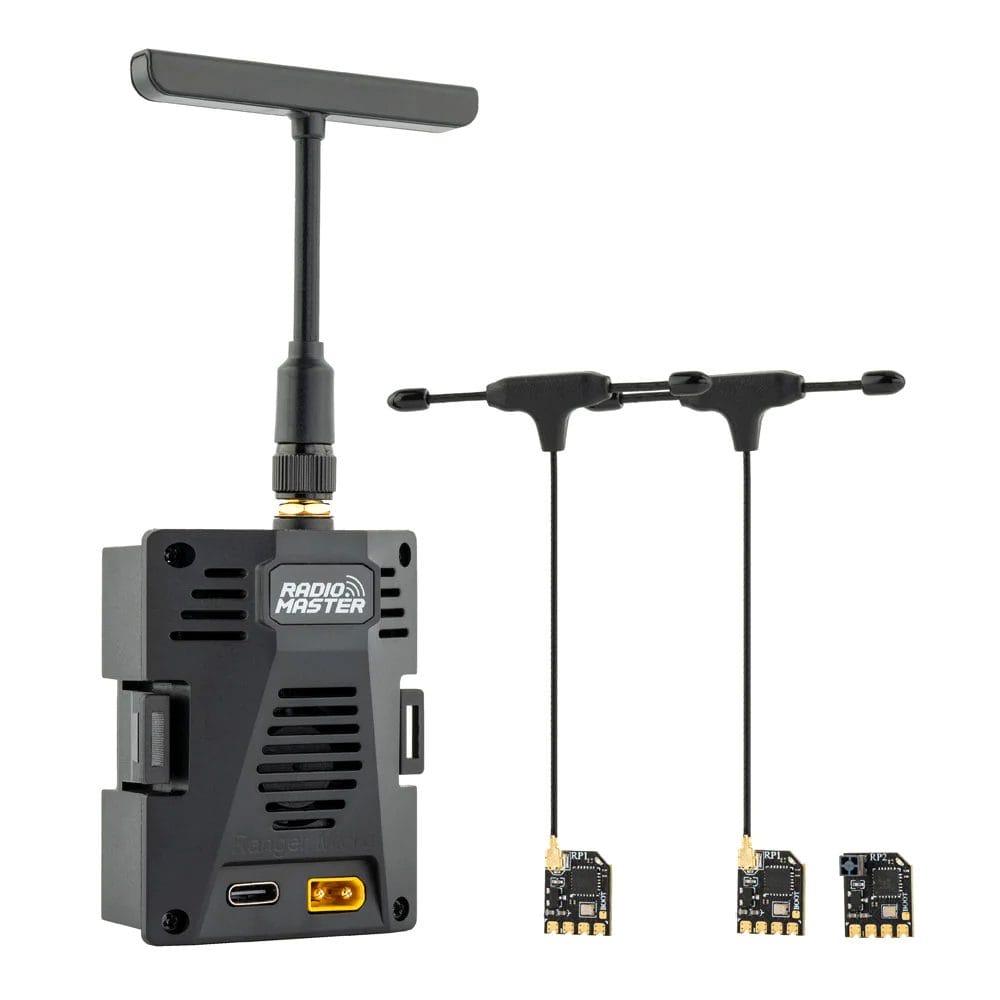

Includes
- 1x Ranger Micro Module
- 1x T Antenna
- 2x RP1 ExpressLRS 2.4ghz Nano Receiver
- 1x RP2 ExpressLRS 2.4ghz Nano Receiver
