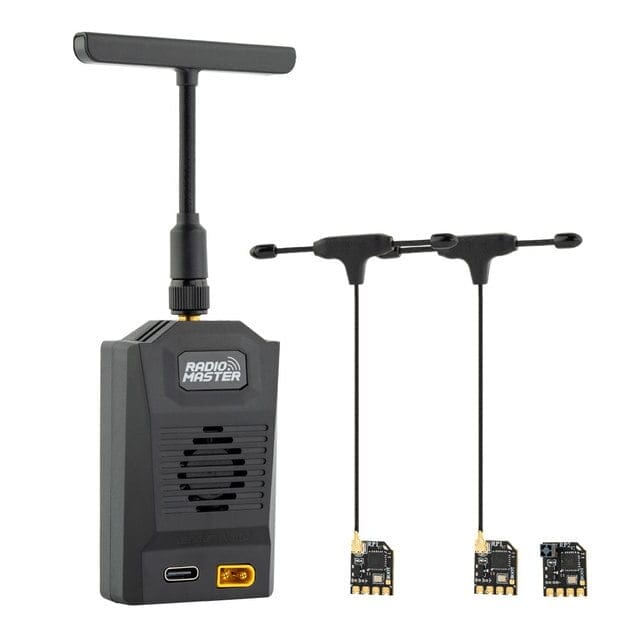

RadioMaster Ranger Nano 2.4GHz ELRS Module and RX Combo

radiomaster ranger nano 2 4ghz elrs module and rx combo mantisfpv australia product drone
radiomaster ranger nano 2 4ghz elrs module mantisfpv australia connection
radiomaster rp1 expresslrs 2 4ghz nano receiver product mantisfpv australia antenna
radiomaster rp2 expresslrs 2 4ghz nano receiver mantisfpv australia product size

$124.95

Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!

In stock

Earn 374^ points.
Add to Wishlist
Price Match Request
SKU: MF-2762817171 Categories: , , , Tag:

Description

RadioMaster Ranger Nano 2.4GHz ELRS Module and RX Combo



radiomaster banner logo mantisfpv e1634942799986Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!

Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster Zorro and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays, for JR style/Micro connectors, please consider the Ranger and the Ranger Micro modules.

Features

  • High-efficiency cooling system
  • Wifi and Bluetooth support
  • Packet rates up to F-1000Hz
  • Up to 1Watt Power output
  • T-antenna included
  • With the Nano connector, support Zorro radio

Specification

RadioMaster Ranger Nano 2.4GHz ELRS Module

  • Item: Ranger Nano Module
  • Regulatory Domain: ISM2400
  • MCU: ESP32(main), ESP8285(aux,as ESP backpack)
  • RF chip: SX1281IMLTRT
  • Frequency Range: 2400 MHz – 2480 MHz
  • Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
  • Minimum receiver refresh rate: 25Hz
  • RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
  • Wifi Support: Yes
  • Bluetooth support: Yes
  • XT30 Power supply voltage: DC 6V – 16.8V
  • Weight: 48g (with antenna) / 39g (without antenna)
  • Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)

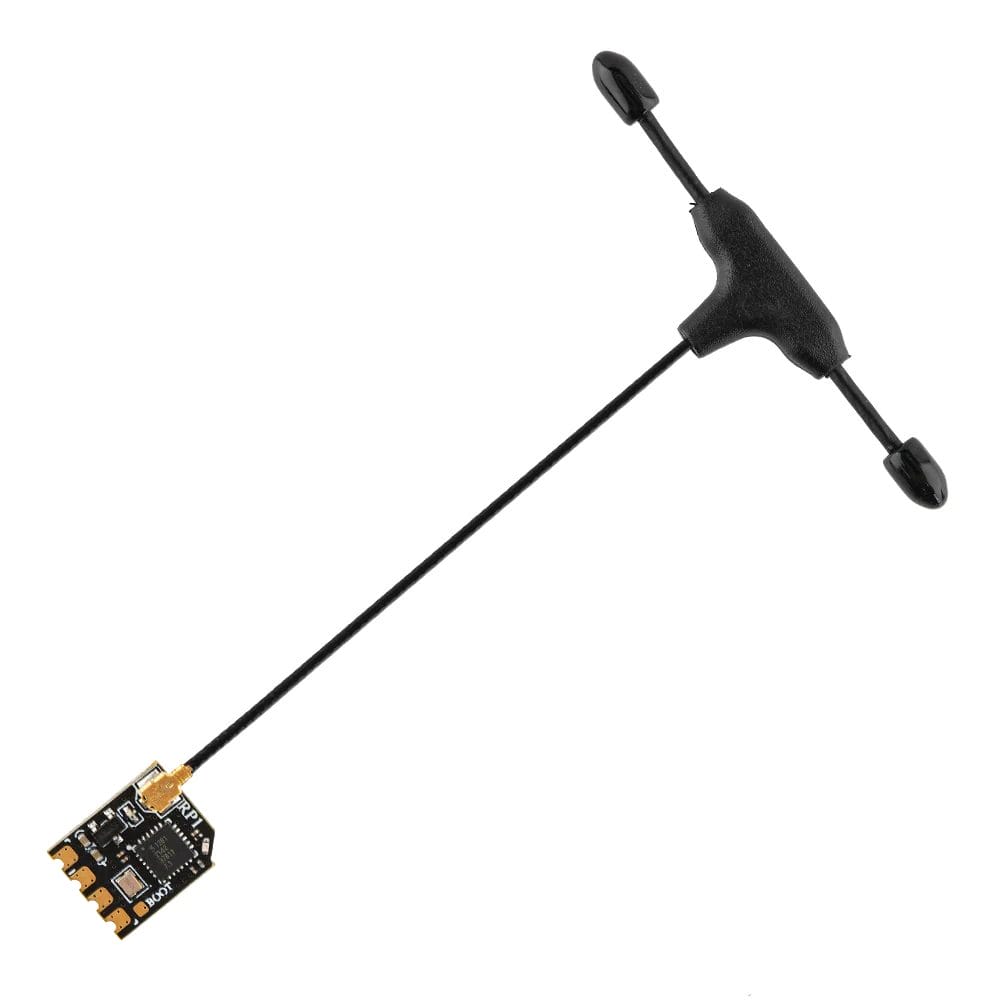

RP1

  • Item: RP1 Nano ExpressLRS 2.4ghz Receiver
  • Type: ISM
  • Antenna: 65mm 2.4ghz T Antenna
  • Maximum receive refresh rate: 500Hz / F1000Hz
  • Minimum receiver refresh rate: 25Hz
  • Working voltage: 5v
  • Weight: 2.2g (Including antenna)
  • Dimension: 13mm*11mm*3mm
  • Firmware Version: ExpressLRS v2.4 pre-installed
  • FW Target: RadioMaster RP1/2 2400 RX
  • Bus interface: CRSF

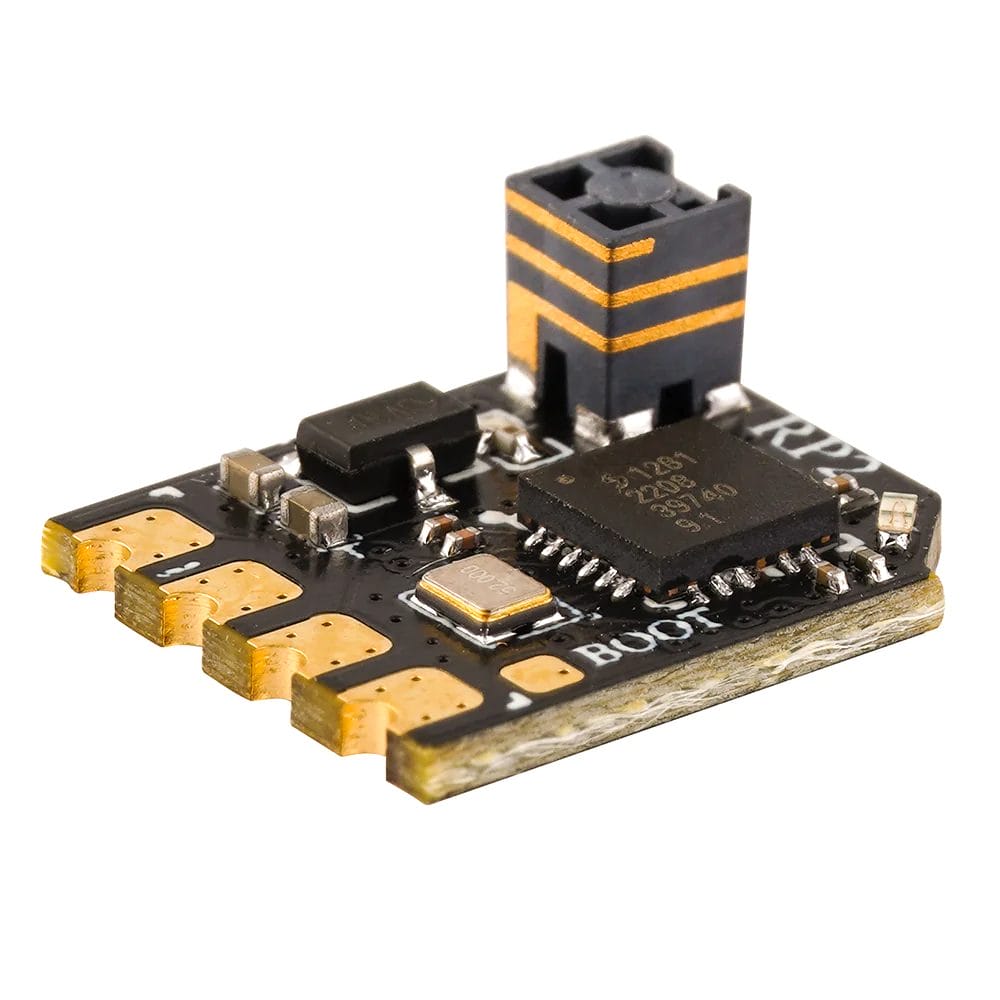

RP2

  • Item: RP2 Nano ExpressLRS 2.4ghz Receiver
  • Type: ISM
  • Antenna: On Board SMT Antenna
  • Maximum receive refresh rate: 500Hz/F1000Hz
  • Minimum receiver refresh rate: 25Hz Working voltage: 5v
  • Weight: 0.55g (On Board antenna)
  • Dimension: 13mm*11mm*7mm
  • Firmware Version: ExpressLRS v2.4 pre-installed
  • FW Target: RadioMaster RP1/2 2400 RX
  • Bus interface: CRSF

Includes

  • 1x Ranger Nano Module
  • 1x T-Antenna
  • 2x RP1 ExpressLRS 2.4ghz Nano Receiver
  • 1x RP2 ExpressLRS 2.4ghz Nano Receiver

radiomaster ranger nano 2 4ghz elrs module description mantisfpv 01 radiomaster ranger nano 2 4ghz elrs module description mantisfpv 02 radiomaster ranger nano 2 4ghz elrs module description mantisfpv 04 radiomaster ranger nano 2 4ghz elrs module description mantisfpv 03 radiomaster ranger nano 2 4ghz elrs module description mantisfpv 05 radiomaster ranger nano 2 4ghz elrs module description mantisfpv 06 radiomaster ranger nano 2 4ghz elrs module description mantisfpv 07 radiomaster ranger nano 2 4ghz elrs module description mantisfpv 08
