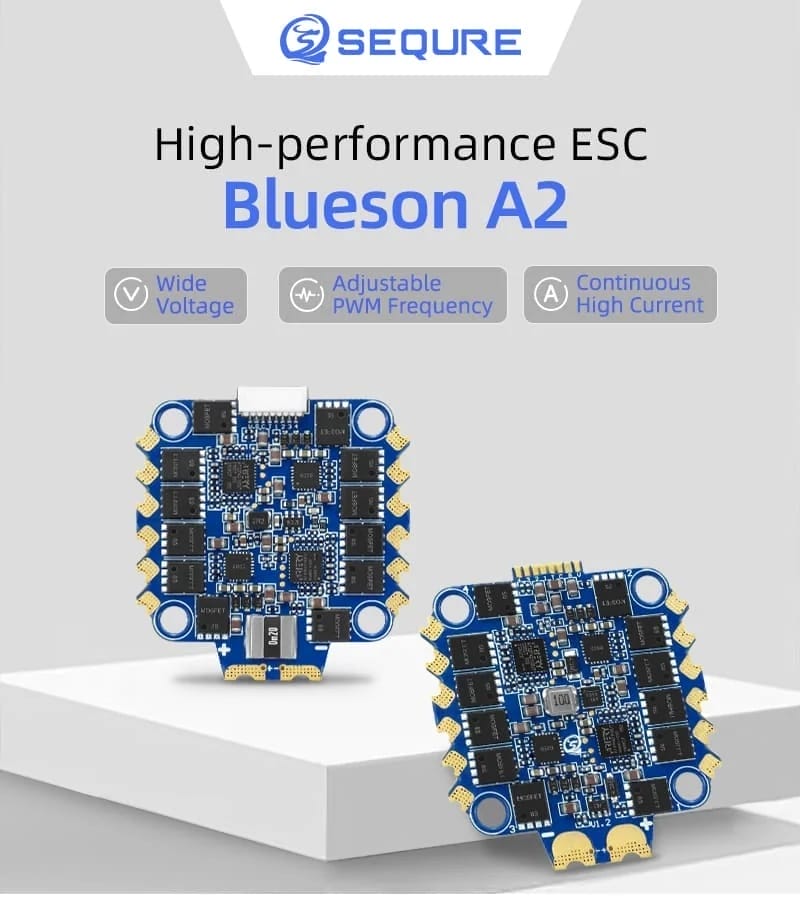

SEQURE Blueson A2 AM32 70A 4-in-1 ESC 30×30
AU$89.76
The SEQURE Blueson A2 is a high-performance 4in1 ESC built for racing, freestyle, and long-range FPV builds, featuring an AT32F421 32-bit processor running AM32 firmware with 128KHz PWM for precise throttle response. With 70A continuous (150A peak) per channel, 2-8S LiHV input, and the larger 30.5×30.5mm mounting pattern, it’s tailor-made for high-power 7″–10″ and X8 platforms.
Sold out
Description
SEQURE Blueson A2 AM32 70A 4-in-1 ESC 30×30
The SEQURE Blueson A2 is a high-performance 4in1 ESC built for racing, freestyle, and long-range FPV builds, featuring an AT32F421 32-bit processor running AM32 firmware with 128KHz PWM for precise throttle response. With 70A continuous (150A peak) per channel, 2-8S LiHV input, and the larger 30.5×30.5mm mounting pattern, it’s tailor-made for high-power 7″–10″ and X8 platforms.
Features

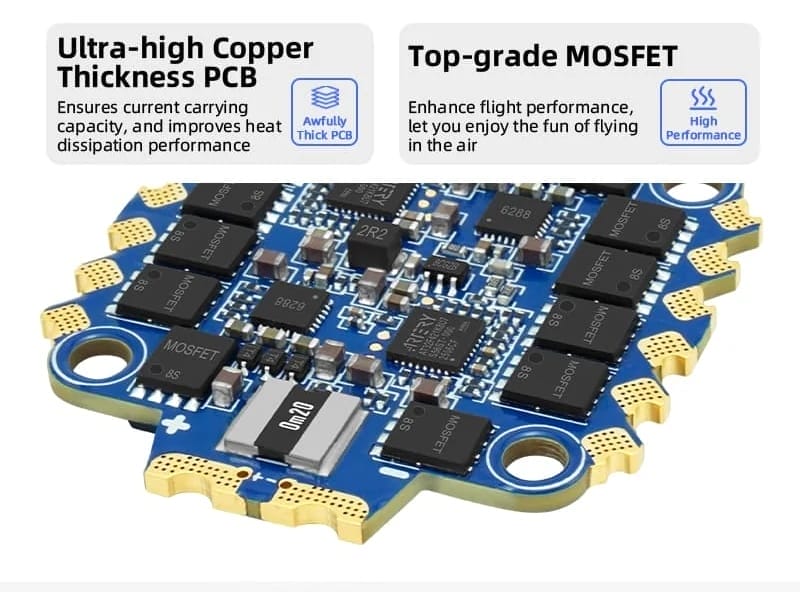

- Ultra-high copper thickness PCB with top-tier MOSFETs for high current carrying capacity and improved heat dissipation

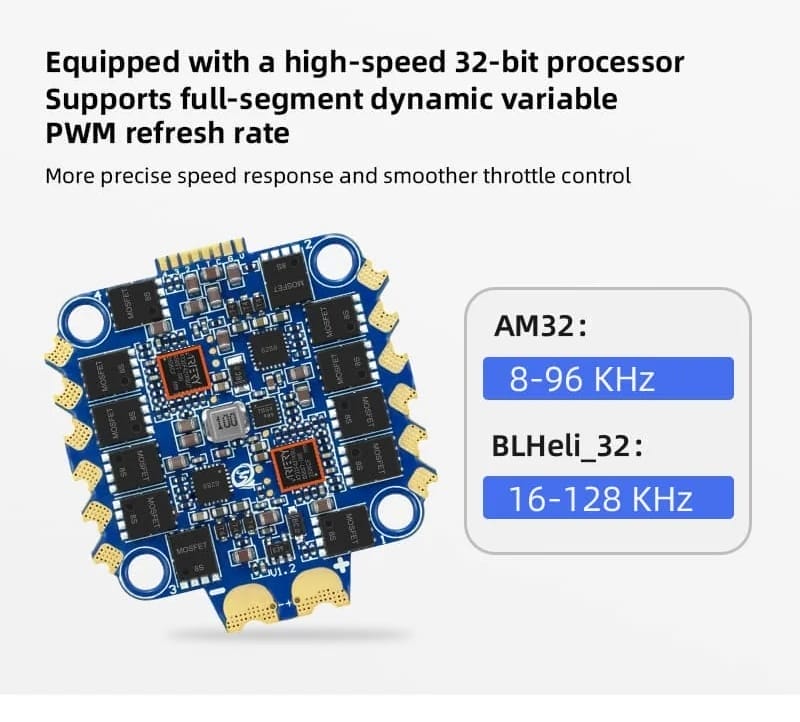

- High-speed 32-bit processor supports full-segment dynamic PWM variable refresh rate from 8KHz to 128KHz for precise speed response and smoother throttle control

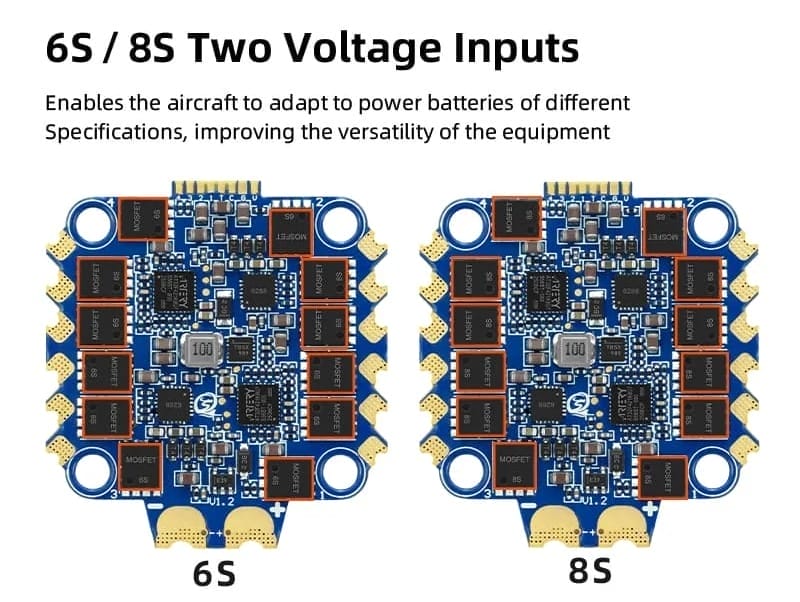

- Wide voltage input supports 6S/8S LiPo/LiHV batteries, improving aircraft versatility across power configurations

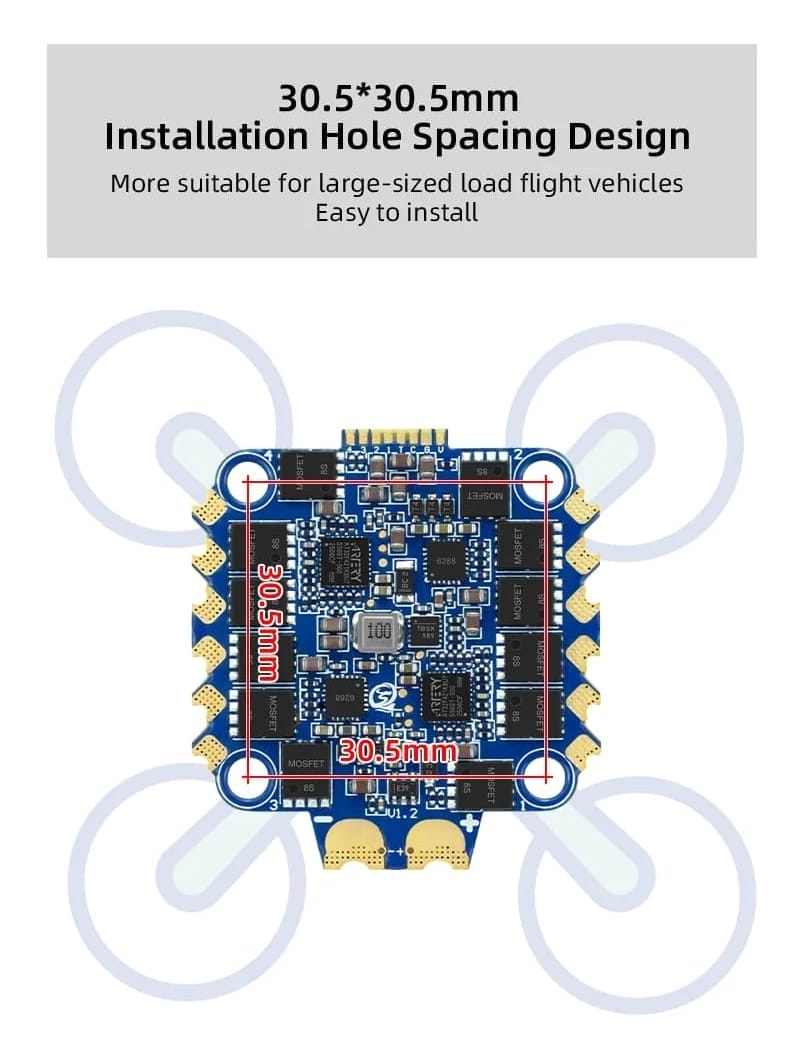

- 30.5mm installation hole spacing is more suitable for large-sized load-type flight vehicles and is easy to install

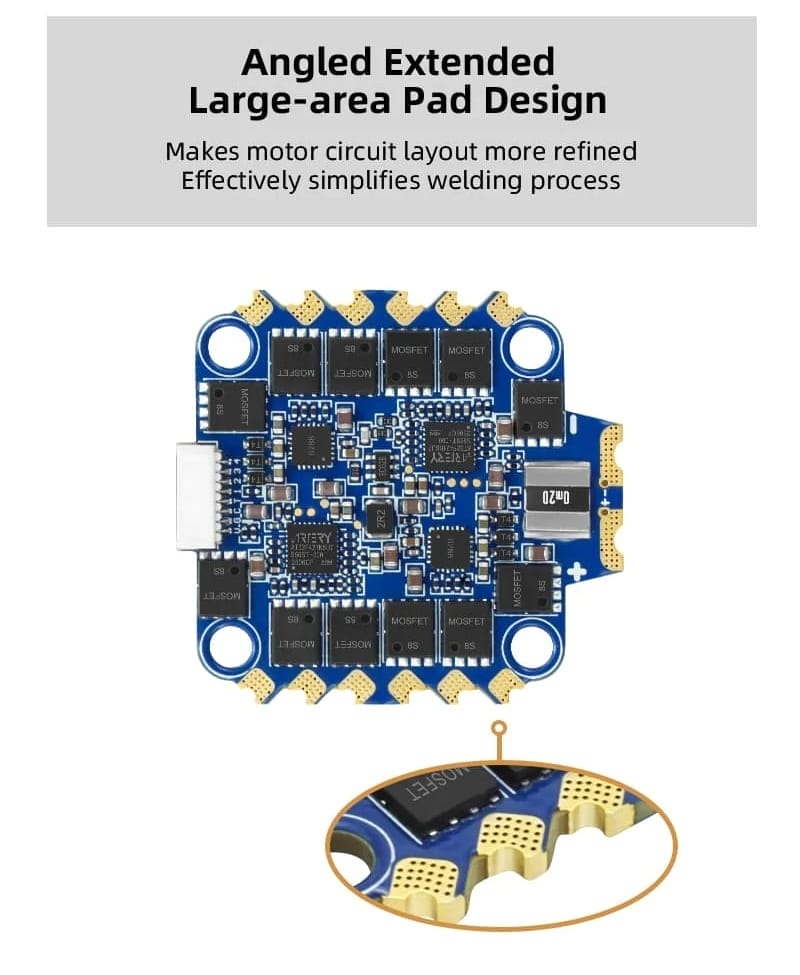

- Angled extended large-area pad design refines the motor circuit layout and effectively simplifies the welding process

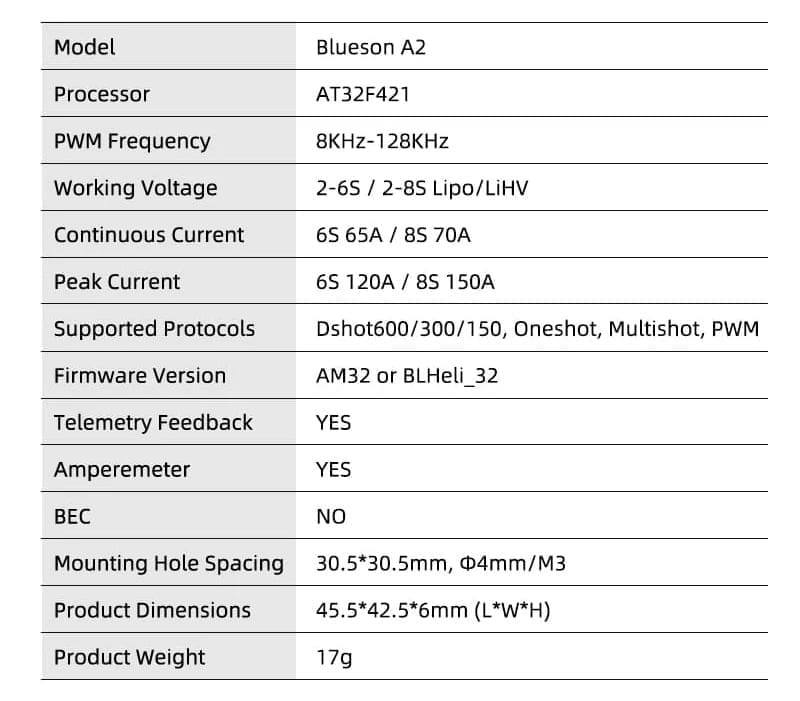

Specifications
- Model: Blueson A2
- Processor: AT32F421
- Firmware Version: AM32
- PWM Frequency: 8KHz – 128KHz
- Working Voltage: 2-8S Lipo / LiHV
- Continuous Current: 70A
- Peak Current: 150A
- Support Protocol: Dshot600/300/150, Oneshot, Multishot, PWM
- Telemetry Return: YES
- Galvanometer (Current Sensor): YES
- BEC: NO
- Mounting Hole Spacing: 30.5×30.5mm, Φ4mm/M3

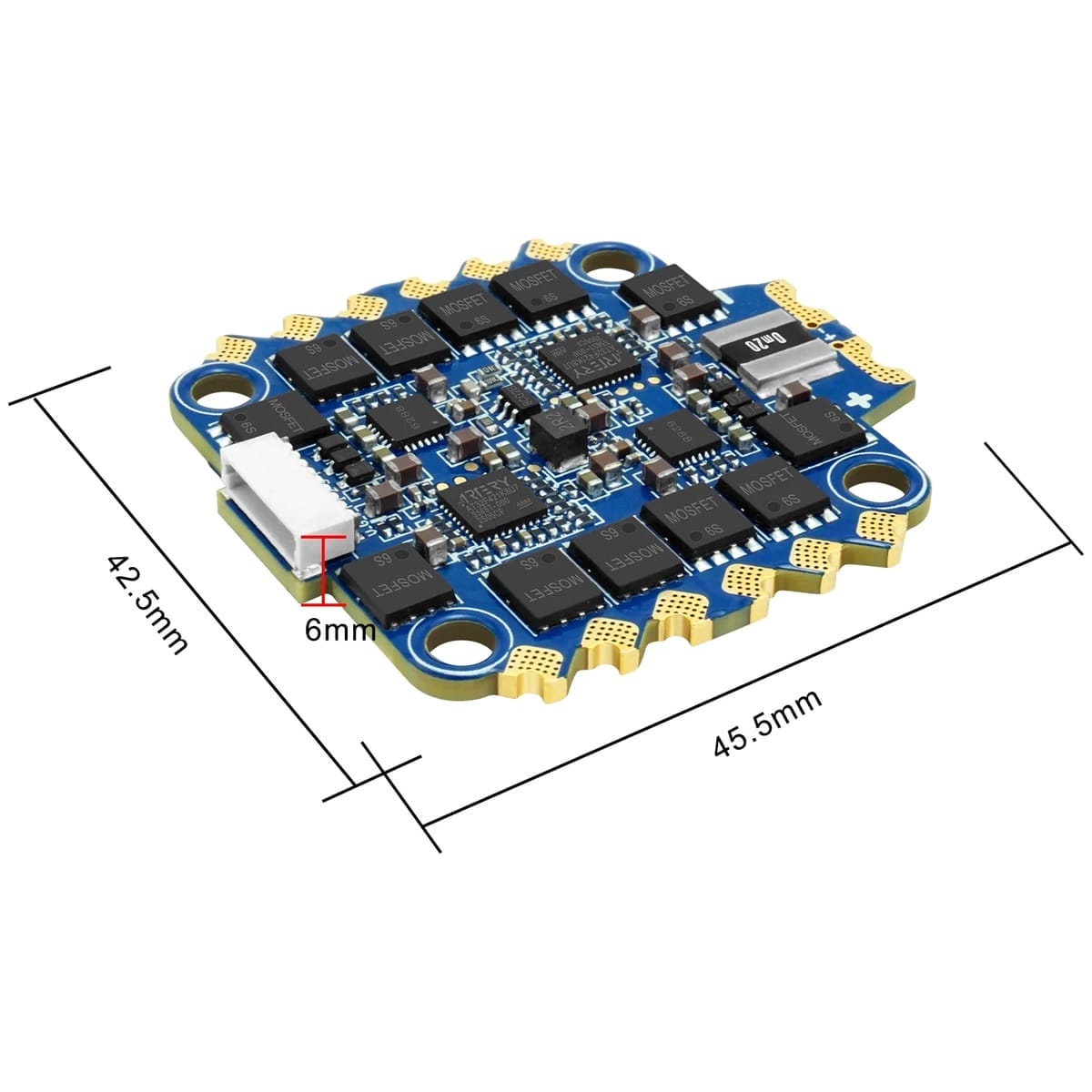

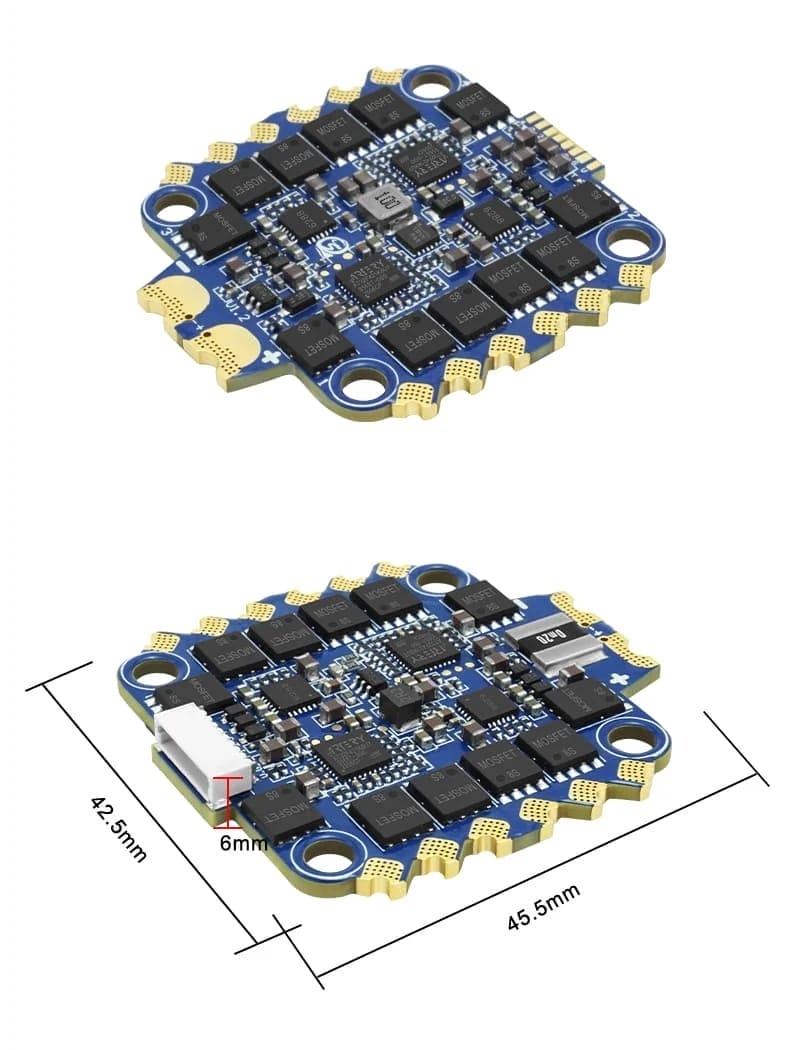

- Product Size: 45.5 × 42.5 × 6mm (L×W×H)

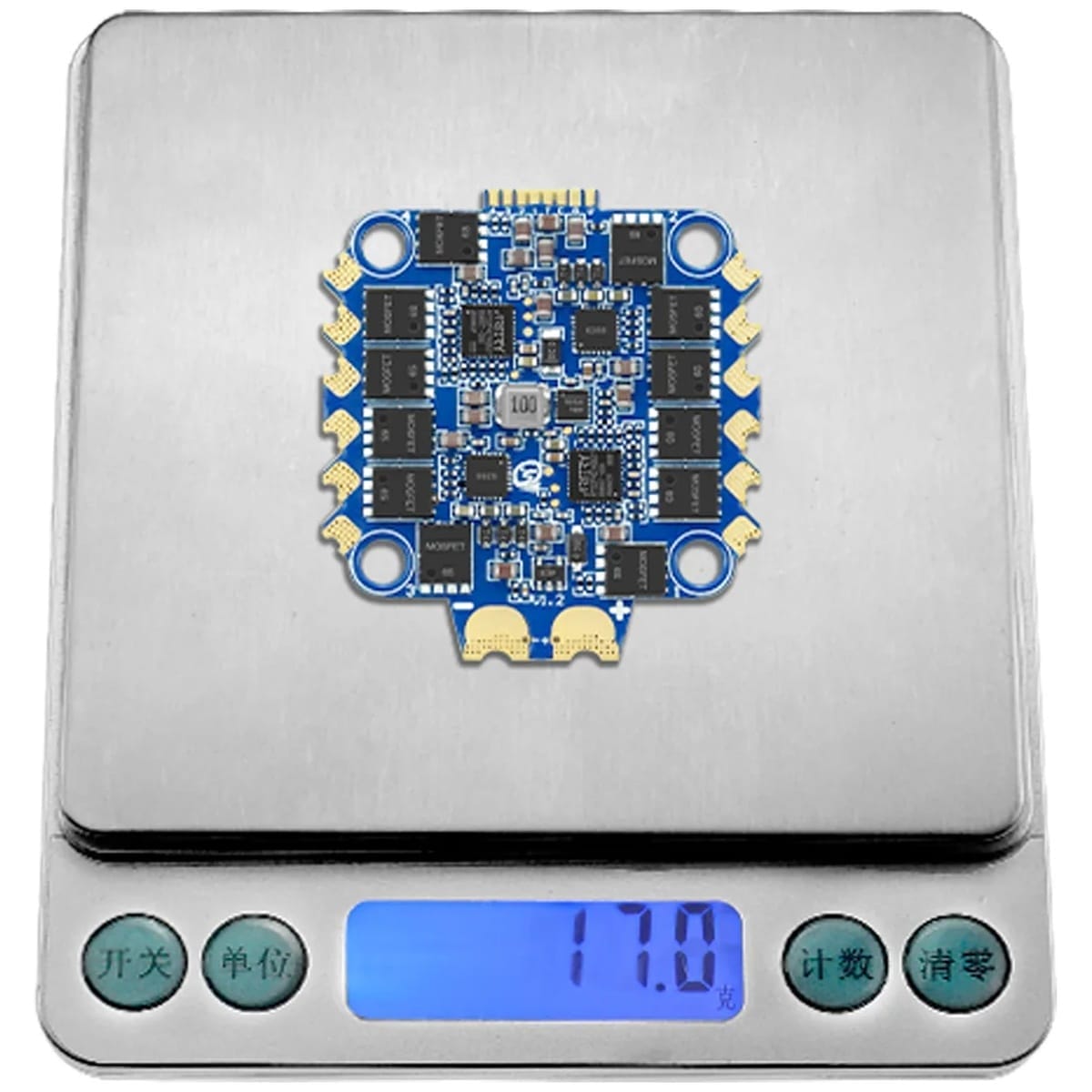

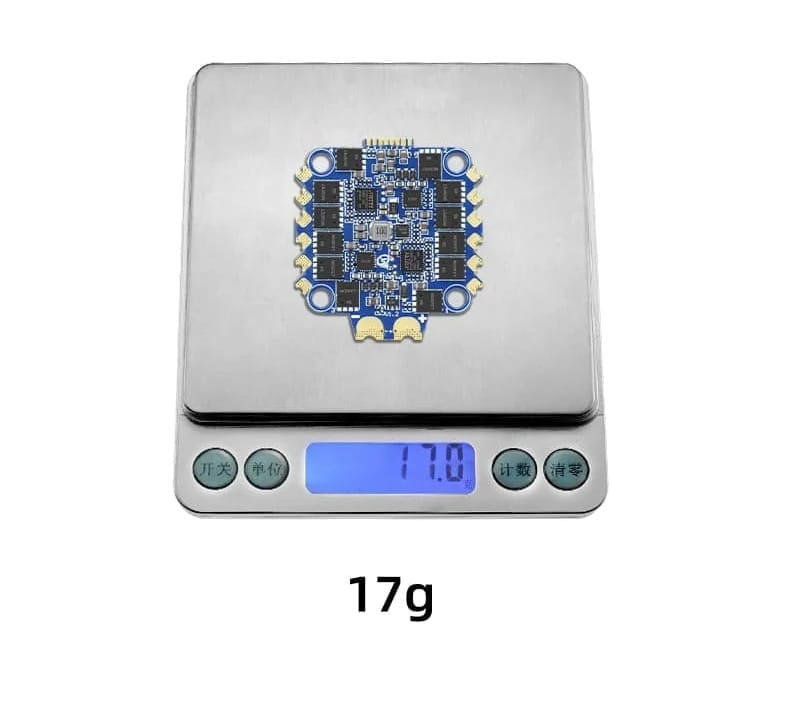

- Product Weight: 17g

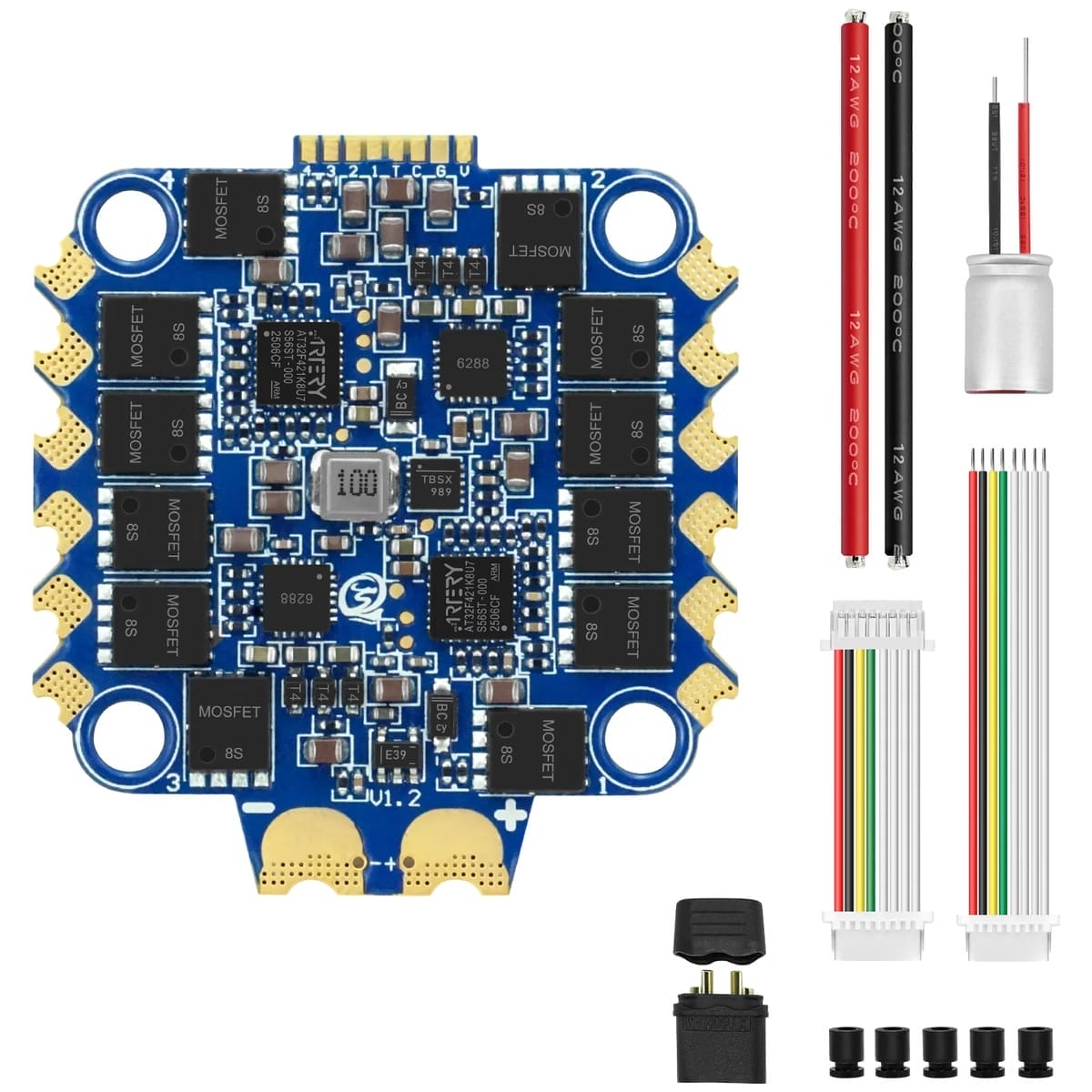

Includes
- SEQURE Blueson A2 4IN1 ESC × 1
- 30AWG 40mm reverse double plug SH1.0-8P cable × 1
- 30AWG 60mm single plug SH1.0-8P cable × 1
- 12AWG 100mm power cable (black/red) × 2
- XT60H-M black male connector × 1
- 35V 680UF solid capacitor × 1
- M3*8mm shock absorbing washer (black) × 5
