SpeedyBee BZGNSS BZ-181 GPS
$29.95
Streamline your drone’s performance with the SpeedyBee 35A 4-in-1 ESC, designed for a compact 20x20mm mounting system. This ESC runs on the efficient BLHeli_S JH40 firmware and supports a robust continuous current of 35A across four channels, with the capability to burst up to 45A for those critical high-thrust moments.
Sold out
Description
SpeedyBee BZGNSS BZ-181 GPS
Streamline your drone’s performance with the SpeedyBee 35A 4-in-1 ESC, designed for a compact 20x20mm mounting system. This ESC runs on the efficient BLHeli_S JH40 firmware and supports a robust continuous current of 35A across four channels, with the capability to burst up to 45A for those critical high-thrust moments. Optimized for DSHOT300/600 protocols and supporting a wide power input range from 3-6S LiPo, it ensures a seamless power supply with VBAT output. A precise current sensor keeps your flight data accurate, all within a remarkably slim 35 x 35 x 5.5mm footprint and a feather-light weight of just 7g, making it an essential component for any high-performance, lightweight drone build.
Key Features
- Dual-protocol Support: Compatible with NMEA and UBX protocols for versatile use across various devices.
- High-precision Positioning: Employs advanced GPS technology for reliable location data.
- Quick Satellite Lock: Designed for prompt signal acquisition, reducing time to launch.
- User-friendly Installation: Small form factor facilitates easy mounting on a wide range of aircraft models.

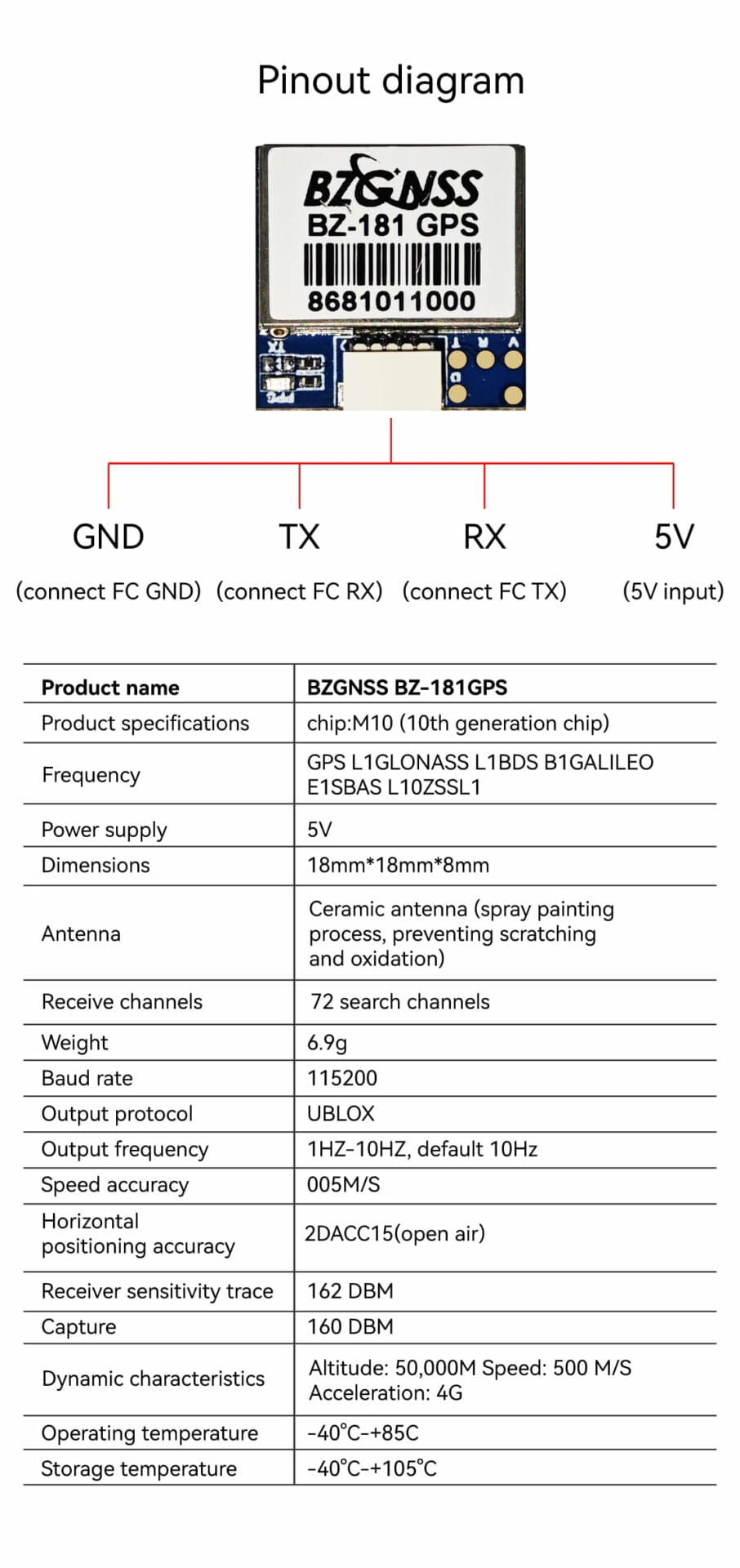

Specifications
- Chip: u-blox M10050 (10th Generation)
- Supported Systems: GPS, GLONASS, BDS, GALILEO, SBAS, QZSS (Defaults to GPS+GLONASS+BDS)
- Memory: FLASH supported
- Frequencies: Multiple L1 bands (GPS, GLONASS, BDS, GALILEO, SBAS, QZSS)
- Input Power: 5V

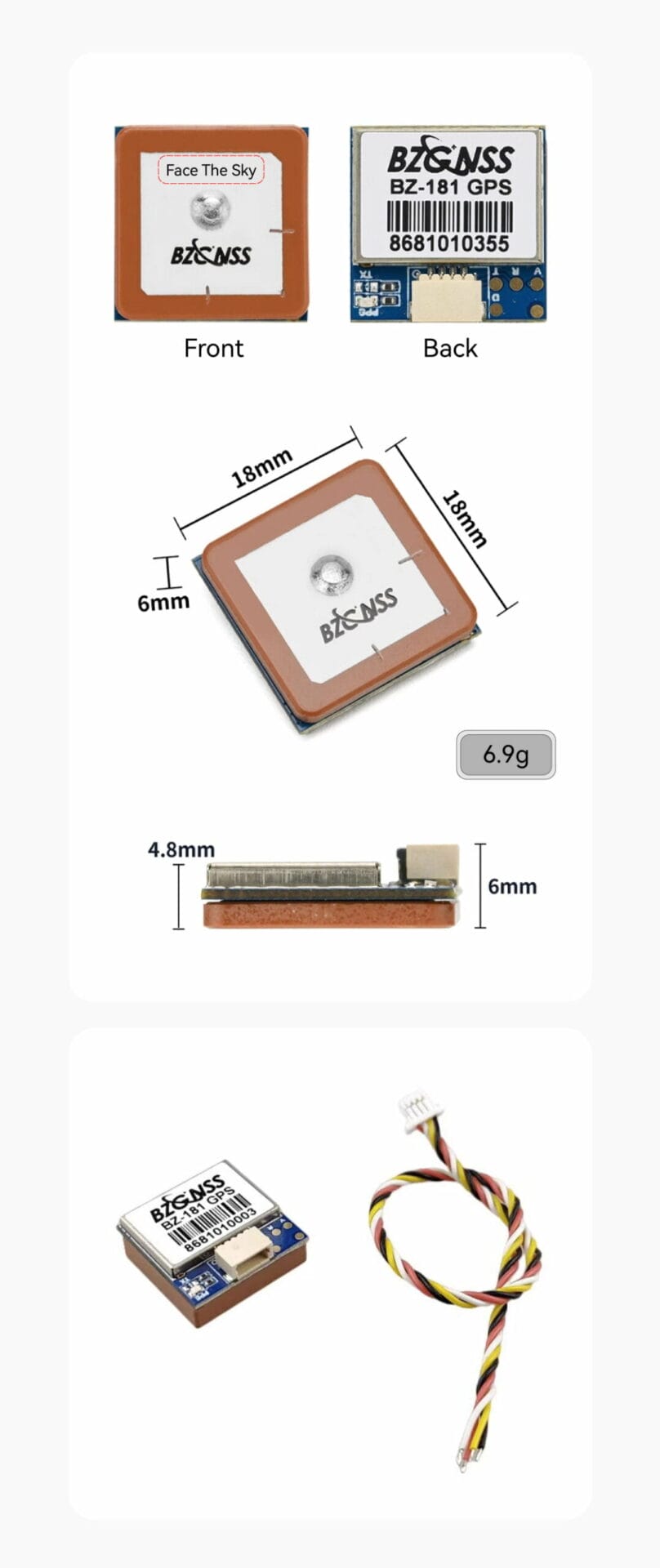

- Dimensions: 18x18x4.8mm (slimmest point), 18x18x6mm (including terminal block thickness)

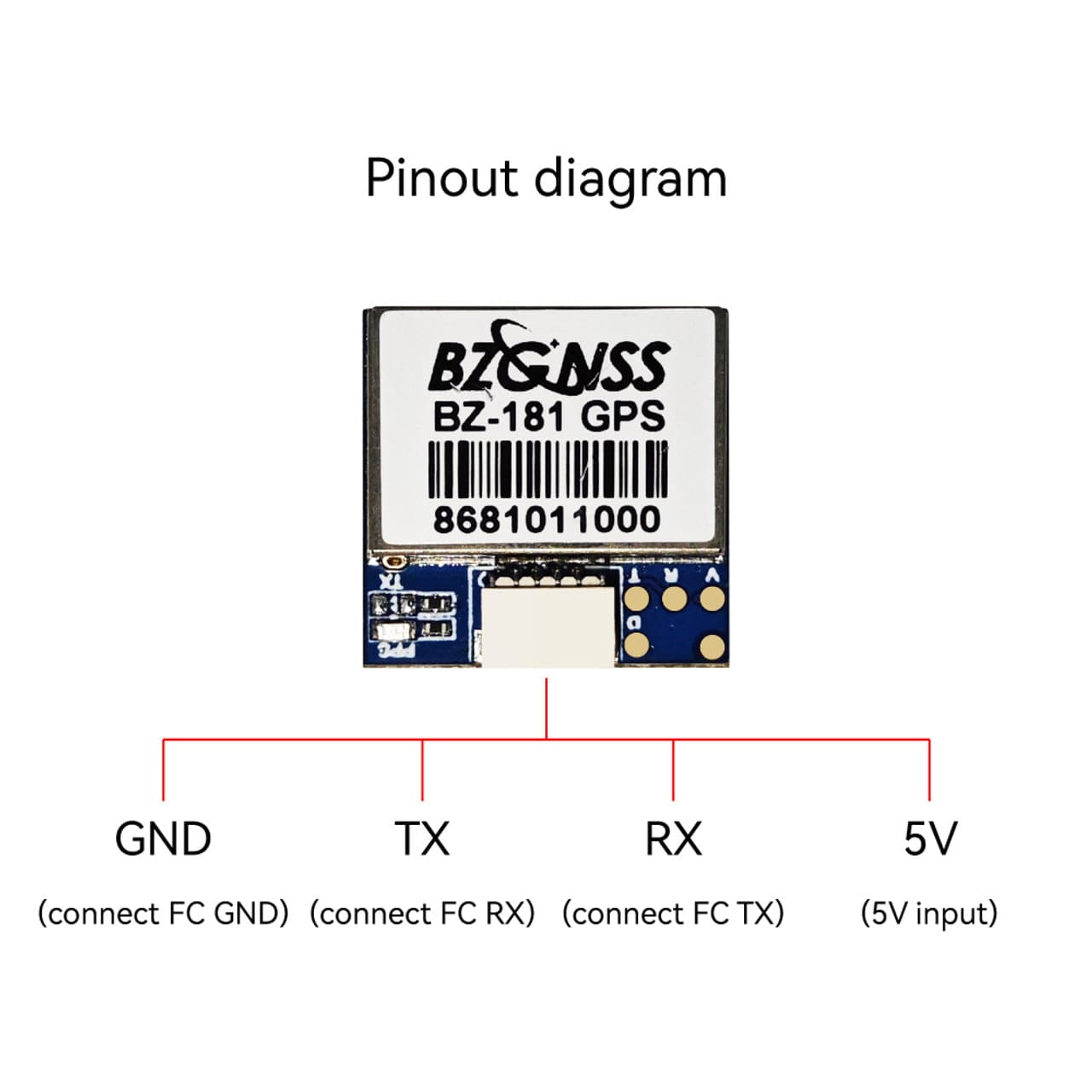

- Interface: SH1.0 4Pin
- Weight: 6.9g
- Antenna Types: Ultrathin and Standard Ceramic Antenna
- Channels: 72 search channels
- Baud Rate: 115200dps
- Output Protocol: NMEA / UBLOX (Dual)
- Update Rate: 1Hz-10Hz, set to 10Hz by default
- Accuracy: 0.05m/s speed; 1.5m horizontal positioning (open air)
- Sensitivity: Trace -162dBm / Capture -160dBm
Dynamic Performance:
- Maximum Altitude: 50,000m
- Maximum Speed: 500m/s
- Maximum Acceleration: 4G
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +105°C
- Indicator: PPS light indicates 3D positioning with red flashing upon successful lock
- This GPS module’s lightweight, yet robust, design coupled with its high-speed update rate and accuracy make it an excellent addition to any serious pilot’s toolkit. Whether you’re competing in drone races or enjoying a leisurely flight, the BZGNSS GPS module is your partner for dependable aerial navigation.
