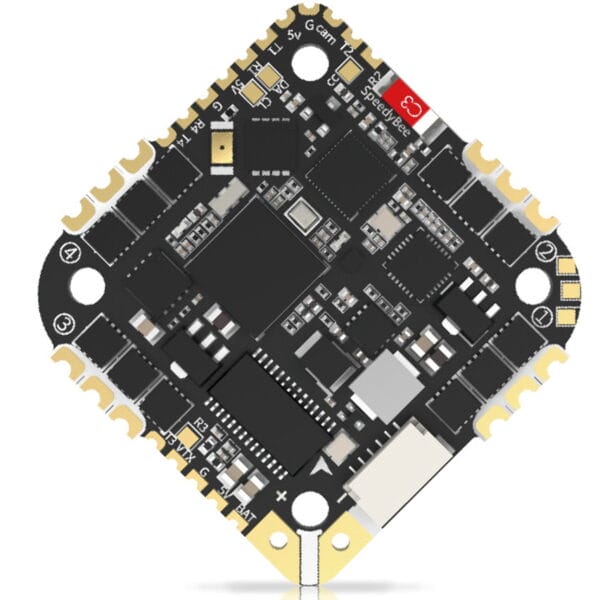

SpeedyBee F745 35A BLS 25.5×25.5 AIO Flight Controller
$189.50
The SpeedyBee F745 35A BLS AIO is a compact and powerful flight controller ideal for larger quads, featuring a responsive STM32F745 MCU, MPU6000 gyro, and built-in Bluetooth for easy configuration. It’s equipped with a robust 35A ESC, supports 3S-6S Lipo batteries, and comes with a 6-pin DJI connector, ensuring a high-performance flying experience with simple setup and maintenance.
ONLY 4 LEFT
Description
SpeedyBee F745 35A BLS 25.5×25.5 AIO Flight Controller
The SpeedyBee F745 35A BLS AIO is a compact and powerful flight controller ideal for larger quads, featuring a responsive STM32F745 MCU, MPU6000 gyro, and built-in Bluetooth for easy configuration. It’s equipped with a robust 35A ESC, supports 3S-6S Lipo batteries, and comes with a 6-pin DJI connector, ensuring a high-performance flying experience with simple setup and maintenance.
Specifications
- Product Name: SpeedyBee F745 35A BLS AIO
- Power Input: 3S – 6S Lipo
- Mounting: 25.5 x 25.5mm, 3mm hole diameter
- Dimensions: 36.5mm(L) x 36.5mm(W) x 7mm(H), optimal for quads 3.5“ or larger
- Weight: 10.1g
Flight Controller (FC):
- MCU: STM32F745
- IMU (Gyro): MPU6000
- USB Connection: USB TYPE-C module required for soldering to D+, D-, GND pads
- Barometer: BMP280
- OSD: Supported
- BLE Bluetooth: Included for parameter settings with an integrated 2.4 GHz Wi-Fi-and-Bluetooth combo chip
- Wireless Firmware Flashing: Available
- Blackbox Analysis/Download: Supported
- DJI Air Unit Connection: Built-in 6-pin connector
- Flash Memory: 8MB for BlackBox
- Current Sensor: Included, Scale=256
- BetaFlight Camera Control: Yes, via CC pad
- 5V Output: 4 groups, total current load 2.5A
- ESC Signal Pads: M1 – M4
- UARTs: Full UART * 4 (UART1 to UART4)
- I2C: Supported
- LED Pad: For WS2812 LED
- Buzzer: BZ+ and BZ- for 5V buzzer
- BOOT Button: For entering DFU mode
- Firmware Target: SPEEDYBEE F745AIO
- Supported Flight Software: BetaFlight (default)
Electronic Speed Controller (ESC):
- Power Input: 3-6S LiPo
- Continuous Current: 35A * 4
- Burst Current: 45A for up to 5 seconds
- ESC Protocol: DSHOT300/600
- Current Sensor: Supported, Scale=256
- Firmware: BLHeli_S JH40
Includes
- 1x SpeedyBee F745 35A BLS 25.5×25.5 AIO Flight Controller
Manual
