TBS Crossfire Diversity Nano RX redefining long-range flying!

TBS Crossfire Diversity Nano RX FPV Long Range Drone Receiver

TBS is redefining long-range flying! With the TBS Crossfire Diversity Nano RX, we have taken the most powerful Crossfire receiver. Presenting the smallest full-fledged diversity receiver of any frequency, even boasting a power-redundancy circuit (battery not included).

TRUE DIVERSITY, FULL RANGE

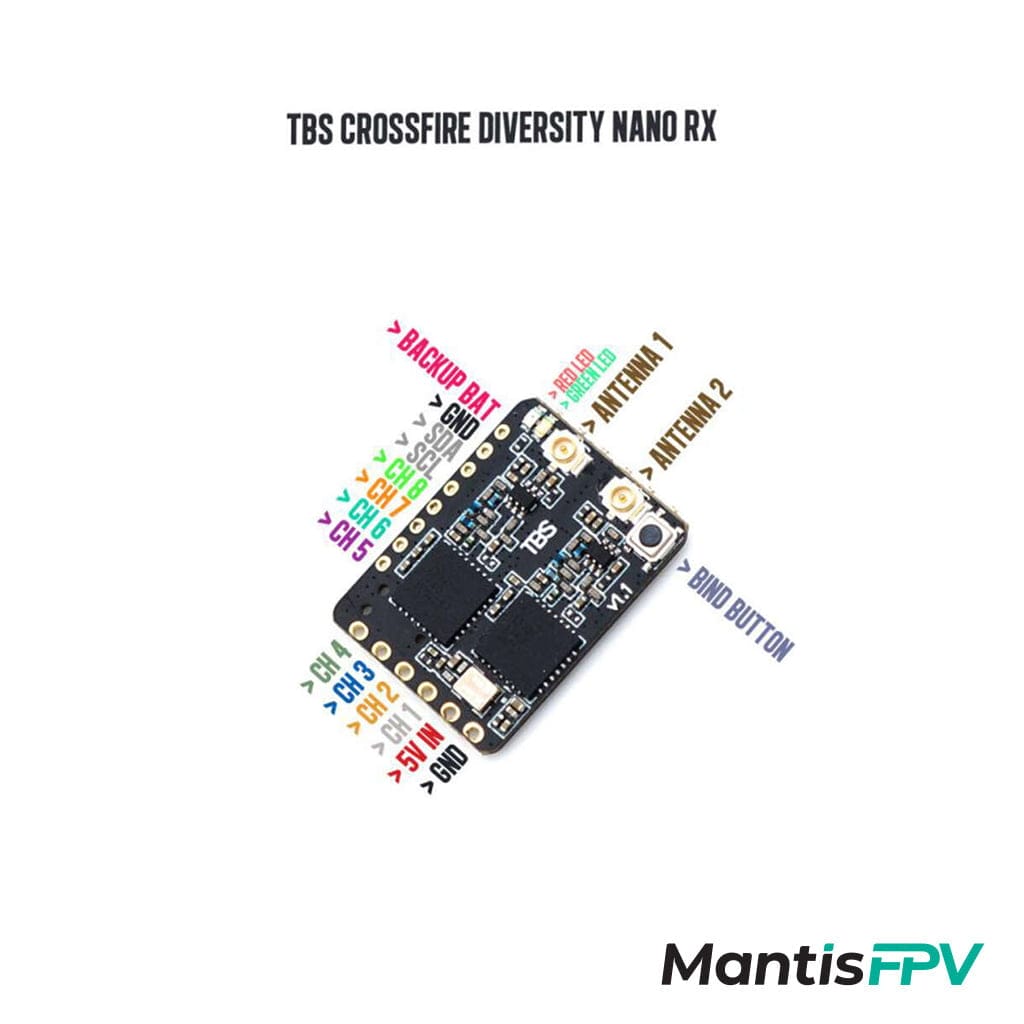

The TBS CROSSFIRE Diversity Nano Receiver is a compact R/C receiver with 8ch outputs (PPM, SBUS, and CRSF capable), with best-in-industry noise-rejection and record-breaking range capability. It is the only receiver to provide a true dual-input stage, chip-based diversity, with the usual filtering and noise rejection from onboard video systems.

BEACON MODE

Enter the TBS CROSSFIRE beacon mode. The diversity nano receiver comes with a LiPo battery port where you can connect an optional backup port. It will keep the receiver running for a full day after all onboard electronics are gone. It will be screaming for help by giving you its GPS coordinates, and also blasting out RF beacon signals that will allow you to pinpoint its location even if no GPS was ever on your aeroplane.

FLARM IS HERE

FLARM is a traffic awareness and collision avoidance technology for General Aviation, light aircraft, and UAVs. The TBS Crossfire Diversity Nano RX’s will be able to broadcast on the FLARM network for free, receiving drone and general aviation traffic information on your OSD requires additional licenses. Paired with the CORE PRO or FPVision and TBS GPS, you can get a virtual radar showing other FLARM devices around you (~3km range).

Specifications

• Weight: 1.8g (receiver only)
• Size: 24mm x 18mm
• Beacon Mode
• FLARM
• Requires: Firmware V2.87 or newer

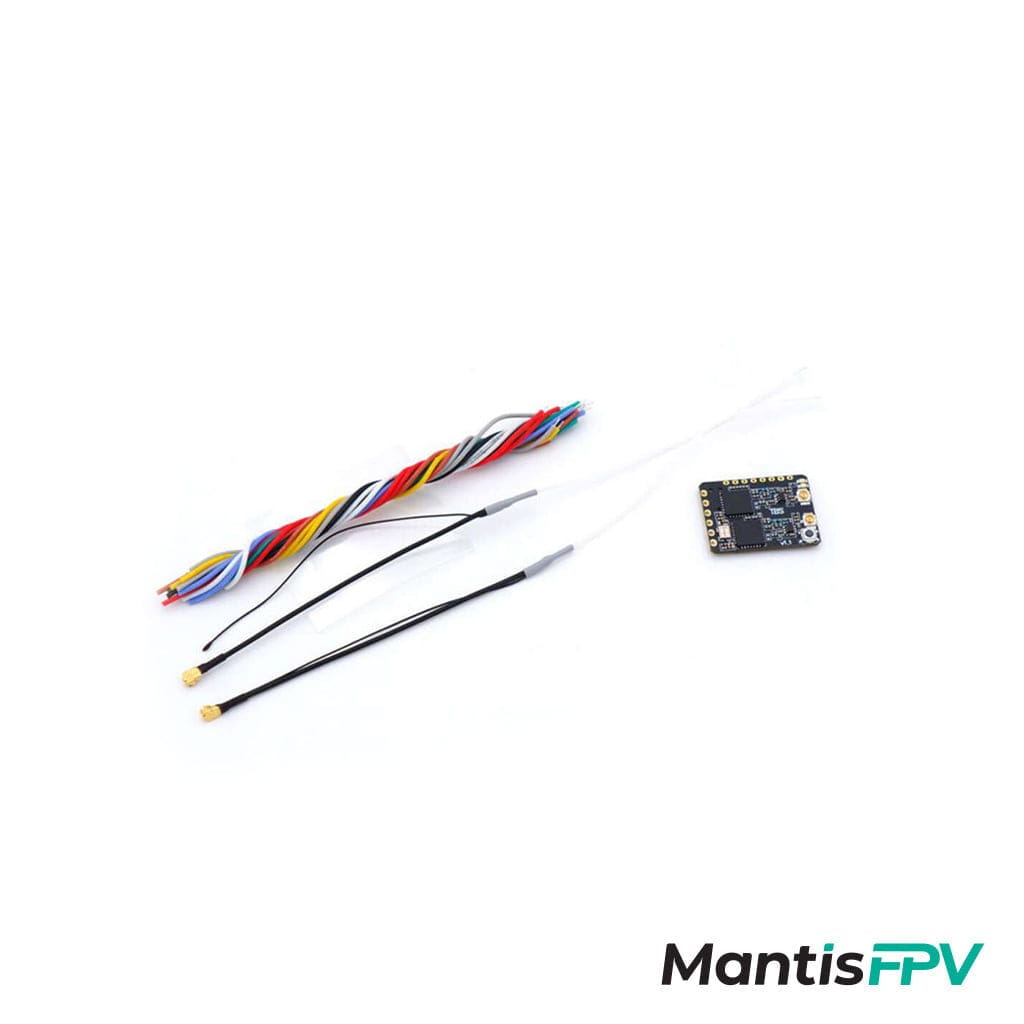

Includes

• 1x TBS Crossfire Diversity Nano Receiver
• 2x TBS Crossfire Micro Receiver Antenna
• 1x Spare shrink tube
• 14x 30awg silicon connection wires

Manuals

• TBS Crossfire – RED Declaration of Conformity
• Quickstart Guide / Manual
