TBS Source One V6 5inch FPV frame kit
Price range: AU$18.95 through AU$59.95

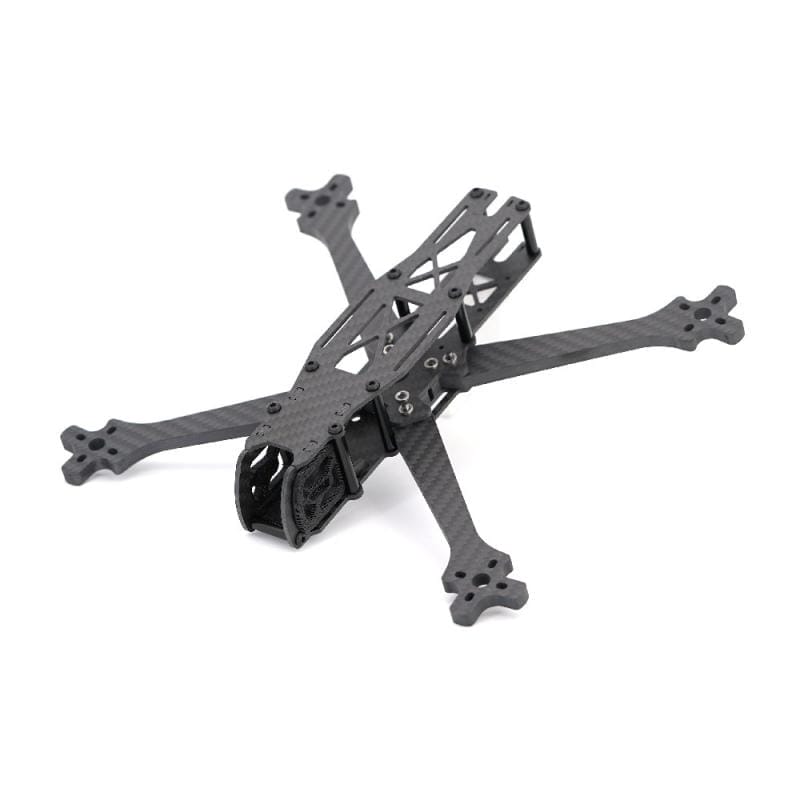

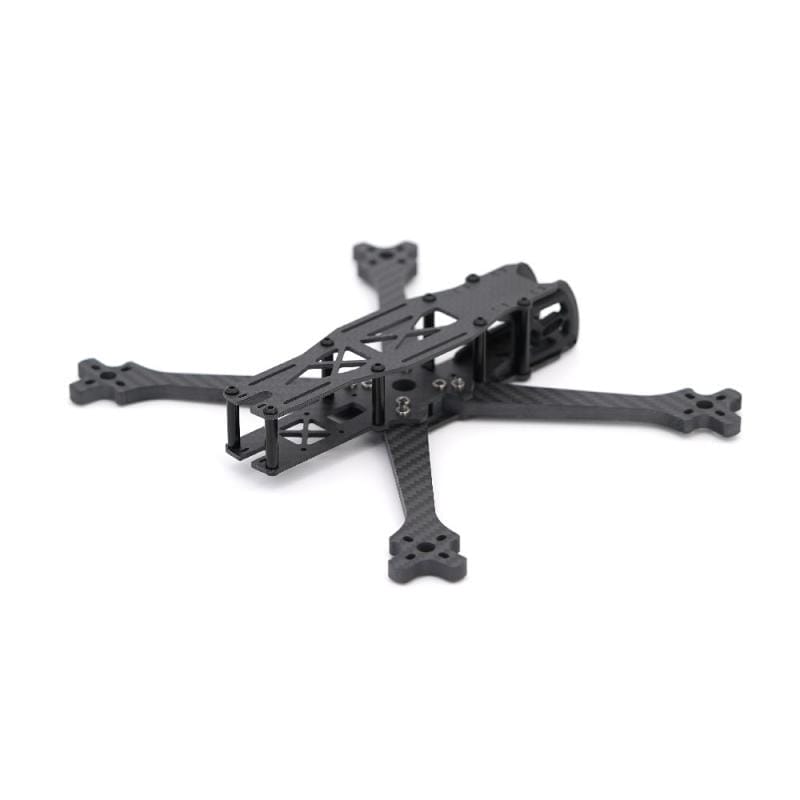

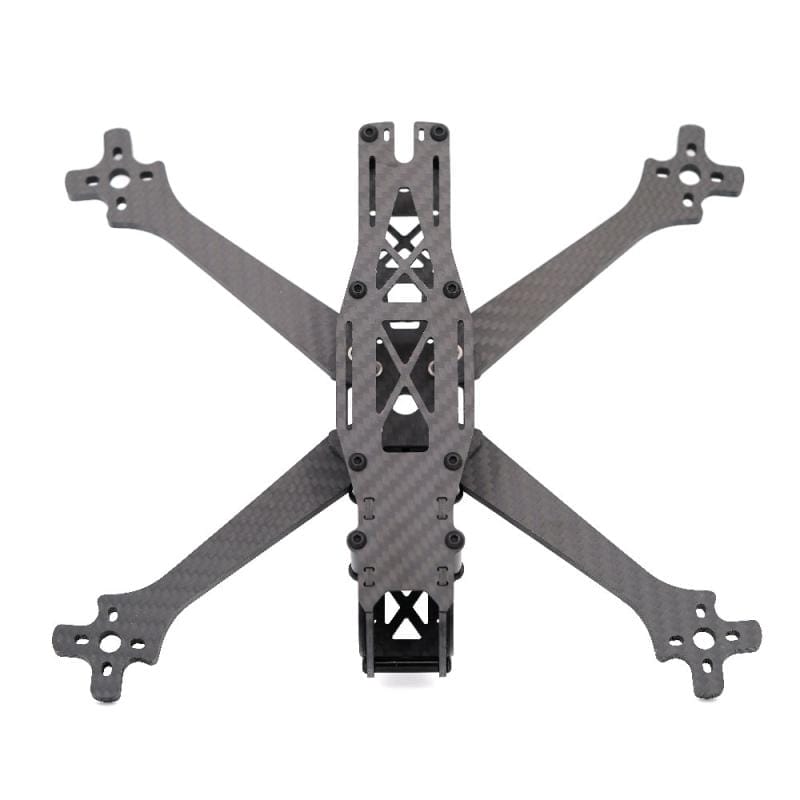

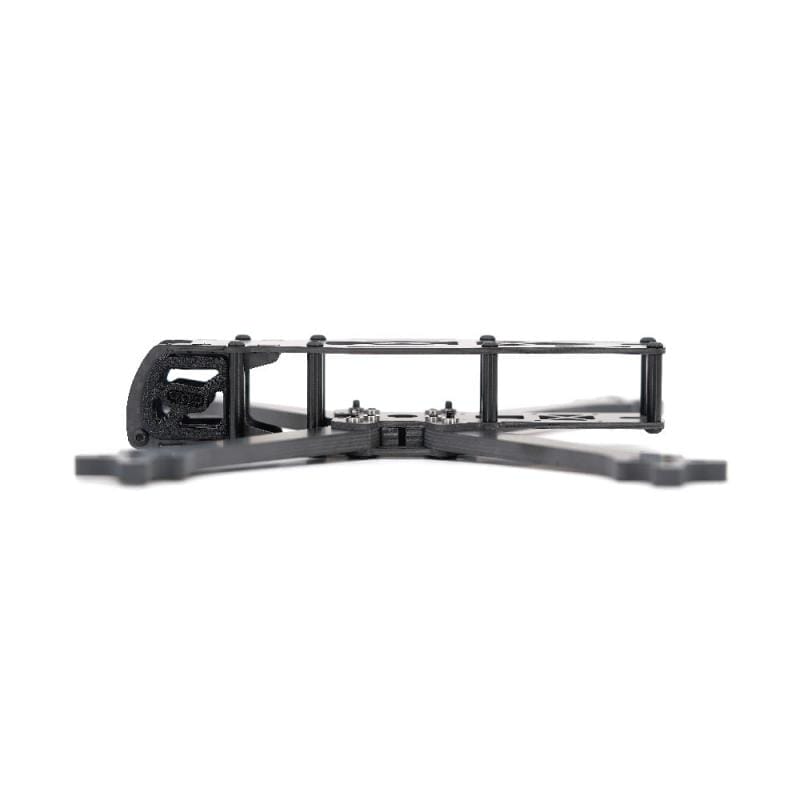

The SOURCE ONE is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for lightweight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.
Description
TBS Source One V6 5inch FPV frame kit
The SOURCE ONE is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for light weight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.
The SOURCE ONE project is a first-of-its-kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them to compete in an increasingly predatory marketplace.
The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.
Specifications
- Wheelbase (5″): 240mm
- Top Plate: 2mm
- Middle Plate: 2mm
- Bottom Plate: 2.5mm
- Arms Spacer: 6mm
- Camera Plate: 2mm
- Standoff Height: 30mm and 22mm
- Arm Thickness (5″): 6mm
- Stack Mounting: 30.5 × 30.5mm & 20 × 20mm
- Weight (5″): *136.5g
Includes
- 1x Frame set:
- Top, Middle, and Bottom plates
- Brace and 2x Camera plates
- 4x Arms
- 1x Arm spacer
- 1x Screw & Standoff set
- 20x M3×10 allen screws
- 4x M3×12 allen screws
- 4x M3×14 allen screws
- 4x OD 5mm M3×30mm standoffs
- 4x OD 5mm M3×22mm standoffs
- 1x OD 5mm M3×20mm standoff
- 8x M3 press insert nuts
- 1x TPU 3D-printed camera mount
Get involved
- Project discussion: https://discordapp.com/invite/ZJGkHwF
- Project files: https://github.com/tbs-trappy/source_one
- Interactive Manual
- 3D Printed files on Thingiverse: https://www.thingiverse.com/tag:sourceone
- 3D Printed Parts (STL) also avaialble on github!
Additional information
| Brands | |
|---|---|
| Please Choose | Frame kit only (no 3D prints), Replacement arm (2 pack) |
