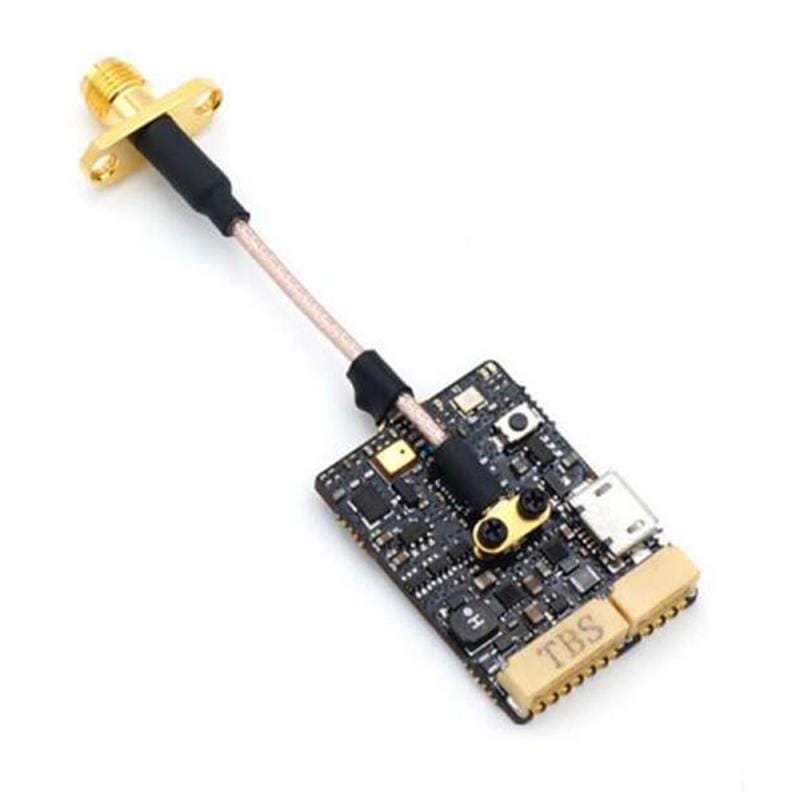

TBS Unify Evo Video Transmitter

THE SWISS ARMY KNIFE OF VIDEO TRANSMITTERS

We packed all the features that we could into the smallest form factor possible. When we set out to make this video transmitter we were looking to make something that would fit all use cases for analog video transmitters ever envisioned. Long range, racing, freestyle, wings, cars. You name it, the VTx will shine in this application! More features are still under development and they can be loaded via the TBS AgentX with the onboard USB port.

This makes it a perfect companion for any situation where you don’t have any OSD, or want to benefit from the simplicity and clarity that the TBS OSD is known for.

BARCODES? BARCODES!! (PATENT PENDING)

The VTx is capable of processing the camera image. So we taught it to read barcodes! This means the VTx no longer needs to be transmitting to set channels, and setting channels can be done in the pits. It also means no more guesswork what channel the VTx is on, simply point it at the barcode of your choice and it will move to that channel or power level! There are many more exciting features coming with this technology, stay tuned and barcode on!

CRSF, SMARTAUDIO 2.1, PWM, PITMODE

CRSF is the defacto standard in FPV and racing drones, so it makes sense that this video transmitter can both understand as well as speak CRSF. For compatibility, the VTx also speaks SA 2.1 and has the teamrace-friendly pitmode feature. PWM controls allow you to use the VTx with any radio and product. For example, you may have it on your R/C cars, R/C motorcycles or other devices that don’t have flight controllers or Crossfire and control the VTx button with a switch or button you have on the radio.

Specifications

• Operating Voltage: 6V to 26V (suitable for 2S to 6S batteries)
• Supply Current: Ranges from about 0.11A at 25mW to 0.24A at full power
• Operating Temperature: Needs good airflow for cooling
• Video Input Impedance: 75 Ohms
• Weight: 7 grams
• Dimensions: 30mm x 23mm x 5.5mm
• Antenna Connector: u.FL socket
• Video Format: Supports both NTSC and PAL
• Audio: Includes a microphone
• Output Power: Varies from 14dBm (25mW) to 29dBm (800mW)

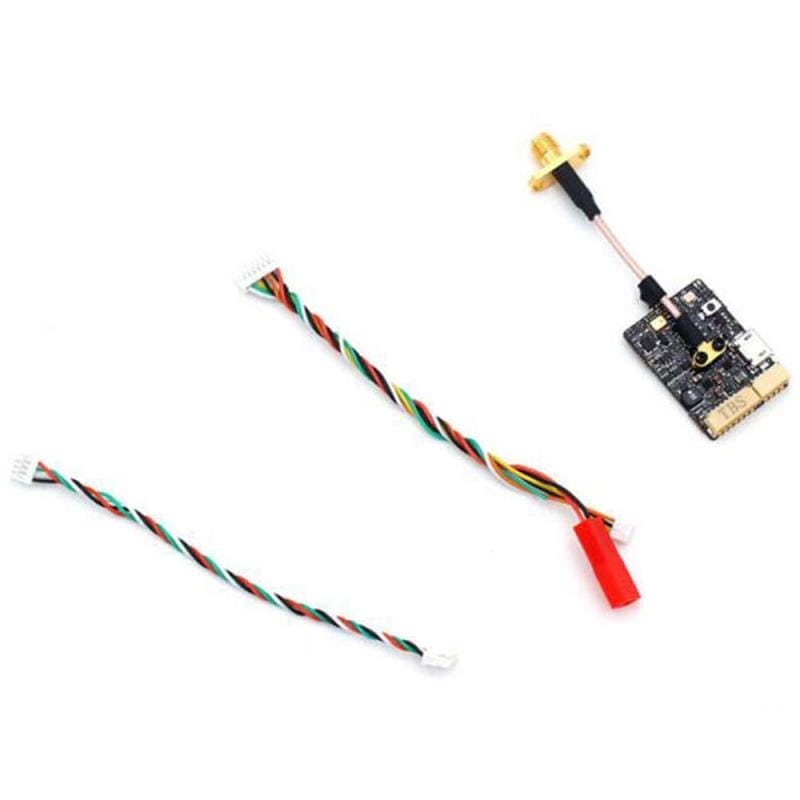

Includes

• 1x TBS UNIFY EVO 5G8 Video transmitter
• 1x u.FL pigtail SMA
• 1x Power, Camera and CRSF cables

Downloads

• TBS UNIFY EVO Manual
• TBS UNIFY EVO Manual (German)
• Barcode Catalog
• Declaration of Conformity
• VTX Table for Betaflight

3RD PARTY APPS

• Barcode App by Swiss Fries
• Barcode App by APOC

* HAM license is required for operation on HAM channels, and HAM power levels! The VTx ships with only legal channels enabled, please consult the manual on unlocking procedure.
