Cube Orange+ Standard Set
AU$949.52
The Cube Orange+ Standard Set pairs the high-performance Cube Orange+ autopilot with the standard carrier board and accessory kit. Featuring a fast STM32H7 processor, triple-redundant, vibration-isolated and temperature-controlled IMUs, it delivers exceptional reliability and situational awareness. Fully backwards-compatible with all Cube systems and supporting ArduPilot and PX4, it’s suited to fixed-wing, multirotor, VTOL, and rover platforms in advanced and commercial applications.
Available on back-order
Description

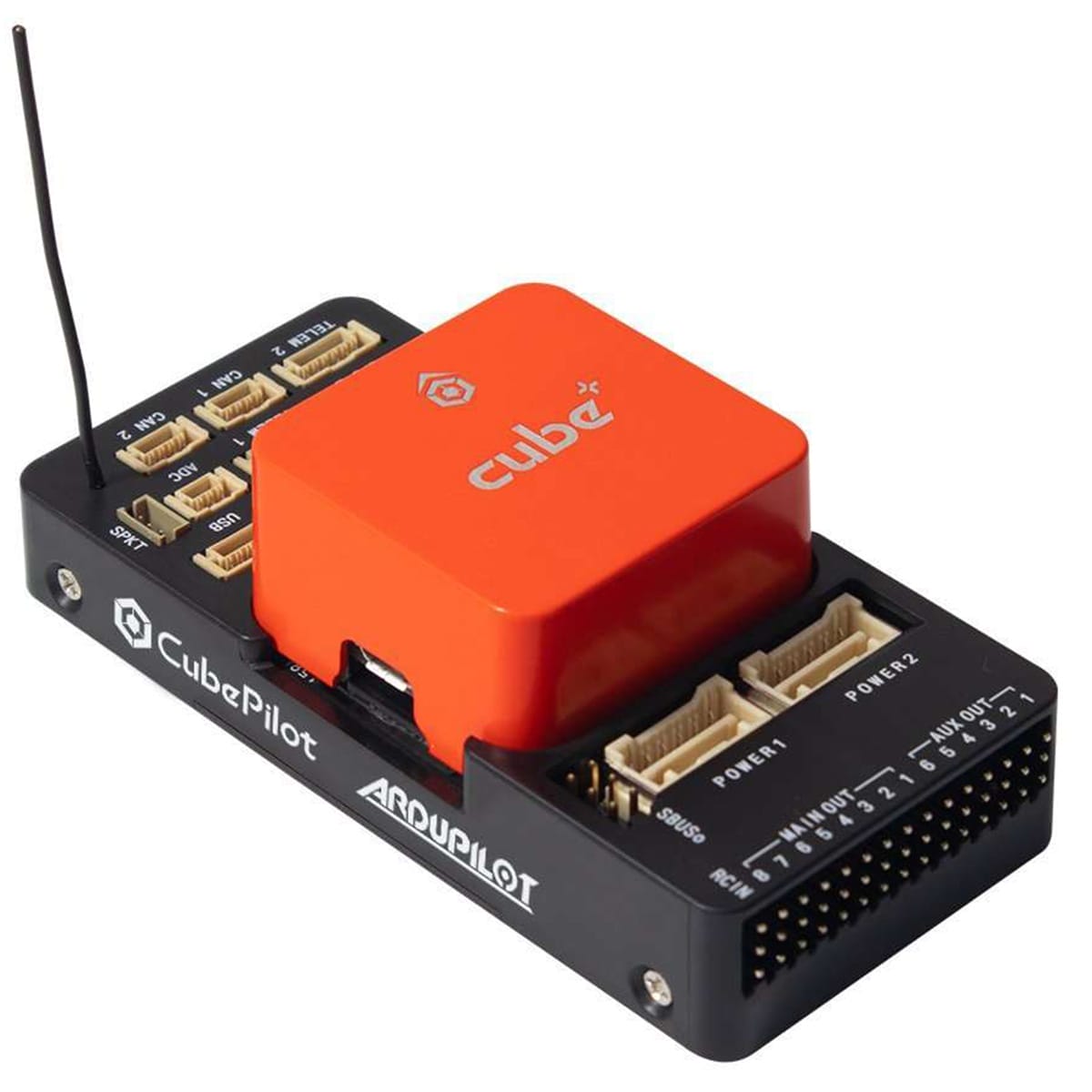

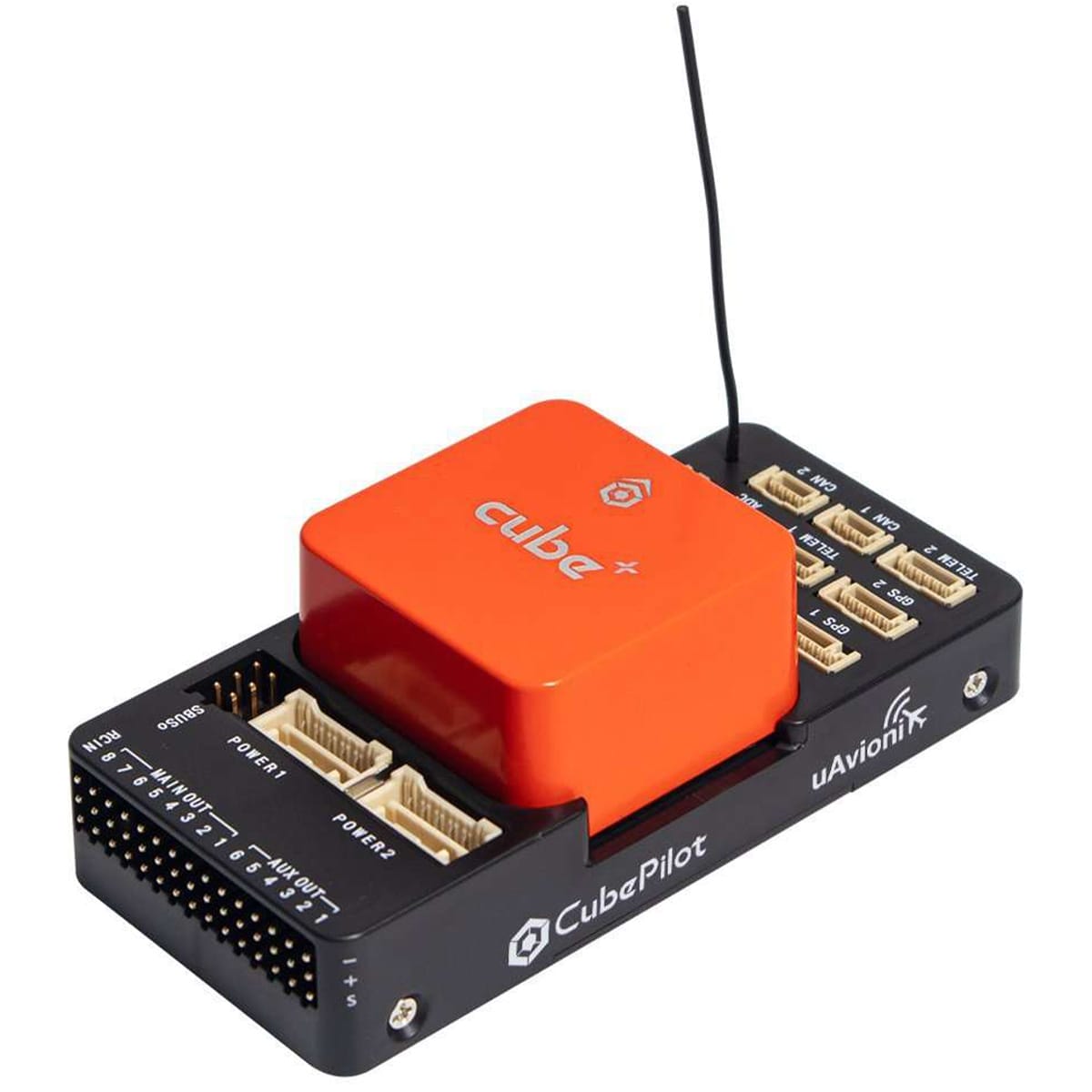

Cube Orange+ Standard Set
The Cube Orange+ Standard Set pairs the high-performance Cube Orange+ autopilot with the standard carrier board and accessory kit. Featuring a fast STM32H7 processor, triple-redundant, vibration-isolated and temperature-controlled IMUs, it delivers exceptional reliability and situational awareness. Fully backwards-compatible with all Cube systems and supporting ArduPilot and PX4, it’s suited to fixed-wing, multirotor, VTOL, and rover platforms in advanced and commercial applications.

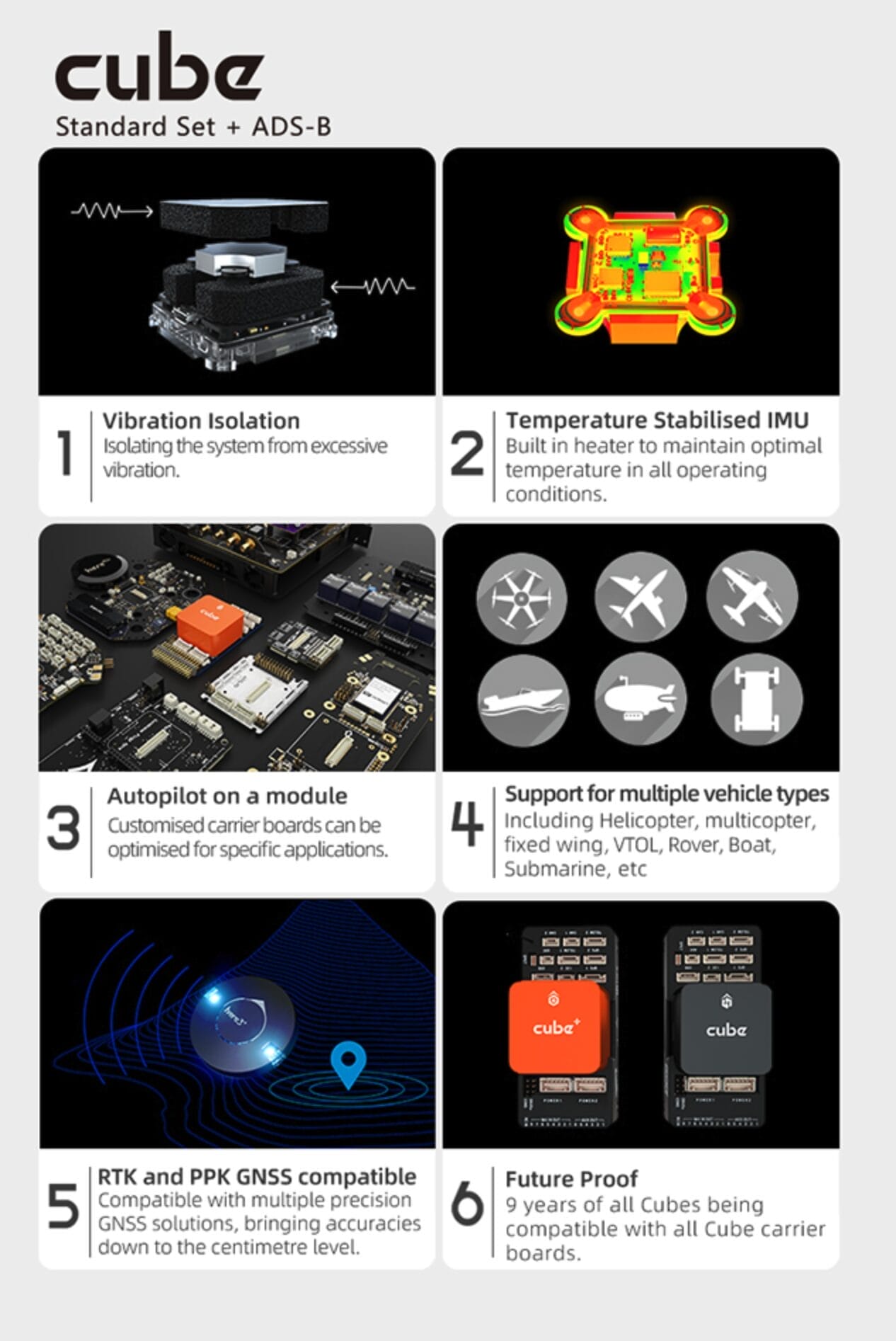

Features
- Faster H7 SOC with 1MB RAM
- Upgraded triple redundant IMU sensors for extra redundancy
- Two sets of IMUs are mechanically vibration-isolated, reducing the effect of frame vibration on state estimation
- IMUs are temperature-controlled by onboard heating resistors, allowing optimum IMU working temperature
- The entire flight management unit (FMU) and inertial management unit (IMU) are housed in a small form factor
- Fully CubePilot carrier board compatible, with all inputs and outputs through an 80-pin DF17 connector
- Manufacturers can design their own carrier boards to suit their specific needs

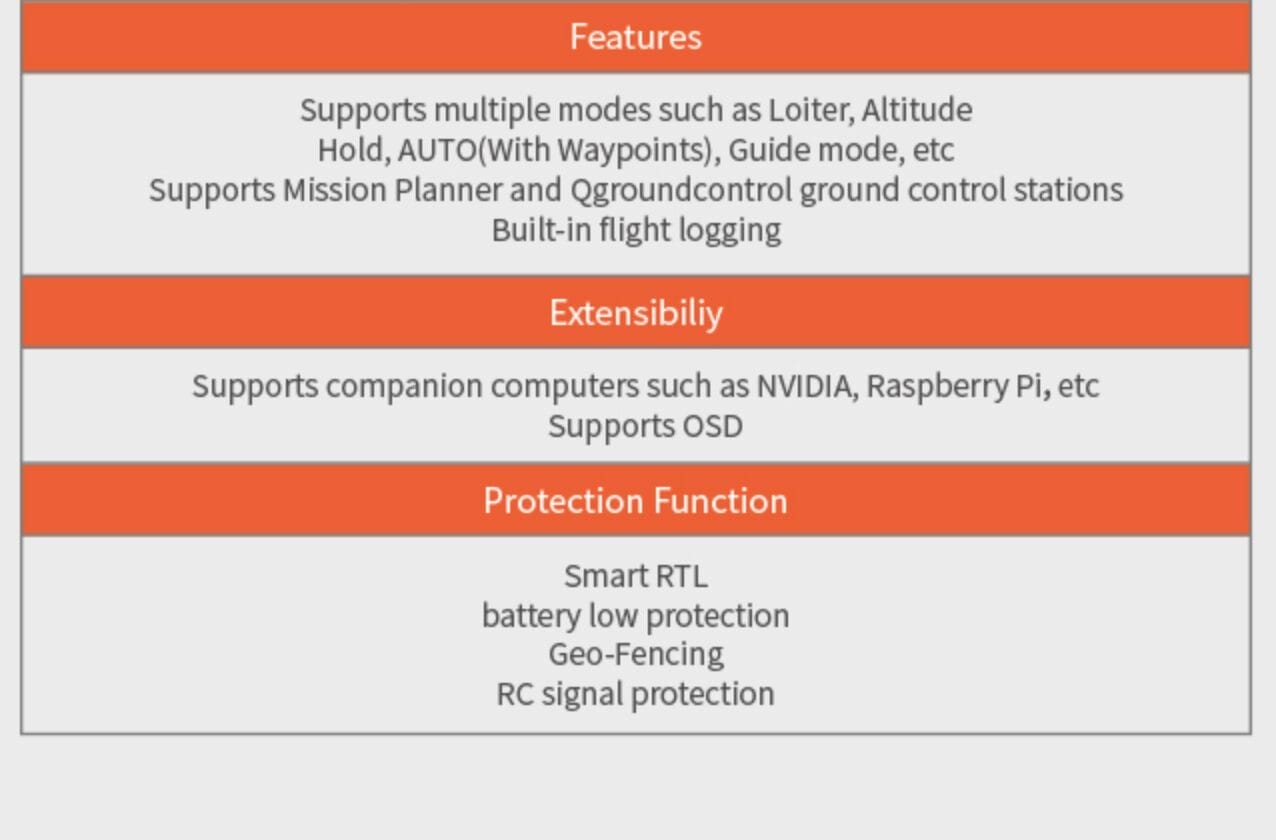

- Multiple flight modes: Loiter, Altitude Hold, Auto (waypoints), Guided and more
- Supports Mission Planner and QGroundControl
- Built-in flight logging
Hardware Specifications
- Main processor: STM32H757 dual-core M7 + M4
- Coprocessor: STM32F100
- Supported RC signals: PPM / SBUS / DSM
- Power redundancy: Triple redundancy
- Sensors: Triple IMU system
- IMU1 (isolated): ICM42688
- IMU2 (isolated): ICM20948 or ICM42688
- IMU3 (fixed): ICM20649 or ICM45686
- Barometer: MS5611 ×2
- Supported firmware: ArduPilot, PX4, Hionos DO-178C
- Supported vehicle types:
- Fixed-wing plane
- Multicopters
- Helicopter
- VTOL plane
- Rover / boat / submarine
Specifications
- Weight: 73 g
- Chassis material: CNC aluminium alloy (cube) + ABS moulding (carrier board)

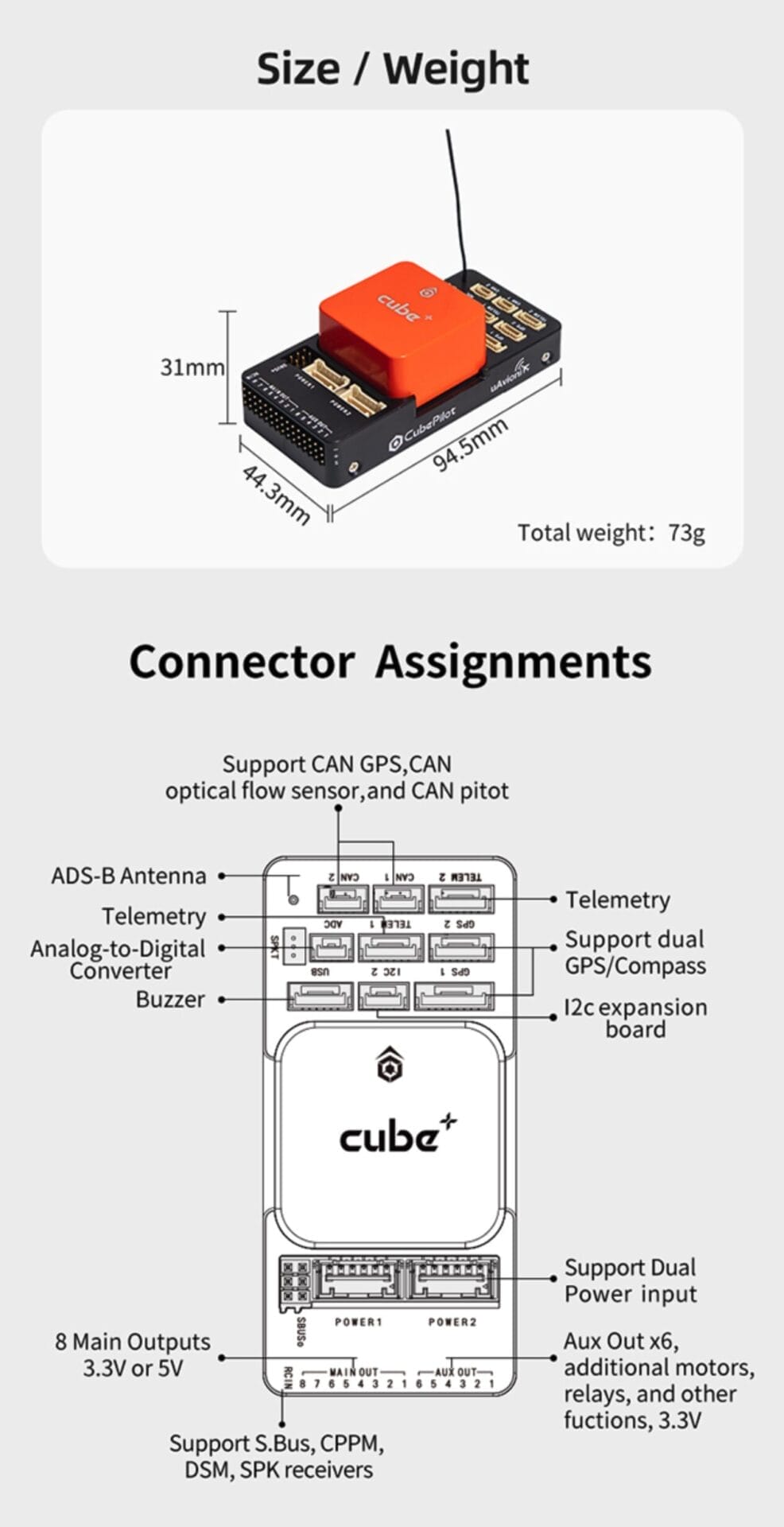

- Size:
- Cube: 38.4 × 38.4 × 22 mm
- Carrier board: 94.5 × 44.3 × 17.3 mm
- Operating temperature: −10°C to +55°C (IMU with temperature control)
- PWM I/Os: 14
- GPS / serial interfaces: 4
- Debug interfaces: 2
- I²C interfaces: 2
- CAN FD interfaces: 2
Extensibility
- Supports companion computers (NVIDIA, Raspberry Pi, etc.)
- Supports OSD
- Protection functions:
- Smart RTL
- Battery low-voltage protection
- Geo-fencing
- RC signal protection

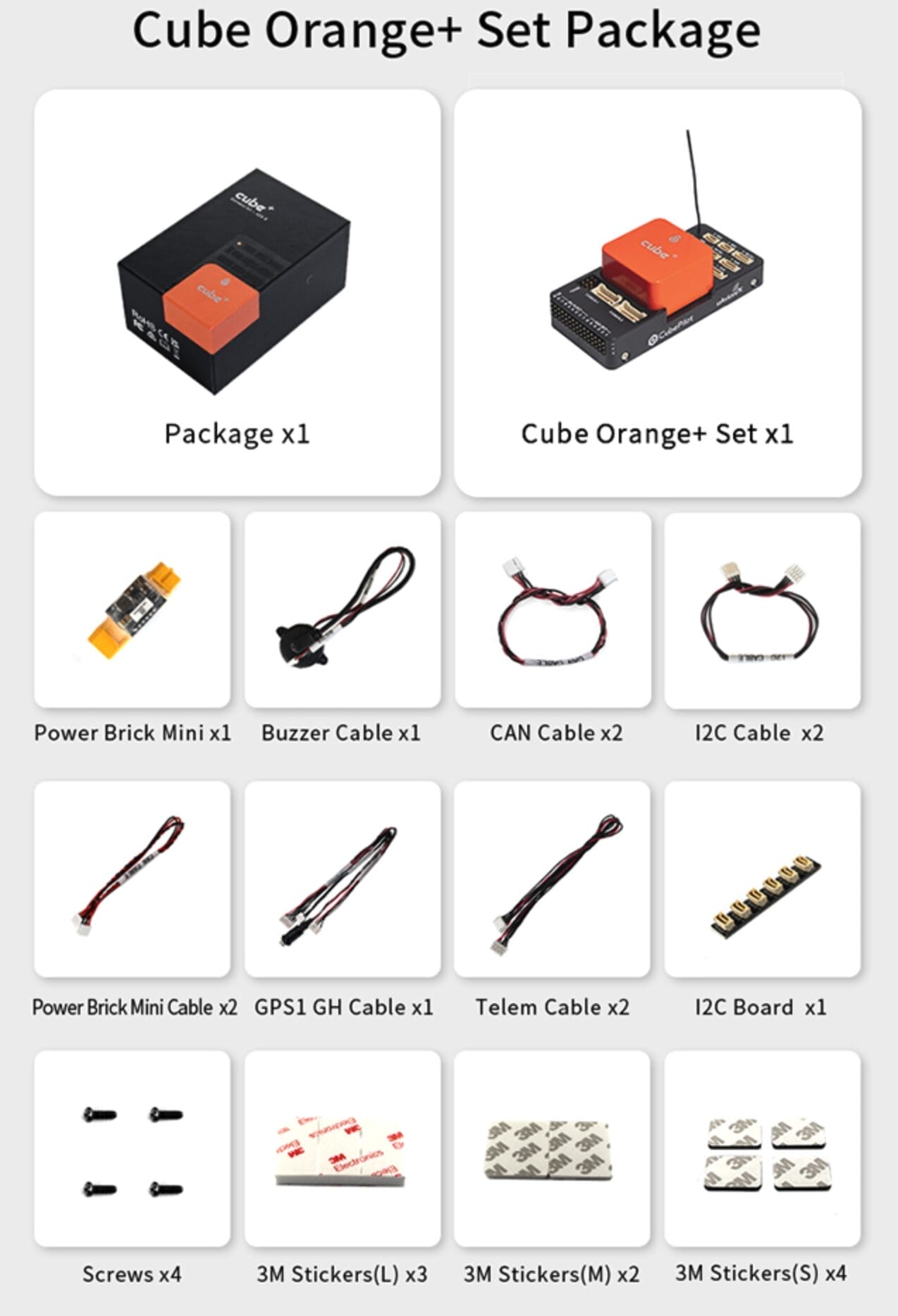

Includes
- Cube Orange+ flight controller set ×1
- Package / box ×1
- Power Brick Mini ×1
- Power Brick Mini cable ×2
- Buzzer cable ×1
- CAN cable ×2
- I²C cable ×2
- GPS1 GH cable ×1
- Telemetry cable ×2
- I²C board ×1
- Screws ×4
- 3M stickers (Large) ×3
- 3M stickers (Medium) ×2
- 3M stickers (Small) ×4
