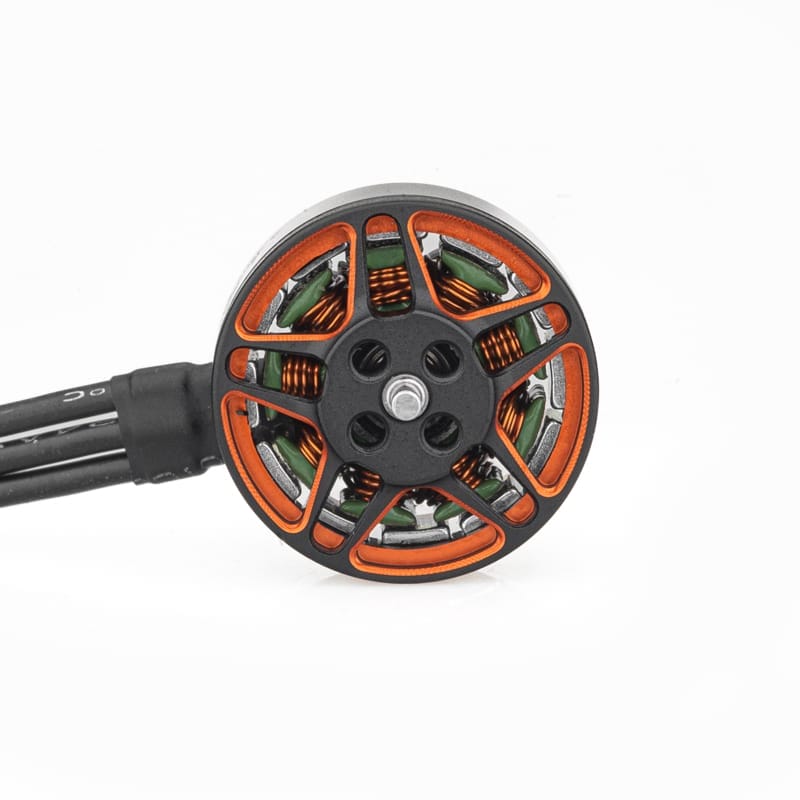

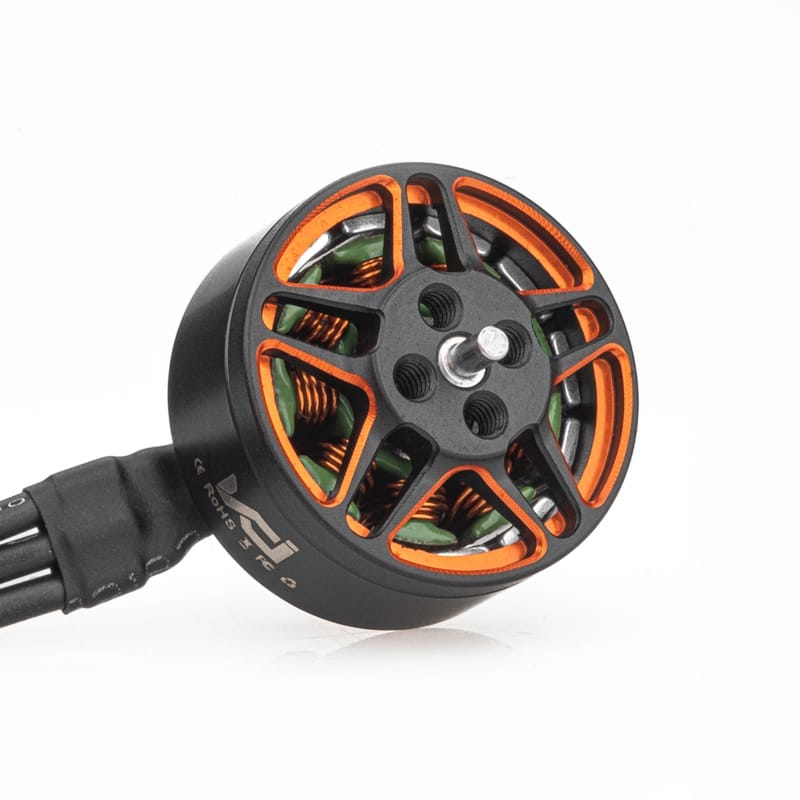

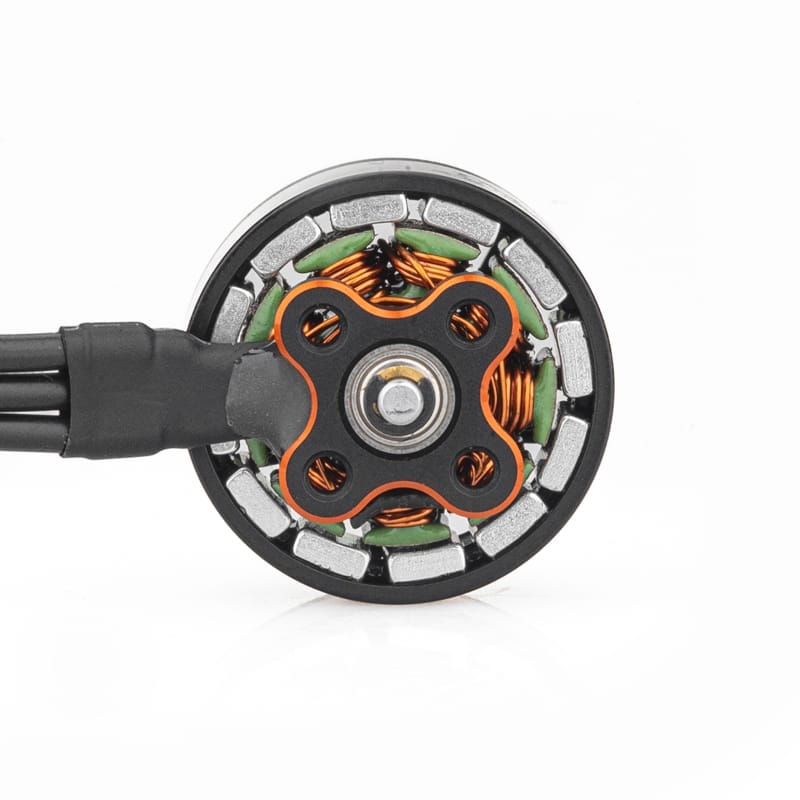

VCI Spark Motor 1405 4550KV 1.5mm
$21.80
The VCI Spark Motor 1405 4550KV, with a 1.5mm shaft diameter, is a compact and powerful brushless motor. It boasts a high KV rating of 4550KV, utilizing N52SH arc magnets and a 9512P configuration.
In stock
Qty | Discount | Discounted price |
5 - 7 | 4% | $20.93 |
8 - 12 | 6% | $20.49 |
13 - 20 | 8% | $20.06 |
21 + | 9% | $19.84 |
Description
VCI Spark Motor 1405 4550KV 1.5mm
The VCI Spark Motor 1405 4550KV, with a 1.5mm shaft diameter, is a compact and powerful brushless motor. It boasts a high KV rating of 4550KV, utilizing N52SH arc magnets and a 9512P configuration. With dimensions of Ø19*17.4mm and a lightweight of 12.4g, this motor is designed for efficiency and performance. It operates at a rated voltage of 4S (16V), can handle a peak current of 18A, and offers a maximum power of 288W.

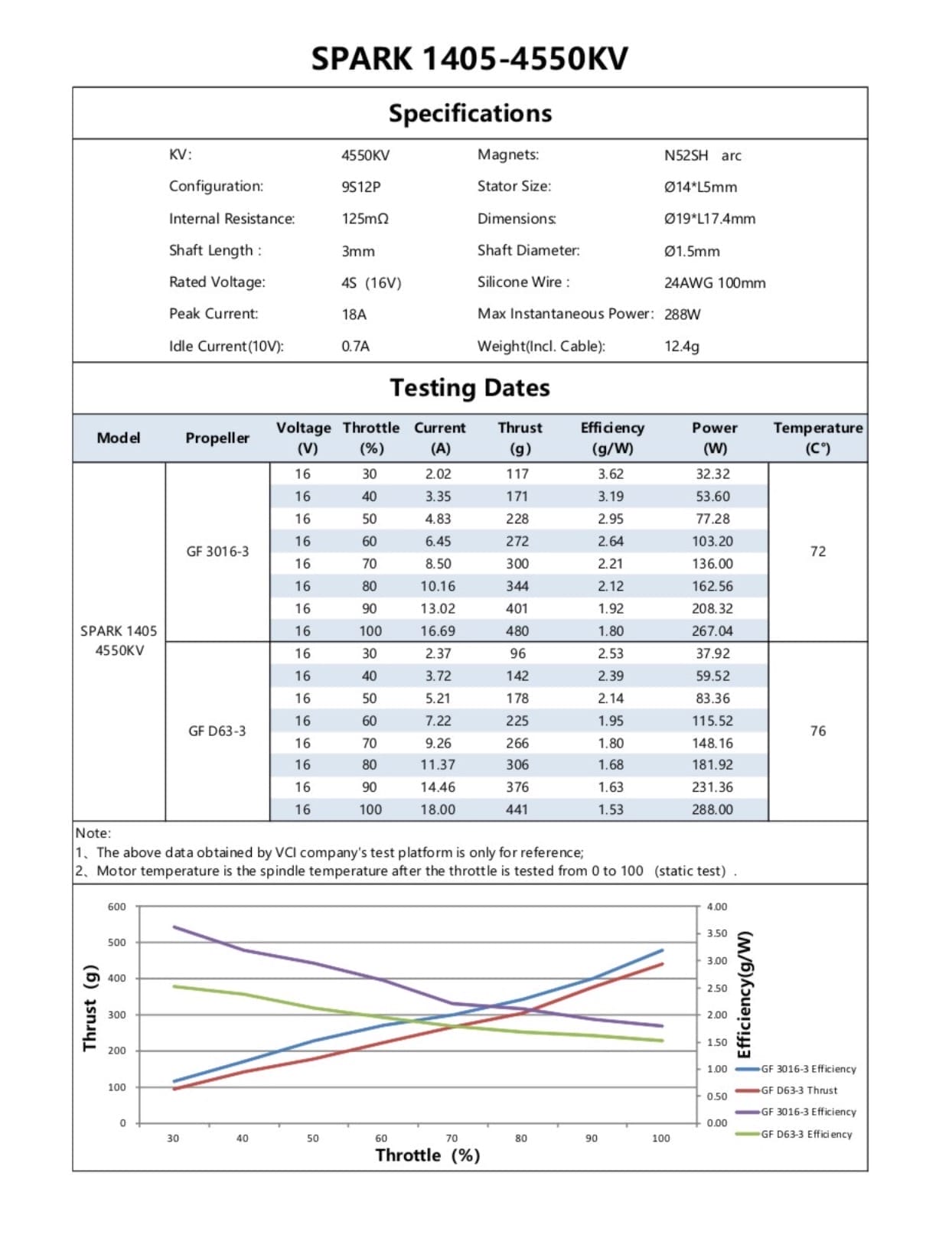

Specifications
- KV Rating: 4550KV
- Magnets: N52SH arc
- Configuration: 9512P
- Stator Size: 14°15mm
- Internal Resistance: 125mΩ
- Dimensions: Ø19*17.4mm
- Shaft Length: 3mm
- Shaft Diameter: Ø1.5mm
- Rated Voltage: 4S (16V)
- Silicone Wire: 24AWG, 100mm
- Peak Current: 18A
- Max Instantaneous Power: 288W
- Idle Current (10V): 0.7A
- Weight (Including Cable): 12.4g
Includes

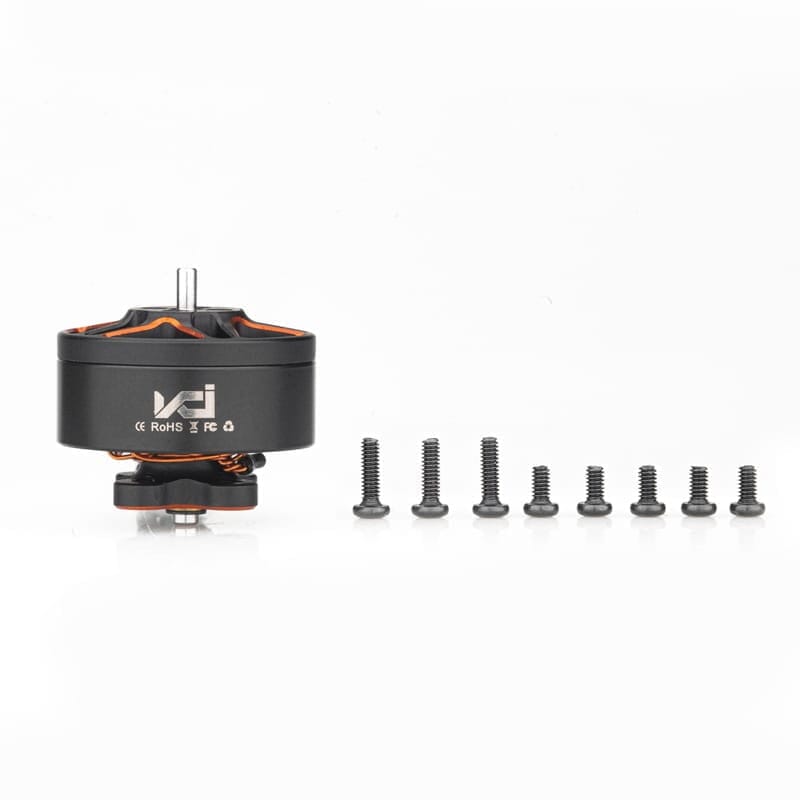

- 1x VCI Spark Motor 1405 4550KV 1.5mm
