B-Line Sendstorm 5″ FPV Racing Frame Kit V1.4


Introducing B-Line Sendstorm. Inspired by the TBS Source Two Project, refined & designed by Whodeany.

Frequently bought together

B-Line Universal 6mm Replacement Arm

A universal replacement arm compatible with the B-Line Bolt, Lite, and Sandstorm frame kits.

MF Grip! Super Sticky Battery Pad

Get ready for a bonding experience like no other with MF Grip – the stickiness is no joke!

Earn 258 points.

SKU: MF-1883022100 Category:


B-Line Sendstorm 5″ FPV Racing Frame Kit V1.4

Introducing B-Line Sendstorm. Inspired by the TBS Source Two Project, refined & designed by Whodeany.


B LINE fpvproducts colour embossed


  • 3d prints available for download from the B-Line site to print your own stuff. A range of locked camera angle mounts and different antenna mounts available.
  • Stretch X layout
  • Pointed 6mm Chamfered arms for optimal launch pad grip and rigidity.
  • Suits 30*30 and 20*20 stacks
  • Chamfered top plate and bottom plate
  • Battery locator slot (Chamfered so you don’t snap those battery straps)

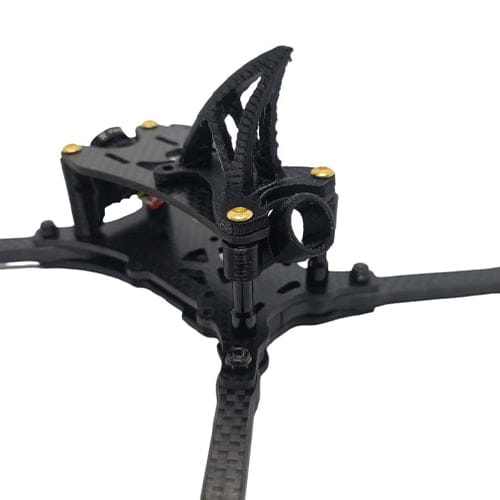

  • Turtle fin neatly slots in at the front and bolts down at the back standoffs
  • Strong stepped 6065 25mm aluminium standoffs (30mm standoff option coming soon)
  • Camera is as protected as you can get, mounted behind the standoffs
  • 80g dry weight without 3D prints
  • 89g with 3D prints

Hardware Specifications

  • 1x Sendstorm top plate
  • 1x Sendstorm main plate
  • 1x Sendstorm bottom plate
  • 4x Universal 6mm Arm


  • V1.1 – Original
  • V1.2 – Strengthened sandwhich plates
  • V1.3 – Strengthened sandwhich plates around standoff mounting bolts
  • V1.4 – Introduction of universal arms between frames, the Sendstorm and Sendstorm Lite will now utilize the same arms as the Bolt. Also standoff bolts are now countersunk to avoid damage to batteries on heavy impacts.

3D Print

If you prefer to handle the printing yourself, you can access the 3D print files through this Google Drive link!


  • 1x B-Line Sendstorm 5″ FPV Racing Frame Kit V1.3 (base option includes hardware only)


  • Adding 3D printed parts is an additional option. Please add the frame kit to your cart, and then specify your preferred 3D print base combo. Printing is done on-demand.

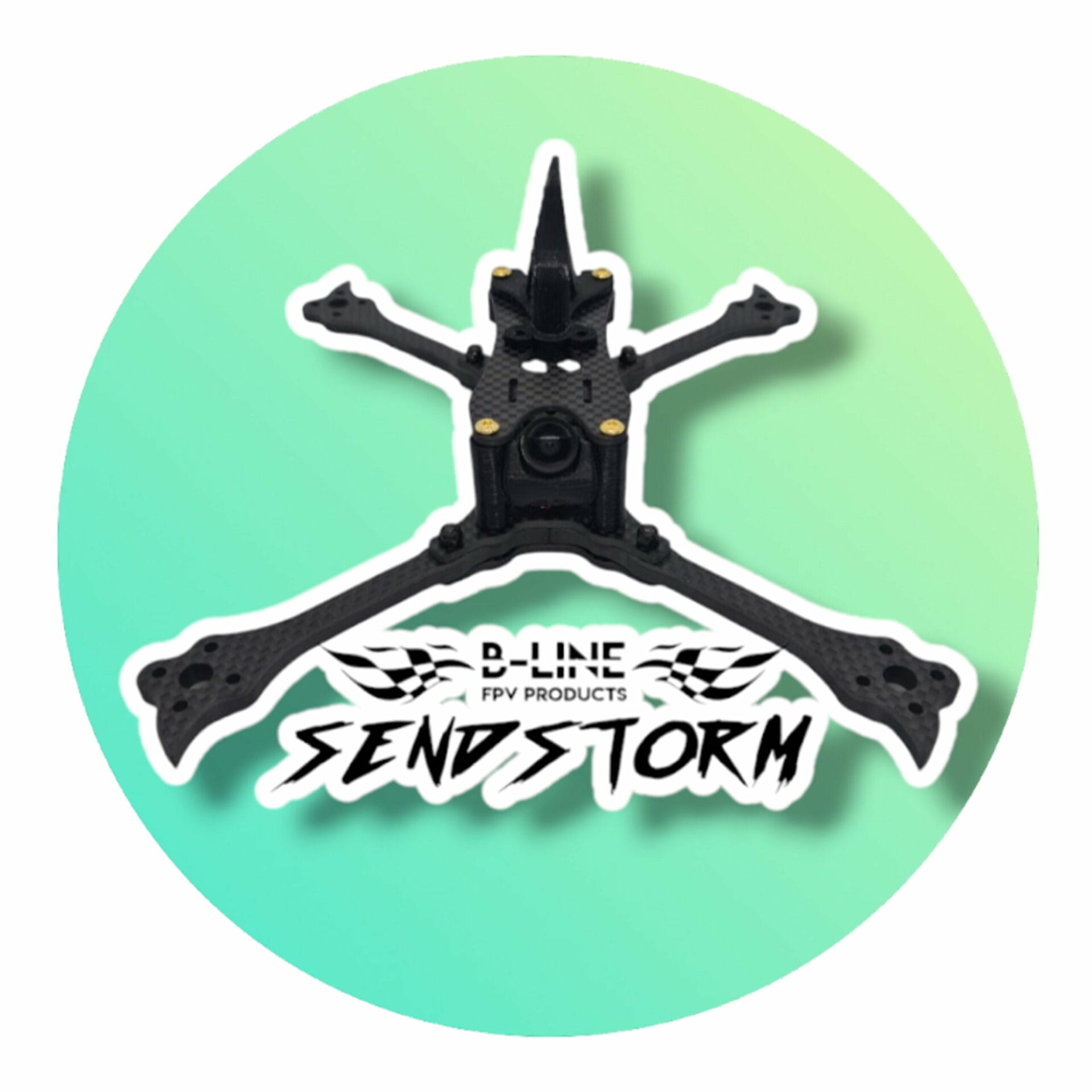

b line send storm 5″ fpv racing frame kit v1 3 showcase image australia product 1

Additional information

Please Choose

Frame kit only (no 3D prints), w/Analog Cam Mount, Fin & VTX Ant mount, w/HDZero Cam Mount, Fin & VTX Ant mount, Replacement arm, Main plate, Top plate, Bottom plate
