CubePilot Herelink Digital Air Unit
AU$1,617.98
The Herelink Air Unit is a compact all-in-one wireless transmission module that combines data link, remote control link, and video transmission into a single integrated device. Designed to simplify UAV system setup, it delivers up to 20 km transmission range, low latency performance, and support for 720p and 1080p video formats. With Ethernet, Micro USB, SD card support, and dual HDMI input capability, it is a versatile solution for advanced air-side communication and video downlink.
Available on back-order
Description
CubePilot Herelink Digital Air Unit
The Herelink Air Unit is a compact all-in-one wireless transmission module that combines data link, remote control link, and video transmission into a single integrated device. Designed to simplify UAV system setup, it delivers up to 20 km transmission range, low latency performance, and support for 720p and 1080p video formats. With Ethernet, Micro USB, SD card support, and dual HDMI input capability, it is a versatile solution for advanced air-side communication and video downlink.
Features
- All-in-one data link, remote control link, and video transmission unit
- Up to 20 km transmission range
- Low latency performance, down to 110 ms
- Supports 720p 30fps, 1080p 30fps, and 1080p 60fps video
- PineSync technology based on S1 processor
- CubePilot Hex technology

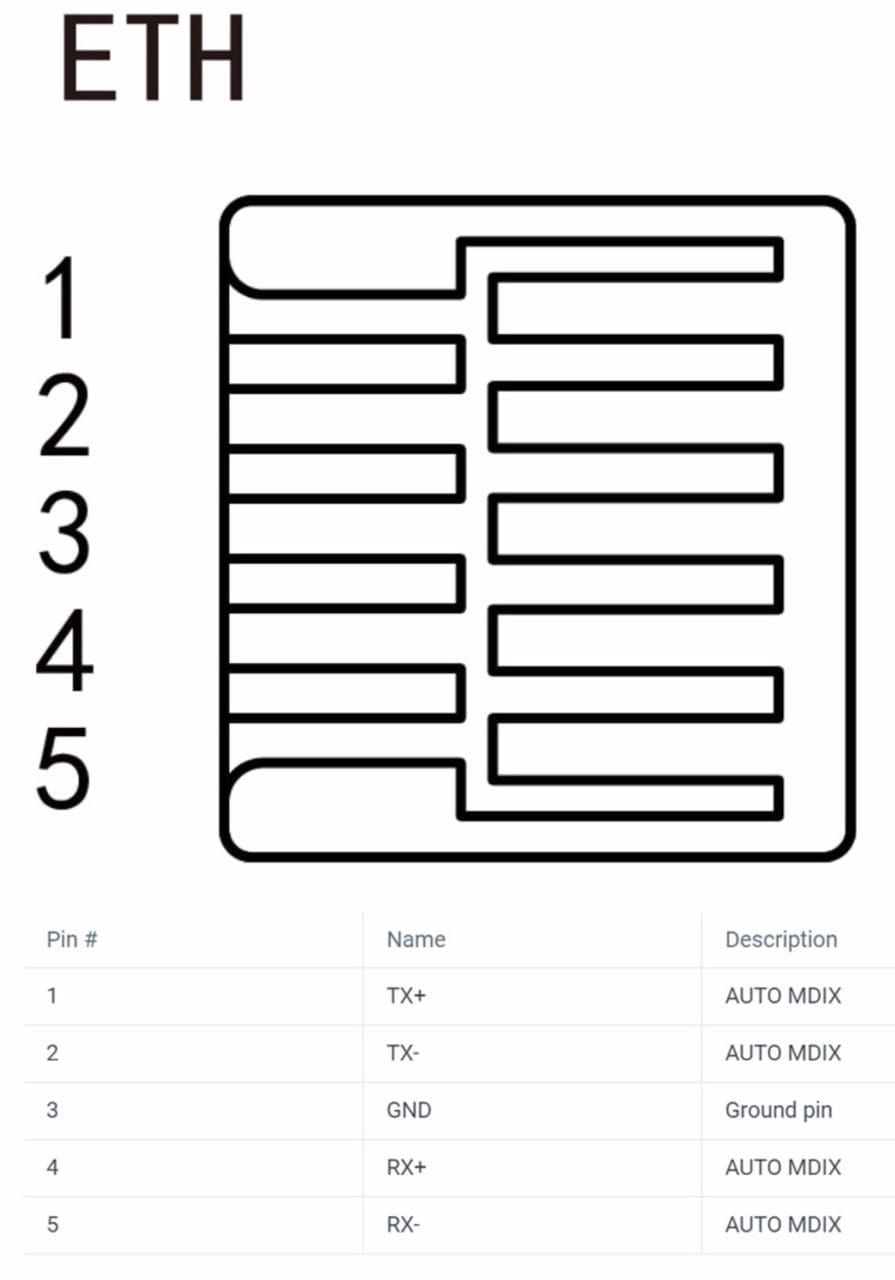

- Ethernet interface
- Micro USB port
- SD card slot
- MMCX antenna connectors
- Low 4 W power consumption
- Compact and integrated design
Specifications
- Transmission range: Up to 20 km
- Latency: Minimum 110 ms
- Video formats: 720p 30fps, 1080p 30fps, 1080p 60fps
- HDMI input: 2 × HDMI
- Power consumption: 4 W
- Power input: 7–12 V
- Antenna connector: MMCX

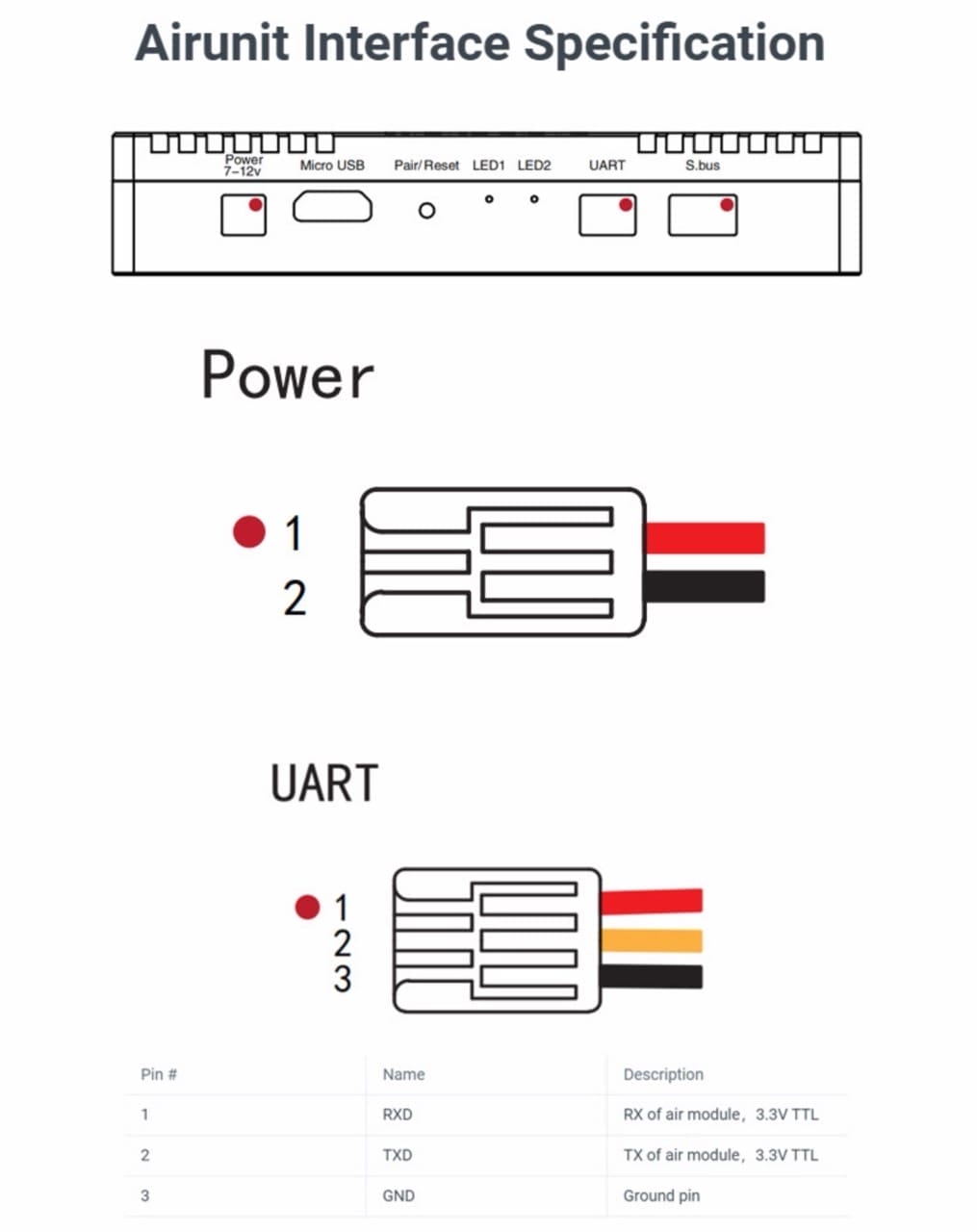

- Interfaces: Ethernet, Micro USB, SD slot
- Indicator lights: Yes
Includes
- CubePilot Herelink Digital Air Unit ×1
Additional information
