Flywoo GOKU F405 HD 3-4S 20A AIO Plug&Play O4 / O4 Pro
AU$152.32

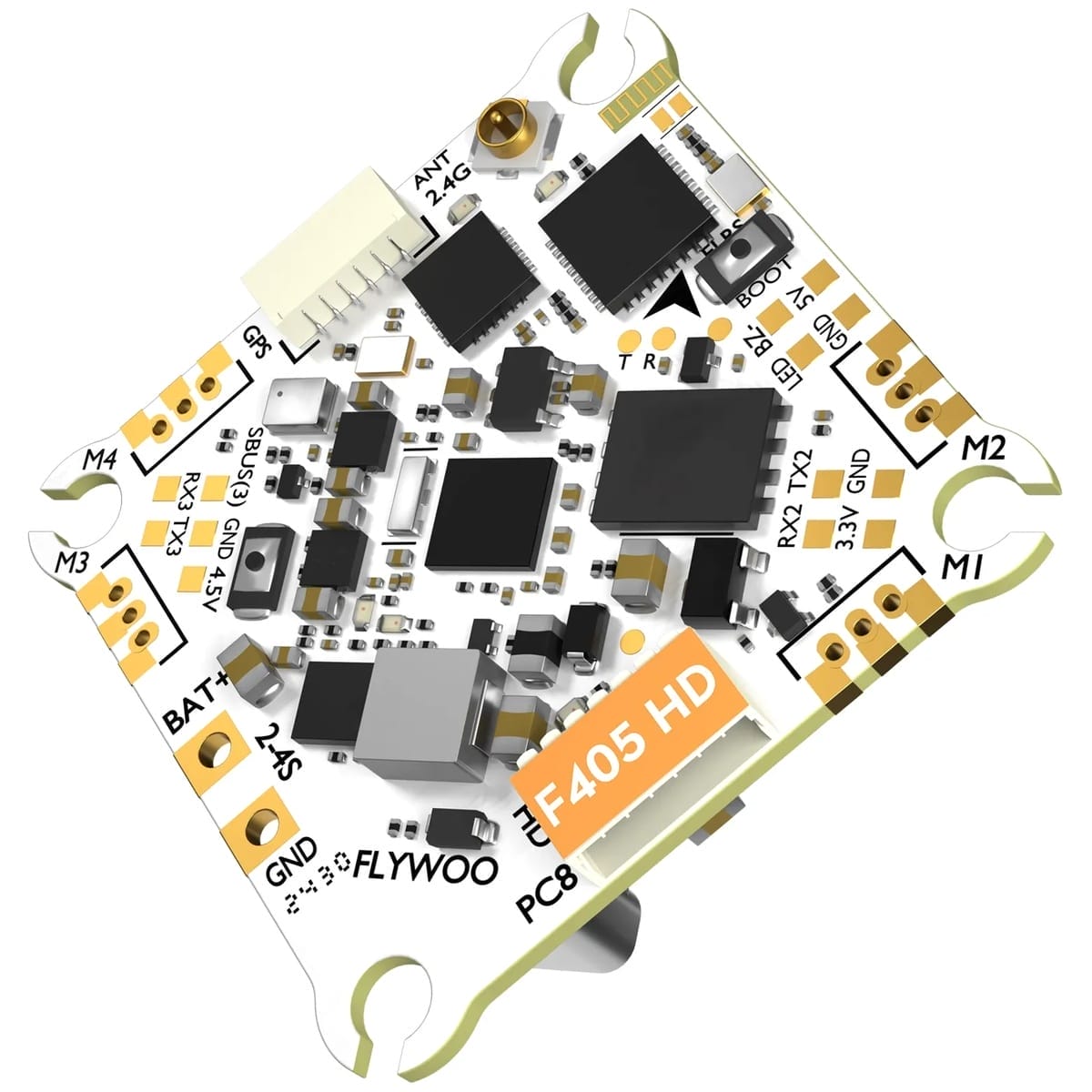

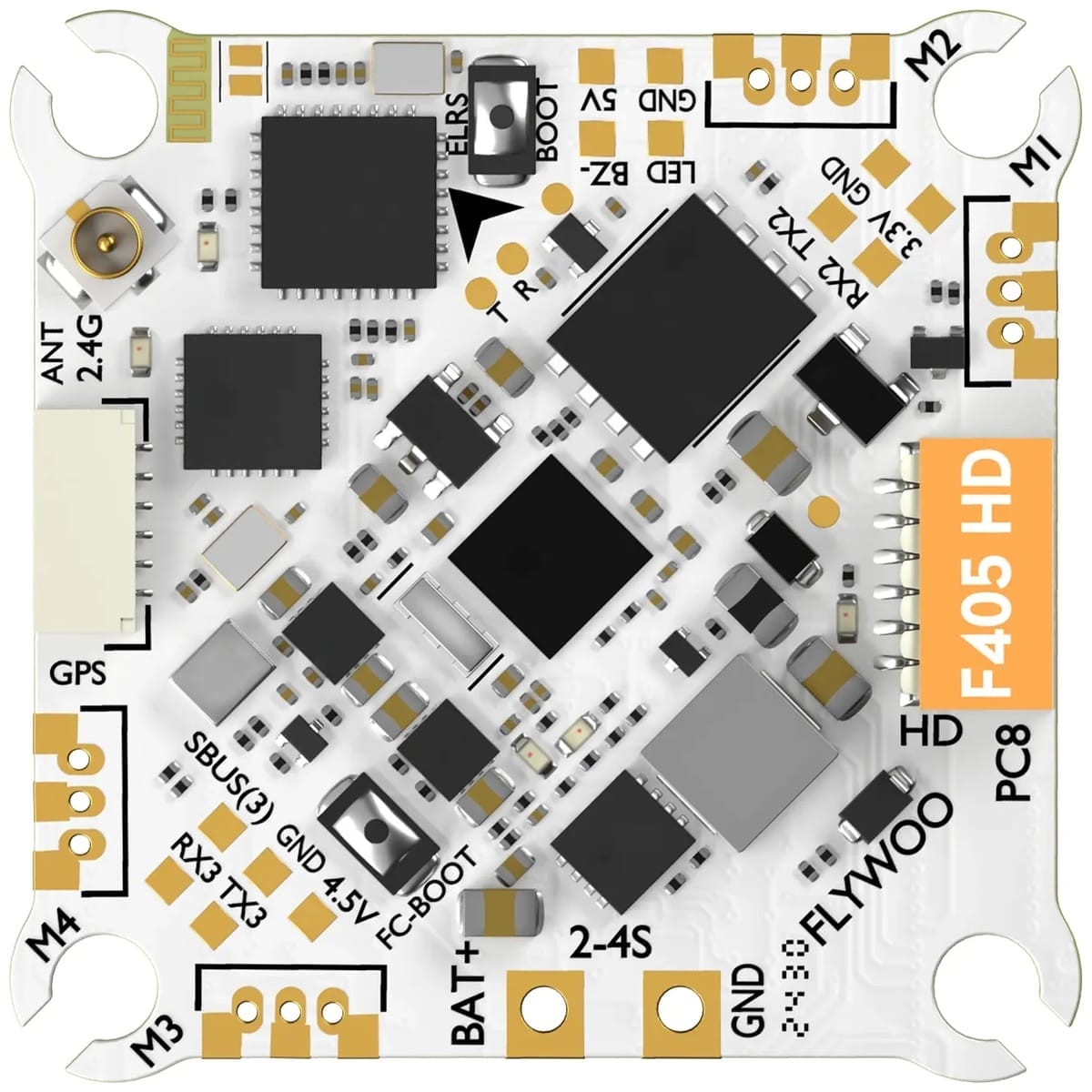

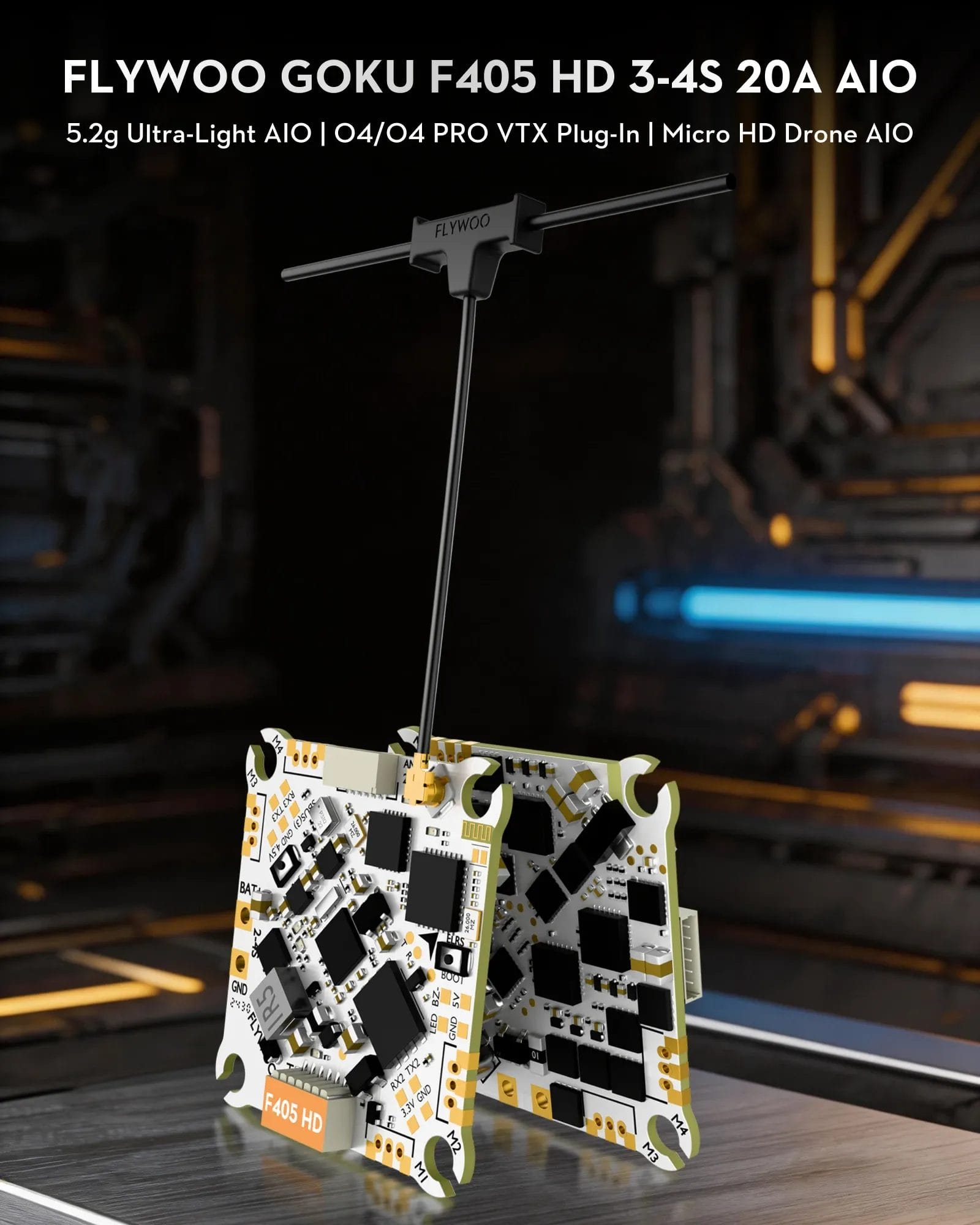

The FLYWOO GOKU F405 HD 3-4S 20A AIO is a compact and ultra-lightweight AIO specifically designed for 3S/4S micro HD drones, weighing only 5.2g and achieving extreme compression while maximizing the performance ceiling. It has a high-performance STM32F405BGA processor, a 20A 4-in-1 ESC, supports O4/O4PRO VTX direct plug-in, has an ELRS 2.4G receiver with TCXO, a 16MB black box, a barometer, a current meter, and an electronic switch. It has black-box expansion and GPS sockets for easy use with peripherals like the GOKU GM10 Nano GPS, and is a one-stop core solution for micro HD racing drones.
ONLY 5 LEFT
Description
Flywoo GOKU F405 HD 3-4S 20A AIO Plug&Play O4 / O4 Pro
The FLYWOO GOKU F405 HD 3-4S 20A AIO is a compact and ultra-lightweight AIO specifically designed for 3S/4S micro HD drones, weighing only 5.2g and achieving extreme compression while maximizing the performance ceiling. It has a high-performance STM32F405BGA processor, a 20A 4-in-1 ESC, supports O4/O4PRO VTX direct plug-in, has an ELRS 2.4G receiver with TCXO, a 16MB black box, a barometer, a current meter, and an electronic switch. It has black-box expansion and GPS sockets for easy use with peripherals like the GOKU GM10 Nano GPS, and is a one-stop core solution for micro HD racing drones.
Features

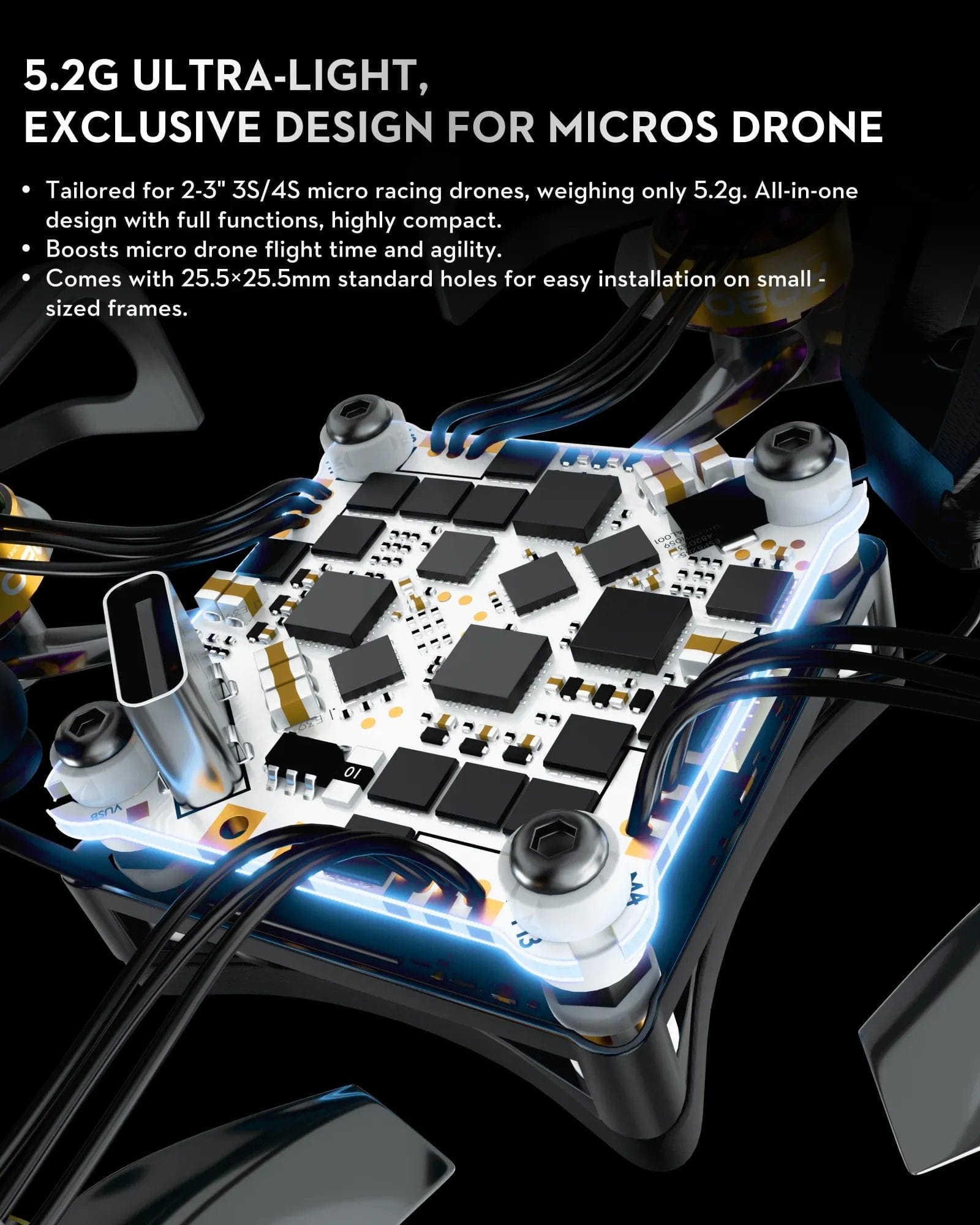

- Ultra-light & compact: for 3S/4S micros, 5.2g, high performance
- Flagship config: STM32F405BGA, 20A 4in1 ESC, suits 3-4S for micro racing
- HD VTX direct plug-in + electronic switch: for O4/O4PRO, no soldering, protects VTX from overheating
- All-in-one: ELRS 2.4G with TCXO, low drift, strong anti-jamming, 16MB black box, barometer, current meter

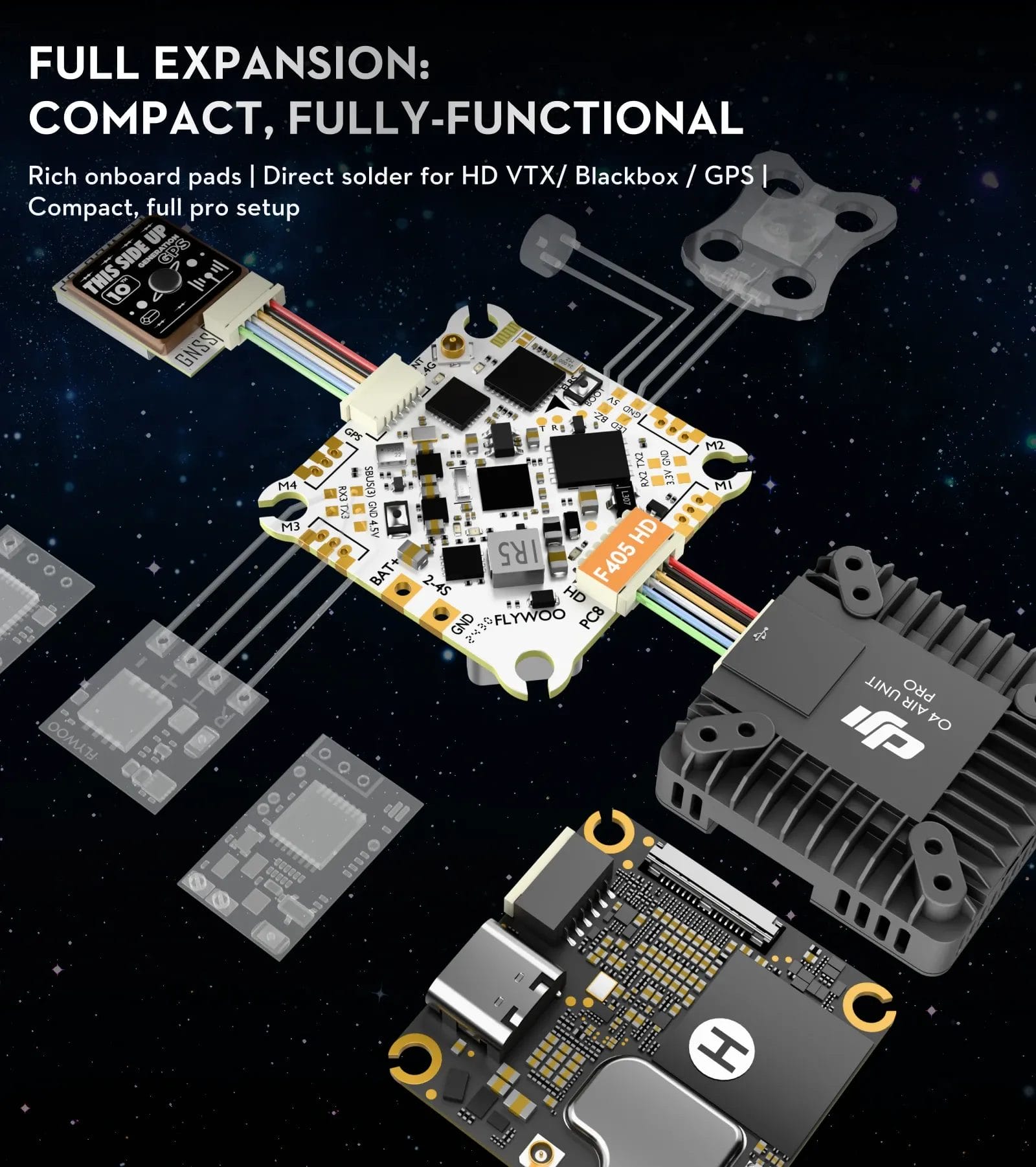

- Flexible expansion: Black box & GPS sockets for GOKU GM10 Nano GPS, no soldering
Specifications
- Product Name: GOKU F405 HD 3-4S 20A AIO

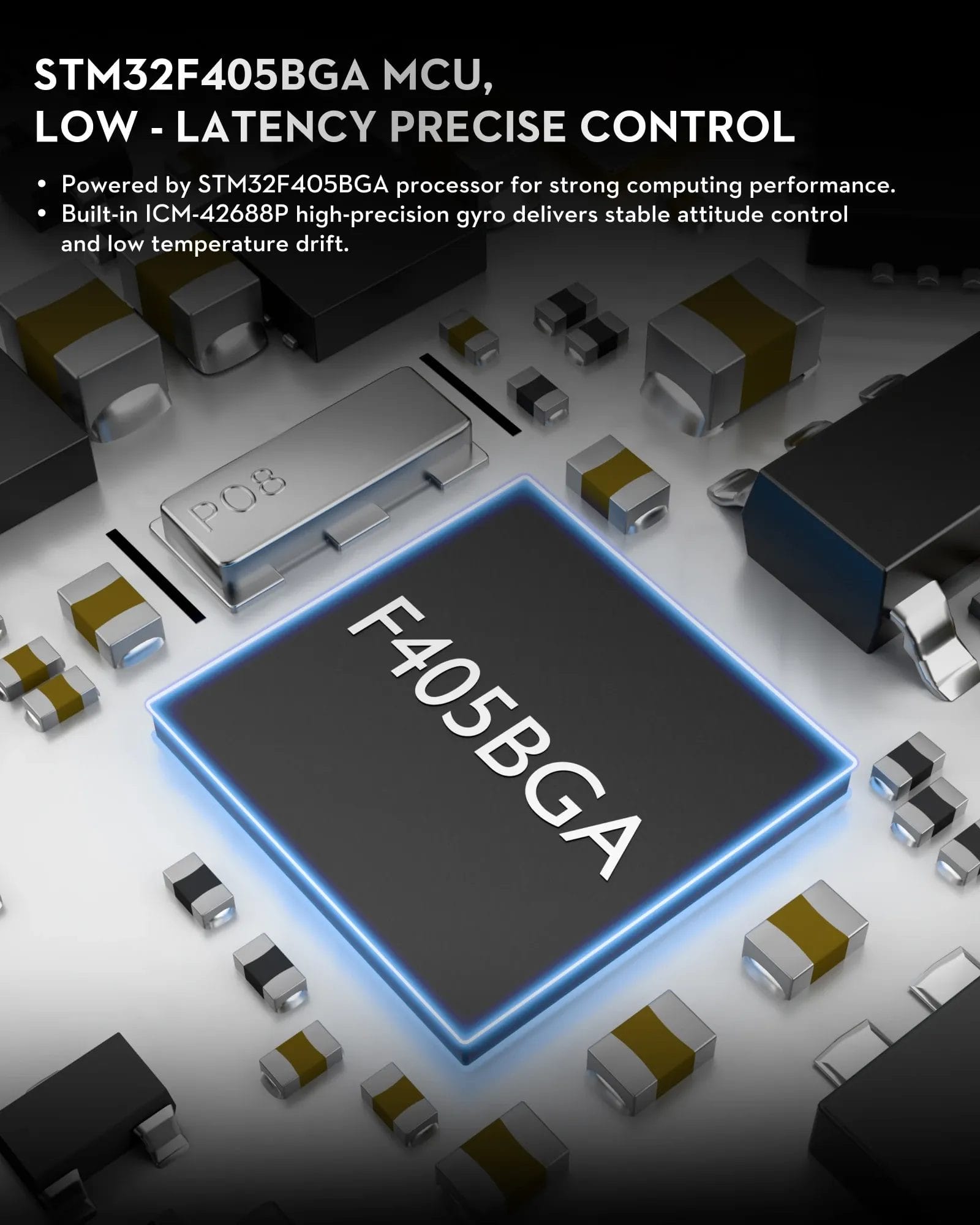

- MCU: STM32F405BGA
- IMU: ICM42688P
- Barometer: SPL06
- Black Box: 16MB
- OSD Support: No
- UART: UART1 (ELRS), 2, 3, 4, UART5 (SBUS), 6
- Protocols: CRSF, SBUS, iBus, Spektrum
- BEC: 5V 2A
- BF Firmware: FLYWOOF405S_AIO
- INAV Firmware: FLYWOOF405HD

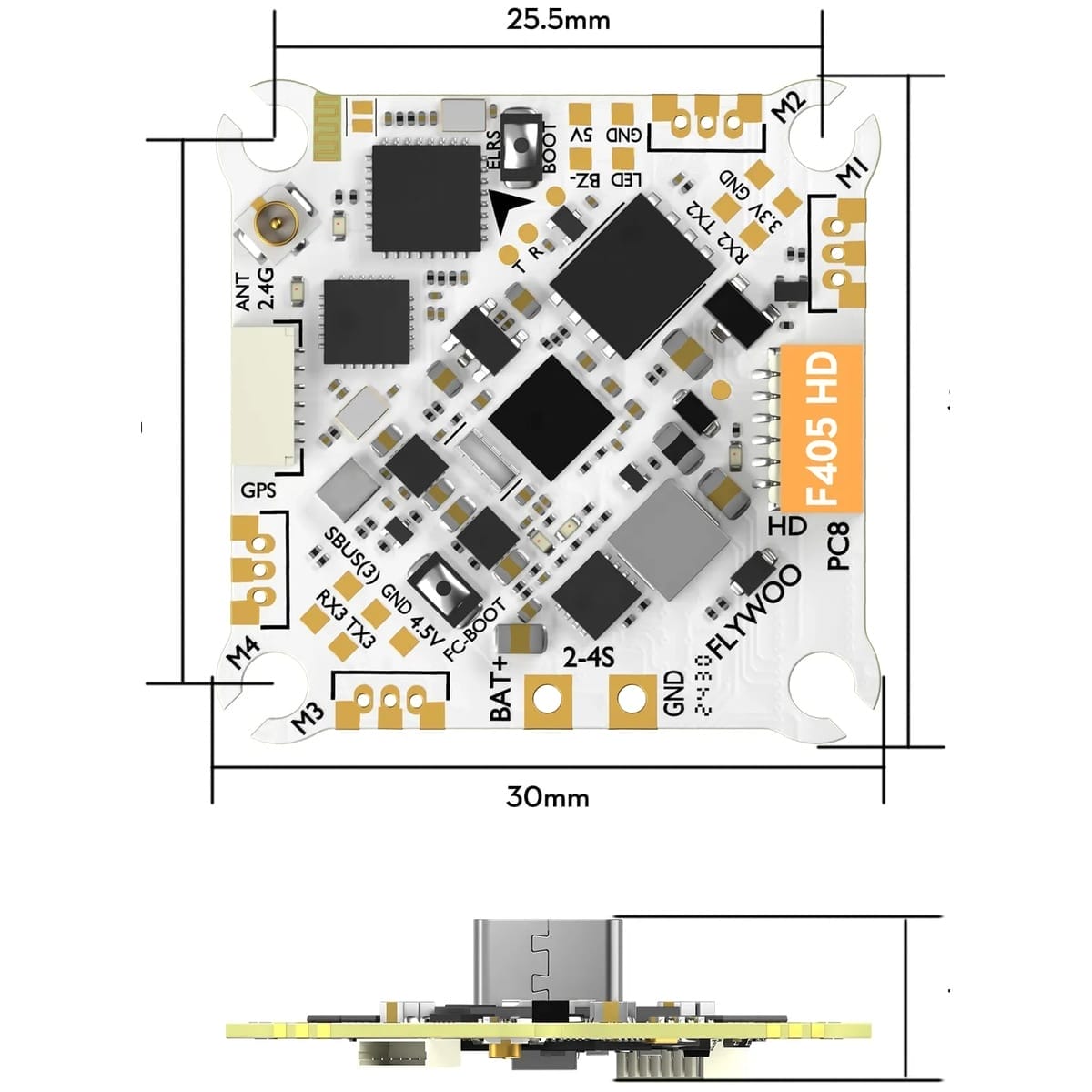

- Dimensions: 30×30mm × 10mm
- Mounting Holes: 25.5×25.5mm

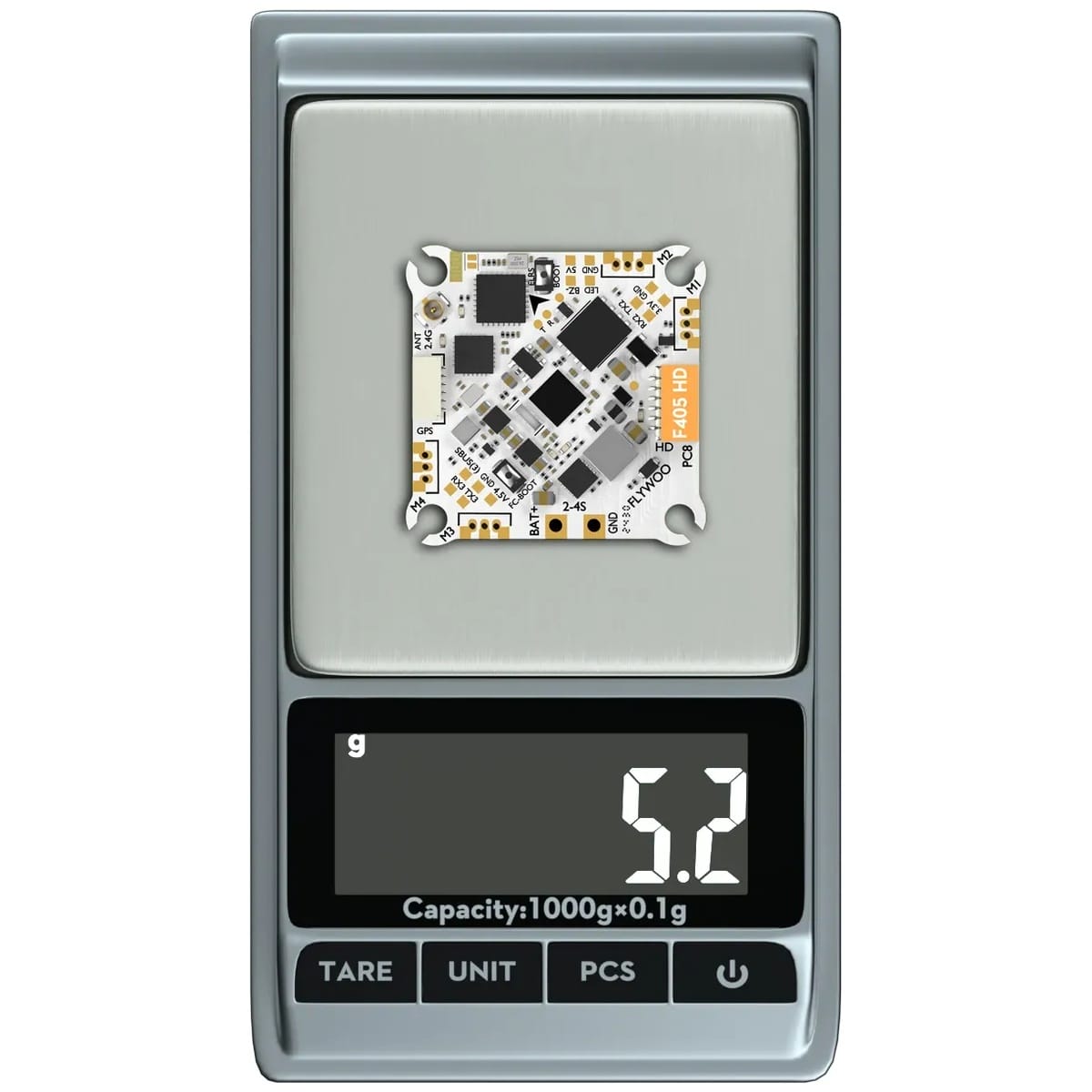

- Weight: 5.2g
- ESC Power Input: 3-4S LiPo/LiHV
- ESC Current: 20A continuous
- ESC Firmware: G_H_30_48KHz_Bluejay
- Digital Signal Protocol: DShot300, DShot600
- Motor Connector: JST1.25
- Battery Connector: XT30
- ELRS MCU: ESP8285
- ELRS RF Module: SX1280IMLTRT
- ELRS Max Refresh Rate: 500Hz
- ELRS Min Refresh Rate: 25Hz
- ELRS Firmware: Flywoo EL24P 2400 RX (3.x.x)
Includes
- 1x GOKU F405 HD 3-4S 20A AIO
- 1x Flywoo ELRS 2.4G Minimortal PCB T Antenna UFL 40mm
- 5x M2×6.6 Shock-absorbing ball
- 1x Connector cable for Flywoo Black Box / GM10 GPS Nano
- 4x M2×10mm screws
- 1x XT30 Power cable
- 1x Connector cable for O4 / O4 Pro
- 1x 220µF 25V Capacitor
- 4x 1.25mm 3-Pin Vertical Straight Socket
