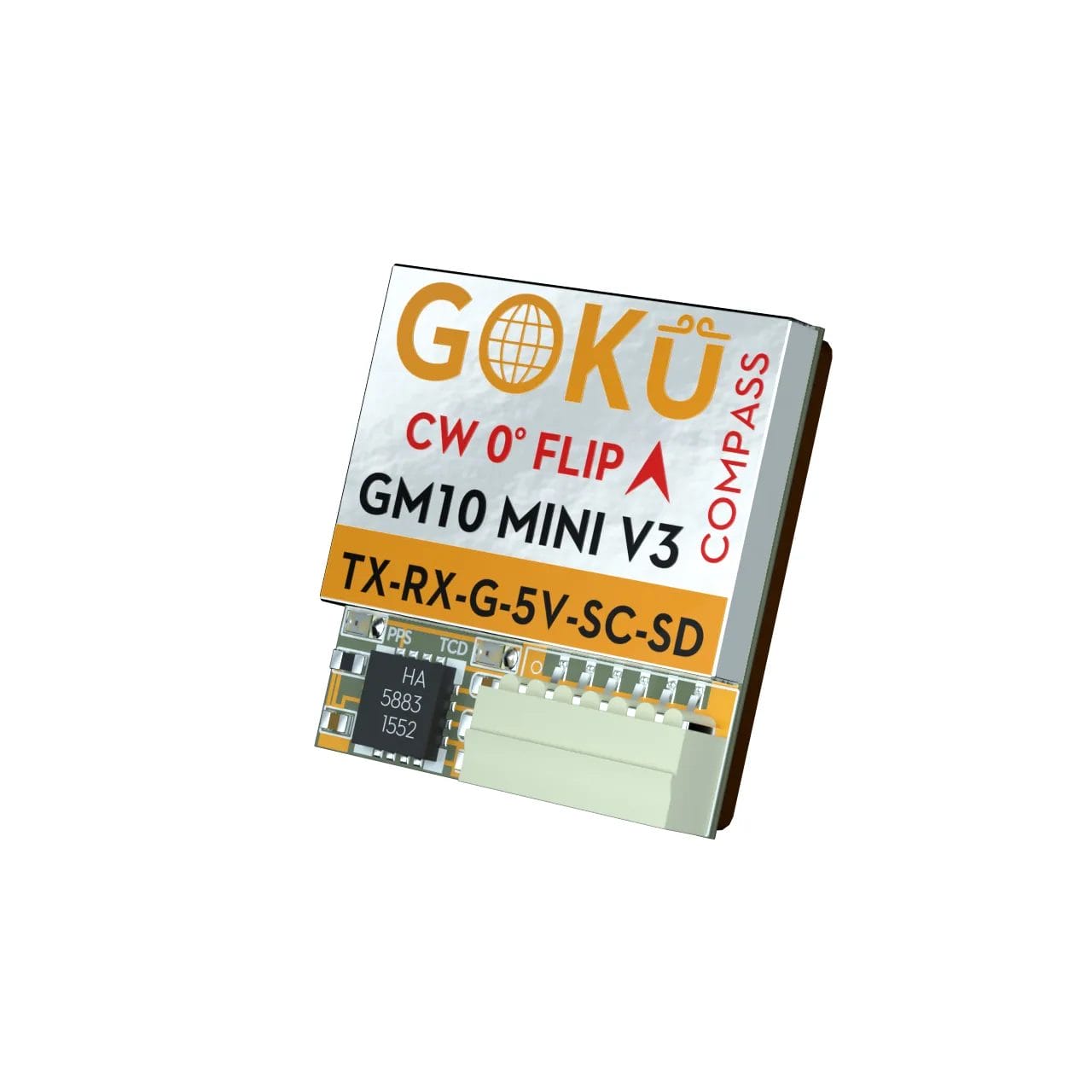

Flywoo Goku GM10 Mini V3 GPS with compass
AU$38.76
The GOKU GM10 Mini V3 GPS w/compass has the same size as the GOKU GM10 Mini V3 GPS, but with the addition of a compass. It is lightweight, weighing only 4.1g. The satellite search speed and maximum search for up to 32 satellites are the same as the GOKU GM10 Mini V3 GPS. If you need a compass function, then the GOKU GM10 Mini V3 GPS w/compass would be a better choice.
Sold out
Description
Flywoo Goku GM10 Mini V3 GPS with compass
The GOKU GM10 Mini V3 GPS w/compass has the same size as the GOKU GM10 Mini V3 GPS, but with the addition of a compass. It is lightweight, weighing only 4.1g. The satellite search speed and maximum search for up to 32 satellites are the same as the GOKU GM10 Mini V3 GPS. If you need a compass function, then the GOKU GM10 Mini V3 GPS w/compass would be a better choice.
Features
- GPS Module,Three Module Compass
- With electronic compass IC QMC5883L
- 1.0mm spacing between the 6pins patch seat
Specifications
Description
- Brand: FLYWOO
- Model: GM10 MINI V3 GPS w/compass
- Dimension :18mm*18mm*4.8mm
- Weight : 4.1g
- Connector : 1.00mm spacing between the 4pins patch seat
Features
- GPS Module,Three Module
- 4pins Pad，ultra light weight
Electrical Characteristics
- Electrical Characteristics
- Chipset : M10050(Tenth Generation Chip)
- Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
- Default Protocol : GPS,Galileo,BeiDou
- Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
- Channels : 72 Searching Channel
Sensitivity
- Tracking : -162dBm
- Reacquisition : -160dBm
Data and Update Rate
- Support Rate : 4800bps to 921600bps,Default 115200bps
- Data Level : TTL or RS-232,Default TTL level
- Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
- Output frequency : 1Hz-10Hz，Default 10Hz
Operational Limits
- Altitude : 50,000m Max
- Velocity : 500m/s Max
- Acceleration : Less than 4g
Power consumption
- VCC : DC Voltage ：5V
- Operating temp : -40 °C ~ +85°C
- Storage Temp : -40°C ~ +105°C
Indicator :
- PPS LED: Yellow. The PPS LED remains unlit when the GPS signal has not been fixed, but starts flashing once the GPS signal has been successfully fixed.
- The Module’s Pins: TX RX GND 5V SCL SDA
Includes
- 1x GM10 Mini V3 GPS w/ Compass
- 1x 150mm Cable
- 1x Copper Foil
