Flywoo Goku H743 PRO 55A AM32 30×30 Stack
AU$174.44

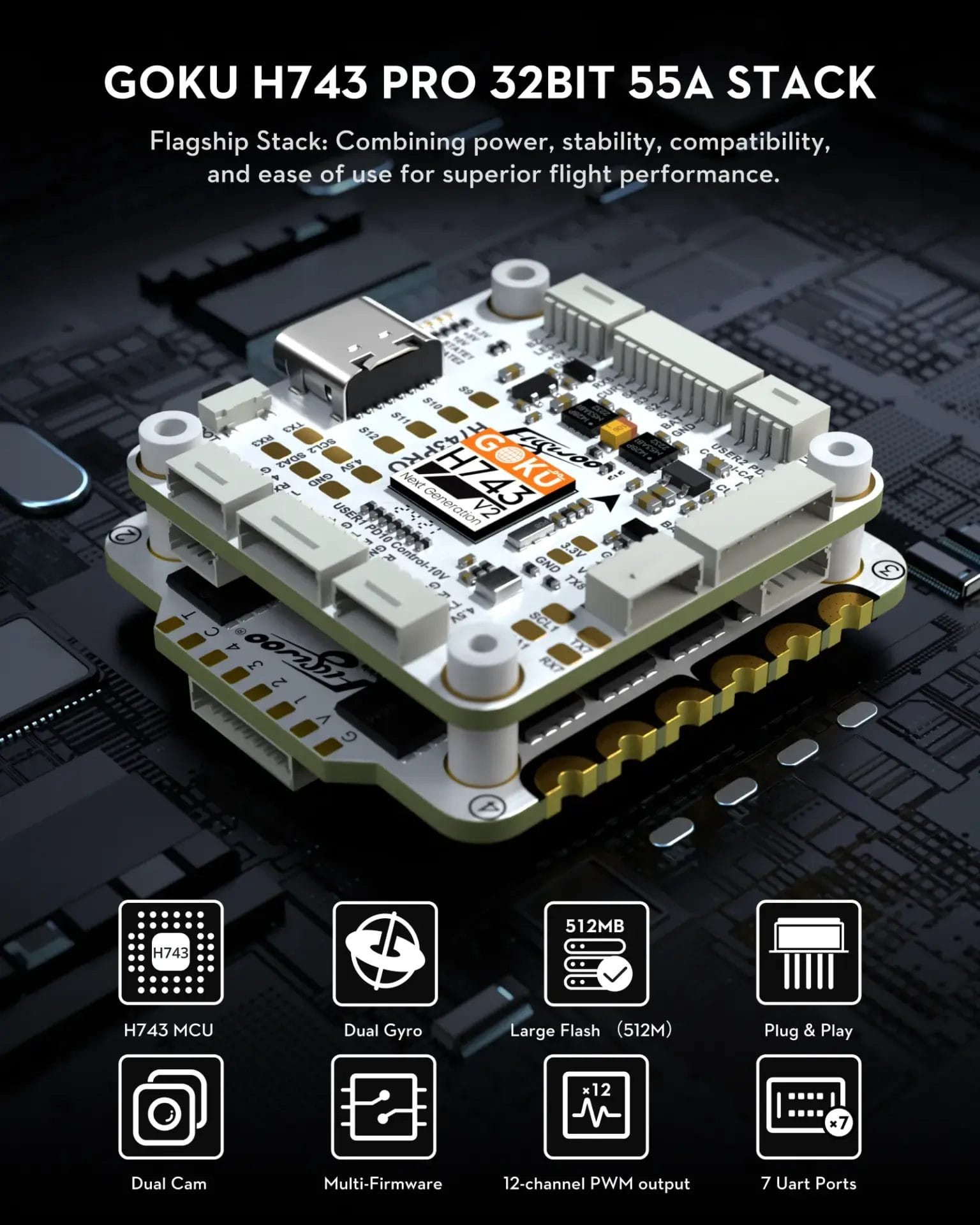

The GOKU H743 Pro 32-bit 55A Stack is Flywoo’s flagship flight controller and ESC combo.
It features an STM32H743VIH6 processor (480MHz Cortex-M7) and dual ICM42688P gyros, along with 512MB of blackbox storage, dual BECs (10V 3A / 5V 3A), and 8 motor outputs for X8 multirotor setups.
The stack supports Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera switching, analog/DJI VTX support, GPS and receiver ports, plus dual ESC connectors for easy wiring.
Paired with the GOKU G55M 55A ESC, it provides fast response and precise handling, ideal for racing, freestyle, and powerful builds.
Sold out
Description
Flywoo Goku H743 PRO 55A AM32 30×30 Stack
The GOKU H743 Pro 32-bit 55A Stack is Flywoo’s flagship flight controller and ESC combo.
It features an STM32H743VIH6 processor (480MHz Cortex-M7) and dual ICM42688P gyros, along with 512MB of blackbox storage, dual BECs (10V 3A / 5V 3A), and 8 motor outputs for X8 multirotor setups.
The stack supports Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera switching, analog/DJI VTX support, GPS and receiver ports, plus dual ESC connectors for easy wiring.
Paired with the GOKU G55M 55A ESC, it provides fast response and precise handling, ideal for racing, freestyle, and powerful builds.
Features
- Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.
- Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.
- Efficient Power: Dual 10V/5V 3A BEC provides stable power for peripherals.
- Versatile I/O: 7 UART ports 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.
- Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
- Massive Storage: 512MB blackbox logs full flight data for analysis.
Specifications
FC
- BetaFlight Firmware: Flywoo H743PRO
- INAV Firmware: Flywoo H743PRO
- APM Firmware:Flywoo H743PRO
- Flash: 2MB
- MCU: STM32H743VIH6
- Gyroscope: ICM42688P*2
- OSD: AT7456E(LGA16)
- Barometer: DPS310/SPL06
- Black Box: 512MB
- UARTS: 1/2/3/4/6/7/8
- I2C:2
- PWM:12
- Input Voltage: 7.4V-26V/2-6S LiPo/Lihv
- BEC: 10V3A/5V3A
- Camera support：CAM1,CAM2

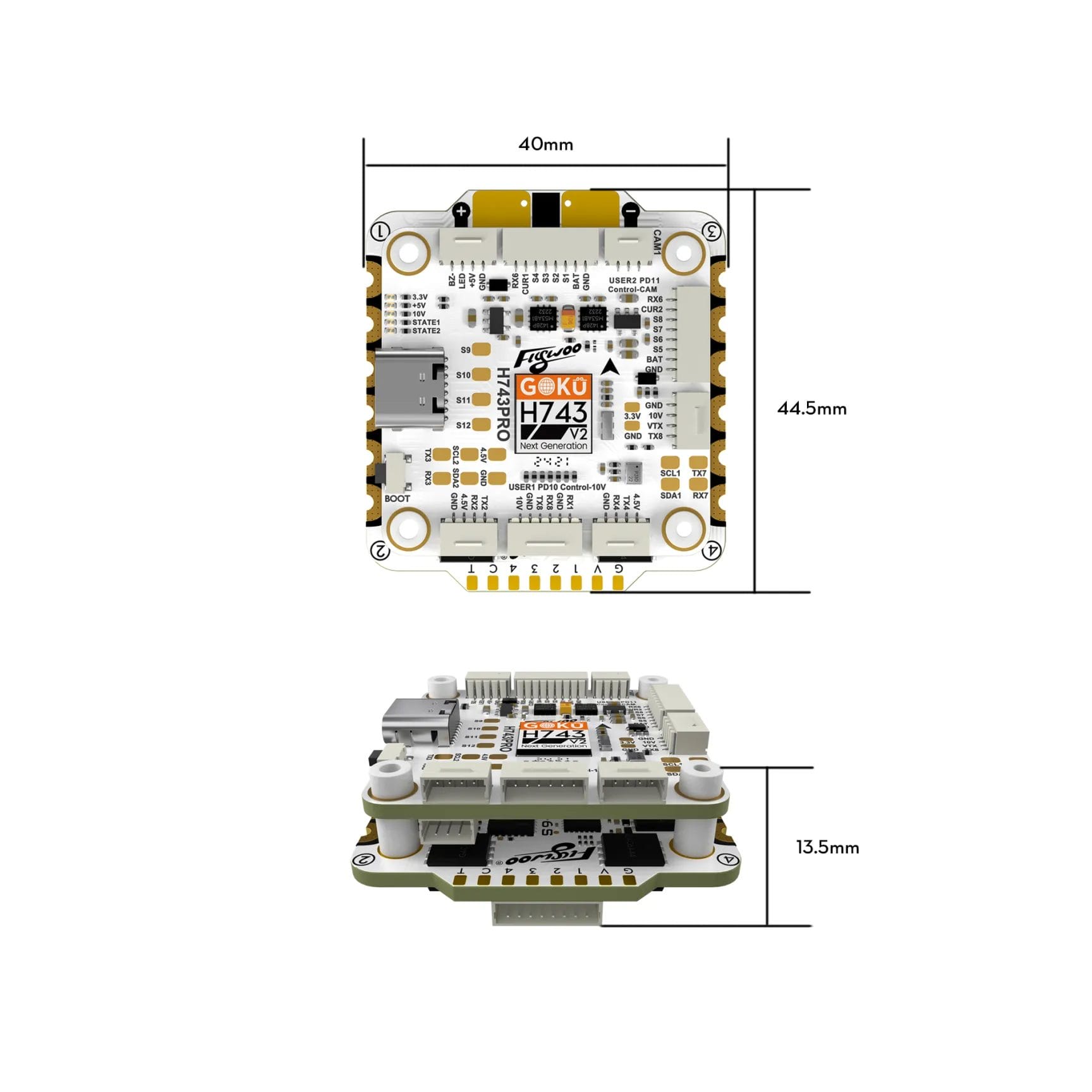

- Flight Controller Size: 36.5mm x 36.5mm x 8.45mm（Height including plug）
- Mounting Holes: M3 30x30mm
- Weight: 9.9g
ESC
- Support AM32
- Support Dshot300, Dshot600
- PWM frequency: 24k-128k
- Input Voltage: 3-6S Lipo
- Continuous Current: 55A
- Firmware:
AM32：AT32DEVF421
- Weight: 15g
Includes
- 1 x FC&ESC Connection Cable
- 1 x DJI O4/O4P Connection Cable
- 1 x Buzzer Connection Cable
- 1 x Receiver Connection Cable
- 1 x GPS Connection Cable
- 2 x Camera Connection Cable
- 1 x Analog VTX Connection cable
- 1 x XT60 Power Cable
- 9 x M3 Shock-Absorbing Ball
- 5 x M3 Rubber Ring
- 1 x Capacitors
- 5 x Nylon studs
- 5 x Anti-Slip Nuts
