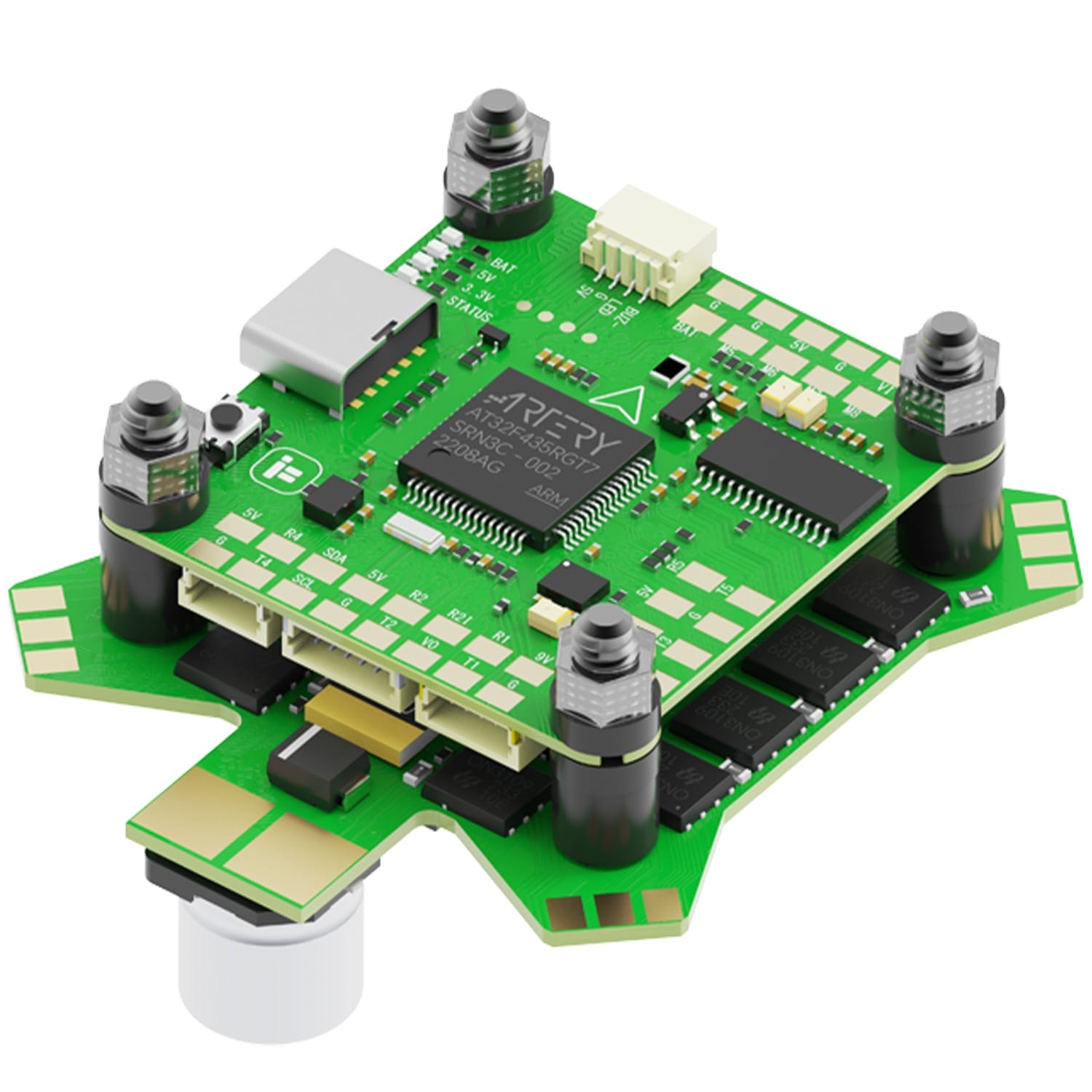

iFlight Blitz ATF435 Stack with E55S 4in1 ESC 30x30mm
Description
iFlight Blitz ATF435 Stack with E55S 4in1 ESC 30x30mm
The iFlight Blitz ATF435 Stack delivers cutting-edge performance, combining a feature-packed flight controller with the reliable E55S 4in1 ESC. Built for freestyle and racing, this stack offers stability, power efficiency, and advanced connectivity for modern FPV needs.
Flight Controller
- MCU: AT32F435RGT7
- Gyro: ICM42688
- Barometer: DPS310
- OSD chip: AT7456E
- Blackbox: 32MB flash
- UARTs: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C: SDA / SCL pads
- VTX control: SmartAudio / IRC Tramp
- LED controller: Yes
- Beeper pad: Yes
- BEC: 5V 2.5A / 9V 2A
- Firmware target: IFLIGHT_BLITZ_ATF435
- Mounting: 30.5×30.5mm, 4mm hole diameter
- Dimensions: 36.5x35mm
- Weight: 7.8g
Wiring Suggestion
- UART 1 for VTX (HD or analog)
- UART 2 for receiver
- UART 3/4/5 for GPS or other serial sensors
- UART 6 for ESC telemetry
ESC
- MCU: BB21
- Input: 2-6S LiPo
- Continuous current: 55A
- Burst current: 65A
- Current sensor: Yes (current rate 200)
- BEC: No
- Protocols: DShot150/300/600, MultiShot, OneShot
- Firmware target: Q-H-25 (BLHeli_S) / Q-H-50 (Bluejay)
- Mounting: 30.5×30.5mm, 4mm hole diameter
- Weight: 14.7g
Includes
- 1 x BLITZ ATF435 Flight Controller
- 1 x BLITZ E55S 4in1 ESC
- 1 x FC connectors
- 1 x silicone grommets
