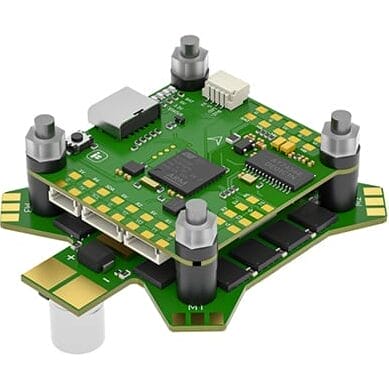

iFlight Blitz F745 Stack (E55 4in1 ESC + F745 FC)

iFlight Blitz F745 Stack (E55 4in1 ESC + F745 FC)
iFlight Blitz F745 Stack (E55 4in1 ESC + F745 FC) - Image 2
iFlight Blitz F745 Stack (E55 4in1 ESC + F745 FC) - Image 3
iFlight Blitz F745 Stack (E55 4in1 ESC + F745 FC) - Image 4

AU$244.35

The iFlight Blitz F745 Stack combines the BLITZ F745 Flight Controller and E55 4in1 ESC, offering a plug-and-play solution with DJI HD compatibility, eliminating the need for soldering. With high-quality components for noise reduction, it supports Betaflight, INAV, and Ardupilot firmware. The F745 FC features an STM32F745 MCU, ICM42688 gyro, DPS310 barometer, and 32MB of flash memory for blackbox data, along with six UART ports for extensive connectivity. The E55 ESC supports 2-6S Lipo, with a constant current of 55 Amps and a burst of 60 Amps.

ONLY 3 LEFT

Earn 733^ points.
Add to Wishlist
Price Match Request
SKU: MF-4165346121 Categories: ,

Description

iFlight Blitz F745 Stack (E55 4in1 ESC + F745 FC)

The iFlight Blitz F745 Stack combines the BLITZ F745 Flight Controller and E55 4in1 ESC, offering a plug-and-play solution with DJI HD compatibility, eliminating the need for soldering. With high-quality components for noise reduction, it supports Betaflight, INAV, and Ardupilot firmware. The F745 FC features an STM32F745 MCU, ICM42688 gyro, DPS310 barometer, and 32MB of flash memory for blackbox data, along with six UART ports for extensive connectivity. The E55 ESC supports 2-6S Lipo, with a constant current of 55 Amps and a burst of 60 Amps.

iFlight logo

Features

  • DJI HD Plug & Play Connector: No soldering required
  • Noise Reduction: High-quality components for significantly reduced noise
  • Firmware Compatibility: Supports Betaflight, INAV, and Ardupilot

Flight Controller: BLITZ F745

  • MCU: STM32F745
  • Gyro: ICM42688
  • Barometer: DPS310
  • OSD Chip: AT7456E
  • Flash Memory: 32MB (for Blackbox data)
  • UART Ports: 6
    • UART1: VTX HD/Analog
    • UART2: Receiver
    • UART3/4/5: GPS or other serial port required sensors
    • UART6: ESC Telemetry
  • Smartaudio / IRC Tramp VTX protocol: Supported
  • LED Controller: Yes
  • Beeper Pad: Yes
  • Firmware Target: IFLIGHT_BLITZ_F7_AIO
  • Mounting Pattern: 30.5×30.5mm
  • Dimensions: 36.5×35 mm
  • Weight: 7.8g
  • BECs:
    • 5V 2.5A
    • 9V 2A

BLITZ E55 4in1 2-6S ESC

  • Mounting Holes: 30.5×30.5mm/Φ4mm
  • Weight: 15.3g
  • Input Voltage: Supports 2-6S Lipo
  • MCU: G071
  • Constant Current: 55 Amps
  • Burst Current: 60 Amps
  • Current Sensor: Yes
  • BEC: No
  • Current Rate: 200
  • Firmware Target: IFLIGHT_BILTZ_G3 32.9
  • Supported Protocols:
    • DShot150/300/600
    • MultiShot
    • OneShot etc.

Includes

  • 1x BLITZ F745 Flight Controller
  • 1x BLITZ E55 4in1 2-6S ESC
  • 1x Set of Dampers
  • 1x Set of Wires for FC

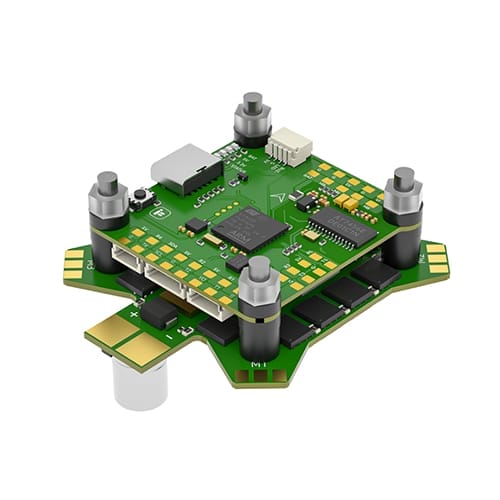

iflight blitz f745 stack e55 4in1 esc f745 fc mantisfpv australia drone showcase display product
